Filtration Equipment

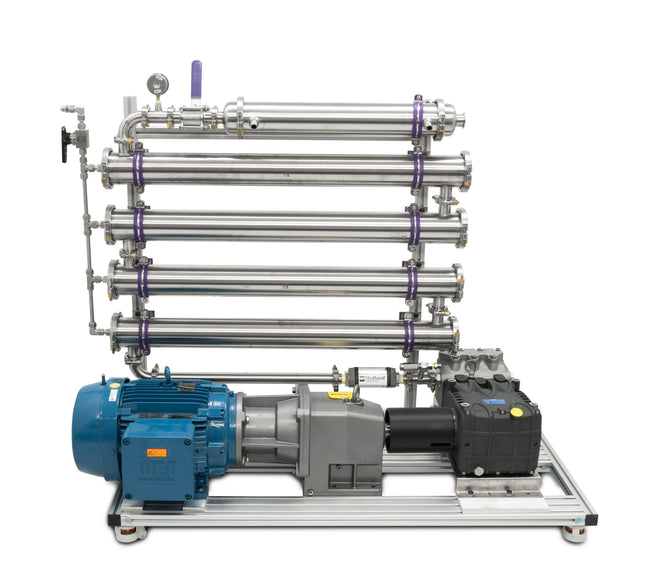

BVV 2540 Nanofiltration Skid Note: This product carries 8 - 12 week lead time   Perform organic solvent recovery or botanical extract decolorization with ease with our 2540 nanofiltration skid. BVV's 2540 Nanofiltration Skid is designed to meet Class 1 Division 1 standards. With the ability to recover 30 gallons of ethanol per hour without the application of heat preserving target compounds and utilizing a fraction of the energy consumption of a traditional falling film.  Processing Power Capacity: 15 GPH or 30 GPH of solvent recovery.  Solvents:  Ethanol, Methanol Specifications 4X 2540 nanofiltration housings Stainless steel 6GPM pump with PTFE seals 7.5HP C1D1 1750 RPM Motor 7.5HP VFD 3/60/230 NEMA 4X enclosure (13A) Insulated 2"x18" Heat Exchanger Polyscience 1.5HP Chiller 230/60/1/23.1 700PSI Pressure Relief Valve C1D1 Flowmeter 2X 0-1000 PSI Pressure Gauges 1.5" Intake & Retentate Lines 1/2" Permeate & Pressure Relief Lines Footprint (DxWxH) 30"x39"x79" Weight: 400 lb Maximum Pressure Rating: 700PSI Performance Variable Frequency Drive-based flow control Complete pressure control with manual pressure controls  Retentate cooling with inline Heat exchanger & chiller 700PSI pressure relief valve with diversion line *Components shown are subject to change**This unit is meant for bulk solvent recovery, 90% of the total volume of solvent an additional solvent recovery apparatus is recommended to evaporate to dryness*

Read more less

  This filter system is designed for high flow rates to filter unwanted precipitates from your oleoresin. The housing provides full enclosure of your filter bags, which are fully supported by the strainer basket within the housing to prevent blowouts. Pressure and high flow rates may be applied to get the fastest flow through filter bags. Using the housing allows full exhaustion of a bag prior to changing it without the sacrifice in filtering time.These filter bag housings use an eye-bolt clamp style to allow for high pressure without leakage, while still maintaining an easy to remove cover. When one filter bag gets filled, it can easily be swapped out by removing the lid while not under pressure and pulling the old bag out. The main seal on the housing is Buna-n rubber. The liquid pump is of 316 Stainless Steel Construction with PTFE seals and runs on compressed air or nitrogen. Built options Include: 1x 304 Stainless Steel Filter Bag Housing 1x 304 Stainless Steel Basket 1x 304 Stainless Steel Displacement Cylinder With Pump options Include: 1x 304 Stainless Steel Filter Bag Housing 1x 304 Stainless Steel Basket 1x 304 Stainless Steel Displacement Cylinder 1x 316 Stainless Steel Liquid pump 10’ PVC hosing 48” Stainless Steel Braided Hose 4x Nomex Filter Bags (1μm, 5μm, 25μm, and 100μm)   Specifications PFS-790-15 PFS-790-45 Flow Rate (GPM) ≤15 ≤45 Max Pressure (PSI) 100 @28 CFM Volume (in^3) 790 Working Temperature (°C) -40 - 100 Air Hose Connection ¼” JIC Flare ½” JIC Flare Filter Bag Housing Dimensions (LxWxH) 14” x 11” x 41” Filter Bag Trade Size #8 Included PVC Hose size ID ¾” 1”   *This unit requires an air compressor for operation (not included)

Read more less

Inline CRC Kit BVV's Inline CRC Kit can be utilized to adapt any 1.5", 2", 3", 4", or 6" diameter material column for inline adsorbent filtration. This kit includes a corresponding sized media column and a filter stack including a 5 micron & 1 micron Dutch Weave Sintered Filter Disc. This Inline color remediation kit is meant to be plumbed between your existing extractors material column and the existing hemispherical reducer of any closed loop hydrocarbon extractor.Assembly starts with placing the 1 micron sintered disk and gasket between the extracts hemispherical reducer and the included filter plate securing both with one of the included high-pressure clamps. Next, take the 5-micron sintered disk and the included ashless filter paper and rip around the circumference of the sintered disk, placing both atop the filter plate placing the sintered disc gasket and media column spool over top before securing both with the remaining high-pressure clamp. Since the spool secures the filter paper in place a filter plate ring is not required. Media can then be layered into the media column by weight before placing the loaded material column above the adsorbent filtration column and assembling the remainder of the extractor. For optimum filtering results utilize the following layer recipe from top to bottom: 30-50g per lb of biomass Silica 60A 75-100g per lb of biomass Bentonite Clay 30-50g per lb of biomass Neutral Activated Alumina This Kit includes: Media column Tri-clamp Spool V3 Filter Plate 5 Micron Sintered Disk 1 Micron Sintered Disk 2X Buna-N Sintered Disc Gaskets 2X High-pressure Clamps Fast Flow Ashless Filter Paper (100qty) 1000 Gram Sample of B80   *This video provides a visual assembly of the 3" Inline CRC which is applicable across all sizes*

Read more less

Color Remediation Column w/ Bypass The CRC is a secondary column used as a filtration cartridge for hydrocarbon and ethanol extraction systems. Filter medias are packed in the column above a triple filtration stack, which aids in the removal of impurities from extracted oils. The CRC features a bypass path, allowing the operator to skip the column in case of a clog. The color remediation process is made simple by bundling the cartridge with the needed filter medias. We have paired the unit with suggested media, supplied in the proper ratio, and a standard operating procedure. The included procedure takes all the guesswork out of filtration, delivering the desired results the first try. Our CRC comes available with 1/4",3/8", and 1/2" MJIC connections, your choice of a 3",4", and 6" diameter spool with a 12" height, and rack mounting brackets standard to accommodate systems of any size. This Kit Includes: Color Remediation Column Rack Mounting Brackets 100 pack of 8 and 20-micron filter papers 1000g or 2.5 kg of Activated Alumina 1000g or 2.5 kg of Silica 60A 1000g or 2.5 kg of Pure-Flo® B80  (81, 5000, 6000 or Color Bleach)*Substitutes 1000g of Celite®545 Instruction Manual

Read more less

This porcelain buchner funnel kit includes a 3.3 borosilicate non-jointed conical flask with side port hose barb, porcelain buchner funnel in either 1000 or 2000ml and a 9 piece rubber cones set to create the seal between the flask and the funnel.   Each kits includes the following: 1000ML: (1) - 1000ml Porcelain Buchner Funnel (1) - 2500ml Conical Flask Filtering with Internal Side Arm (1) - Rubber Cones Set of 9 2000ML: (1) - 2000ml Porcelain Buchner Funnel (1) - 5000ml Conical Flask Filtering with Internal Side Arm (1) - Rubber Cones Set of 9

Read more less

BVV™ Porcelain Buchner Funnel     Buchner funnel Porcelain Labware is used in the chemistry laboratory. It has exceptional resistance to all reagents except hydrofluoric acid and is highly resistant to thermal shock while having a very low coefficient of expansion. To prevent thermal stress cracks on porcelain ware do not exceed a heating/cooling rate of 200°C per hour. To prolong the life of porcelain products: · Follow gradual heating/cooling rates · Use an oven or hot plate and an intermediate step when quicker heating/cooling rates are required · Avoid contact of heated ware with a cold surface · Carefully check labware prior to each use and do not use any product that appears defective With straight sides above the perforated plate. Thick stem. Sizes Available:  1000ml - 5.5" (~140mm) Diameter  2000ml - 7-3/8" (~187mm) Diameter

Read more less

These rubber cones are used for adapting and creating a seal on buchner funnel systems or applications where varying sizes are needed. Color is white and comes with 9 comes the smallest one being a solid stopper.

Read more less

BVV™ Inline Strainer 304 Stainless Steel BVV™ Inline Tri-Clamp strainers are used when filtering solids from liquids in fluid processing systems. The inside of the strainer is perforated with 2mm holes to collect larger solids when filtering and comes with (1) 3" Single pin clamp and (1) 3" silicone Tri-Clamp gasket. It is recommended that a strainer be placed after a pump, as the suction could damage the strainer core.  Specifications Material 304 Stainless Steel Connection Type 1.5" Tri-Clamp Secondary Mesh Perforated Stainless Steel with 2mm Holes

Read more less

4 Inch Stainless Steel Buchner Funnel 4” Buchner Funnel Kit:  This buchner funnel kit adapts to any vessel with a 24/40 joint. The included adapter makes it possible to pull vacuum and use large vessels as a collection. Max internal volume of the buchner funnel is 0.82L, but can be adapted with a larger spool for higher capacity.   This kit features: 4” x 4” 304SS spool with a capacity of 0.82L 4” Tri-Clamp Single Hinge Clamp 4”x1.5” 304SS Hemispherical Reducer 1.5” Tri-Clamp Double Hinged Clamp 4” 5 Micron 304SS Sintered Disc Filter 4” 304SS Filter Plate V2 1.5”x24/40 304SS Adapter 24/40 Glass Inlet Straight Adapter with hose connection   Recommended items: 110MM sized filter paper, 24/40 jointed glass conical flask.  For additional information or questions regarding this kit contact our customer support line.

Read more less

The BVV™ Refinement Filter is a stainless steel filtration system that provides large scale, high flow filtering, with greatly improved functionality compared to a traditional Buchner filter. This includes the Refinement Filter only. Does not include the 20L collection base. Please note, the Refinement filter alone does not have a vacuum port. You must pull vacuum through a secondary vessel if you are not using the 20L collection base. Key Features: Stainless steel design for greater thermal conductivity and improved lifespan Easy to clean and disassemble with Tri-Clamp stainless steel parts Small tabletop footprint with wide mouth design Wide base for stability while pouring Key Specifications: 216 cubic inches of liquid volume (3.5 Liters) Silicone gaskets with high alcohol resistance Drop-In Filter Plate with 100 Mesh Screen 3/8" Stainless steel barb connections Recommended Filter Paper: 180mm

Read more less

The 20 Liter Collection Base allows for vacuum assistance during filtration. It works most efficiently when paired with the Refinement Filter but can be used as a standalone unit. It includes a dedicated vacuum valve and deidcated liquid dip tube valve which allows for direct injection into a rotovap. Key Features: Stainless steel design for greater thermal conductivity and improved lifespan Easy to clean and disassemble with Tri-Clamp stainless steel parts Collection vessel for vacuum and storage of material Liquid dip tube for direct injection into rotary evaporator after filling Key Specifications: 20 Liter Collection Base (12"x12" Welded Bottom Spool w/ 12" Lid) Dedicated Vacuum Valve Dedicated Dip Tube Valve Silicone gaskets with high alcohol resistance 1/4" and (2)3/8" Stainless steel barb connections Polycarbonate sights for easy viewing

Read more less

The BVV™ Refinement Filter is a stainless steel filtration system that provides large scale, high flow filtering, with greatly improved functionality compared to a traditional Buchner filter. Utilizing a collection base for vacuum assistance and storage of material, the Refinement Filter allows for benchtop filtration with a longer lifespan and ease of use. Key Features: Stainless steel design for greater thermal conductivity and improved lifespan Easy to clean and disassemble with Tri-Clamp stainless steel parts Small tabletop footprint with wide mouth design Secondary collection vessel for vacuum and storage of material Liquid dip tube for direct injection into rotary evaporator after filling Includes 5' of 3/8" Tygon and 1/4" Gum Rubber Vacuum Tubing Key Specifications: 216 cubic inches of liquid volume (3.5 Liters) 20 Liter Collection Base Dedicated Vacuum Valve Dedicated Dip Tube Valve Drop-In Filter Plate with 100 Mesh Screen Silicone gaskets with high alcohol resistance 1/4" and (2)3/8" Stainless steel barb connections Polycarbonate sights for easy viewing Operation Instructions: Before beginning filtration, place refinement filter in freezer for best thermal conductivity Place Refinement Filter on bench top and secure mesh or filter paper (paper sold separately) with drop in ring. Place collection base on floor and connect preferred tubing from bottom of refinement filter to the middle port on collection base Attach vacuum system to dedicated vacuum valve Begin to pour solution into filter Close dedicated dip tube valve and start vacuum Once solution has been completely filtered, stop vacuum system and disconnect from dedicated vacuum valve Connect dedicated dip tube valve to injection valve on rotovap Begin rotovap procedure Open dedicated dip tube valve and begin injecting filtered solution into rotovap

Read more less

Benchtop 1 Micron Refinement Filter     Eliminate suspended particles with ease with our 1-micron Refinement filters. Complete with our 1-micron Dutch Weave sintered disk filter plate, these refinement filters provide complete retention of the filter paper,making it impossible for particulate to bypass the paper. Made from the highest-quality 304 stainless steel parts, these benchtop refinement filters are infinitely more robust than your typical porcelain Buchner funnels. They pair nicely with diaphragm vacuum pumps or our spark-free vacuum pumps paired with a cold trap.     Processing Power Funnel Capacity: 5.5 Liters/1.45 Gallons Collection Capacity: 11.35 Liters/3 Gallons     Specifications 6"x12" Funnel Body 6" 1um Dutch Weave Sintered Disk 6" Hemispherical Ring stand 1/4" Full Bore Ball valve  with 1/4" JIC Drain port 3 Gallon Stainless Steel Collection Base with Glass Lid Back Mount Vacuum Gauge 1/4" JIC Butterfly Vacuum Valve 2.5UM 180MM Ashless Filter Paper Nitrile BUNA-N gaskets

Read more less

  Pre-Built 12" Collection Base Double your capacity or configure your own custom system with BVV's Pre-Built 12" Collection base. Available in three different variations to suit your application all models of BVV's Pre-Built 12" Collections Base comes standard with high-pressure clamps, borosilicate sight glasses, and full-bore ball valves. Version 1 is the base model equipped with the standard 12" welded base perfect for cost-conscious applications. Version 2 is equipped with a 12"x12" spool & 12" splatter platter to make extract harvesting a breeze, and Version 3 is the top of the line 12" Colleciton base equipped with a 12" jacketed splatter platter for both optimized solvent recovery and ease of harvesting extract.  Specifications High Pressure Clamps 2X 2" Borosilicate Sight Glasses 1X 125 PSI ASME Safety Valves 1X -30hg-250PSI Compound Pressure Gauge 1X 1/2" JIC Lid Valve 2X 1/4" JIC Lid Valves Maximum Pressure Rating: 125PSI Variations V1 : 12x12 Base (1200X12B) V2: 12" Splatter Platter base (1200X12S+1200SPL) V3: 12" Jacketed Splatter Platter Base (1200X12S+1200FJS)

Read more less

Nitrogen Pressure Filter   Is vacuum filtration bottlenecking your processing? Filter faster with BVV's Nitrogen assisted pressure filters.  Designed for versatility our prebuilt pressure filters come complete with our 1 micron Dutch Weave Sintered disk for ultra-fine filtration. Process continuous or batch-style solutions in half the time compared to most vacuum filtration applications. Specifications 6"x12" or 12"x12" filtration body  1um  Dutch Weave Sintered disc Filter Plate Retention Ring Fast Flow Filter paper Included Solvent dispersal plate 2X Borosilicate Sight Glasses 1X 125 PSI ASME Safety Valves 1X -30hg-250PSI Compound Pressure Gauges 1X 1/2" JIC Lid Valve 2X 1/4" JIC Lid Valves 1X JIC Drain Valve (6NPS: 1/4" 12NPS: 1/2" JIC) Maximum Pressure Rating: 125PSI

Read more less

The BVV™ 5 Gallon Refinement Filter is a stainless steel filtration system that provides large scale, high flow filtering, with greatly improved functionality compared to a traditional Buchner filter. Utilizing a collection base for vacuum assistance and storage of material, the Refinement Filter allows for benchtop filtration with a longer lifespan and ease of use. Key Features: Stainless steel design for greater thermal conductivity and improved lifespan Easy to clean and disassemble with Tri-Clamp stainless steel parts Small tabletop footprint with wide mouth design Secondary collection vessel for vacuum and storage of material Liquid dip tube for direct injection into rotary evaporator after filling Key Specifications: Large 6" Diameter x 12" Long Dewaxing Column 20 Liter Collection Base 5 micron Sintered Stainless Steel Filter Disc 100 Pack of 6" Ashless Filter Paper (BIO-1-180) Dedicated 3/8" Vacuum Valve Dedicated 3/8" Dip Tube Valve Silicone gaskets with high alcohol resistance 3/8" Stainless steel hose barb connections Polycarbonate sights for easy viewing 2" Tri-Clamp Short Sight Glass for Flow Viewing Operation Instructions: Before beginning filtration, place refinement filter in freezer for best thermal conductivity Secure ashless filter paper with filter plate ring Place collection base on floor and connect tubing from refinement filter to to a vacuum pump Attach vacuum system to the dedicated vacuum valve Begin to pour solution into filter Close dedicated dip tube valve and start vacuum Once solution has been completely filtered, stop vacuum system and disconnect from dedicated vacuum valve Connect dedicated dip tube valve to injection valve on rotovap Begin rotovap procedure Open dedicated dip tube valve and begin injecting filtered solution into rotovap

Read more less

The BVV™ Large Refinement Filter is a stainless steel filtration system that provides large scale, high flow filtering, with greatly improved functionality compared to a traditional Buchner filter. Utilizing a collection base for vacuum assistance and storage of material, the Refinement Filter allows for benchtop filtration with a longer lifespan and ease of use. ***Note: Unit will come with 12" Single Pin Clamps for easier assembly/disassembly. Key Features: Stainless steel design for greater thermal conductivity and improved lifespan Easy to clean and disassemble with Tri-Clamp stainless steel parts Small tabletop footprint with wide mouth design Secondary collection vessel for vacuum and storage of material Liquid dip tube for direct injection into rotary evaporator after filling Key Specifications: Large 12" Diameter x 12" Height Funnel with 12" Filtration Plate 40 Liter Collection Base 5 micron Sintered Stainless Steel Filter Disc 100 Pack of Ashless Filter Paper Dedicated 3/8" Vacuum Valve Dedicated 3/8" Dip Tube Valve Silicone gaskets with high alcohol resistance 3/8" Stainless steel hose barb connections Polycarbonate sights for easy viewing 2" Tri-Clamp Short Sight Glass for Flow Viewing Operation Instructions: Before beginning filtration, place refinement filter in freezer for best thermal conductivity Secure ashless filter paper with compression ring Place collection base on floor and connect tubing from refinement filter to to a vacuum pump Attach vacuum system to the dedicated vacuum valve Begin to pour solution into filter Close dedicated dip tube valve and start vacuum Once solution has been completely filtered, stop vacuum system and disconnect from dedicated vacuum valve Connect dedicated dip tube valve to injection valve on rotovap Begin rotovap procedure Open dedicated dip tube valve and begin injecting filtered solution into rotovap

Read more less

XL Refinement Filter       The BVV™ XL Refinement Filter is a stainless steel filtration system that provides industrial scale, high flow filtering, with greatly improved functionality compared to a traditional Buchner filter. Utilizing a collection base for vacuum assistance and storage of material, the XL Refinement Filter allows for industrial filtration with a longer lifespan and ease of use. Key Features: Stainless steel design for greater thermal conductivity and improved lifespan Easy to clean and disassemble with Tri-Clamp stainless steel parts Mobile Rack mounted with wide mouth design **Rack #2 option has extra space to mount additional filters or heat exchangers Secondary collection vessel for vacuum and storage of material Liquid dip tube for direct injection into rotary evaporator after filling Key Specifications: Large 12" Diameter x 24" Long Fully Jacketed Column Massive 20LB (23.5 Gallons / 89 Liters) Fully Jacketed Collection Base 5 micron Sintered Stainless Steel Filter Disc 100 Pack of Qualitative Cellulose Filter Paper Dedicated 3/8" Vacuum Valve Dedicated 3/8" Dip Tube Valve Silicone gaskets with high alcohol resistance 3/8" Stainless steel hose barb connections Polycarbonate sights for easy viewing Jacketed Filter for temperature stability Quick Start Operation Instructions: Before beginning filtration, pre-chill refinement filter for best thermal conductivity Secure ashless filter paper with compression ring connect tubing from refinement filter to a vacuum pump Attach vacuum system to the dedicated vacuum valve Begin to pour solution into filter Close dedicated dip tube valve and start vacuum Once solution has been completely filtered, stop vacuum system and disconnect from dedicated vacuum valve Connect dedicated dip tube valve to injection valve on rotovap Begin rotovap procedure Open dedicated dip tube valve and begin injecting filtered solution into rotovap

Read more less

Large 1-Micron Refinement Filter     Filter large volumes of solutions with ease with our  Large 1-micron Refinement filter. complete with our 1-micron Dutch Weave sintered disk these refinement filters provide complete retention of the filter paper making it impossible for suspended particles to bypass the filter paper. Made from the highest quality 304 stainless steel parts this large refinement filter is built to last making it a great alternative to polypropylene filter trolleys. Our Large 1-Micron Refinement filter is available as a complete kit with and without the a Welch BTpro100 Diaphragm Pump.    Processing Power Funnel Capacity: 22.24 Liters/5.88 Gallons Collection Capacity: 50 Liters/13.2 Gallons Specifications 12"x12" Funnel Body 12" 1um Dutch Weave Sintered Disk 12" Hemispherical Ring stand 1/2" JIC Drain Valve 50L  Stainless Steel Carboy Collection base -30Hg  Vacuum Gauge 1/2" JIC Vacuum Port 3/8" JIC Diptube Valve 1/4" JIC Butterfly Accessory Valve 350MM Ashless Filter Paper Silicone Gaskets

Read more less

 Buchner Filtration Kit This filtration kit is operated by using a vacuum pump to pull the solution through the filter paper to remove particulate. The funnel has a 36" perforated plate to support the filter paper. The 150 liter collection vessel has multiple sight glass ports so that you can easily view inside the vessel as well as hold up a flashlight if needed. The standard lid includes a pressure gauge, KF-25 vacuum port, and a valve to release vacuum pressure or add positive pressure to the vessel. The vessel has a surrounding jacket that can be used to heat or cool the solution within the main vessel, it can even be outfitted with a mixer and recovery system if desired! To build your custom setup, talk to our experienced team of account representatives. This kit includes: 36" Filtration Funnel  150L Jacketed Reactor 1.5" Butyl hose Diaphragm vacuum pump (optional)

Read more less

BVV Tri-Clamp Inline Filter Housing Kit with Free Sample Cartridge Note: Extra Disposable cartridges sold separately. (Click Here for Cartridges) This inline housing allows for implementation of the BVV or AFS filters into many extraction systems.  The BVV filter housing is 2.5" but comes with the adapter flanges for both ends to go inline with a standard 1.5" or 2" tri-clamp system. Kit Includes 1x Free BVV Sample Cartridge (55$ Value!) 2x 2.5" High Pressure Clamps 1x 1.5" or 2" High Pressure Clamp 1x 1.5" or 2" Buna-N Gasket 1x 2.5" Buna-N Gasket 2x Reducers 2.5" to 1.5" or 2" Tri-clamp 1x Cartridge Housing

Read more less

AFS Tri-Clamp Inline Filter Housing for Disposable Color Remediation Cartridges Note: Disposable cartridges sold separately. (Click Here for Cartridges) This inline housing allows for implementation of the AFS filters into many extraction systems.  The AFS filter housing is 2.5" but comes with the adapter flanges for both ends to go inline with a standard 1.5" or 2" tri-clamp system. Kit Includes 2x 2.5" High Pressure Clamps 1x 2.5" Buna-N Gasket 2x Reducers 2.5" to 1.5" or 2" Tri-clamp 1x Cartridge Housing AFS Instruction Manual Download Here   AFS SDS Sheet

Read more less

AFS Tri-Clamp Inline Filter Housing for Disposable Color Remediation Cartridges Note: Disposable cartridges sold separately. (Click Here for Cartridges) This inline housing allows for implementation of the AFS filters into many extraction systems.  The AFS filter housing is 4" but comes with the adapter flanges for both ends to go inline with a standard 2" tri-clamp system. Kit Includes 2x 4" High Pressure Clamps 1x 4" Buna-N Gasket 2x Flat Reducers 4" to 2" Tri-Clamp 1x Cartridge Housing AFS Instruction Manual Download Here   AFS SDS Sheet

Read more less

316L Dutch Weave Sintered Filter Disk **Note: This product comes with Filter Disk and Gasket ONLY. Filter Plate and Spool are NOT included.  Recommended Filter plate click here.  These 316L stainless steel dutch weave filter disks come with a custom made gasket to allow the user to insert filtration between clamping ends of any Tri-Clamp interface. The interface fits so snug, its inherent design prevents any blow-by.    BVV™ 316L Dutch Weave Sintered Filter Disk - Data Sheet   Pressure Ratings w/o any backing support; strait pipe connection: 1.5" 200PSI 2" 200PSI 3" 200PSI 4" 200PSI 6" 50PSI 8" 10PSI *Supporting Back Plate Required P# FP800-V3 10" 10PSI *Supporting Back Plate Required P# FP1000-V3 12" 10PSI *Supporting Back Plate Required P# FP1200-V3

Read more less

316L Dutch Weave Sintered Filter Disk **Note: This product comes with Filter Disk and Gasket ONLY. Filter Plate and Spool are NOT included.  Recommended Filter plate click here.  These 316L stainless steel dutch weave filter disks come with a custom made gasket to allow the user to insert filtration between clamping ends of any Tri-Clamp interface. The interface fits so snug, its inherent design prevents any blow-by.  Sintered Filter Disk Technical Data Sheet Pressure Ratings w/o any backing support; strait pipe connection: 1.5" 200PSI 2" 200PSI 3" 200PSI 4" 200PSI 6" 50PSI 8" 10PSI *Supporting Back Plate Required P# FP800-V3 10" 10PSI *Supporting Back Plate Required P# FP1000-V3 12" 10PSI *Supporting Back Plate Required P# FP1200-V3

Read more less

5 Micron Stainless Steel Sintered Filter Disk with Viton O-ring What is a 5 Micron Stainless Steel Sintered Filter Disk With Viton O-Ring? BVV™ has custom-designed a 5 Micron Stainless Steel Sintered Filter Disk With Viton O-Ring fit to provide you with extreme levels of filtration or refinement. The stainless steel material can stand up to high pressure without tearing or ripping like regular paper filtration media, but, we recommend you use it with a  filter paper on top to prevent clogging and maintain its longevity. Offered as a la carte parts, each of these 5 Micron Stainless Steel Sintered Filter Disks has a Viton O-ring around their outer edges for a snug fit within our Tri-Clamp Spools. This allows you to pressurize the system and force a faster filtration rate than what it was previously capable of.  The Benefits of 5 Micron Stainless Steel Sintered Filter Disk With Viton O-Ring You can’t go wrong with this filter disk model: it successfully combines precise permeability with a high dirt-holding capacity. This means its filtration rate will be accurate whether it’s running at a steady pace or a quicker one. It’s also highly resistant to elevated pressure, temperatures, acidity, and alkalinity, as well as corrosion and abrasion.  The impressive rigidity and stability of the 5-micron stainless steel sintered filter disk with a Viton O-ring gives it a longer length of service than other mediums. Meanwhile, its surface makes it reusable through a simple wash, saving you a lot of time and money over the course of its life. Product Uses Stainless steel sintered filter disks are perfect for advanced screening and refinement processing in a wide variety of application methods. They have been used to desalinate seawater for drinking purposes and sterilize air filtration in breweries. You can find them mixing and purifying gas in chemical fiber as well as filtering pressurized gas for aviation and transportation industries and catalytic gas for the oil industry. Sintered metal filter discs can also remove dust, corrosive liquid, and gases; and perform precious metal catalyst recovery, steam processing, and gas-liquid sparging. See additional industrial sectors disks like these are used in below: Electronics Petroleum and Petrochemical Chemicals Plastics Automotive Environmental Protection Metallurgy Sewage Treatment Pharmaceutical Natural Remedies Food and Beverage Shop all filtration equipment on BVV

Read more less

Replacement Gasket for Dutch Weave Sintered Filter Disks This is a replacement buna-n gasket for dutch weave sintered filter disks.

Read more less

Replacement Gasket for Dutch Weave Sintered Filter Disks This is a replacement Silicone gasket for dutch weave sintered filter disks.

Read more less

This is a replacement Viton O-ring for BVV sintered filter plates.

Read more less

Buchner Filtration Kit This filtration kit is operated by using a vacuum pump to pull the solution through the filter paper to remove particulate. The funnel has a 36" perforated plate to support the filter paper.

Read more less

ErtelAlsop Micro-Cap Filters     1 Micron Grade M-503P Diatomaceous Earth Micro-Cap 1 Micron Grade MC-55CP Carbon Filled Micro-cap With single-use technology on the rise, our new ErtelAlsop MicroCap Laboratory Cabinet has been created to simplify f iltration and separation trials for research and development, as well as, process development laboratories.  This attractive and well organized Cabinet easily stores the filters you require. The MicroCap™ suite of single-use capsules provide a uniquely f lexible line of disposable depth filter products designed for optimizing and developing processes during scale-up and scale-down studies. The MicroCap 22 capsule enables quick and efficient determination of appropriate media grades in providing the best filtration performance as well as required f iltration area to meet process volumes. Each MicroCap Laboratory Cabinet is supplied with forty-eight MicroCap 22 capsules in twelve different grades ranging from a nominal 15 micron to 0.2 micron.  All supplied capsules contain 22.5 cm2 (3.48 in2) of filtration area per capsule.  These easy to use capsules allow users to test a comprehensive range of depth filter media and efficiently determine the right solution for their process needs.   Applications MicroCap capsules are designed for small volume processing of: Primary separations/prefiltration Secondary clarification Cell culture harvest Cell culture clarification DNA removal Endotoxin reduction Host Cell Protien (HCP) reduction Protein aggregate removal Decolorization   Performance The MicroCap Laboratory Cabinet incorporates ErtelAlsop’s MicroCap capsules each containing our high performance XL Series, and select MicroMedia series grades of depth filter media to provide the optimum balance of dirt holding capacity and throughput. Containing a high performance grade of diatomaceous earth filter aid, coupled with a strong positive zeta potential, ErtelAlsop’s XL media capsules provide superior contaminant retention. The XL Series of depth filter media exhibits 2-5 times the throughput of competitive media while maintaining equivalent or better product clarity.   Reliability As with all ErtelAlsop depth filter products the MicroCap capsules provide performance consistency and lot to lot traceability all in an easy-to-use format. All MicroCap capsules are batch tested in order to meet all quality requirements and meet all applicable USP requirements including the Class VI Plastics.    Scalability The MicroCap series of single-use capsules contain six easily scalable sizes of capsules. Additionally each of these capsules readily scale to ErtelAlsop’s 12” and 16” diameter lenticular depth filter modules.

Read more less

Side Mount Tri-Clamp Filter Strainer Tri Clamp strainers are used for filtration of solids from fluid process flows. It is recommended that a strainer be placed before a pump when emptying a centrifuge and the like to not allow large solids to enter and damage a pump. This model has 1.5" Tri-Clamp inlet and outlet ports. Side Mount Inline Strainers Tri Clamp inline strainers mount similar to a spool or elbow with both ends clamped into a tri-clamp fitting. The side mount strainer has a unique characteristic, it can be emptied while still attached just by removing the internal basket as long as it is correctly mounted. Liquid should flow in through the side port and out through the bottom port.

Read more less

2540 Membrane Housing Kit This is a membrane housing kit designed to fit Snyder 2540 membranes. The inner diameter of the housing measured 2.519' (64MM) and measured 46" from end to end. The opposing 1.5" tri-clamp ports protrude 3.5" from the center of the housing and are spaced 42.5" apart measured from the center of each ferrule. This housing kit includes 3" tri-clamp end caps that accept the membrane permeate adapters to perfectly support the membrane within the housing. The permeate adapters include 014 Viton O-rings to perfectly seal the permeate stream from the retentate stream. To complete the housing this kit Includes 2X 3" High pressure Clamps and 2X 3" Silicone gaskets.  Components: 1X 2540 Membrane housing (2X 3" TC ports, 2X 1.5" TC ports 1X 3" Permeate endcap with 3/8" NPT outlet 1X 3" Solid end cap 1X Solid Membrane Insert 1X Membrane Permeate Insert 2X 3" High pressure Clamps 2X 3" Silicone Tri-clamp Gaskets 6X 014 Viton O-Rings

Read more less

Synder NFS Membrane With a pore size ranging between 0.1-10nm, Synder Filtration's nanofiltration membranes enable the passage of water and certain salts through the membrane while effectively retaining multivalent ions, low molecular weight molecules, sugars, proteins, and various organic compounds. A result of extensive research and development, Synder's NFS, NFX, NFW, and NFG nanofiltration membrane products have demonstrated exceptional resistance to fouling, a high level of selectivity, and the physical durability necessary for diverse industrial separation processes. Specifically, NFS, NFX, and NFW exhibit outstanding rejection of MgSO4 and lactose, while NFG is designed to partially remove monosaccharides from oligosaccharides. These nanofiltration membranes, as a whole, have the capacity to significantly reduce levels of hardness, nitrates, sulfates, tannins, turbidity, color, total dissolved solids (TDS), and moderate levels of salt from feed water streams. The proven performance of Synder's nanofiltration membranes makes them well-suited for a broad spectrum of industrial applications including the desolvation of ethanol from botanical extract solutions. BVV utilizes 4X NFS 2540 Membranes inside our Nanofiltration Skid to recovery ethanol at 30 Gallons per hour.   Specifications Polymer: Proprietary PA TFC Approx. Molecular Weight Cutoff: 100-250 DA Typical Operating Flux 30-40 GFD Average Lactose Rejection: 99.5% Average MgSO4 Rejection: 99.5% Average NaCl Rejection: 50% Maximum Operating Pressure <95F/35C: 600PSI/41.4 Bar Maximum Operating Pressure >95F/35C: 435PSI/30 Bar Maximum Pressure Drop per Element: 15PSI/1.0 Bar Maximum Pressure Drop per hosing: 60PSI/4.1 Bar Maximum continuous Operation Temperature: 122F/50C Maximum CIP Temperature: 104F/40C Maximum Temperature Operating pH Range: 3-9.5 Ambient Temperature Operating pH Range: 3-10.5 Maximum Temperature Cleaning pH Range: 2-11 Ambient Temperature Cleaning pH Range: 2-11

Read more less

Synder NFG Membrane With a pore size ranging between 0.1-10nm,Synder Filtration's nanofiltration membranes enable the passage of water and certain salts through the membrane while effectively retaining multivalent ions, low molecular weight molecules, sugars, proteins, and various organic compounds. A result of extensive research and development, Synder's NFS, NFX, NFW, and NFG nanofiltration membrane products have demonstrated exceptional resistance to fouling, a high level of selectivity, and the physical durability necessary for diverse industrial separation processes. Specifically, NFS, NFX, and NFW exhibit outstanding rejection of MgSO4 and lactose, while NFG is designed to partially remove monosaccharides from oligosaccharides. These nanofiltration membranes, as a whole, have the capacity to significantly reduce levels of hardness, nitrates, sulfates, tannins, turbidity, color, total dissolved solids (TDS), and moderate levels of salt from feed water streams. The proven performance of Synder's nanofiltration membranes makes them well-suited for a broad spectrum of industrial applications including the desolvation of ethanol from botanical extract solutions. BVV utilizes 4X NFS 2540 Membranes inside our Nanofiltration Skid to recovery ethanol at 30 Gallons per hour.   Specifications Polymer: Proprietary PA TFC Approx. Molecular Weight Cutoff: 600-800 DA Typical Operating Flux 55-60 GFD Average Lactose Rejection: 60% Average MgSO4 Rejection: 50% Average NaCl Rejection: 10% Maximum Operating Pessure <95F/35C: 600PSI/41.4 Bar Maximum Operating Pressure >95F/35C: 435PSI/30 Bar Maximum Pressure Drop per Element: 15PSI/1.0 Bar Maximum Pressure Drop per hosing: 60PSI/4.1 Bar Maximum continuous Operation Temperature: 122F/50C Maximum CIP Temperature: 104F/40C Maximum Temperature Operating pH Range: 4-9 Ambient Temperature Operating pH Range: 4-10 Maximum Temperature Cleaning pH Range: 3-10 Ambient Temperature Cleaning pH Range: 3-10.5

Read more less

ChemTek - Snow Queen Oil Filtration Create isolate in minutes Redissolve and reformulate Dual Mixer

Read more less

SC Filtration - Depuratore Botanico - Membrane Nano Filtration Solvent Recovery & Winterization System OSN Nano-filtration membrane system for non-thermal solvent recovery, winterization, and terpene isolation. Eliminate the need for a falling film evaporator or other similar equipment, as well as chillers and freezers for cryo extraction and winterization. Our systems are sized for any facility scale so you can run your extraction process without bottlenecks. Reduce your operating costs with our efficient solvent recovery systems. Duplex models allow both winterization/remediation and solvent recovery in one machine. Applications: Non-Thermal Solvent Recovery Winterization: Remove Lipids & Waxes Remove Gums and Phospholipids Remove Water Soluble compounds Remove Sugars Color Remediation Terpene Isolation Sugar Removal Features: As low as 1 Cent (USD) or less per Gallon of clean solvent processed. Up to 60 Gallons Per Hour permeation in ethanol. Low Membrane replacement costs. Long membrane life. Pressures up to 1000 psi and cross-flow up to 9 GPM. Can operate 1 or 4 membranes. All stainless steel construction. Integrated cleaning tank. C1D1 Compliant Explosion Proof USA-made pump. Specification: Power: 19A/230V/3PH 9.5A/460V/3PH 47A/230V/1PH Dimensions LxWxH: 1590mm x 860mm x 1580mm Weight: 1,000 Lbs.

Read more less

SC Filtration Depuratore Botanico R&D- Membrane Nano Filtration Solvent Recovery & Winterization System OSN Nano-filtration membrane system for non-thermal solvent recovery, winterization, color remediation, terpene isolation, and hundreds of other applications including the botanical industry. R&D Sized version for method development and membrane testing. Expect 1-2 liters of permeate per hour. 1/8th the size of a 2540 membrane which scales linearly. By testing your process with this system you can correctly extrapolate what size system is required for a full production version. Applications: Non-Thermal Solvent Recovery Winterization: Remove Lipids & Waxes Remove Gums and Phospholipids Remove Water Soluble compounds Remove Sugars Color Remediation Terpene Isolation Sugar Removal Features: 1812 Membrane Size, One housing. Maximum Flow Rate: 600 L/Hour Minimum Volume: 1 Liter Pressures up to 6.5MPa. Circulation Tank: 10 Liters All stainless steel construction. Integrated cleaning tank. Non Explosion Proof Design USA-made pump. Specification: Power: 110 Volts, 60 Hz 1.5KW

Read more less
