Specialty Fittings
Stainless Steel Butane/Propane Tank Fitting CGA 510
Stainless Steel Butane/Propane Tank Fitting CGA 510 Custom Stainless Steel CGA 510 Butane and Propane Tank Fitting with Viton O-Ring. Specifications: CGA 510 Thread with Viton O-ring seal and either 1/4" MNPT or 1/4", 3/8", 1/2" Flare Material: Stainless Steel
$18.00 - $95.00
Butane/Propane Tank Fitting CGA 510
Custom CGA 510 Butane and Propane Tank Fitting. Removes the need for taping and reduces leak points Specifications: CGA 510 x 1/4" 37° JIC Flared End Material: Brass
$15.00
CGA 555 Gas Fitting
This brass CGA 555 fitting allows the user to adapter to a LPG cylinder with CGA 555 thread type and convert it to either 1/4" or 3/8" MJIC. This item includes: Nut Nipple Cap
$15.00
Leak Free lid Bulkhead w/ o-ring washer and lock nut
1/4" FNPT x 5/16-18 Bulkhead This bulkhead has a 1/4" FNPT threaded adapter and a 5/16-18 threaded screw adapter and is made out of nickel plated brass and comes with a buna-n O-ring, stainless steel washer, and nylon locknut.
$9.00
Cold Trap Flare with washer, O-ring and locknut
Cold Trap Flare with washer, O-ring and locknut This is a replacement Cold Trap Flare with stainless steel washer, Buna-N O-ring and nylon locknut. Connection sizes are 1/4" HVAC Flare with 5/16-18 threaded Stem.
$8.00
KPR Fitting Port Reducer
KPR Fitting Port Reducer The KPR Fitting Port Reducer is made out of 316 stainless steel and reduces the port from 1/2"FJIC to a 1/4" MJIC. The connection type is a 37° JIC with a 7/16-20 UNF rated thread. BVV™ KPR Fitting Port Reducer - Data Sheet
$18.00
BVV/CPS 1/4" FNPT Vacuum Pump Exhaust Adapter
BVV/CPS 1/4" FNPT Vacuum Pump Exhaust Adapter This fitting allows the user to connect a 1/4" NPT fitting to the exhaust for the desired application such as a carbon exhaust filter. It is made of steel and comes with a Viton O-ring.
$20.00
Mastercool 1/4" FNPT Vacuum Pump Exhaust Adapter
Mastercool 1/4" FNPT Vacuum Pump Exhaust Adapter This fitting allows the user to connect a 1/4" NPT fitting to the exhaust for the desired application such as a carbon exhaust filter. It is made of brass and comes with a Viton O-ring. This item will also fit VE115 Vacuum pumps
$10.00
Koby Adapter for BVV Pumps Series
Koby Adapter for BVV Pumps Series This fitting allows the user to connect a 1/4" NPT fitting to the exhaust for the desired application such as a carbon exhaust filter. It is made of steel and comes with a Viton O-ring.
$25.00
3/8" 37 Degree JIC Adapter for TRS21 Recovery Pump - Pair
Includes a Pair of Custom 3/8" 37 degree JIC fittings that adapt on to any TRS21 pump. (Does not include Pump) ***Note: This Adapter SHOULD NOT BE OVERTIGHTENED. Hand Tight with 1/4 Wrench turn will complete the face seal of the O-ring. (PTFE Thread Tape is NOT Required for this connection) ***Note: Always use 2 Wrenches while tightening the hose to the flare to stop the gasket from being crushed.
$28.00
TRS21 Upgraded Compressor head SS ¼” SAE 45D IN and OUT fittings
BVV-9-1 Included in this kit: TRS21 compressor head SS ¼” SAE 45D IN and OUT fittings, Viton o-rings. Use these fittings to replace the OEM brass fittings on your TRS21. The SS fittings minimize and help eliminate bacterial growth in the recovery process.
$28.00
BVV M24 - 1/2" MNPT Huber Adapter
BVV M24 - 1/2" MNPT Huber Adapter This zinc plated adapter is meant to be used on Huber Unistats with male M24 threads to adapt to 1/2" MNPT. These fittings must be used in conjunction with M24 Bonded seal washers to create a complete seal. Bonded Seal Specifications For Thread Type Metric For Gender Male For Thread Size M24 Washer Material Steel Gasket Material Buna-N Rubber Temperature Range -20° to 230° F Thickness 2mm RoHS RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel
$285.00
Huber adapter M16x1f-1/2"m
Huber adapter M16x1f-1/2"m Adapter M16x1 f - R1/2 m Adapter M16x1 f - R1/2 m M16x1 female thread to R1/2 male thread
$135.00
Adapter 8890069 M24x1.5 m to M30x1.5 f
Adapter 8890069 M24x1.5 m to M30x1.5 f 2 Adapters M24x1.5 male to M30x1.5 female
$440.00
Adapter M30x1.5 male to male
Adapter M30x1.5 male to male Adapter M30x1.5 male to male
$190.00
Tool-Less Adapter Assembly
Tool-Less Adapter Assembly This adapter fits on 30mm OD glass flanges. The other side is 1/2" MNPT to connect to various fittings for attaching hoses and like items.
$75.00
Julabo Adapter 8891609 M16x1 f to NPT 1/2″ f
Julabo Adapter 8891609 M16x1 f to NPT 1/2″ f 2 Adapters M16x1 f. to NPT 1/2″ f.
$212.00
Julabo Adapter M16x1 f to NPT 1/2″
Julabo Adapter M16x1 f to NPT 1/2″ 2 Adapters M16x1 f. to NPT 1/2″ m.
$169.00
Adapters M24x1.5 female to NPT 1/2" male
Adapters M24x1.5 female to NPT 1/2" male 2 Adapters M24x1.5 female to NPT 1/2″ male
$301.00
Adapter Kit, For IBC Hose, Includes 3 (2" NPS Female, 2" Camlock, S60x6 Female Buttress), For 26BNZ1
Adapter Kit, For IBC Hose, Includes 3 (2" NPS Female, 2" Camlock, S60x6 Female Buttress), For 26BNZ1 26BNZ4 3 Piece Adapter Kit for IBC Hose 26BNZ1 (IBC Kit w/ 10" Hose & PP Nozzle w/ 1" Camlock Coupler). Kit includes: 1" Camlock adapter x 2" NPS female Easy-Seal 2" Camlock coupler X 1" Camlock adaptor male 1" Camlock adapter x S60X6 female buttress Disclaimer: This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility. ShopBVV does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer's selection and use of containers, container and label dimensions, and/or closures supplied by us.
$39.00

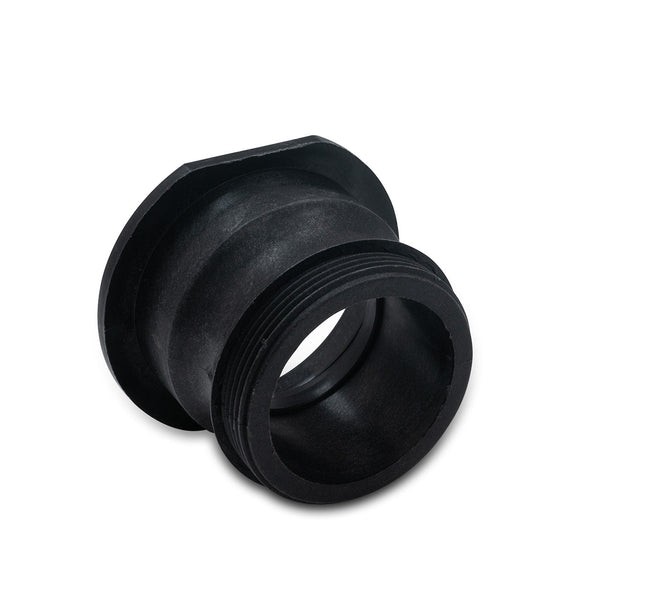

Part A 2" Stubby Metric Cam Lock Adaptor
Part A 2" Stubby Metric Cam Lock Adaptor This adapter converts 2" (50mm) male buttress pipe threads to a 2" male camlock. The adapter incorporates female buttress threads on one end and a male Camlock (also known as a quick-disconnect or QD) on the other for connecting pipes and valves with different ends. Made of tough polypropylene (PP), this adapter also incorporates an ethylene propylene diene monomer (EPDM) gasket for a leak-tight connection. Shallow profile ensures valve does not protrude past IBC tote cage. Key benefits: Converts 2" male buttress pipe thread to a 2" male quick-disconnect 2" long profile does not protrude past IBC cage during transport Combo camlock/NPT end allows use of a shallow NPT cap Made of PP EPDM gasket ensures a secure seal Suitable for use in a wide variety of liquid handling applications Proudly Made in the USA Material: Polypropylene (PP) is a tough plastic that has good chemical resistance. PP is translucent in its natural state but can have a glossy finish when produced with color. Some examples of common products made with PP are dairy and medication containers. Polypropylene is suitable for hot fill applications of up to 165°F and is therefore great for autoclaving. It is not recommended for cold or sub-freezing temperatures. The Cary Company has an assortment of polypropylene plastics available for purchase, such as plastic caps and jars, which have a higher tolerance for chemical products. Disclaimer: This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility. Material PP Dimensions 2.4" Dia. x 1.02" H Weight 0.1 lbs. Case Pack 200 ea. Case Dimensions 15" L x 15" W x 16" H Case Weight 20 lbs. Pallet Pack 4,800 ea. (24 Cases) Pallet Dimensions 40" L x 48" W x 60" H Pallet Weight 480 lbs. Country of Manufacture United States Gasket EPDM Rubber Gasket
$16.00
2" Stubby Buttress to NPT Adaptor
2" Stubby Buttress to NPT Adaptor This adapter converts 2" (50mm) male buttress pipe threads to 2" male NPT pipe threads. The adapter incorporates female buttress threads on one end and male NPT threads on the other for connecting pipes and valves with different ends. Made of tough polypropylene (PP), this adapter also incorporates an ethylene propylene diene monomer (EPDM) gasket for a leak-tight connection. Shallow profile ensures valve does not protrude past IBC tote cage. Key benefits: Converts 2" male buttress pipe thread to a 2" male NPT pipe thread 2" long profile does not protrude past IBC cage during transport Made of PP EPDM gasket ensures a secure seal Suitable for use in a wide variety of liquid handling applications Proudly Made in the USA Material: Polypropylene (PP) is a tough plastic that has good chemical resistance. PP is translucent in its natural state but can have a glossy finish when produced with color. Some examples of common products made with PP are dairy and medication containers. Polypropylene is suitable for hot fill applications of up to 165°F and is therefore great for autoclaving. It is not recommended for cold or sub-freezing temperatures. The Cary Company has an assortment of polypropylene plastics available for purchase, such as plastic caps and jars, which have a higher tolerance for chemical products. Disclaimer: This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility. Material PP Dimensions 2.4" Dia. x 1.02" H Weight 0.135 lbs. Case Pack 200 ea. Case Dimensions 15" L x 15" W x 16" H Case Weight 27 lbs. Pallet Pack 4,800 ea. (24 Cases) Pallet Dimensions 40" L x 48" W x 60" H Pallet Weight 648 lbs. Country of Manufacture United States Gasket EPDM Rubber Gasket Note: Color may vary.
$18.00

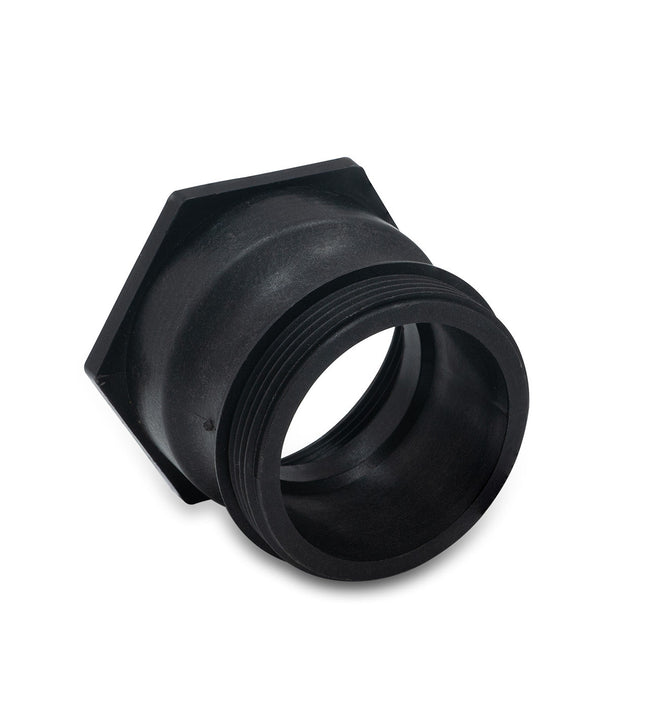

Part A 2" Stubby NPT to Cam Lock Adaptor
Part A 2" Stubby NPT to Cam Lock Adaptor This adapter converts 2" (50mm) male NPT pipe threads to a 2" male camlock. The adapter incorporates female NPT threads on one end and male camlock (also known as a quick disconnect or QD) on the other for connecting pipes and valves with different ends. Made of tough polypropylene (PP), this adapter also incorporates an ethylene propylene diene monomer (EPDM) gasket for a leak-tight connection. Shallow profile ensures valve does not protrude past IBC tote cage. Key benefits: Converts 2" male NPT pipe thread to a 2" male camlock 2" long profile does not protrude past IBC cage during transport Made of PP EPDM gasket ensures a secure seal Suitable for use in a wide variety of liquid handling applications Proudly Made in the USA Material: Polypropylene (PP) is a tough plastic that has good chemical resistance. PP is translucent in its natural state but can have a glossy finish when produced with color. Some examples of common products made with PP are dairy and medication containers. Polypropylene is suitable for hot fill applications of up to 165°F and is therefore great for autoclaving. It is not recommended for cold or sub-freezing temperatures. The Cary Company has an assortment of polypropylene plastics available for purchase, such as plastic caps and jars, which have a higher tolerance for chemical products. Disclaimer: This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility. Material PP Dimensions 2.4" Dia. x 1.02" H Weight 0.1 lbs. Case Pack 200 ea. Case Dimensions 15" L x 15" W x 16" H Case Weight 20 lbs. Pallet Pack 6,000 ea. (30 Cases) Pallet Dimensions 40" L x 48" W x 60" H Pallet Weight 600 lbs. Country of Manufacture United States Gasket EPDM Rubber Gasket
$16.00

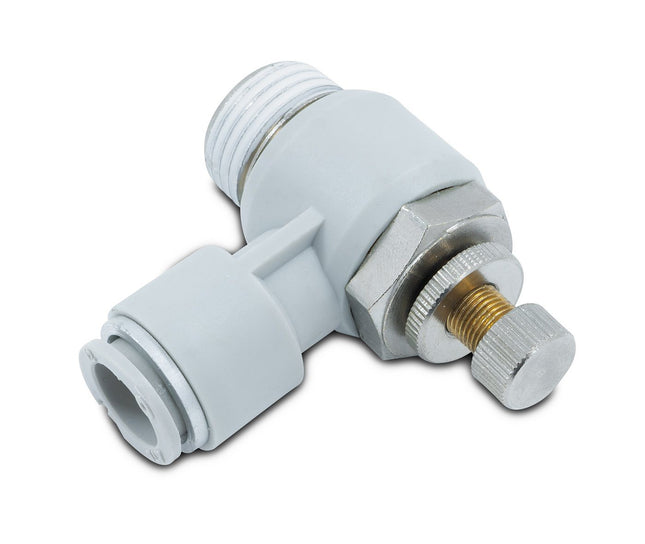

Throttle Valves for Pneumatic Presses
Throttle Valves for Pneumatic Presses Throttle Valve used to control the speed of your pneumatic press. Replace the fitting on the output side of your regulator. Thread Size: 1/2" NPT, Quick Connect Air Hose Size: 12mm
$20.00
10' PVC Hose Kit, PP Nozzle, 1" Female Camlock, for Drums or IBC Totes
10' PVC Hose Kit, PP Nozzle, 1" Female Camlock, for Drums or IBC Totes The 26BNZ1 is an IBC Kit with a 10' PVC hose and Polypropylene (PP) 1" nozzle with 1" camlock couple that dispenses liquids from drums. The kit needs to be used with the 26BNZ4. The 1" OD nozzle has a Viton O-Ring. The dispensing nozzle is hand operated and both the hose and nozzle are resistant towards chemicals. Disclaimer: This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility. The Cary Company does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer's selection and use of containers, container and label dimensions, and/or closures supplied by us.
$160.00
M11x1.0 Regulator for Compressed Gas
Regulator for Compressed Gas Bare Regulator No output Fitting This regulator is designed to fit our compressed gas tanks. Nitrogen, Argon, Helium, Nitrogen & Hydrogen Blend, and Best Whip Nitrous Oxide cylinders. Adjustment knob Is turned on to start gas flow and set desired pressure. Turn clockwise to engages the pin and start the flow of gas. Counterclockwise will retract the pin and stop the flow of gas. Tank Connection: M11x1.0 Output Thread: 1/8" BSPP Made in Italy Regulator Max Pressure Output: 80 PSI Gauges Measure in BAR. Compatible with CO2, Nitrogen, Argon, Nitrogen-Hydrogen mix, Nitrous Oxide and Helium. *The regulator in this listing does not come with hoses, or cylinders or fitting for the output.
$95.00
Male Luer to 1/4 NPT Male Nickle Plated Brass
Male Luer to 1/4 NPT Male, Fitting Material Brass- Nickle Plated.
$17.00

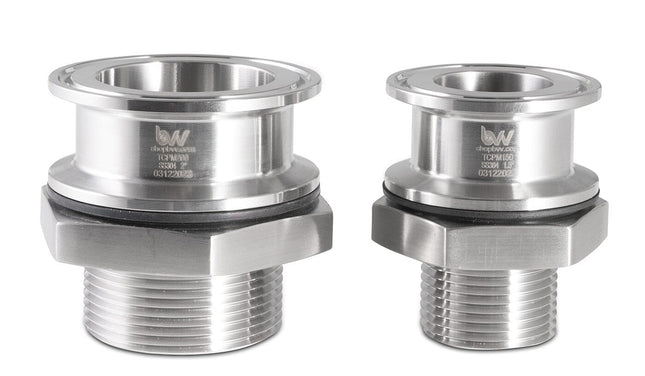

Panel Mount Tri-Clamp with Nut
Panel Mount Tri-Clamp with Nut This tri clamp panel mount can be mounted through a flat panel such as vacuum chamber or tank. It has a silicone or buna-n tri clamp gasket that is placed on the outside of the chamber. It will be able to hold vacuum, but not positive pressure. For best vacuum results, vacuum greases is recommended on the sealing surface of the panel/lid. Max wall thickness: .875" Hole Size: TCPM150- 1.3-1.4" TCPM200- 1.9-2.0" Thread Size: TCPM150- 1" NPS TCPM200- 1.5" NPS
$28.00 - $33.00
1" Camlock adapter x S60X6 Female Buttress
1" Camlock adapter x S60X6 Female Buttress Tote Adapter.
$24.00
M11x1.0 Valve Dispenser for Compressed Gas
Valve Dispenser Thread Size M11x1.0 Pushpin Valve Type Our regulators are threaded and designed to fit our compressed gas tanks. Nitrogen, Argon, Helium, Nitrogen & Hydrogen Blend, and Best Whip Nitrous Oxide cylinders. This dispenser is simply a valve that will install onto the tank and will allow you to slowly or rapidly dispense the gas. The valve has a center pin, when the knob is turned clockwise it will depress the pin in the tank slowly to dispense the gas. You can even remove the valve dispenser when not in use. Compatible with CO2, Nitrogen, Argon, Nitrogen-Hydrogen mix, Nitrous Oxide and Helium. *The valve dispenser in this listing does not come with hoses, or cylinders.
$59.00 - $67.00
