Evaporation

1.5 Gallon Cold Trap (2QT Tank) Dry Ice, Liquid Nitrogen (Comes with 2 Year Limited warranty)   This is a complete cold trap and will come assembled for instant use. This cold trap is made of 304SS MADE IN USA, utilizing Polycarbonate lids for durability, flexibility and chemical resistance to Ethanol and Isopropyl (not compatible with Acetone).   This system is recommended to protect pump from condensable vapors.   This trap comes with an industrial grade, heat cured silicone gasket designed only for our systems. There is nothing of equal quality in the market. The gasket itself is reversible (doubling the life of our system guaranteed) allowing customers to instantly take it off and flip it over. No adhesives are used! The system will maintain a vacuum seal only under vacuum. The vacuum pump will hold the interior 2 quart container for your dry ice slurry in compression with the larger outer lid. The larger outer lid will be held in compression with 1.5 gallon outer container.   The connections on both sides are 1/4" MJIC flares or 1/4" Barbs that will connect to 1/4" HVAC or FJIC stainless steel hose.    The center slurry container has a lid - this lid simply helps prevent evaporation of your slurry.   Temperature rated for -100-160F   This cold trap comes assembled and includes:  (1) 1.5gl high strength stainless steel outer container (made of solid 304 stainless made in USA) (1) 2q interior slurry container (made of solid 304 stainless made in USA) (2) 1/2" thick clear polycarbonate lids (2) industrial grade silicone gasket (1) 1/4" HVAC hose 5' Can withstand max working temps of 392F gasket only 60A durometer density (1) max vacuum -29.5inHg (+/-.5Hg) (2) 1/4" MJIC or Barb Fittings    Outside container internal dimensions: 7.25" diameter X 8.25" tall    To help remove condensable vapors, or when liquid nitrogen traps are not practical, our cold trap is the best option for preventing vapors from getting into your vacuum pump and contaminating it. This 1.5 gallon trap uses polycarbonate lids for durability, flexibility, and chemical resistance. The system doesn’t use adhesives, and comes standard with a reversible gasket for enhanced quality that doubles its life.   Made in the USA, the BVV™ Cold Trap comes with all parts pre-assembled, so you can get to work straight out of the box.   Inside container internal dimension: 4.75" diameter by 6.5" tall

Read more less

Dewar Style Glass Cold Trap The Dewar Style Glass Cold Trap with GL-14 Barb Fittings allows the user to load dry ice into the inner portion of the cold trap from the top to allow maximum condensation temperatures. This protects your vacuum pump and captures any vapors that were lost during evaporation or distillation. Made in the USA. Dewar Style Glass Cold Traps includes the following: Metal Keck Clip Boss Head Lab Stand Chain Clamp 250ml Round Bottom Flask 24/40 Joint 250-500ml Cork Stand Specifications: USA Made 24/40 Male Ground Joint GL-14 8mm Barb Connections OD = 3.8" ID = 2.75" Height = 14.75" *Notice to customers: All units are inspected for broken glassware or parts before leaving BVV™. If the unit arrives damaged (this does not include minor imperfections or scuffs in glassware), the customer MUST contact BVV™ within 72 hours from carrier delivery to file a claim. If the customer DOES NOT contact BVV™ within 72 hours from carrier delivery, then BVV™ cannot issue any replacement(s) or compensation for the item; a new purchase will need to be made for a replacement. **Glassware Safety Disclaimer: BVV™ is not responsible for failure of glassware which must be inspected before and after every use because it may eventually develop imperfections or damage through normal usage, mishandling, and stress caused by temperature variations. If an imperfection or damage is noted while inspecting the glassware DO NOT use the glassware because it can fail causing bodily harm or damage to the surrounding area.**

Read more less

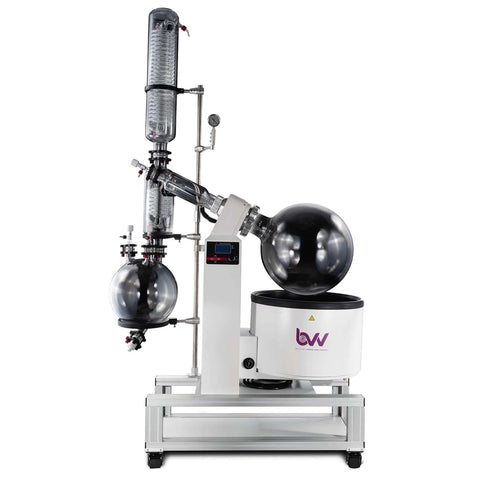

Neocision Rotary Evaporator 10-50L Parts   Miscellaneous replacement parts (non-glass) for 10-50L Neocision Rotary Evaporators, including fixtures for holding glass pieces. Some parts may be universal.

Read more less

1.5 Gallon Cold Trap (2QT Tank) Dry Ice, Liquid Nitrogen - W/GLASS LID    This is a complete Cold Trap and will come assembled for instant use. This Cold Trap is made of 304SS MADE IN USA, utilizing Glass lids for Durability, flexibility and Chemical Resistance to alcohol and solvents.   This system is Recommended to protect pump from condensable vapors.   This Trap comes with an industrial grade, heat cured silicone gasket designed only for our systems. There is nothing of equal quality in the market. The gasket itself is reversible (doubling the life of our system guaranteed) allowing customers to instantly take it off and flip it over. No adhesives are used! The system will maintain a vacuum seal only under vacuum. The vacuum pump will hold the interior 2 quart container for your Dry Ice Slurry in compression with the larger outer lid. The larger outer Lid will be held in compression with 1.5 gallon outer container.   The connections on both sides are 1/4" MJIC flares or 1/4" Barbs that will connect to 1/4" HVAC or FJIC stainless steel hose.    The Center Slurry Container has a lid for it, This lid simply helps prevent evaporation of your slurry.   Temperature rated for -100-160F   This Cold Trap comes assembled and includes:  (1) 1.5gl high strength Stainless steel outer container (made of solid 304 stainless made in USA) (1) 2q interior Slurry Container (made of solid 304 stainless made in USA) (2) 1/2" thick clear Glass lids (2) Industrial grade silicone gasket (1) 1/4" HVAC Hose 5' Can withstand max working temps of 392F gasket only 60A durometer density (1) Max vacuum -29.5inHg (+/-.5Hg) (2) 1/4" MJIC or Barb Fittings    Outside Container Internal Dimensions: 7.25" Diameter X 8.25" Tall    To help remove condensable vapors, or when liquid nitrogen traps are not practical, our Cold Trap is the best option for preventing vapors from getting into your vacuum pump and contaminating it. This 1.5 gallon trap uses Glass lids for durability, flexibility, and chemical resistance. The system doesn’t use adhesives, and comes standard with a reversible gasket for enhanced quality that doubles its life.   Made in the USA, the BVV™ Cold Trap comes with all parts pre-assembled, so you can get to work straight out of the box.   Inside Container Internal Dimension: 4.75 Diameter by 6.5 Tall

Read more less

Cold Trap 4" Stainless Steel This Stainless Steel Cold is designed and intended for use with the Polyscience IP100 Cold Finger (Can also be used with dry Ice) to create a cold trap that can achieve extremely frigid temperatures. These cold traps have 2 1/4" FNPT ports with one having a dip tube to the bottom of the trap to achieve higher vapor condensing rates with the 4" Diameter Center opening for the IP100. This Cold trap also has an insulating vacuum jacket around the entire container to maintain the subzero temperatures and help achieve the maximum minimal temperature of the IP60. Unlike many cold Traps on the market, this one is also made out of 304 Stainless steel and the internal parts are resistant to most chemicals and easily cleaned due to the Tri-Clamp lid design.   Specifications Material 304 Stainless Steel Temperature Rating -200 to 200°C Ultimate Vacuum <100millitorr / microns Cold Finger Internal Dimensions 3.85" x 11.75" (Fits Polyscience IP100) Trap Internal Dimensions 7.85" x 10" Outside Dimensions 10" x 16" x 15" (Includes jacket gauge and valve hardware) Weight 38LBS

Read more less

Replacement Trap for CT40 and CT80 Cold Traps This is a replacement glass trap for the SH Scientific CT40 and CT80 model cold traps. The trap fits in the lid of the cold traps and is suspended in the chilling fluid. Specifications: 3/8" Hose Barb Connection 34/45 Joint 2" Diameter x 10" Height Material: Boro 3.3 *Notice to customers: All units are inspected for broken glassware or parts before leaving BVV™. If the unit arrives damaged (this does not include minor imperfections or scuffs in glassware), the customer MUST contact BVV™ within 72 hours from carrier delivery to file a claim. If the customer DOES NOT contact BVV™ within 72 hours from carrier delivery, then BVV™ cannot issue any replacement(s) or compensation for the item; a new purchase will need to be made for a replacement.  **Glassware Safety Disclaimer: BVV™ is not responsible for failure of glassware which must be inspected before and after every use because it may eventually develop imperfections or damage through normal usage, mishandling, and stress caused by temperature variations. If an imperfection or damage is noted while inspecting the glassware DO NOT use the glassware because it can fail causing bodily harm or damage to the surrounding area.**

Read more less

BVV™ Glass Cold Trap - Ribbed This dewar style glass is designed to increase surface area for maximum vapor condensation and it also has 24/40 or 34/45 jointed connections to increase vapor flow. Note: The bottom joint will always be 24/40. *Notice to customers: All units are inspected for broken glassware or parts before leaving BVV™. If the unit arrives damaged (this does not include minor imperfections or scuffs in glassware), the customer MUST contact BVV™ within 72 hours from carrier delivery to file a claim. If the customer DOES NOT contact BVV™ within 72 hours from carrier delivery, then BVV™ cannot issue any replacement(s) or compensation for the item; a new purchase will need to be made for a replacement.

Read more less

Cold Trap O-ring for Inner Vessel This is a replacement O-ring gasket for the inner vessel of the cold trap to create a seal between the lid and dry ice container. Material: Silicone

Read more less

BVV™ Dewar Glass Cold Trap This dewar style glass is designed for maximum vapor condensation and it also has a 24/40 bottom joint and (2) GL-14 8mm Hose Barbs *Notice to customers: All units are inspected for broken glassware or parts before leaving BVV™. If the unit arrives damaged (this does not include minor imperfections or scuffs in glassware), the customer MUST contact BVV™ within 72 hours from carrier delivery to file a claim. If the customer DOES NOT contact BVV™ within 72 hours from carrier delivery, then BVV™ cannot issue any replacement(s) or compensation for the item; a new purchase will need to be made for a replacement.

Read more less

MAXTRAP105 -105°C Vacuum Cold Trap, 120V       Cascade’s MAXTRAP105 is not an ordinary lab-grade cold trap. Cascade has integrated  features necessary for time-sensitive, high-throughput, production-focused vacuum purging or drying applications.   MAXTRAP105 Cold Trap Includes:   Cascade’s COLDWELL 304 Stainless Steel Trap Insert (Patent pending baffle system)   3 Quart Capacity (2839 ml)   Viton Gasket for Vacuum Integrity   Labconco -105°C Refrigerated Base   Green CFC / HFC Free Refrigerants   Power Cord   3mm Neoprene Insulator Cap   Requires 800ml (~ 3.5 cups) of a transfer fluid such as ethanol. Not Included. Cascade recommends: ethanol, glycol, cryo-cool fluids   Quality Made in USA   1 Year Warranty   Connection Lines and hardware: 4′ of 1″ Diameter Vacuum Tubing with KF-25 Flanges on each side. KF-25 clamps, centering rings for the connection tube     MAXTRAP Tips: Safety   At very cold temperatures, solvents and even oxygen can re-condense back into liquid. This is potentially explosive. Liquid oxygen is a light blue color and can condense into a cold trap if a pump has sucked air through the trap when the trap is very cold. Always follow your standard operating procedures and safety guidelines.   Don’t Stop: Keep Processing while trap is being reclaimed, cleaned, refreshed   Cold traps can become full or the captured material freezes and blocks flow. For high moisture, outgassing, 24 hour processing/vacuum purging consider adding a second, spare COLDWELL trap. The secondary COLDWELL can be dropped into place so processing continues while the full trap is cleaned, defrosted.   Quick Start Up Tips: Remove shipping foam from reservoir bottom prior to use   Fill reservoir with 800ml (+/-3.5 cups) ethanol to marked line   Monitor ethanol levels inside reservoir   Allow at least 30 mins for trap to cool   Keep side vents clear. Allow at least 4″ for airflow   Monitor interior of stainless trap for clogging   Short tube – attach to vacuum pump   Tall tube – attach to vacuum oven   MAXTRAP105 Differences:   The key to quality cold trap performance is: time, surface area, and temperature. Time: Most cold traps have very narrow inlets and outlets, slowing down your process. Not Cascade’s MAXTRAP105! Full KF25 inlet and outlet connections never reduce flow. Surface Area: Most cold traps have glass or a smaller surface area to collect the matter your vacuum pump would otherwise ingest. Cascade’s MAXTRAP105 surface area is a patent pending series of filter baffles inside the COLDWELL stainless trap.   Specifications Coldwell Stainless Trap KF25 Inlet & Outlet 3 Quart Capacity (2839 mliters) Viton Gasket Neoprene Insulator Cap Labconco -105°C Mechanical Base 115V / 1ph / 3 AMP (60Hz) Cord Included CFC / HCFC Free Refrigerants Dimensions inches 24.1 W x 23.9 D x 12.6 H cm 34.3 x 59.7 x 30.5 *Requires approximately 800ml (~ 3.5 cups) of transfer fluid(ethanol, glycol, cryo-cool fluids) Connections 1 each 4′ KF-25 flanged vacuum rated line 1 each KF-25 Centering Ring 1 each KF-25 Clamp Weight COLDWELL Stainless Trap: 14 lbs Mechanical Base: 139 lbs Shipping Weight: 190 lbs     Additional Resources: Download Specs  Download Supplemental Manual  NTRL Certifications  -105C Refrigerated Base  Safety Certification

Read more less

NEOCISION Cold Trap - ETL Rated - (-80c) The BVV™ CT80 Cold Trap is used to condense vapors lost in vacuum applications before they reach the vacuum system. This prolongs the life of the vacuum system, reduces the need to change oil frequently, and efficiently traps vapors otherwise lost to evaporation such as terpenes. The CT80 model reaches a maximum temp of -80°c or -112F under vacuum and contains three traps for maximum efficiency and condensation of vapors. Place in-line between application and your vacuum system. Specifications: Temp Range: -112F to Ambient Internal Dimensions: 180mm Internal Diameter x 210mm Depth (Holds about 1.4 gallons) External Dimensions: 505 x 620 x 750mm Weight: 149lbs Stainless Steel Interior 3x Pyrex Glass Traps 110V Power Please Note: This device is designed for operation on its own independent circuit breaker. For best results, do not use this device on a breaker shared with other equipment.   ***Notice to Customers: All units are inspected for broken glass or parts before the unit is shipped. If unit arrives damaged or glass is broken (this does not include minor imperfections or scuffs in glassware), Customer MUST contact BVV™ within 3 days of delivery to file a claim and receive a replacement part. If customer DOES NOT contact BVV™ within 3 days of delivery responsibility for replacement parts falls on the customer and they must pay for replacement pieces.*** ***Glassware Safety Disclaimer: BVV™ is not responsible for failure of glassware which must be inspected before and after every use because it may eventually develop imperfections or damage through normal usage, mishandling, and stress caused by temperature variations. If an imperfection or damage is noted while inspecting the glassware DO NOT use the glassware because it can fail causing bodily harm or damage to the surrounding area.***

Read more less

NEOCISION Cold Trap with Pump - ETL Rated - (-40c) Looking for a cold trap and small application chiller? The BVV™ CT40 features a 2-in-1 use with a cold trap function and built in circulating system for small batch temperature control.  Cold Trap Function Use the BVV™ CT40 to condense vapors down to -40°C before they reach your vacuum pump. This prolongs the life of the vacuum system, reduces the need to change oil frequently, and efficiently traps vapors otherwise lost to evaporation such as terpenes. Common applications include short path distillation, rotary evaporation, reactor setups, or any other application where volatile vapors can damage your vacuum pump. Chiller Function Use the BVV™ CT40 for small batch temperature control down to -40°C. Switch out the cold trap configuration with solid lid to turn your cold trap into a chiller. Common applications include condensing coils, small vessel setups, heat exchangers. Operating 2-in-1 Simultaneously Use the BVV™ CT40 as a cold trap and chiller. The unit can be used with the cold trap configuration and circulating function simultaneously. Commonly used as for chilling applications with no additional heat load.     BVV™-CTC40-WP Power Requirement AC 110V +/- 10% / 60Hz Relative Humidity < 85% Cooling Capacity 400W Refrigerant R404A Cold Trap Capacity 3 x 300ml Cold Trap Barb Dia. 10mm Reservoir Capacity 6.8L External Dimensions 305 x 485 x 635mm Weight 149 lbs     Call in to see how we can pair this unit with your setup Please Note: This device is designed for operation on its own independent circuit breaker. For best results, do not use this device on a breaker shared with other equipment. ***Notice to Customers: All units are inspected for broken glass or parts before the unit is shipped. If unit arrives damaged or glass is broken (this does not include minor imperfections or scuffs in glassware), Customer MUST contact BVV™ within 3 days of delivery to file a claim and receive a replacement part. If customer DOES NOT contact BVV™ within 3 days of delivery responsibility for replacement parts falls on the customer and they must pay for replacement pieces.*** ***Glassware Safety Disclaimer: BVV™ is not responsible for failure of glassware which must be inspected before and after every use because it may eventually develop imperfections or damage through normal usage, mishandling, and stress caused by temperature variations. If an imperfection or damage is noted while inspecting the glassware DO NOT use the glassware because it can fail causing bodily harm or damage to the surrounding area.***

Read more less

 MAXTRAP50: -50°C Vacuum Cold Trap   There are numerous laboratory grade cold traps on the market and everyone agrees they are a best practice tool for preserving/extending vacuum pump life or the time between vacuum pump maintenance. Cascade’s MAXTRAP50 is not an ordinary lab-grade cold trap. Cascade has taken our extensive knowledge of vacuum best practices and integrated the features necessary for our customers with time-sensitive, high-throughput, production-focused vacuum purging or drying applications.   Complete System Includes:   Cascade’s COLDWELL 304 Stainless Steel Trap – patent pending baffle system.   3 Quart Capacity (2839 mliters)   Viton Gasket   Labconco -50°C Refrigerated Base   Green CFC / HFC Free Refrigerants   KF-25 Inlet/Outlet, 1 each 4′ Connection Line with KF-25 flanges, clamps, centering ring   Power Cord   3mm Neoprene Insulator Cap   Requires 800ml (~ 3.5 cups) of a transfer fluid such as ethanol. Not Included. Cascade recommends: ethanol, glycol, cryo-cool fluids   Quality Made in USA   1 Year Warranty   MAXTRAP Tips:   Safety At very cold temperatures, solvents and even oxygen can re-condense back into liquid. This is potentially explosive. Liquid oxygen is a light blue color and can condense into a cold trap if a pump has sucked air through the trap when the trap is very cold. Always follow your standard operating procedures and safety guidelines.   Don’t Stop: Keep Processing while trap is being reclaimed, cleaned, refreshed Cold traps can become full or the captured material freezes and blocks flow. For high moisture, outgassing, 24 hour processing/vacuum purging consider adding a second, spare COLDWELL trap.   The secondary COLDWELL can be dropped into place so processing continues while the full trap is cleaned, defrosted.      Quick Start Up Tips: Remove shipping foam from reservoir bottom prior to use   Fill reservoir with 800ml (+/-3.5 cups) ethanol to marked line   Monitor ethanol levels inside reservoir   Allow at least 30 mins for trap to cool   Keep side vents clear. Allow at least 4″ for airflow   Monitor interior of stainless trap for clogging   Short tube – attach to vacuum pump   Tall tube – attach to vacuum oven   MAXTRAP50 Differences:   The key to quality cold trap performance is: time, surface area, and temperature.   Time:  Most cold traps have very narrow inlets and outlets, slowing down your process. Not Cascade’s MAXTRAP50! Full KF25 inlet and outlet connections never reduce flow.   Surface Area:  Most cold traps have glass or a smaller surface area to collect the matter your vacuum pump would otherwise ingest. Cascade’s MAXTRAP50 surface area is a patent pending series of filter baffles inside the COLDWELL stainless trap.   Temperature:  Cascade’s MAXTRAP50 features the mechanically refrigerated system built in the USA by Thermo Scientific – a leader in laboratory equipment.     Specifications Coldwell Stainless Trap KF25 Inlet & Outlet 3 Quart Capacity (2839 mliters) Viton Gasket Neoprene Insulator Cap Labconco -50°C Mechanical Base 115V / 1ph / 3 AMP (60Hz) Cord Included CFC / HCFC Free Refrigerants Dimensions inches 13.5 W x 23.5 D x 12.0 H cm 34.3 x 59.7 x 30.5 *Requires approximately 800ml (~ 3.5 cups) of transfer fluid(ethanol, glycol, cryo-cool fluids) Connections 1 each 4′ KF-25 flanged vacuum rated line 1 each KF-25 Centering Ring 1 each KF-25 Clamp Weight COLDWELL Stainless Trap: 14 lbs Thermo Mechanical Base: 60 lbs Shipping Weight: 95 lbs     Additional Resources: Download Specs  Download Supplemental Manual  NRTL Certifications

Read more less

Welch CRVpro Direct Drive Rotary Vane Vacuum Pump CRVpro8 ***Note: This item has a possible 1-2 week lead time depending on stock availability***   Product Details The new CRVpro family of direct drive vacuum pumps offers increased reliability and longer service interval vs. other direct drive rotary vane vacuum pumps. The CRVpro family consumes up to 36% less oil than comparable pumps. Three features drive these benefits:  Runs 10°C cooler than comparable pumps. Slows corrosion.  Has a 40% larger oil capacity than comparable pumps. Dilutes aggressive chemicals.  Has a chemical resistant coating in the oil case and pump module. Protects non-moving parts.  The CRVpro family includes all the features you'd expect in a direct drive rotary vane pump: gas ballast, forced oil lubrication, anti-suckback mechanism and thermal overload protection.  Suitable applications include freeze drying, degassing, vacuum ovens and concentrators. 3081-01 is wired for North American 115V, 60Hz operation. Includes North American line cord, vacuum inlet hose barb suitable for gum rubber hose from 5/8" to 3/4" ID, and a charge of oil.  3082-01 is wired for North American 230V, 60Hz operation. Includes 230V North American line cord, UK cord, and skuko cord, and a charge of oil.  Direct drive pumps are not recommended for filtration, aspiration, drying electrophoresis gels, or other applications requiring sustained operation above 30 torr   Specifications Application CRVpro8 Free Air Displacement @ 60 Hz, cfm (L/min) 5.6 (158) Free Air Displacement @ 50 Hz, m³/hr (L/min) 8 (133) Ultimate Pressure, torr (mbar) 5x10⁻⁴ (4x10⁻⁴) Noise Level, dBA 50 Motor Speed, RPM, @60Hz, @50Hz 1740 (1450) Motor Power, HP (kW) 0.4 (0.5) Oil Capacity, mL 1000 Connection Flanges NW 16 Inlet Hose Connection* 5/8" to 3/4" Weight, lbs (kg) 49.6 (22.5) Dimensions, LxWxH, in (mm) 18.2x6.1x9.1 (463x157x230)

Read more less

Welch DryFast Ultra Diaphragm Pump 2042 This item may carry up to a 5 day lead time. Product Details Chemical Resistant Oil-Free Tuneable Vacuum Welch DryFastTM PTFE Diaphragm Vacuum Pumps enable precise vacuum control for organic evaporations with exclusive Advanced Vapor Management (AVM). Oil-Free, portable, chemical resistant, 2 head diaphragm design simplifies maintenance. Choose from seven dry PTFE vacuum pump models with flows up to 70 L / min and adjustable vacuum down to 2 Torr. Economical DryFastTM vacuum pumps are perfect for tough lab applications.     Specifications Model Number 2042 Application Rotary Evaporation/Distillation (lowvolatility solvents <160oC B.P., ~ 2 Liter), Centrifugal Concentrators, Vacuum ovens (mid- size), pumping harsh vapors & gases Type Laboratory Vacuum Pump Free Air Displacement cfm (l/min.) @60Hz 1.2(35) Free Air Displacement m3/hr (l/min.) @50Hz 1.75(29) Ultimate Pressure 2(2.7) Maximum Vacuum 29.85 Motor Horsepower (watts) 1/5(150) Adjustable Vac. / Gas Ballast Yes Tubing Needed 1/4(7) Intake Thread NPT M14(1/8) Overall Dimensions LxWxH in. (cm) 13.8x6.8x8.8(35.2x7.2x22.3) Ship Weight 25(11.3) Shipping Carton Dimensions LxWxH in. (cm) 21x14x15 (52x35x37) Adjustable Vacuum Knob

Read more less

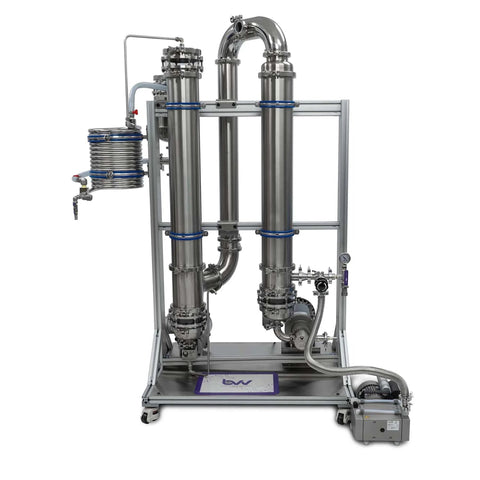

BVV 6" Turnkey Falling Film Evaporator Cutsheet     Is your lab floor filled with a fleet of rotary evaporators? Looking to increase solvent recovery throughput? Our new and compact 20GPH Falling Film Evaporator (FFE) has the capability to maximize throughput and replace up to five 50L Rotary Evaporators. The BVV™ 20GPH Falling Film Evaporator is designed to evaporate ethanol that has been diluted in crude oil during a filtration or extraction process. By reducing the vapor pressure inside the system and metering the injection valve, the user can set the heat exchangers to the appropriate temperatures to efficiently evaporate solvent from their crude oil. We paired our FFE with reliable equipment that will keep operations running. End users are required to plumb the process inlet and outlet connections for both heat exchangers. They are supplied with 1.5” sanitary tri-clamp connections. BVV™ can assist with necessary parts needed for a permanent or temporary installation. Temporary installations may be necessary if your lab has limited fume hoods or space which is shared with other processing equipment. Below you will find key features, additional equipment included with the system and the power requirements for each, and real-life efficiencies that were tested. Key Features: · Compact rack design for use in fume hoods (39”x30”x75.5”) · Vernier scale metering valve for controlled injection · Accurate heater and chiller temperature control · Deep vacuum for effective solvent removal · Discharge pumps to eliminate constant reservoir draining and down time · Chemical resistant vacuum pump · Adaptable discharge outlets to customer preference · Insulation to limit thermal loses and reduce condensation (Not Pictured) · Sanitary tri-clamp and compression fittings · Pre-heat injection coil · Injection distribution plate · Tube in shell heat exchanger for efficient evaporation and condensation · Packable vapor path for reduction of contaminants and cleaner separation · Water reservoir for priming the heating system and expansion during operation · The certified model is 22 State certified by PRV Engineers  and includes an Infield Verification by PRV Engineers within the purchase price. States include but are not limited to: Alabama, Arizona, Arkansas, California, Colorado, Connecticut, Florida, Illinois, Kansas, Louisiana, Maine, Massachusetts, Missouri, Nevada, North Carolina, Oklahoma, Oregon, Texas, Vermont, Washington, West Virginia, and Wyoming Crude Discharge Pump Easily control discharge speed and collect your extract directly from the 3/8" tube via a collection vessel or swage on a fitting of your preference to pump collected extract to a secondary location. Eliminate constant reservoir draining and operate continuously. Metered Solvent Injection Effectively repeat efficiency and throughput with our vernier scale metering valve. Easy to dial in the desired efficiency and throughput desired by the user. Distribution Plate Directs the injected solvent to be evenly distributed across all tubes in the heat exchanger which maximizes the effective heating surface area. Solvent Discharge and Vacuum Pump The solvent discharge pump eliminates the need for a reservoir and allows you to pump recovered solvent to any desired secondary location. The vacuum pump manifold gives you easy vacuum control during the complete operation.   POWER REQUIREMENTS The equipment listed below is included with the system. Check power requirements and amp draw prior to purchasing. Equipment Purpose Power Requirement Amp Draw Notes Hubbell Process Water Heater Heater for Heat Exchanger Column (Evaporation) 240V 3-Phase 87 36kW Heating Capacity Taco ECM High-Efficiency Circulator Water Circulator for Heater 115V 1-Phase 2.5 Max flow rate 52GPM 10hp Polyscience Chiller 230v Chiller for Heat Exchanger Column (Condensation) 230V 3-Phase 78 38.7kW Cooling Capacity 2GPM Ethanol Recovery Pump for Vacuum Pump for Ethanol Recovery Discharge 230V 1-Phase 2.4 2GPM Max Flow Rate, Vacuum Check Valve Beaker and Wrench Explosion Proof Oil Pump Pump for Oil Recovery Discharge 230V 1-Phase 1.1 90L/hr. Max Flow Rate, Vacuum Check Valve Welch BTpro100 Diaphragm Pump Vacuum Pump for System 115 1-Phase 3.4 3.5 CFM, 6 Torr Ultimate Vacuum Total Amp Draw 174.4   EFFICIENCY We are proud to present real data with running parameters and efficiencies that reflect the actual operation of our system. Below you will find the tested throughputs and efficiencies that our FFE is capable of handling. Throughput 11 GPH 18 GPH 20 GPH 22 GPH 24 GPH Efficiency 98% 97% 94% 90% 85% ** Efficiency calculated at 10:1 ratio (Ethanol : Crude Oil) with heater temperature of 160°F. Crude is fully dewaxed when going into the falling film evaporator. Solution starts at room temperature. Speeds may differ based on dilution ratio, crude quality, and running parameters. **

Read more less

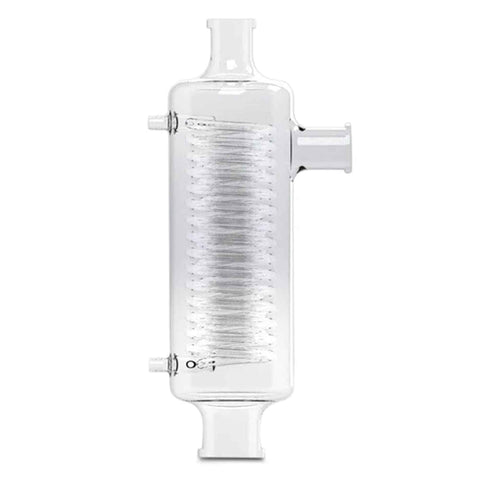

50L Solvent Pro Rotary Evaporator Auxiliary Condenser Replacement Auxiliary Condenser for 50L Solvent Pro Rotary Evaporator

Read more less

Welch CRVpro Direct Drive Rotary Vane Vacuum Pump CRVpro4 ***Note: This item has a possible 1-2 week lead time depending on stock availability*** Product Details The new CRVpro family of direct drive vacuum pumps offers increased reliability and longer service interval vs. other direct drive rotary vane vacuum pumps. The CRVpro family consumes up to 36% less oil than comparable pumps. Three features drive these benefits:  Runs 10°C cooler than comparable pumps. Slows corrosion.  Has a 40% larger oil capacity than comparable pumps. Dilutes aggressive chemicals.  Has a chemical resistant coating in the oil case and pump module. Protects non-moving parts.  The CRVpro family includes all the features you'd expect in a direct drive rotary vane pump: gas ballast, forced oil lubrication, anti-suckback mechanism and thermal overload protection.  Suitable applications include freeze drying, degassing, vacuum ovens and concentrators. 3041-01 is wired for North American 115V, 60Hz operation. Includes North American line cord, vacuum inlet hose barb suitable for gum rubber hose from 5/8" to 3/4" ID, and a charge of oil.  3042-01 is wired for North American 230V, 60Hz operation. Includes 230V North American line cord, UK cord, and skuko cord, and a charge of oil.  3046E-01 comes with an explosion proof motor. Conduit wiring installation required. No cord, plug, or switch provided.  Direct drive pumps are not recommended for filtration, aspiration, drying electrophoresis gels, or other applications requiring sustained operation above 30 torr.    Specifications  Applications CRVpro4 Free Air Displacement @ 60 Hz, cfm (L/min) 2.8 (78) Free Air Displacement @ 50 Hz, m³/hr (L/min) 4 (67) Ultimate Pressure, torr (mbar) 5x10⁻⁴ (4x10⁻⁴) Noise Level, dBA 50 Motor Speed, RPM, @60Hz, @50Hz 1740 (1450) 1750 (1450) Motor Power, HP (kW) 0.4 (0.5) Oil Capacity, mL 1150 Connection Flanges NW 16 Inlet Hose Connection* 5/8" to 3/4" Weight, lbs (kg) 46.3 (21) Dimensions, LxWxH, in (mm) 18.2x6.1x9.1 (463x157x230)

Read more less

WELCH Self-Cleaning Vacuum System 2025 Product Details Automatic Self-cleaning purge maintains efficiency, extends diaphragm life Free air displacement: 35 L/min (1.2 CFM) Incremental ballast switch enables fast response to bumping / foaming Complete oil-free dry vacuum systems for rotary evaporators and concentrators. Corrosion-resistant PTFE diaphragm vacuum pump systems enable superior control and efficiency for each evaporation. Provides controlled solvent stripping in flasks up to 5 L. Use 9 torr Model 2025 for solvents with atmospheric B.P. <120o C. Includes analog gauge and vacuum regulation. Inlet and exhaust separators protect pump and lab atmosphere.    Specification Model Number 2025 Applications Controlled vacuum for Rotary evaporators, Centrifugal concentrators, and other evaporative processes. Type Laboratory Vacuum Pump Free Air Displacement m3/hr (l/min.) @50Hz 1.2(34) Ultimate Pressure 1.7(28) Max Pressure PSIG (pascal) 29.5 Adjustable Vac. / Gas Ballast 1/5 Tubing Needed Yes Intake Thread NPT 1/4 Overall Dimensions LxWxH in. (cm) 13.6x12x11.3 (34.5x30.5x28.7) Ship Weight 36(16.3) Intake Catch Jar Yes Exhaust Catch Jar Yes

Read more less

20L Solvent Pro Rotary Evaporator Main Condenser 20L Solvent Pro Rotary Evaporator Main Condenser   *Notice to customers: All units are inspected for broken glassware or parts before leaving BVV™. If the unit arrives damaged (this does not include minor imperfections or scuffs in glassware), the customer MUST contact BVV™ within 72 hours from carrier delivery to file a claim. If the customer DOES NOT contact BVV™ within 72 hours from carrier delivery, then BVV™ cannot issue any replacement(s) or compensation for the item; a new purchase will need to be made for a replacement.   *Glassware Safety Disclaimer: BVV™ is not responsible for failure of glassware which must be inspected before and after every use because it may eventually develop imperfections or damage through normal usage, mishandling, and stress caused by temperature variations. If an imperfection or damage is noted while inspecting the glassware DO NOT use the glassware because it can fail causing bodily harm or damage to the surrounding area.**

Read more less

5L Solvent Pro Rotary Evaporator Bump Trap Replacement Bump Trap for 5L Solvent Pro Rotary  Evaporator

Read more less

5L Solvent Pro Rotary Evaporator Receiving Flask This receiving flask will fit on BVV 5L solvent pro rotary evaporators.   Connection Sizes: Condenser- 32mm ID/50mm OD 2x Valves- 16mm ID/35mm OD

Read more less

 BVV 6" Falling Film Evaporator Cutsheet     Is your lab floor filled with a fleet of rotary evaporators? Looking to increase solvent recovery throughput? Our new and compact 20GPH Falling Film Evaporator (FFE) has the capability to maximize throughput and replace up to five 50L Rotary Evaporators. The BVV™ 20GPH Falling Film Evaporator is designed to evaporate ethanol that has been diluted in crude oil during a filtration or extraction process. By reducing the vapor pressure inside the system and metering the injection valve, the user can set the heat exchangers to the appropriate temperatures to efficiently evaporate solvent from their crude oil. We paired our FFE with reliable equipment that will keep operations running. End users are required to plumb the process inlet and outlet connections for both heat exchangers. They are supplied with 1.5” sanitary tri-clamp connections. BVV™ can assist with necessary parts needed for a permanent or temporary installation. Temporary installations may be necessary if your lab has limited fume hoods or space which is shared with other processing equipment. Below you will find key features, additional equipment included with the system and the power requirements for each, and real-life efficiencies that were tested. Key Features: · Compact rack design for use in fume hoods (39”x30”x75.5”) · Vernier scale metering valve for controlled injection · Accurate heater and chiller temperature control · Deep vacuum for effective solvent removal · Discharge pumps to eliminate constant reservoir draining and down time · Chemical resistant vacuum pump · Adaptable discharge outlets to customer preference · Insulation to limit thermal loses and reduce condensation (Not Pictured) · Sanitary tri-clamp and compression fittings · Pre-heat injection coil · Injection distribution plate · Tube in shell heat exchanger for efficient evaporation and condensation · Packable vapor path for reduction of contaminants and cleaner separation · Water reservoir for priming the heating system and expansion during operation Crude Discharge Pump Easily control discharge speed and collect your extract directly from the 3/8" tube via a collection vessel or swage on a fitting of your preference to pump collected extract to a secondary location. Eliminate constant reservoir draining and operate continuously. Metered Solvent Injection Effectively repeat efficiency and throughput with our vernier scale metering valve. Easy to dial in the desired efficiency and throughput desired by the user. Distribution Plate Directs the injected solvent to be evenly distributed across all tubes in the heat exchanger which maximizes the effective heating surface area. Solvent Discharge and Vacuum Pump The solvent discharge pump eliminates the need for a reservoir and allows you to pump recovered solvent to any desired secondary location. The vacuum pump manifold gives you easy vacuum control during the complete operation.   POWER REQUIREMENTS The equipment listed below is included with the system. Check power requirements and amp draw prior to purchasing. Equipment Purpose Power Requirement Amp Draw Notes 2GPM Ethanol Recovery Pump for Vacuum Pump for Ethanol Recovery Discharge 230V 1-Phase 2.4 2GPM Max Flow Rate, Vacuum Check Valve Beaker and Wrench Explosion Proof Oil Pump Pump for Oil Recovery Discharge 230V 1-Phase 1.1 90L/hr. Max Flow Rate, Vacuum Check Valve Welch BTpro100 Diaphragm Pump Vacuum Pump for System 115 1-Phase 3.4 3.5 CFM, 6 Torr Ultimate Vacuum Total Amp Draw 6.9   EFFICIENCY We are proud to present real data with running parameters and efficiencies that reflect the actual operation of our system. Below you will find the tested throughputs and efficiencies that our FFE is capable of handling. Throughput 11 GPH 18 GPH 20 GPH 22 GPH 24 GPH Efficiency 98% 97% 94% 90% 85% ** Efficiency calculated at 10:1 ratio (Ethanol : Crude Oil) with heater temperature of 160°F. Crude is fully dewaxed when going into the falling film evaporator. Solution starts at room temperature. Speeds may differ based on dilution ratio, crude quality, and running parameters. **

Read more less

Vacuubrand VARIO® chemistry pumping unit PC 3001 VARIOpro   The PC 3001 VARIO select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. This pump is suitable for even high boiling point solvents. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller detects solvent boiling and automatically adjusts the pump's motor speed to maintain process control. The VARIO motor speed control also makes the pump whisper quiet and provides for exceptionally long maintenance intervals. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.   Performance features simplify lab work with the VACUU·SELECT vacuum controller with graphic user interface and predefined applications automatic boiling point detection and continuous optimization of vacuum levels for quick process times compact and powerful; superior performance even with continuous condensate purge whisper quiet and ultra low vibration eco-friendly: extremely low power consumption and efficient solvent recovery. Oil-free!     CE Approval  Safety Information Manual Controller Manual  Manual interfaces       Technical data Unit PC 3001 VARIO select Vacuum controller VACUU·SELECT Number of heads / stages 4 / 3 Max. pumping speed m3/h 2.0 Max. pumping speed cfm 1.2 Ultimate vacuum (abs.) mbar/torr 2.0 / 1.5 Ultim. vac. (abs.) with gas ballast mbar/torr 4 / 3 Ambient temperature range (operation) °C 10 - 40 Ambient temperature range (storage) °C -10 - 60 Max. back pressure (abs.) bar 1.1 Inlet connection Hose nozzle DN 6-10 mm Outlet connection Hose nozzle DN 8-10 mm Coolant connection 2 x hose nozzle DN 6-8 mm Rated motor power kW 0.16 Motor speed range min-1 200 - 3000 Protection class IP 20 Dimensions (L x W x H) mm 303 x 306 x 400 Weight kg 8.2 Noise level at 50 Hz, typ. dBA 42 ATEX conformity (only 230V) II 3/- G IIC T3 X Internal Atm. only Items supplied Pumping unit completely mounted, ready for use, with manual. Accessories Rubber vacuum tubing DN 6 mm (20686000) Rubber vacuum tubing DN 8 mm (20686001) Coolant valve VKW-B (20674220) Vent valve VB M-B (20674217) Liquid level sensor (20699908) VACUU·BUS® Y-Adapter mit Kabel 2m (20683240)

Read more less

5L ECO V2 Rotary Evaporator Motor   This replacement motor fits on 5L rotary evaporators with manual lift baths. The controller connection must have the same 5 pin configuration as the plug shown in the pictures.

Read more less

Welch CRVpro Direct Drive Rotary Vane Vacuum Pump CRVpro6 ***Note: This item has a possible 1-2 week lead time depending on stock availability*** Product Details The new CRVpro family of direct drive vacuum pumps offers increased reliability and longer service interval vs. other direct drive rotary vane vacuum pumps. The CRVpro family consumes up to 36% less oil than comparable pumps. Three features drive these benefits:  Runs 10°C cooler than comparable pumps. Slows corrosion.  Has a 40% larger oil capacity than comparable pumps. Dilutes aggressive chemicals.  Has a chemical resistant coating in the oil case and pump module. Protects non-moving parts.  The CRVpro family includes all the features you'd expect in a direct drive rotary vane pump: gas ballast, forced oil lubrication, anti-suckback mechanism and thermal overload protection.  Suitable applications include freeze drying, degassing, vacuum ovens and concentrators. 3061-01 is wired for North American 115V, 60Hz operation. Includes North American line cord, vacuum inlet hose barb suitable for gum rubber hose from 5/8" to 3/4" ID, and a charge of oil.  3062-01 is wired for North American 230V, 60Hz operation. Includes 230V North American line cord, UK cord, and skuko cord, and a charge of oil.  Direct drive pumps are not recommended for filtration, aspiration, drying electrophoresis gels, or other applications requiring sustained operation above 30 torr.

Read more less
