Heat Exchangers

Baffled Tri-Clamp Condenser This 304 Stainless Steel Tri-Clamp condenser allows the user to condense hot vapors and solvent while running an extraction system or use it as a heat exchanger if needed. It features internal baffles in the system allowing for better overall heat exchange, Tri-Clamp connections on each end and (2) 1/2" FNPT Ports on the side to allow various connections the user may need. The inside diameter of the tubing measures 7.5mm. BVV™ Baffled Tri-Clamp - Data Sheet

Read more less

Baffled Condenser - 6" x 36" with 1.5" Tri-Clamp Side Ports This 304 Stainless Steel Tri-Clamp condenser allows the user to condense hot vapors and solvent while running an extraction system or use it as a heat exchanger if needed. It features internal baffles in the system allowing for better overall heat exchange, 6" Tri-Clamp connections on each end and (2) 1.5" Tri-Clamp ports on the side to allow various connections the user may need. From end to end it is 36" in length. The inside diameter of the tubing measures 7.5mm.

Read more less

This 304 stainless steel heat exchanger is used as a condenser for your extractor setup. It has a sleeve around the heat exchanging tubes and a wide opening at the top to allow users to pour in dry ice to super chill the exchanger. For best results, use dry ice mixed with ethanol to get the most possible contact across the surface area of the tubes. The bottom of the sleeve has a 1/4" NPT drain plug that can be removed to drain ethanol.   Connection flanges on top and bottom are 4" Tri-Clamp. We offer a pre built stand alone version that comes with hemispherical caps and JIC connections, but we will be happy to help you configure it any way that you want!

Read more less

Welded Coil in Coil The Jacketed coil is a 40ft length of 1/2" tube that is completely encapsulated by the 3/4" outer jacket. The inner tube has 1/2" compression fittings and the outer tube has 1/2" FNPT connection ports. The built version comes with USA made SSP instrumentation valves with 1/2" JIC connection for the inner tube and either 1/2" MJIC, 1/2" OR 3/4" hose barb connections for the outer tube. The Coil itself is 10" In diameter and can be mounted successfully utilizing one of our 10" Pipe Hangers

Read more less

BVV SS304 Condensing Coils are used in solvent injection kits such as the one show in the video below. They are used to condense ethanol or other hydrocarbons to decrease run times and allow for a pre-chilling of the solvent to be used in the extraction processes. ** For dry ice applications please make sure condensing coil is free of any water/moisture as it will freeze and restrict/block flow when submerged in dry ice. To clear the condensing coil blow pressurized air through one of the ports and drain it into a bucket **       Specifications Small Large X-Large Material 304 Stainless Steel Coil Diameter 6" 9.5" 9.5" Coil Height 5.9" 9.75" 9.75" Coil Length 11' 30' 30' ID 1/4" 1/4" 1/2" Bare Ports 1/4" NPT 1/2" NPT Available Connections: Valves BVV 316SS Full Bore Valves Flares 1/4" - 1/2" 37 Degree JIC Hose Barbs 1/4" - 1/2" Hose Barbs

Read more less

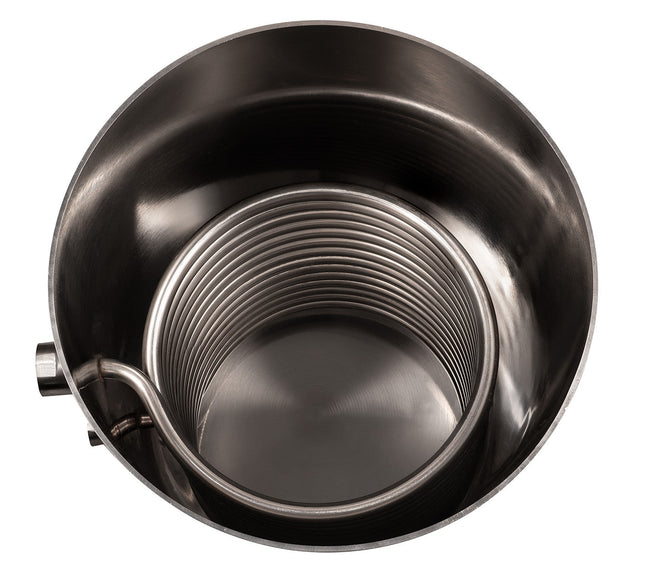

Stainless Steel Injection Coil - Tall The BVV Stainless Steel Injection Coil- Tall allows the user to chill solvent with dry ice and does not have 90 degree bends to slow down the speed of the fluid passing through the coil. The extended top allows the user to completely submerge the coil while preventing the dry ice and alcohol slurry from splashing out of the pot. This coil comes standard with 1/2" NPT ports that will not restrict flow of solvent through the coil. Specifications: Weight: 26LB Chamber OD: 10" Depth: 16" Connection Sizes: Bare 1/2" FNPT ports w/ Drain Plug, JIC or Barb fittings available Material: 304 Stainless Steel

Read more less

6" Tri-Clamp x 30" Column Cooling Coil This column cooling coil is designed to fit in 6" Tri-Clamp material columns and allows the user to either chill or heat the column up from the inside which increased the surface area beyond a standard dewaxing jacket and reduces the need for dry ice. This cooling coil is made out of 304 stainless steel and has a 3/8" diameter coil spiraling from (3) 1/4" FNPT ports on the top with 2 of them connecting to the coil and one of the connecting to the dip tube

Read more less

8" Hemispherical End Cap with Coil This 8" Hemispherical End Cap with Coil comes standard with our 150L Conical Reactor. Complete with 2X 1/2" NPT accessory ports, 2X 1/4" NPT accessory ports, 2X 1/2" NPT ports for the coil, and a single 1.5" tri-clamp top port. This versatile part is perfect for those looking to add extra surface area to their heating or cooling application.  From the 8" tri-clamp to the bottom of the coil measures 34".

Read more less

12" x 12" Hemi Lid with Coil V2 This 12" Hemi Lid has a built in coil that can be used with a heated circulator to assist with internal temperature control during the recovery process. This hemi lid must be used with our 1200X12S and 1200FJS for proper fitment.  PDF DRAWING
