Closed Loop Extractors
45G Mini Top Fill Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors Closed Loop Reclamation Extraction System (Comes with 1 yr. Limited warranty) 45G Mini Top Fill Closed Loop Extractor (System comes with 1 yr. limited warranty) What’s a 45G Mini Top Fill Closed Loop Extractor? 45G Mini Top Fill Closed Loop Extractor is an excellent extraction system for small personal test runs. Since it’s a smaller version of our standard top-fill closed loop extractor, it’s great for beginners while still maintaining all the bells and whistles. Our extractor is even the perfect size for a tabletop! How Does the 45G Mini Top Fill Closed Loop Extractor Work? The top-fill closed loop extractor is the safest way to do hydrocarbon extraction. First, solvent washes through the material column and collects oils as it passes over the material. Then, the oil-bearing solvent is collected in the collection base. Once collected, the solvent in this passive unit is distilled and recovered using temperature manipulation. This is what leaves oils behind in the collection base. What’s Included in the 45G Mini Top Fill Closed Loop Extractor? High-Pressure PTFE Braided Stainless Steel Hose Standard Pressure Tri-Clamps Full set of BUNA-N gaskets Includes 100 Mesh (150 Micron) gasket for the material tube Can Tap Tool Instruction Manual 1 Year Limited Warranty and Customer Service 45G Mini Top Fill Closed Loop Extractor System Specifications 1.5"x 6" 304 Stainless Steel Material Tube 304 Stainless Steel Heavy Duty Miniature Ball Valves System Rated to 100PSI Multiple port connections for any 316 Stainless SAE 37 Degree 304 Stainless Steel Base Container 4" diameter by 4" tall Tri-Clamps at all interfaces for high pressure, easy-clean unit High-Quality BUNA-N Gaskets designed for oil processing Operating Temperature Range: -40°F to 160°F Ultimate Vacuum: as low as 10 Microns Designed to run a single can of solvent and reclaim it (420ml) 540 ml max FILL! Construction: All major components made of 304 Stainless Steel Max Vacuum -29.9inHg High Polish Interior Mini CLS / Mini XL Upgrades Explorer Our most standard and economical setup. It’s perfect for entry-level extractors on a budget. It comes with a welded bottom base and stainless reclaim container. This model has minimal features to keep costs low while providing the necessary equipment to get the job done. Includes: Standard Valves Welded Bottom Base Professional This model features upgrades for easier extraction. An inline ball valve allows the solvent to be suspended in the material column and closes the collection base during recovery. The removable bottom to the collection base makes extract removal simple. Includes: Standard Valves Ball Valve Splatter Platter Base Notes and Disclaimer(s): Please note: The solvent Butane isn’t included with any of our systems unless ordered separately or by using the dropdown menu. Orders containing butane won’t ship expedited. Also, column capacity may vary. Capacity is calculated using the industry standard of 4.2g/in3 as the upper limit. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend tightly packing coarse ground material. Shop all Closed-Loop Extractors Disclaimers: This unit is intended for legal purposes only while following local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. Explorer Professional Standard Valves Welded Bottom Base Standard Valves Ball Valve Splatter Platter Base System Specifications: 1.5"x 6" 304 Stainless Steel Material Tube 304 Stainless Steel Heavy Duty Miniature Ball Valves System Rated to 100PSI Multiple port connections for _" 316 Stainless SAE 37 Degree 304 Stainless Steel Base Container 4" diameter by 4" tall Tri-Clamps at all interfaces make for a high pressure, easy-clean unit. High-Quality BUNA-N Gaskets are designed for Oil Processing Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Designed to run a single can of solvent and reclaim it (350ml) Max FILL!! Construction: All major components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior What's Included: High-Pressure PTFE Braided Stainless Steel HoseStandard Pressure Tri-Clamps Full set of BUNA-N gaskets including the 100 Mesh(150 Micron) gasket for the material tube is included Can Tap Tool Instruction Manual 1 Year Limited Warranty and Customer Service *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$325.00 - $420.00
90G XL Mini Top Fill Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors Closed Loop Reclamation Extraction System (Comes with 1 yr. Limited warranty) 90G XL Mini Top Fill Closed Loop Extractor (System comes with 1 yr. limited warranty) The MiniXL Extractor is an excellent choice for small personal runs or test runs of material and comes in a small tabletop design that is easy to use. Mini CLS / Mini XL Upgrades: Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget. Comes with a welded bottom base and stainless reclaim container. This model has minimal features to keep cost low while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Coming with a sleeved spool, this model allows users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Explorer Professional Standard Valves Welded Bottom Base Standard Valves Dewaxer Ball Valve Splatter Platter Base Specifications: 1.5"x 12" 304 Stainless Steel Material Tube 90g 304 Stainless Steel Heavy Duty Miniature Ball Valves System Rated to 100PSI Multiple port connections for 1/4" 316 Stainless SAE 37 Degree 304 Stainless Steel Base Container 4" diameter by 8" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Buna-N Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 16" Overall Height x 4" Diameter Weight: 18 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Designed to run two cans of solvent and reclaim them (420ml) 1135ml Max FILL!! Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior Automatically Includes: High-Pressure PTFE Braided Stainless Steel Hose Can Tap Tool 6LB Mastercool Solvent Recovery Tank *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$410.00 - $550.00
XL Mini Closed Loop Extraction Starter Kit
XL Mini Closed Loop Extraction Starter Kit (System comes with 1 yr. limited warranty) Everything You Need to Get Your Extraction Started Closed-loop extraction is a safe, fast, and efficient solution to removing oils from botanical material. Closed-loop systems allow you to do everything in a closed vessel. BVV™ has bundled our recommended vacuum chamber, vacuum pump, and complete extraction system to offer customers the most cost-effective solution possible. The Mini-XL Closed Loop Extractor Starter Kit is a step up from the closed column extractor starter kit. The Mini-XL Closed Loop Extractor is a tabletop version of a closed-loop extraction system that allows users to run personal or test-sized extractions in a short amount of time. The system also offers users the chance of recovering around 95% of their solvent. Not only does this save a considerable amount of money, but it's also safer for the user performing botanical oil extractions because the entire extraction process is in a closed-loop environment. Mini CLS / Mini XL Upgrades: Explorer: Our standard, most economical setup, perfect for the entry-level extractor on a budget. It comes with a welded bottom base and stainless reclaim container. This model has minimal features to keep costs low while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Coming with a sleeved spool, this model allows users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Explorer Professional Standard Valves Welded Bottom Base Standard Valves Dewaxer Ball Valve Splatter Platter Base Specifications: 1.5"x 12" 304 Stainless Steel Material Tube 90g 304 Stainless Steel Heavy Duty Miniature Ball Valves System Rated to 100PSI Multiple port connections for 1/4" 316 Stainless SAE 37 Degree 304 Stainless Steel Base Container 4" diameter by 8" tall Tri-Clamps at all interfaces make for high pressure, easy-clean unit. Buna-N Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 16" Overall Height x 4" Diameter Weight: 18 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Designed to run two cans of solvent and reclaim it (420ml) 1135ml Max FILL!! Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior Automatically Includes: High-Pressure PTFE Braided Stainless Steel Hose Can Tap Tool 6LB Mastercool Solvent Recovery Tank BVV™ V4D 4CFM Two Stage Vacuum Pump This is the BVV™ V4D 4CFM Two Stage Vacuum Pump used in botanical extraction. Please refer to these charts for vacuum specifications at altitude and conversions: Vacuum at Altitude Chart Vacuum Conversion Chart Key Feature Internal Check Valve Oil Mist Filter Cap Larger Oil Reservoir for longer oil life Lightweight Rubber Feet for noise dampening Reliable, economical, and efficient Models BVV4D BVV7S BVV9D Stage 2 1 2 Ultimate Vacuum (Microns) 15 75 15 Refrigerant Classes A1 Non-Toxic, Non Flammable Dimensions (in) 12.4 x 4.8 x 10.16 12.4 x 4.8 x 10.16 15 x 6.3 x 11.22 Weight (lbs) 19.4 16.5 32 Free Air Displacement 4.3 CFM 6.4 CFM 8.5 CFM Motor Size (HP) RPM 1 HP 3440 RPM Oil Capacity 10oz / 300ml 14.5oz / 410ml 24oz / 680ml Voltage 110V 60 Hz Power Cord Hard Wired 3m / 9.8' Power Cord Power Switch Standard On / Off Operating Temperature Range 32F to 125 F (0C to 52C) Gas Ballast Valve Yes No Yes Intake Fittings Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend tightly packing coarse ground material. ***Note: Butane (Solvent) is not included with systems unless ordered in the drop-down menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.
$991.00 - $1,269.00
90-270G Apollo Top Fill Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) Please Read Optional Upgrades Section for Clarification on System Upgrades The scalable closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes through the material column, collecting oils as it passes over the material. The oil-bearing solvent is collected in the collection base under the material column. Once collected, the solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configurations: Explorer: Our standard, most economical setup, perfect for the entry-level extractor on a budget. It comes with a welded bottom base and a standard LP tank. This model has minimal features to keep costs low while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Coming with a sleeved spool, this model allows users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow the solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Elite: The Elite series is the premium version of the Professional. It features all American-made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, and all high-pressure clamps. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Dewaxer Ball Valve Splatter Platter Base SSP Valves Dewaxer AVCO Ball Valve HP Clamps Splatter Platter Base Kit Includes: 6" x 6" Collection Base 1.5" Material Column (12",18",24", or 36") 6lb Recovery Cylinder 1/4" Stainless Steel Braided PTFE hoses Buna-N Gaskets Standard Valves *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$600.00 - $1,630.00
EVO Mini Closed Loop Extractor
EVO Mini Closed Loop Extractor (System comes with 1 yr. limited warranty) The EVO Mini 90 gram closed-loop extractor was designed to provide the same versatility & capability of our EVO Extractor line, allowing both the use of adsorbent filtration and pre-chilling of solvent utilizing the inline Color remediation column and the Sleeved EVO recovery tank. The EVO Mini is the perfect small batch R&D system or top-of-the-line mini extractor. Perform small batch testing of new biomass or R&D new adsorbent filtration recipes without utilizing large volumes of biomass. The Evo Mini allows you to test with hot or cold solvent, try out different ratios of powders or granular medias, and test extract new biomass before running a larger extraction. The EVO Mini comes complete with a top fill injection manifold including a compound gauge, a stainless steel butterfly valve with a 1/4" MJIC connection that injects solvent directly into the 1.5"x 12" 90-gram material column which is enclosed by 2x 100 micron Buna-N mesh gaskets. Just below the 90-gram material column is the inline 1.5" x 3" color remediation column just below the material column with a 30-gram media capacity and a filter stack utilizing both a 5 micron & 1 micron sintered disk. Below the filter stack the EVO Mini drains into the collection base equipped with a compound gauge, a 4" Short sight glass, and a stainless steel butterfly valve with a 1/4" MJIC connector. The Collection base can accommodate up to 1.1lbs of butane perfect for a 5:1 solvent to biomass ratio. Which can be evaporated with ease when used in conjunction with the Mini Evo sleeved recovery tank filled with dry ice and a hot water bath. ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. KEY BENEFITS Meets or exceeds all industry listed standards Versatile in running butane, propane, and other blended solvents Perfect for R&D of media combinations or testing fresh biomass Inline color remediation Pre-chilling of solvent Extractor Configuration: Explorer: Our standard, most economical setup, perfect for the entry-level extractor on a budget. This option comes equipped with single pin clamps rated to a service pressure of 300PSI for the 4" clamp and 500PSI for the 1.5" clamp at 70F. Elite: The Elite series is the premium version of the EVO Mini that comes equipped with High-pressure clamps rated to a service pressure of 800PSI for the 4" clamp and 1500PSI for the 1.5" clamp at 70F. *All configurations are pressure tested for 24 hours before shipment using nitrogen at 100PSI. Although many of the components of the EVO Mini are rated to withstand well above 100PSI during extraction we do not recommend pressurizing any system past 100PSI. During normal operation of the EVO Mini pressures typically don't exceed 50PSI* Explorer Elite Single Pin Clamps High-Pressure Clamps Unit Includes: Injection manifold complete with a compound gauge, 1/4" butterfly valve, and a 1/4" MJIC Connection. 1.5"x12" 90 gram material column. 1.5"x6" adsorbent filtration column with 30g gram media capacity. Adsorbent filtration filter stack including 5 micron and 1 micron sintered disks. 4" collection base with splatter platter & short sight glass complete with a compound gauge, and a 1/4" butterfly valve with a 1/4" MJIC Connection. 4"x8" Sleeved EVO Recovery tank with compound gauge, polycarbonate sight glass, and a 1/4" butterfly valve, and a 1/4" MJIC Connection. (1) 1/4" 48" FJIC Stainless Steel Injection hose (1) 1/4" 24" FJIC Stainless Steel Recovery Hose Specifications: 1.5"x 12" 304 Stainless Steel Material Column- 90 gram capacity 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple 37-degree FJIC port connections 304 Stainless collection base Tri-Clamps at all interfaces make for a high pressure/standard pressure, easy-clean unit BUNA-N Gaskets are designed for Oil Processing Temp range -40-200F, and have superior solvent resistance Construction: All components are made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$800.00 - $860.00
1LB TFX Closed Loop Extractor
1LB TFX Closed Loop Extractor Are you ready to embark on your extraction journey? Look no further than the TFX, the perfect introductory closed-loop extractor to kickstart your extraction journey. Not only does the TFX deliver exceptional performance at an affordable price right out of the box, but it also serves as an excellent base unit for future upgrades and modifications as level up your extraction game. Whether you're just starting or looking to expand your capabilities, the TFX provides a solid foundation that allows you to tailor your extraction setup to meet your evolving needs. With its versatile design and compatibility with various extractor upgrades, the TFX empowers you to explore new processing techniques and adapt to changing industry demands. Begin your extraction journey with the TFX, and unlock limitless possibilities for innovation and growth in the world of extraction. The TFX closed loop extractor represents the evolution of the highly popular Apollo closed loop extractor, introducing a new era of enhanced safety, ease of use, and performance. Building upon the success of its predecessor, the TFX provides greater safety, ease of use, and performance. Designed with operator safety in mind, the TFX incorporates improved safety mechanisms, including High-pressure Clamps and pressure relief valves standard to ensure maximum safety during the extraction process. Furthermore, the TFX line of closed-loop extractors makes extract harvesting a breeze with splatter platter bases standard. Its optimized design results in superior ease of use, performance, and safety yielding exceptional quality extracts. The TFX closed-loop extractor represents the foundation of most extractors' journey, providing would-be professionals and established professionals alike with a reliable, efficient, and future-proof solution to meet their evolving needs. The TFX line of closed-loop extractors is available in three distinct model variants to suit various extraction needs. The V1 Explorer is the ideal choice for budget-conscious individuals seeking an affordable entry-level option to venture into the world of extraction. This model features a DOT-Approved carbon steel recovery tank, 1/4" JIC Recovery lines, and polycarbonate sight glasses, providing a solid foundation that can be easily upgraded to professional or elite options in the future. For those aiming for a professional setup from the start, the V2 Professional model is the way to go. It includes an upgraded stainless steel recovery tank with 1/2" JIC Recovery lines, ensuring optimized solvent recovery. Additionally, the professional model includes upgraded borosilicate sight glasses, enhancing the visibility of the extraction process. If you're seeking the ultimate extraction experience, the V3 Elite model is your go-to solution. It incorporates all the upgrades of the professional model, including the upgraded stainless steel recovery tank with 1/2" JIC Recovery lines and upgraded borosilicate sight glasses. Moreover, the elite model goes beyond by featuring a solvent dispersal plate for even biomass saturation and a jacketed splatter platter for use with a heated circulator to ditch the hot water bath and further optimize solvent recovery. The TFX closed-loop extractor empowers you to choose the perfect model that suits your budget and requirements, Whether you're starting out or aiming for professional-grade capabilities the TFX Closed Loop Extractor series is the perfect foundation to start your extraction journey. Whether you opt for the Explorer, Professional, or Elite model, the TFX line of closed-loop extractors offers infinite modification possibilities to expand your capabilities and stay ahead of the evolving needs of the industry. While the TFX is specifically optimized for quick wash extraction procedures, ensuring exceptional purity and yield. It can easily be adapted for soaking procedures by adding our 316L SS Tri-Clamp Ball Valve below the material column. For those seeking absolute purity, pairing your TFX with an Inline CRC (Color Remediation Column) allows you to create the highest quality and purest extracts imaginable. If running fresh frozen material is your goal, simply swap out the standard 3"x 24" spool with a Sleeved Spool to chill your material during the extraction process and preserve the flavor of your starting biomass. To achieve absolute clarity in your extracts, reduce wax content by incorporating an injection coil into your setup. If you're looking to reduce solvent loss and improve recovery times, consider adding our BVV 2 Cylinder Active Closed Loop Recovery kit to your TFX closed loop extractor. This kit enhances solvent recovery efficiency, ultimately saving you time and resources. With the TFX closed loop extractor and its extensive range of modification options, you have the freedom to customize your extraction setup to meet your unique requirements. Stay at the forefront of the industry and unlock the full potential of your extraction process with the versatile TFX closed-loop extractor. As a leading manufacturer of extraction equipment, we understand the importance of precision and safety in the extraction process. The TFX is engineered with these principles in mind, offering a cutting-edge solution for extraction professionals. Crafted from high-quality stainless steel, the TFX boasts exceptional durability and corrosion resistance, providing you with a reliable and long-lasting extraction solution. Its innovative design incorporates advanced safety features, including high-pressure clamps, pressure relief valves, and sight glasses, to ensure operator well-being and operational control. Its superior design promotes efficient solvent flow and thorough material saturation, resulting in high-quality, potent extracts that meet your exact specifications. When it comes to introductory closed-loop extractors, the TFX stands out for its exceptional performance, safety, and reliability. With our product, you can streamline your extraction operations, increase productivity, and produce premium extracts that exceed industry standards. At BVV, we take pride in delivering top-notch extraction equipment that caters to your specific needs. Our team of experts is committed to providing unparalleled customer support, assisting you every step of the way, from purchase to setup and beyond. Elevate your butane extraction game with the TFX, the ultimate top-fill closed-loop extractor. Contact us today to start your extraction journey and take your business to new heights. Specifications 3"x24" 1LB Material Column 6"x12" Collection Base Body 6" Collection Base Splatter Platter 100um Nitrile BUNA-N Mesh Gaskets 1.5" Polycarbonate or Borosilicate Sight Glasses 125 PSI ASME Safety Valves -30hg-250PSI Compound Pressure Gauge 1/4" or 1/2" Full Bore Recovery Lines 1/4" JIC process Flow lines Explorer Professional Elite DOT Carbon Steel Solvent Tank Polycarbonate Sight Glasses 1/4" JIC Recovery Lines Stainless Steel Solvent Tank Borosilicate Sight Glasses 1/2" JIC Recovery Lines Stainless Steel Solvent Tank Borosilicate Sight Glasses 1/2" JIC Recovery Lines Solvent Dispersal Plate Jacketed Splatter Platter ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$850.00 - $1,350.00
1LB EVO Closed Loop Extractor
1LB EVO Closed Loop Extraction System (System comes with 1 yr. limited warranty) The EVO series of 1LB closed-loop extractors was designed with the evolution of stand-up extractors in mind. The aim of the EVO series of extractors is to provide unparalleled utility and ease of use within a traditional stand-up design. The EVO series was designed to tackle the two most common plights with stand-up extractors, difficulty in extract harvesting, and integration of adsorbent filtration. The Evo series accomplishes both through the use of its elevated extract pour spout and its optional inline color remediation column. Beyond the elevated pour spout and optional inline color remediation column. The EVO series aims to provide unbridled safety and solvent recovery speed through the integration of ASME pressure relief valves on both the material column and collection base standard and full bore 1/2" recovery lines found on the professional and elite models. The 1lb EVO comes complete with a top fill injection manifold including a compound gauge, a 125 psi ASME pressure relief valve, and two full bore ball valves complete with 2x 1/4" Male JIC connections on the explorer and both 1/4" & 1/2" Male JIC connections on the professional and elite models. Just below the injection manifold, all 1lb EVO models have a solvent dispersion plate that evenly disperses solvent into the 3"x 24" 1lb material column which is enclosed by 2x 100 micron Buna-N mesh gaskets. Both the Professional and Elite models come complete with an inline 3" x 6" color remediation column just below the material column with a 300-gram media capacity and a filter stack utilizing both a 5 micron & 1 micron sintered disk. Professional and Elite models also include 25-micron filter paper and a 500-gram sample of Pure-Flo B80 Below the 1lb material column, and optional inline color remediation column the 1lb Evo includes the jacketed and elevated pour spout collection base that allows for easy extract harvesting and speedy solvent recovery. The elevated base can accommodate up to a 5:1 solvent-to-biomass ratio and accept a standard round pyrex dish or a small parchment paper boat below the pour spout. Upon completion of the run, extract removal is made easy by simply draining the extract from the elevated extract pour spout. Both the professional and elite models have increased solvent recovery capability from the jacketed collection base through full-bore 1/2" recovery MJIC connections and stainless steel recovery hoses. ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. KEY BENEFITS Meets or exceeds all industry-listed standards Versatile in running butane, propane, and other blended solvents Perfect for mid to large-scale extraction/production facilities Faster run times and less degradation in the process Easy extract harvesting using the elevated pour spout Inline color remediation Extractor Configuration: Explorer: Our standard, most economical setup, perfect for the entry-level extractor on a budget. Comes with the jacketed and elevated collection base and 1/4" Male JIC connections on the injection manifold and collection base. This model does not include the inline color remediation column or 1/2" Male JIC recovery/ injection connections. The Explorer model is forward compatible and can be easily upgrad*This model does not come with a heated circulator*ed to include 1/2" lines and the inline color remediation column. Professional: This model includes all the features of the explore model with the increased functionality of an inline color remediation column Just under the material column that comes with 25micron filter paper and a 500-gram sample of b80, an upgraded stainless steel recovery tank, and a full bore 1/2" Male JIC connection included on the injection manifold and collection base. *This model does not come with a heated circulator* Elite: The Elite series is the premium version of the Professional. It features the same 1/2" Male JIC, and inline color remediation column upgrades. But also includes the EVO recovery tank that allows for pre-chilling and speedy recovery of solvent. *This model does not come with a heated circulator* Certified: The Certified series is the certified version of the elite. It features the same 1/2" Male JIC, and inline color remediation column upgrades. But also includes the EVO recovery tank that allows for pre-chilling and speedy recovery of solvent. This Model is 22 State certified and includes an Infield Verification by PRV Engineers within the purchase price. States include but are not limited to: Alabama, Arizona, Arkansas, California, Colorado, Connecticut, Florida, Illinois, Kansas, Louisiana, Maine, Massachusetts, Missouri, Nevada, North Carolina, Oklahoma, Oregon, Texas, Vermont, Washington, West Virginia, and Wyoming *This model does not come with a heated circulator* Explorer Professional Elite Jacketed & Elevated pour spout collection base Jacketed & Elevated pour spout collection base Inline Color remediation column 25-micron filter paper 500 gram B80 sample 1/2" recovery lines 30# Stainless steel Recovery Tank Jacketed & Elevated pour spout collection base Inline Color remediation column 25-micron filter paper 500 gram B80 sample 1/2" recovery & Injection lines EVO Recovery Tank Unit Includes: Full bore injection Manifold complete with a compound gauge,125 PSI ASME pressure relief valve, and 2x 1/4" MJIC connections (1x1/2" MJIC connection on professional & elite models) 3"x24" 1lb Material column with solvent dispersal plate. 3"x6" Color remediation column 300g gram media capacity complete with a filter stack including 5 micron and 1 micron sintered disks (Professional & Elite model) 25-micron ashless filter paper (Professional & Elite) Jacketed & elevated collection base with extract pour spout 6" hemispherical collection base lid complete with borosilicate sight glasses, a compound gauge, 125 PSI ASME pressure relief valve, and full bore ball valves with MJIC Connections. 30# LP storage and recovery tank (Explorer) 30# stainless steel LP tank (Professional) & EVO Recovery tank (Elite) (1) 1/4" 72" FJIC Stainless Steel Injection hose (Explorer & Professional) 1/2" 96" FJIC Stainless Steel Injection Hose (Elite) (1) 1/4" 60" FJIC Stainless Steel Recovery Hose (Explorer) 1/2" 60" FJIC Stainless Steel Recovery Hose (Professional & Elite) High-pressure clamps Specifications: 3"x 24" 304 Stainless Steel Material Column-1lb capacity (450g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple 37 degree FJIC port connections 304 Stainless jacketed & elevated collection base Tri-Clamps at all interfaces make for a high pressure/standard pressure, easy-clean unit BUNA-N Gaskets are designed for Oil Processing Temp range -40-200F, and have superior solvent resistance Construction: All components are made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$1,650.00 - $6,850.00
1LB EVO Closed Loop Extraction Kit
1LB Evo Closed Loop Extraction Kit (System comes with 1 yr. limited warranty) The EVO series of 1LB closed-loop extractors was designed with the evolution of stand-up extractors in mind. The aim of the EVO series of extractors is to provide unparalleled utility and ease of use within a traditional stand-up design. The EVO series was designed to tackle the two most common plights with stand-up extractors, difficulty in extract harvesting, and integration of adsorbent filtration. The Evo series accomplishes both through the use of its elevated extract pour spout and its optional inline color remediation column. Beyond the elevated pour spout and optional inline color remediation column. The EVO series aims to provide unbridled safety and solvent recovery speed through the integration of ASME pressure relief valves on both the material column and collection base standard and full bore 1/2" recovery lines found on the professional, elite, and active explorer models. The 1lb EVO Closed Loop Extraction kit comes complete with a top fill injection manifold including a compound gauge, a 125 psi ASME pressure relief valve, and two full bore ball valves complete with 2x 1/4" Male JIC connections on the explorer and both 1/4" & 1/2" Male JIC connections on the professional and elite models. Just below the injection manifold, all 1lb EVO models have a solvent dispersion plate that evenly disperses solvent into the 3"x 24" 1lb material column which is enclosed by 2x 100 micron Buna-N mesh gaskets. Both the Professional and Elite models come complete with an inline 3" x 6" color remediation column just below the material column with a 300-gram media capacity and a filter stack utilizing both a 5 micron & 1 micron sintered disk. Professional and Elite models also include 25-micron filter paper and a 500-gram sample of Pure-Flo B80 Below the 1lb material column and optional inline color remediation column the 1lb Evo includes the jacketed and elevated pour spout collection base that allows for easy extract harvesting and speedy solvent recovery. The elevated base can accommodate up to a 5:1 solvent to biomass ratio and accept a standard round pyrex dish or a small parchment paper boat below the pour spout. Upon completion of the run, extract removal is made easy by simply draining the extract from the elevated extract pour spout. Both the professional, elite, and active explorer models have increased solvent recovery capability from the jacketed collection base through full bore 1/2" recovery MJIC connections and stainless steel recover hoses. Beyond the larger recovery lines and inline color remediation column the 1lb EVO Elite options come paired with our ETL listed 5 liters Neocision heated circulator and the sleeved EVO recovery tank that allows for the pre-chilling of solvent and speedy solvent recovery, reaching sub 20 minute recovery times on high heat. All varients of the EVO Extraction Kits come equipped with a 1.9CFT vacuum oven, a 7CFM single-stage vacuum pump, a 5' HVAC hose, and an 8"x8" silicone pad. The Explorer & Professional models come with the ECO model vacuum ovens and the Elite versions equipped with the ETL list Neocision 1.9CFT vacuum oven. All EVO closed-loop extraction kits come available with an active recovery option including: BVV 2 Cylinder Butane Recovery Pump ITS/ETL to ANSI/ISA Certified BVV Large Condensing Coil 1/2" x 24" SS JIC Braided Hose (2) 1/2" x 48" SS JIC Braided Hose (2) 1/2" x 60" SS JIC Braided Hose Molecular Sieve Filter Drier BVV 5' HVAC Hose BVV Vacuum Tee ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. KEY BENEFITS Meets or exceeds all industry listed standards Versatile in running butane, propane, and other blended solvents Perfect for mid to large-scale extraction/production facilities Faster run times and less degradation in the process Easy extract harvesting using the elevated pour spout Inline color remediation Extractor Configuration: Explorer: Our standard, most economical setup, perfect for the entry-level extractor on a budget. Comes with the jacketed and elevated collection base and 1/4" Male JIC connections on the injection manifold and collection base. The explorer options include a 1.9CFT ECO Vacuum Oven, a 5' HVAC hose, and a 7CFM single-stage vacuum pump. This model does not include the inline color remediation column or 1/2" Male JIC recovery/ injection connections. The Explorer model is forward compatible and can be easily upgraded to include 1/2" lines and the inline color remediation column. *This model does not come with a heated circulator* Professional: This model includes all the features of the explore model with the increased functionality of an inline color remediation column Just under the material column that comes with 25micron filter paper and a 500-gram sample of b80, an upgraded stainless steel recovery tank, and a full bore 1/2" Male JIC connection included on the injection manifold and collection base. The Professional extraction kit options include a 1.9CFT ECO Vacuum Oven, a 5' HVAC hose, and a 7CFM single-stage vacuum pump.*This model does not come with a heated circulator* Elite: The Elite series is the premium version of the Professional. It features the same 1/2" Male JIC, and inline color remediation column upgrades. But also includes the EVO recovery tank and 5 liter ETL listed Neocision heated circulator that allows for pre-chilling and speedy recovery of solvent. The Elite options include a 1.9CFT ETL Listed Neocision Vacuum Oven, a 5' HVAC hose, and a 7CFM single-stage vacuum pump. Passive: Passive recovery is the standard option on the extraction kit with the explorer model coming with 1/4" recovery lines and the professional and elite models coming equipped with 1/2" recovery lines. Active: The Active Recovery Upgrade Kit will increase recovery times by condensing the vapor a lot faster than just a hot/cold differential. All active models come equipped with 1/2" recovery lines and the inclusion of our BVV 2 Cylinder Butane recovery pump, BVV Large Condensing Coil, Molecular Sieve Filter Drier, and all the associated hosing to perform active recovery. Explorer Professional Elite Jacketed & Elevated pour spout collection base Jacketed & Elevated pour spout collection base Inline Color remediation column 25-micron filter paper 500 gram B80 sample 1/2" recovery lines 30# Stainless steel Recovery Tank Jacketed & Elevated pour spout collection base Inline Color remediation column 25-micron filter paper 500 gram B80 sample 1/2" recovery & Injection lines EVO Recovery Tank 5 liter ETL listed Neocision heated circulator with insulated hoses Unit Includes: Full bore injection Manifold complete with a compound gauge,125 PSI ASME pressure relief valve, and 2x 1/4" MJIC connections (1x1/2" MJIC connection on professional & elite models) 3"x24" 1lb Material column with solvent dispersal plate. 3"x6" Color remediation column 300g gram media capacity complete with a filter stack including 5 micron and 1 micron sintered disks (Professional & Elite model) 25-micron ashless filter paper (Professional & Elite) Jacketed & elevated collection base with extract pour spout 6" hemispherical collection base lid complete with borosilicate sight glasses, a compound gauge, 125 PSI ASME pressure relief valve, and full bore ball valves with MJIC Connections. 30# LP storage and recovery tank (Explorer) 30# stainless steel LP tank (Professional) & EVO Recovery tank (Elite) (1) 1/4" 72" FJIC Stainless Steel Injection hose (Explorer & Professional) 1/2" 96" FJIC Stainless Steel Injection Hose (Elite) (1) 1/4" 60" FJIC Stainless Steel Recovery Hose (Explorer) 1/2" 60" FJIC Stainless Steel Recovery Hose (Professional & Elite) High-pressure clamps Specifications: 3"x 24" 304 Stainless Steel Material Column-1lb capacity (450g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple 37 degree FJIC port connections 304 Stainless jacketed & elevated collection base Tri-Clamps at all interfaces make for a high pressure/standard pressure, easy-clean unit BUNA-N Gaskets are designed for Oil Processing Temp range -40-200F, and have superior solvent resistance Construction: All components are made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$4,275.00 - $10,979.00
1LB Apollo Top Fill Closed Loop Extractor
1LB Top Fill Closed Loop Extraction System (System comes with 1 yr. limited warranty) The 1lb closed loop hydrocarbon extractor performs incredible botanical extraction within a sealed, vacuumed system. With the help of a top-fill input, solvent washes through the material column, collecting oils as it passes over the material. The oil-bearing solvent is collected in the collection base under the material column. Once collected, the solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. KEY BENEFITS Meets or exceeds all industry listed standards Versatile in running butane, propane, and other blended solvents Perfect for mid to large-scale extraction/production facilities Faster run times and less degradation in the process Extractor Configuration: Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget. Comes with a welded bottom base and standard LP tank. This model has minimal features to keep cost low, while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Solvent is input into the material column with a showerhead endcap, ensuring the full material column is saturated with solvent. The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Elite: The Elite series is the premium version of the Professional. It features all American made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, jacketed collection base, and all high-pressure clamps. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Showerhead Dewaxer Ball Valve Splatter Platter Base SSP Valves Showerhead Dewaxer AVCO Ball Valve HP Clamps Jacketed Base/Platter Unit Includes: 6"x6" Welded Bottom Base 6"x6" Open Spool Assembled 6" extractor lid 3"x24" Material column with reducer & top cap Mastercool 6LB Solvent Recovery Tank (1) 1/4" 48" FJIC Stainless Steel hose (1) 1/4" 60" FJIC Stainless Steel hose (1) 1/4" FJIC HVAC hose Standard pressure single pin clamp Instruction Manual Specifications: 3"x 24" 304 Stainless Steel Material Column-1lb capacity (450g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple 37 degree FJIC port connections 304 Stainless Steel Base Container 6" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure/standard pressure, easy clean unit BUNA-N Gaskets are designed for Oil Processing Temp range -40-200F, and have superior solvent resistance Base unit Maximum Capacity: 395 cubic inches, (6.472 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$720.00 - $1,975.00

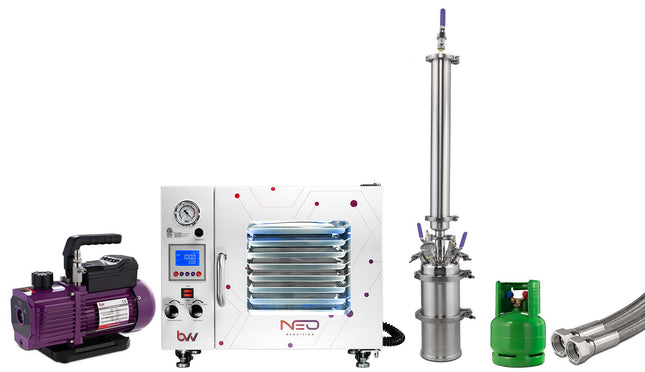

1LB Passive Closed Loop Extraction Kit
Passive Closed Loop Extraction System ***NOTICE TO CUSTOMER: THIS ITEM WILL SHIP BY FREIGHT ONLY*** (System comes with 1 yr. limited warranty) ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors We believe it’s better to buy everything you need in one shot, so we’ve created a package that includes a vacuum chamber, vacuum pumps, and complete extraction system. The best part? Buying this kit will save you money compared to purchasing each component individually Closed Loop Extraction Process The 1lb closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. The oil-bearing solvent is collected in the collection base under the material column. Once collected, the solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configuration: Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget. Comes with a welded bottom base and standard LP tank. This model has minimal features to keep cost low, while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Solvent is input into the material column with a showerhead endcap, ensuring the full material column is saturated with solvent. The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Elite: The Elite series is the premium version of the Professional. It features all American made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, jacketed collection base, and all high-pressure clamps. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base 0.9CF ECO Oven V7S 7CFM Single Stage Vacuum Pump BVV 316SS Full Bore Valves Showerhead Dewaxer Ball Valve Splatter Platter Base 0.9CF ECO Oven V7S 7CFM Single Stage Vacuum Pump SSP Valves Showerhead Dewaxer AVCO Ball Valve HP Clamps Jacketed Base/Platter 0.9CF NEO Oven V7S 7CFM Single Stage Vacuum Pump Unit Includes: 6"x6" Welded Bottom Base 6"x6" Open Spool Assembled 6" extractor lid 3"x24" Material column with reducer & top cap Mastercool 6LB Solvent Recovery Tank (1) 1/4" 48" FJIC Stainless Steel hose (1) 1/4" 60" FJIC Stainless Steel hose (1) 1/4" FJIC HVAC hose Standard pressure single pin clamp and 1 full gasket set Instruction Manual Specifications: 3"x 24" 304 Stainless Steel Material Column-1lb capacity (450g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple 37 degree FJIC port connections 304 Stainless Steel Base Container 6" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure/standard pressure, easy clean unit BUNA-N Gaskets are designed for Oil Processing Temp range -40-200F, and have superior solvent resistance Base unit Maximum Capacity: 395 cubic inches, (6.472 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$2,671.00 - $4,412.50
1LB MK-V Orthrus Bidirectional Flow Closed Loop Extractor
***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors 1LB MK-V Orthrus Bidirectional Flow Closed Loop Extractor (System comes with 1 yr. limited warranty) The 1lb Bi-Directional closed loop increases efficiency by utilizing both a bottom and top solvent input. By using a bottom flood on the first wash, you ensure all material has seen solvent. This method preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configurations: Explorer: Our standard bi-directional extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the Orthrus design without any bells and whistles. The Explorer model is perfect for those looking to get the bi-directional performance but have a budget. Explorer models can be upgraded after purchase. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. High pressure clamps give greater solvent compatibility, allowing propane to be used. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. The elite series comes with all American instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve and jacketed collection base. Full dewaxing is guaranteed by combining both an injection coil and sleeved column. Both units are packed with dry ice, making both solvent and material sub-zero temperatures. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base Ball Valve BVV 316SS Full Bore Valves Ball Valve HP Clamps Injection Coil w/ Hose Splatter Platter Base SSP Valves Injection Coil Dewaxer AVCO Ball Valve HP Clamps Jacketed Base/Platter Unit Includes: Collection Base 6"x6" Welded Bottom Base 6"x6" Open Spool Assembled 6" bi-flow lid 3"x24" Material column with reducer & top cap 3" filter plate kit 1.5" Solvent input manifold 1.5" Ball Valve Mastercool 6LB Solvent Recovery Tank (2) 1/4" 48" High Pressure PTFE Braided SS Hose 3/8" 48" High Pressure PTFE Braided SS Hose (2)6" clamps, (3)3" clamps and a (3)1.5" clamp with gaskets (2)3" Gaskets w/ filter Instruction Manual Specifications: 3"x 24" 304 Stainless Steel Material Tube 1lb (450g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 6" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 25" x 7" Diameter overall size Weight: 21 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 300 cubic inches, (2.553 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$1,200.00 - $4,400.00

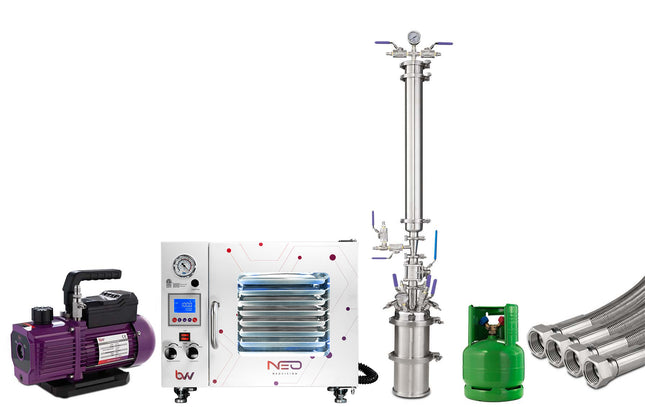

1LB MK-V Bi-Directional Closed Loop Extraction Kit
1LB MK-V Bi-Directional Closed Loop Extraction Kit (System comes with 1 yr. limited warranty) We believe it’s better to buy everything you need in one shot, so we’ve created a package that includes a vacuum chamber, vacuum pumps, and complete extraction system. The best part? Buying this kit will save you money compared to purchasing each component individually. ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors The 1lb Bi-Directional closed loop increases efficiency by utilizing both a bottom and top solvent input. By using a bottom flood on the first wash, you ensure all material has seen solvent. This method preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configurations: Explorer: Our standard bi-directional extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the Orthrus design without any bells and whistles. The Explorer model is perfect for those looking to get the bi-directional performance but have a budget. Explorer models can be upgraded after purchase. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. High pressure clamps give greater solvent compatibility, allowing propane to be used. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. The elite series comes with all American instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve and jacketed collection base. Full dewaxing is guaranteed by combining both an injection coil and sleeved column. Both units are packed with dry ice, making both solvent and material sub-zero temperatures. The material column is fitted with a nitrogen assist port, which helps ensure no solvent gets stuck with the material. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base 0.9CF ECO Oven V7S 7CFM Single Stage Vacuum Pump BVV 316SS Full Bore Valves HP Clamps Injection Coil w/ Hose Splatter Platter Base 0.9CF ECO Oven V7S 7CFM Single Stage Vacuum Pump SSP Valves Injection Coil Dewaxer AVCO Ball Valve HP Clamps Jacketed Base/Platter Nitrogen Assist 0.9CF NEO Oven V7S 7CFM Single Stage Vacuum Pump Unit Includes: Collection Base 6"x6" Welded Bottom Base 6"x6" Open Spool Assembled 6" bi-flow lid 3"x24" Material column with reducer & top cap 3" filter plate kit 1.5" Solvent input manifold 1.5" Ball Valve #30 LP tank (2) 1/4" 48" High Pressure PTFE Braided SS Hose 3/8" 48" High Pressure PTFE Braided SS Hose (2)6" clamps, (3)3" clamps and a (3)1.5" clamp with gaskets Instruction Manual Specifications: 3"x 24" 304 Stainless Steel Material Tube 1lb (450g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 6" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 25" x 7" Diameter overall size Weight: 21 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 300 cubic inches, (2.553 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$3,365.00 - $7,025.00
1LB Skylight Top Fill Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) The 1lb Skylight closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. What sets the skylight apart from the standard 1lb is the kettle top featuring a 3" sight glass to view inside the collection vessel. This is great for beginners on a larger scale, the viewport helps you easily see your oil fall and gives you a great view of your recovery process. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. The top-fill closed loop extractor is the safest way to do hydrocarbon extraction. Solvent washes through the material column and collects oils as it passes over the material, and the oil-bearing solvent is collected in the collection base. Once collected, the solvent in this passive unit is distilled and recovered using temperature manipulation, leaving oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configuration: Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget. Comes with a welded bottom base and standard LP tank. This model has minimal features to keep cost low, while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Solvent is input into the material column with a showerhead endcap, ensuring the full material column is saturated with solvent. The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Elite: The Elite series is the premium version of the Professional. It features all American made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, jacketed collection base, and all high-pressure clamps. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Showerhead Dewaxer Ball Valve Splatter Platter Base SSP Valves Showerhead Dewaxer AVCO Ball Valve HP Clamps Jacketed Base/Platter Unit Includes: Collection Base 6"x6" Welded Bottom Base 6"x4" Kettle top with 3" Sight Glass Assembled 4" extractor lid 3"x24" Material column with reducer & top cap 6LB Mastercool Solvent Recovery Tank 60" High Pressure PTFE Braided SS Hose (2) 6" clamps, (2) 3" clamps and a 1.5" clamp with gaskets Instruction Manual Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$750.00 - $1,975.00
Mini Icarus 1LB True Dewax Bidirectional Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors Mini Icarus: Bi-Directional Flow True Dewax Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) The Icarus unit shares the same function of the standard Bi-directional extractors, but features rack mounting for ease of use. It is also the 5lb True Dewax unit. By utilizing an input manifold for the solvent, the user is able to switch from bottom flood to a top input on the material column. This method ensures that all material has been saturated and rinsed of oils on the first run. The oil bearing solvent then dumps into a sleeved spool, where it is chilled with dry ice. Once the solvent has chilled, waxes and lipids will coagulate and fall out of the solution. The solution is then filtered and dumped into a collection base. The rack unit comes standard with a port for nitrogen assistance. Key Features: 304 Stainless Steel construction BUNA-N gaskets 3”x 24” rack mounted material column with separated 8”x 10” collection base and 4"x24" Dewax vessel Milwaukee 316SS ball valves with 37° JIC flares Solvent input manifold to switch from bottom to top flood Manifold for vacuum and nitrogen assist Polycarbonate sight glass on collection base High pressure clamps 80-20 racking #15 LP Recovery tank Extractor Configurations: Explorer: Our standard true dewax extractor model. Comes with a welded bottom base and standard LP tank. Professional: This model comes with a splatter platter collection base. This base has a removable bottom, making removal of extract easier. Elite: The Elite series comes equipped with all American made instrumentation valves by SSP. It has a jacketed collection base with removable platter. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The Elite model comes with a stainless steel LP. This LP, being both corrosion resistant and cleanable, keeps solvent from being contaminated. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Splatter Platter Base SSP Valves Jacketed Base/Platter SSLP Specifications: Dimensions (Inches): Weight: Operating Temperature Range: -40C (-40F) to 72C (160F) Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1301 cubic inches, (21.323 Liters) Construction: All components made of 304& 316 Stainless Steel. Intake Fittings: JIC 37 Degree Vacuum Fittings Max Vacuum -29.9inHg High Polish Interior base *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$2,850.00 - $6,400.00
2LB TFX Closed Loop Extractor
2LB TFX Closed Loop Extractor Are you ready to embark on an exciting journey into the world of extraction? Look no further than the TFX, your perfect entry point into the world of closed-loop extraction. The TFX offers exceptional performance right out of the box at an affordable price, making it an excellent choice for both beginners and experienced extractors. But that's not all – the TFX also serves as a versatile foundation for future upgrades and enhancements, allowing you to level up your extraction game over time. Whether you're just starting or aiming to expand your capabilities, the TFX provides a solid base that can be customized to meet your evolving needs. With its adaptable design and compatibility with various upgrades, the TFX empowers you to experiment with new processing techniques and adapt to changing industry demands. Begin your journey with the TFX and open the door to endless possibilities for innovation and growth in the extraction realm. Introducing the TFX closed-loop extractor, the next step in the evolution of the popular Apollo extractor. The TFX brings a new era of safety, user-friendliness, and performance to the table. Building on the success of its predecessor, the TFX takes operator safety to the next level with enhanced safety mechanisms, including High-pressure Clamps and pressure relief valves as standard features. Extract harvesting is made easier with splatter platter bases, ensuring a cleaner and smoother process. The TFX's optimized design translates to improved ease of use, safety, and performance, resulting in top-quality extracts. The TFX is the cornerstone of many extractors' journeys, offering a reliable, efficient, and future-ready solution to meet your evolving needs. The TFX closed-loop extractor comes in three model variants, catering to different extraction requirements. The V1 Explorer is the choice for budget-conscious individuals looking to enter the world of extraction affordably. With features like a DOT-Approved carbon steel recovery tank, 1/4" JIC Recovery lines, and polycarbonate sight glasses, it lays the foundation for easy future upgrades. For those seeking a professional setup from the start, the V2 Professional model is the ideal option. It comes with an upgraded stainless steel recovery tank featuring 1/2" JIC Recovery lines for optimized solvent recovery. Enhanced borosilicate sight glasses provide better visibility during the extraction process. If you're aiming for the ultimate extraction experience, the V3 Elite model is the answer. This model includes all the upgrades of the professional variant, along with additional features like a solvent dispersal plate for uniform biomass saturation and a jacketed splatter platter for use with a heated circulator, improving solvent recovery efficiency. The TFX closed-loop extractor lets you choose the perfect model for your budget and needs. Whether you're starting small or aiming for professional-grade capabilities, the TFX series provides the perfect foundation for your extraction journey. No matter which model you choose – Explorer, Professional, or Elite – the TFX closed-loop extractor offers limitless modification possibilities to enhance your capabilities and stay ahead of industry trends. Optimized for quick wash extraction procedures, the TFX ensures exceptional purity and yield. If you prefer soaking procedures, simply add our 316L SS Tri-Clamp Ball Valve below the material column to adapt the TFX. For the utmost purity, pair your TFX with an Inline CRC (Color Remediation Column) for the highest quality and purest extracts. Running fresh frozen material? Swap the standard 4"x 24" spool with a Sleeved Spool to preserve your biomass's flavor during extraction. To achieve ultimate clarity, reduce wax content by incorporating an injection coil into your setup. To enhance solvent recovery and reduce loss, consider our BVV 2 Cylinder Active Closed Loop Recovery kit for your TFX closed-loop extractor. This kit boosts solvent recovery efficiency, saving you time and resources. With the TFX closed-loop extractor and its range of modification options, you have the freedom to customize your extraction setup to match your unique needs. Stay at the forefront of the industry and unlock your extraction process's full potential with the versatile TFX closed-loop extractor. As a premier extraction equipment manufacturer, we prioritize precision and safety in the extraction process. The TFX is designed with these principles in mind, offering a cutting-edge solution for extraction professionals. Constructed from high-quality stainless steel, the TFX ensures exceptional durability and resistance to corrosion, providing you with a reliable and long-lasting extraction solution. Its innovative design incorporates advanced safety features, including high-pressure clamps, pressure relief valves, and sight glasses, ensuring operator well-being and operational control. Its superior design promotes efficient solvent flow and comprehensive material saturation, resulting in high-quality, potent extracts that meet your precise requirements. When it comes to introductory closed-loop extractors, the TFX sets a new standard with its exceptional performance, safety features, and reliability. With our product, you can streamline extraction operations, boost productivity, and produce premium extracts that surpass industry standards. At BVV, we take pride in offering top-tier extraction equipment tailored to your unique needs. Our team of experts is dedicated to providing unmatched customer support, assisting your extraction journey and take your business to new heights. Specifications 4"x24" 1LB Material Column 12"x12" Collection Base Body 12" Collection Base Splatter Platter 100um Nitrile BUNA-N Mesh Gaskets 1.5" Polycarbonate or Borosilicate Sight Glasses 125 PSI ASME Safety Valves -30hg-250PSI Compound Pressure Gauge 1/4" or 1/2" Full Bore Recovery Lines 1/4" JIC process Flow lines Explorer Professional Elite DOT Carbon Steel Solvent Tank Polycarbonate Sight Glasses 1/4" JIC Recovery Lines Stainless Steel Solvent Tank Borosilicate Sight Glasses 1/2" JIC Recovery Lines Stainless Steel Solvent Tank Borosilicate Sight Glasses 1/2" JIC Recovery Lines Solvent Dispersal Plate Jacketed Splatter Platter ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$1,275.00 - $1,850.00
2LB Apollo Top Fill Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors 2lb Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) The 2lb closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. This unit can be upgraded into an Active recovery unit by purchasing the upgrade kit. TRS21 Active Closed Loop Recovery Kit Extractor Configurations: Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget. Comes with a welded bottom base and standard LP tank. This model has minimal features to keep cost low, while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Solvent is input into the material column with a showerhead endcap, ensuring the full material column is saturated with solvent. The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Elite: The Elite series is our fully upgraded Apollo model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, sleeved dewaxing column, jacketed collection base, and a stainless steel LP tank. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Showerhead Dewaxer Ball Valve Splatter Platter Base SSP Valves Showerhead Dewaxer AVCO Ball Valve HP Clamps Jacketed Base/Platter SSLP 3/8" Valves & Hoses Unit Includes: Collection Base 10"x10" Welded Bottom Base Assembled 10" extractor lid 3"x36" Material column with reducer & top cap #30 LP tank 60" High Pressure PTFE Braided SS Hose 10" clamp, (2)3" clamps and a 1.5" clamp with gaskets Instruction Manual Specifications: 3"x 36" 304 Stainless Steel Material Tube 2lb (900g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 10" diameter by 10" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 55" x 10" Diameter overall size Weight: 38 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 785 cubic inches, (12.8704 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$880.00 - $2,900.00
2LB MK-V Orthrus Bidirectional Flow Closed Loop Extractor
***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors 2LB MK-V Orthrus Bidirectional Flow Closed Loop Extractor (System comes with 1 yr. limited warranty) The 2lb Bi-Directional closed loop increases efficiency by utilizing both a bottom and top solvent input. By using a bottom flood on the first wash to ensure all material has seen solvent, preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil-bearing solvent is collected in the collection base under the material column. Once collected, the solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configurations: Explorer: Our standard bi-directional extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the Orthrus design without any bells and whistles. The Explorer model is perfect for those looking to get the bi-directional performance but have a budget. Explorer models can be upgraded after purchase. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, jacketed collection base, and stainless steel LP tank. Full dewaxing is guaranteed by combining both an injection coil and sleeved column. Both units are packed with dry ice, making both solvent and material sub-zero temperatures. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue.*NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Ball Valve Welded Bottom Base BVV 316SS Full Bore Valves Ball Valve Splatter Platter Base Injection Coil w/ hose SSP Valves Injection Coil Dewaxer AVCO Ball Valve Jacketed Base/Platter 3/8” Valves/Lines SSLP This Unit Includes: Collection Base 10"x10" Welded Bottom Base Assembled 10" Hemispherical bi-flow lid 4"x24" Material column with reducer & top cap 4" filter plate kit 1.5" Solvent input manifold 1.5" Ball Valve #30 LP tank (2) 1/4" 48" High-Pressure PTFE Braided SS Hose 3/8" 48" High-Pressure PTFE Braided SS Hose 10" clamps, (3)4" clamps and a (3)1.5" clamp with gaskets (2)4" Gaskets w/ filter Instruction Manual *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$1,425.00 - $4,600.00

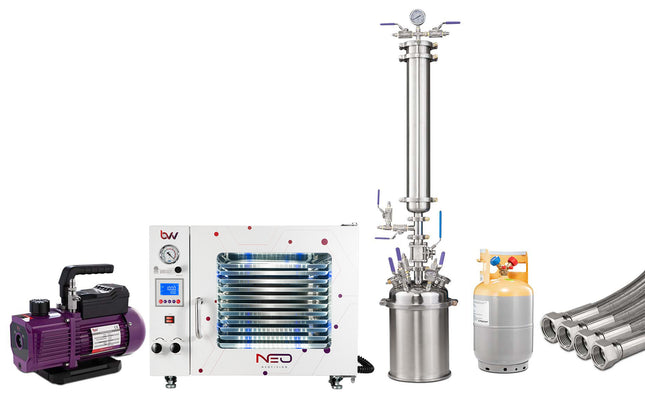

2LB MK-V Bi-Directional Closed Loop Extraction Kit
2LB MK-V Bi-Directional Closed Loop Extraction Kit (System comes with 1 yr. limited warranty) We believe it’s better to buy everything you need at one time, so we’ve created a package that includes an orthrus, vacuum pumps, and complete extraction system. The best part? Buying this kit will save you money compared to purchasing each component individually. ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors The 2lb Bi-Directional closed loop increases efficiency by utilizing both a bottom and top solvent input. By using a bottom flood on the first wash to ensure all material has seen solvent, preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil-bearing solvent is collected in the collection base under the material column. Once collected, the solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configurations: Explorer: Our standard bi-directional extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the Orthrus design without any bells and whistles. The Explorer model is perfect for those looking to get the bi-directional performance but have a budget. Explorer models can be upgraded after purchase. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, jacketed collection base, and stainless steel LP tank. Full dewaxing is guaranteed by combining both an injection coil and sleeved column. Both units are packed with dry ice, making both solvent and material sub-zero temperatures. The material column is fitted with a nitrogen assist port, which helps ensure no solvent gets stuck with the material. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base 1.9 ECO Oven V7S 7CFM Single Stage Vacuum Pump BVV 316SS Full Bore Valves Splatter Platter Base Injection Coil w/ hose 1.9 ECO Oven V7S 7CFM Single Stage Vacuum Pump SSP Valves Injection Coil Dewaxer AVCO Ball Valve Jacketed Base/Platter 3/8” Valves/Lines SSLP Nitrogen Assist 1.9 NEO Oven V7S 7CFM Single Stage Vacuum Pump This Unit Includes: Collection Base 10"x10" Welded Bottom Base Assembled 10" Hemispherical bi-flow lid 4"x24" Material column with reducer & top cap 4" filter plate kit 1.5" Solvent input manifold 1.5" Ball Valve #30 LP tank (2) 1/4" 48" High-Pressure PTFE Braided SS Hose 3/8" 48" High-Pressure PTFE Braided SS Hose 10" clamps, (3)4" clamps and a (3)1.5" clamp with gaskets (2)4" Gaskets w/ filter Instruction Manual *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$4,298.50 - $8,133.50
Little Icarus 2LB True Dewax Bidirectional Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors Little Icarus: Bi-Directional Flow True Dewax Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) The Icarus unit shares the same function of the standard Bi-directional extractors, but features rack mounting for ease of use. It is also the 5lb True Dewax unit. By utilizing an input manifold for the solvent, the user is able to switch from bottom flood to a top input on the material column. This method ensures that all material has been saturated and rinsed of oils on the first run. The oil bearing solvent then dumps into a sleeved spool, where it is chilled with dry ice. Once the solvent has chilled, waxes and lipids will coagulate and fall out of the solution. The solution is then filtered and dumped into a collection base. The rack unit comes standard with a port for nitrogen assistance. Key Features: 304 Stainless Steel construction BUNA-N gaskets 4”x 24” rack mounted material column with separated 10”x 10” collection base and 6"x24" Dewax vessel BVV 316SS ball valves with 37° JIC flares Solvent input manifold to switch from bottom to top flood Manifold for vacuum and nitrogen assist Polycarbonate sight glass on dewax and collection base High pressure clamps 80-20 racking #30 LP Recovery tank Specifications: Dimensions (Inches): Weight: Operating Temperature Range: -40C (-40F) to 72C (160F) Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1301 cubic inches, (21.323 Liters) Construction: All components made of 304& 316 Stainless Steel. Intake Fittings: JIC 37 Degree Vacuum Fittings Max Vacuum -29.9inHg High Polish Interior base Explorer: Our standard true dewax extractor model. Comes with a welded bottom base and standard LP tank. Professional: This model comes with a splatter platter collection base. This base has a removable bottom, making removal of extract easier. Elite: The Elite series comes equipped with all American made instrumentation valves by SSP. It has a jacketed collection base with removable platter. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The Elite model comes with a stainless steel LP. This LP, being both corrosion resistant and cleanable, keeps solvent from being contaminated. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Splatter Platter Base SSP Valves Jacketed Base/Platter SSLP *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$3,500.00 - $7,100.00
2LB Mercurius Active Bidirectional Extractor with Recovery Pump
***Note: Butane(Solvent) not included with systems unless ordered with through drop-down menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. This system REQUIRES a temperature control system. Mercurius Active Bidirectional Extractor with TRS21 Recovery Pump (System comes with 1 yr. limited warranty) The Mercurius system is a rack mounted MK-V that is specifically built to be run actively. Bi-directional solvent input prevents channeling and ensures a full yield is achieved. The Mercurius system also features a TRS21 recovery kit standard. This is used to pressurize the material column after extraction to clear/assist in recovering the column. The Mercurius system features a recovery manifold that is also used as the overflow path when bottom filling. This allows the column to be recovered independently from the collection base. With this plumbing, the user is able to utilize the evaporative cooling properties of the extraction solvents. By injecting a small amount of solvent into a closed material column, slightly wetting the material, then recovering this solvent, the material is frozen once all solvent flips phase. This method, paired with an injection coil, ensures efficient dewaxing happens without excessive dry ice or expensive chilling units. This system is entirely rack mounted, giving this highly efficient system a small footprint. The rack also features a small shelf on the rear for tools and condensing coil. Features: Rack Mounting Bi-Directional Solvent flow Recovery Manifold for column and collection base recovery Active Recovery for both collection and material column Hot Vapor Loop Jacketed collection base Condensing Coil for efficient recovery 3/8” Lines High Pressure Clamps Injection coil and ability to utilize solvent evaporative cooling for efficient dewaxing Stainless steel recovery tank Includes: 80-20 Rack Jacketed Collection Base 4” x 24” Vacuum Insulated Material Column Bi-Directional Solvent Input Manifold Recovery Manifold #30 Stainless Steel LP Tank High-Pressure Clamps TRS21-SS BVV™ Exclusive Upgraded & Calibrated in the USA Rack Mounted Molecular Sieve Sleeved Injection Coil Condensing Coil for recovery. Extractor Configurations: Professional: Our standard Mercurius model. The Mercurius is designed for the professional, and comes standard with 3/8” lines, stainless steel LP, injection coil, active recovery and fully jacketed base. *NOTE* This model requires a heater circulator or chiller Elite: The Elite series comes equipped with all the same features as the Professional model, but with all American made instrumentation valves by SSP. *NOTE* This model requires a heater circulator or chiller. Professional Elite Standard Configuration SSP Valves *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$6,150.00 - $7,300.00
5LB TFX Closed Loop Extractor
5LB TFX Closed Loop Extractor Are you ready to embark on an exciting journey into the world of extraction? Look no further than the TFX – your ultimate entryway into the realm of closed-loop extraction. The TFX not only offers exceptional performance straight out of the box at an affordable price but also serves as a dynamic foundation for future upgrades and enhancements, allowing you to elevate your extraction prowess over time. Whether you're just starting your extraction venture or seeking to amplify your capabilities, the TFX provides a sturdy base that can be tailored to meet your evolving requirements. With its adaptable design and compatibility with various upgrades, the TFX empowers you to experiment with novel processing techniques and adapt to the ever-changing demands of the industry. Initiate your journey with the TFX and unlock boundless possibilities for innovation and expansion in the extraction domain. Introducing the TFX closed-loop extractor – the evolution of the popular Apollo extractor. The TFX heralds a new era of safety, user-friendliness, and performance. Building upon the achievements of its predecessor, the TFX takes operator safety to new heights, featuring enhanced safety mechanisms such as High-pressure Clamps and pressure relief valves as standard features. Harvesting extracts is made effortless with splatter platter bases, ensuring a cleaner and more seamless process. The optimized design of the TFX translates to heightened ease of use, safety, and performance, resulting in top-tier extracts. The TFX stands as the cornerstone of many extractors' journeys, providing a reliable, efficient, and future-proof solution to meet your evolving demands. The TFX closed-loop extractor comes in three model variants, tailored to different extraction needs. The V1 Explorer is the ideal choice for those mindful of their budget, offering an affordable entry point into the extraction world. Equipped with features like a DOT-Approved carbon steel recovery tank, 1/4" JIC Recovery lines, and polycarbonate sight glasses, it establishes the groundwork for seamless future upgrades. For those seeking a professional setup from the outset, the V2 Professional model is the prime selection. It boasts an upgraded stainless steel recovery tank with 1/2" JIC Recovery lines for optimal solvent recovery. Enhanced borosilicate sight glasses provide improved visibility during the extraction process. For the ultimate extraction experience, the V3 Elite model is your answer. It encompasses all the upgrades of the professional variant, along with additional features such as a solvent dispersal plate for uniform biomass saturation and a jacketed splatter platter compatible with a heated circulator, enhancing solvent recovery efficiency. The TFX closed-loop extractor empowers you to choose the model that suits your budget and needs perfectly. Whether you're taking your first steps or aiming for professional-grade capabilities, the TFX series lays the groundwork for your extraction journey. Regardless of your choice – Explorer, Professional, or Elite – the TFX closed-loop extractor offers endless modification possibilities to amplify your capabilities and remain ahead of industry trends. Tailored for quick wash extraction procedures, the TFX guarantees outstanding purity and yield. For those inclined towards soaking procedures, a simple addition of our 316L SS Tri-Clamp Ball Valve beneath the material column transforms the TFX. For utmost purity, pair your TFX with an Inline CRC (Color Remediation Column) to achieve the highest quality and purest extracts. Planning to work with fresh frozen material? Swap out the standard 4"x 24" spools for Sleeved Spools to preserve the biomass's flavor during extraction. To attain unparalleled clarity in your extracts, reduce wax content by integrating an injection coil into your setup. To enhance solvent recovery efficiency and minimize loss, consider adding our BVV 2 Cylinder Active Closed Loop Recovery kit to your TFX closed-loop extractor. This kit optimizes solvent recovery, ultimately saving you valuable time and resources. With the TFX closed-loop extractor and its range of modification options, you have the freedom to tailor your extraction setup to match your distinct requirements. Stay at the forefront of the industry and unlock the full potential of your extraction process with the versatile TFX closed-loop extractor. As a prominent manufacturer of extraction equipment, we prioritize precision and safety in the extraction process. The TFX embodies these principles, offering a state-of-the-art solution for extraction professionals. Engineered from high-quality stainless steel, the TFX guarantees exceptional durability and corrosion resistance, providing you with a dependable and enduring extraction solution. Its innovative design integrates advanced safety features such as high-pressure clamps, pressure relief valves, and sight glasses, ensuring operator well-being and operational control. Its superior design promotes efficient solvent flow and comprehensive material saturation, resulting in high-quality, potent extracts that meet your specific requirements. When it comes to introductory closed-loop extractors, the TFX sets a new benchmark with its exceptional performance, safety features, and reliability. With our product, you can streamline your extraction operations, amplify productivity, and craft premium extracts that surpass industry standards. At BVV, we take pride in offering top-tier extraction equipment tailored to your unique needs. Our team of experts is devoted to providing unparalleled customer support, assisting you every step of the way, from your initial purchase to setup and beyond. Elevate your butane extraction experience with the TFX – the definitive top-fill closed-loop extractor. Reach out to us today to initiate your extraction journey and propel your business to new heights. Specifications 2X 4"x24" 1LB Material Column 12"x12" Collection Base Body 12" Collection Base Splatter Platter 100um Nitrile BUNA-N Mesh Gaskets 1.5" Polycarbonate or Borosilicate Sight Glasses 125 PSI ASME Safety Valves -30hg-250PSI Compound Pressure Gauge 1/4" or 1/2" Full Bore Recovery Lines 1/4" JIC process Flow lines Explorer Professional Elite DOT Carbon Steel Solvent Tank Polycarbonate Sight Glasses 1/4" JIC Recovery Lines Stainless Steel Solvent Tank Borosilicate Sight Glasses 1/2" JIC Recovery Lines Stainless Steel Solvent Tank Borosilicate Sight Glasses 1/2" JIC Recovery Lines Solvent Dispersal Plate Jacketed Splatter Platter ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$1,400.00 - $2,150.00
5LB Apollo Top Fill Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors 5LB Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) Please read Optional Upgrades section for clarification on system upgrades The 5lb closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. This unit can be upgraded into an Active recovery unit by purchasing the upgrade kit. TRS21 Active Closed Loop Recovery Kit Extractor Configurations: Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget. Comes with a welded bottom base and standard LP tank. This model has minimal features to keep cost low, while providing the necessary equipment to get the job done. Professional: This model features upgrades to help produce a higher quality extract. Solvent is input into the material column with a showerhead endcap, ensuring the full material column is saturated with solvent. The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base. Elite: The Elite series is our fully upgraded Apollo model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, sleeved dewaxing column, jacketed collection base, and a stainless steel LP tank. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Showerhead Dewaxer Ball Valve Splatter Platter Base SSP Valves Showerhead Dewaxer AVCO Ball Valve HP Clamps Jacketed Base/Platter SSLP 3/8" Valves & Hoses Unit Includes: Collection Based 12"x12" Welded Bottom Base Assembled 12" extractor lid (2)4"x24" Material column with reducer & top cap #50 LP tank 96" High Pressure PTFE Braided SS Hose 12" clamps, (3)4" clamps and a 2" clamp with gaskets Instruction Manual Specifications: (2) 4"x 24" 304 Stainless Steel Material Tubes 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 12" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches):25" x 7.5' Diameter overall size Weight: 75 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1275 cubic inches, (2.553 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$1,075.00 - $3,300.00
5LB MK-V Orthrus Bidirectional Flow Closed Loop Extractor
***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors 5LB MK-V Orthrus Bidirectional Flow Closed Loop Extractor (System comes with 1 yr. limited warranty) The 5lb Bi-Directional closed loop increases efficiency by utilizing both a bottom and top solvent input. By using a bottom flood on the first wash to ensure all material has seen solvent, preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configuration: Explorer: Our standard bi-directional extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the Orthrus design without any bells and whistles. The Explorer model is perfect for those looking to get the bi-directional performance but have a budget. Explorer models can be upgraded after purchase. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, jacketed collection base, and stainless steel LP tank. Full dewaxing is guaranteed by combining both an injection coil and sleeved column. Both units are packed with dry ice, making both solvent and material sub-zero temperatures. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Splatter Platter Base Injection Coil w/ hose SSP Valves Injection Coil Dewaxer AVCO Ball Valve Jacketed Base/Platter 3/8” Valves/Lines SSLP Unit Includes: Collection Base 12"x12" Welded Bottom Base Assembled 12" biflow lid (2) Stacked 4"x24" Material columns with reducer & top cap 4" filter plate kit 2" Solvent input manifold 2" Ball Valve #50 LP tank 1/4" 48" High Pressure PTFE Braided SS Hose 1/4" 72" High Pressure PTFE Braided SS Hose 3/8" 72" High Pressure PTFE Braided SS Hose 12" clamps, (4)4" clamps and a (5)2" clamp with gaskets (2)4" Gaskets w/ filter Instruction Manual Specifications: 4"x 48" 304 Stainless Steel Material Tube 5lb (900g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 12" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 25" x 7.5' Diameter overall size Weight: 80 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1275 cubic inches, (2.553 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$1,600.00 - $5,100.00
5LB MK-V Bi-Directional Closed Loop Extraction Kit
5LB MK-V Bi-Directional Closed Loop Extraction Kit (System comes with 1 yr. limited warranty) Due to popular demand by customers, we have paired recommended vacuum chamber, vacuum pumps, and complete extraction systems for customers to buy with a discounted price. ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors The 5lb Bi-Directional closed loop increases efficiency by utilizing both a bottom and top solvent input. By using a bottom flood on the first wash to ensure all material has seen solvent, preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. Extractor Configuration: Explorer: Our standard bi-directional extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the Orthrus design without any bells and whistles. The Explorer model is perfect for those looking to get the bi-directional performance but have a budget. Explorer models can be upgraded after purchase. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, jacketed collection base, and stainless steel LP tank. Full dewaxing is guaranteed by combining both an injection coil and sleeved column. Both units are packed with dry ice, making both solvent and material sub-zero temperatures. The material column is fitted with a nitrogen assist port, which helps ensure no solvent gets stuck with the material. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base V9D 9CFM Two Stage Vacuum Pump 3.2CF NEO Vacuum Oven BVV 316SS Full Bore Valves Splatter Platter Base Injection Coil w/ hose V9D 9CFM Two Stage Vacuum Pump 3.2CF NEO Vacuum Oven SSP Valves Injection Coil Dewaxer AVCO Ball Valve Jacketed Base/Platter 3/8” Valves/Lines SSLP Nitrogen Assist V9D 9CFM Two Stage Vacuum Pump 3.2CF NEO Vacuum Oven Unit Includes: Collection Base 12"x12" Welded Bottom Base Assembled 12" biflow lid (2) Stacked 4"x24" Material columns with reducer & top cap 4" filter plate kit 2" Solvent input manifold 2" Ball Valve #50 LP tank 1/4" 48" High Pressure PTFE Braided SS Hose 1/4" 72" High Pressure PTFE Braided SS Hose 3/8" 72" High Pressure PTFE Braided SS Hose 12" clamps, (4)4" clamps and a (5)2" clamp with gaskets (2)4" Gaskets w/ filter Instruction Manual Specifications: 4"x 48" 304 Stainless Steel Material Tube 5lb (900g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 12" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 25" x 7.5' Diameter overall size Weight: 80 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1275 cubic inches, (2.553 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$8,656.00 - $12,481.00
5LB Athena Bidirectional Flow Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors MK-VI Bi-Directional Flow Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) Then 5lb Bi-Directional has the same function as the stand alone biflow, but with the convenience of a rack mounting system. By using a bottom flood on the first wash to ensure all material has seen solvent, preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. This unit can be upgraded into an Active recovery unit by purchasing the upgrade kit. TRS21 Active Closed Loop Recovery Kit Extractor Configurations: Explorer: Our standard Athena extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the bi-directional design without any bells and whistles. The Explorer model is perfect for those looking to process crude extract. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American instrumentation valves by SSP, jacketed collection base, and stainless steel LP tank. Dewaxing occurs by chilling solvent on injection. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Splatter Platter Base Injection Coil w/ hose SSP Valves Injection Coil Jacketed Base/Platter SSLP 3/8" Lines Unit Includes: Collection Base 12"x12" Welded Bottom Base Assembled 12" biflow lid (2) Stacked 4"x24" Material columns with reducer & top cap 4" filter plate kit 2" Solvent input manifold 2" Ball Valve #50 LP tank 1/4" 48" High Pressure PTFE Braided SS Hose 1/4" 72" High Pressure PTFE Braided SS Hose 3/8" 72" High Pressure PTFE Braided SS Hose 12" clamps, (4)4" clamps and a (5)2" clamp with gaskets (2)4" Gaskets w/ filter Instruction Manual Specifications: 4"x 48" 304 Stainless Steel Material Tube 5lb (900g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 12" diameter by 12" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): 25" x 7.5' Diameter overall size Weight: 80 lbs. Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1275 cubic inches, (2.553 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$2,650.00 - $5,900.00
The Icarus 5LB True Dewax Bidirectional Closed Loop Extractor
***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors The Icarus 5LB True Dewax Bidirectional Closed Loop Extractor (System comes with 1 yr. limited warranty) The Icarus unit shares the same function of the standard Bi-directional extractors, but features rack mounting for ease of use. It is also the 5lb True Dewax unit. By utilizing an input manifold for the solvent, the user is able to switch from bottom flood to a top input on the material column. This method ensures that all material has been saturated and rinsed of oils on the first run. The oil bearing solvent then dumps into a sleeved spool, where it is chilled with dry ice. Once the solvent has chilled, waxes and lipids will coagulate and fall out of the solution. The solution is then filtered and dumped into a collection base. The rack unit comes standard with a port for nitrogen assistance. The filtration on the true dewax column has been separated, making it easier to deal with clogs in the event that they occur. Extractor Configurations: Explorer: Our standard true dewax extractor model. Comes with a welded bottom base and standard LP tank. Professional: This model comes with a splatter platter collection base. This base has a removable bottom, making removal of extract easier. It also features a stainless steel LP tank and larger bore on valves and hoses. This makes the helps increase flow and decrease recovery times. The stainless LP, being both corrosion resistant and cleanable, keeps solvent from being contaminated. Elite: The Elite series comes equipped with all the same features as the Professional model, as well as all American made instrumentation valves by SSP. The Elite has a fully jacketed collection base. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. This model comes standard with an Active recovery kit with ½” lines. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Splatter Platter Base SSLP 3/8 Lines SSP Valves Jacketed Base/Platter SSLP 3/8” Lines MVP Active Kit ½’ Recovery Key Features: 304 Stainless Steel construction BUNA-N gaskets 4”x 48” rack mounted material column with separated 12”x 12” collection base and 6"x36" Dewax vessel Solvent input manifold to switch from bottom to top flood Manifold for vacuum and nitrogen assist Polycarbonate sight glass on dewax and collection base High pressure clamps #50 LP Recovery tank Specifications: Operating Temperature Range: -40C (-40F) to 72C (160F) Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1301 cubic inches, (21.323 Liters) Construction: All components made of 304& 316 Stainless Steel. Intake Fittings: JIC 37 Degree Vacuum Fittings Max Vacuum -29.9inHg High Polish Interior base *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$4,000.00 - $21,000.00
The Icarus 5LB Closed Loop Extraction Kit
The Icarus 5LB Closed Loop Extraction Kit (System comes with 1 yr. limited warranty) Due to popular demand by customers, we have paired recommended vacuum chamber, vacuum pumps, and complete extraction systems for customers to buy with a discounted price. ***Note: Solvent not included with systems unless ordered separately. Any order with butane WILL NOT SHIP EXPEDITED.*** DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors The Icarus unit shares the same function of the standard Bi-directional extractors, but features rack mounting for ease of use. It is also the 5lb True Dewax unit. By utilizing an input manifold for the solvent, the user is able to switch from bottom flood to a top input on the material column. This method ensures that all material has been saturated and rinsed of oils on the first run. The oil bearing solvent then dumps into a sleeved spool, where it is chilled with dry ice. Once the solvent has chilled, waxes and lipids will coagulate and fall out of the solution. The solution is then filtered and dumped into a collection base. The rack unit comes standard with a port for nitrogen assistance. Extractor Configurations: Explorer: Our standard true dewax extractor model. Comes with a welded bottom base and standard LP tank. Professional: This model comes with a splatter platter collection base. This base has a removable bottom, making removal of extract easier. It also features a stainless steel LP tank and larger bore on valves and hoses. This makes the helps increase flow and decrease recovery times. The stainless LP, being both corrosion resistant and cleanable, keeps solvent from being contaminated. The filtration on the true dewax column has been separated, making it easier to deal with clogs in the event that they occur. Explorer Professional BVV 316SS Full Bore Valves Welded Bottom Base V9D 9CFM Two Stage Vacuum Pump 3.2CF NEO Vacuum Oven BVV 316SS Full Bore Valves Splatter Platter Base SSLP 3/8 Lines Separated Filtration V9D 9CFM Two Stage Vacuum Pump 3.2CF NEO Vacuum Oven Key Features: 304 Stainless Steel construction BUNA-N gaskets 4”x 48” rack mounted material column with separated 12”x 12” collection base and 6"x36" Dewax vessel Solvent input manifold to switch from bottom to top flood Manifold for vacuum and nitrogen assist Polycarbonate sight glass on dewax and collection base High pressure clamps #50 LP Recovery tank Specifications: Operating Temperature Range: -40C (-40F) to 72C (160F) Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1301 cubic inches, (21.323 Liters) Construction: All components made of 304& 316 Stainless Steel. Intake Fittings: JIC 37 Degree Vacuum Fittings Max Vacuum -29.9inHg High Polish Interior base *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
$12,212.00 - $13,291.00
5LB EVO Certified Closed Loop Extractor *49 State Certified
5LB Evo Certified Closed Loop Extractor Equipped with the latest in modern extraction technology the 5lb EVO produces extracts of the highest purity in the shortest time possible through its inline solvent chilling and adsorbent filtration capabilities using its unrestricted passive recovery speeds when paired with our 11KW Express Extraction Heater. Peer reviewed and 3P certified the 5lb EVO meets or exceeds Class 1 Division 1, NFPA 58, and ASME standards. With the ability to process 40+ pounds of biomass material every 8 hours the 5lb Evo provides precision performance without the price. Processing Power Capacity Per Batch: 5LB Cycle Time: 30-45 Minutes Capacity: Up to 40 lb, per 8-hour shift Extracts: isolate/sauce, distillate, vape pens, shatter, and wax/sugar 5LB EVO Certified Closed Loop Technical Data Sheet Specifications 6"x36" 5lb Material Column 6"x6" Adsorbent Filtration Column 1-5um Sintered disk filtration 1.5"x24" Inline molecular sieve column 7X 1.5" Certified Borosilicate Sight Glasses 3X 250 PSI ASME Safety Valves 3X -30hg-250PSI Compound Pressure Gauges 1.5" Full Bore Recovery Lines 1/2" JIC process Flow lines Footprint (DxWxH) 30"x40"x79" Weight: 400 lb Maximum Pressure Rating: 250PSI Compliance Class 1, Division 1 Compliant Designed to ASME standrds NFPA 58 LPG compliant 3P Certifed 49 State compliant: AL, AR, AZ, CA, CO, CT, DE, DC, FL, GA, HI, IA, ID, IL, IN, KS, KY, LA, ME, MD, MA, MI, MN, MS, MO, MT, NE, NV, NH,NM, NY, NC, ND, OH, OK, OR, PA, RI, SC, SD, TN, TX, UT, VA, VT, WA, WV, WY, WI Performance Jacketed or sleeved solvent column for prechilling of solvent & unbridled passive recovery Material Column solvent dispersal plate for complete biomass saturation 1500g Adsorbent filtration column complete with a 1-5um Sintered disk filter stack Independently Jacketed Material column, adsorbent filtration column, & collection column for complete process temperature control 1.5" full bore recovery lines for unrestricted solvent recovery Integrated -1.5"x24" Inline molecular sieve column for preserving solvent's effectiveness Easy to use extract pour spout for streamlined extract harvesting
$8,250.00 - $8,450.00
PSI Certified Poseidon Closed Loop Extraction System
PSI Certified Poseidon Closed Loop Extraction System This system includes a lifetime warranty from BVV™ (warranty excludes consumable items and moving parts) This Item will ship via Freight only and will carry a 1-week lead time Note: Requires a C1D1 or Pneumatic Drive Pump. State Certifications The Poseidon by BVV™ comes fully assembled, tested, and certified in California, Colorado, Maryland, Nevada, Oregon, Pennsylvania, and Washington. The Poseidon is a 2 – 5 lb hydrocarbon extraction system for use with butane. This system is intended to be run passively. The Poseidon uses a modular material column, allowing users to choose a 2 or 5lb capacity. The system also allows full dewaxing inline by utilizing a secondary chamber to chill solvent by using dry ice in the sleeved column. Once the solvent is chilled, unwanted fats and waxes are filtered from the extracted oils. The collection column is fully jacketed and is heated using a Polyscience chiller. The Poseidon has been reviewed using the following codes: International Fire Code 2015 Edition NFPA 58 Liquefied Petroleum Gas Code 2014 Edition ASME Boiler and Pressure Vessel Code, Section VIII 2013 Edition Details: 4”x24” or 4”x48” Material Column 6”x36” Dewaxer with Filters 6”x44” Jacketed Collection Column Third Party Engineer Peer Review 304 Stainless Steel 50# LPG Rated DOT Storage Tank Fully Encapsulated Ball Valves High Pressure Clamps High Pressure Sight Glass Buna-N and PTFE Envelope Gaskets PTFE Lined High Pressure Hoses UL Listed Pressure Relief Valves Additional Equipment Included: 6100 Series Polyscience Chiller Operating Conditions: 90 PSI @ -40F to 120F Max Allowed Working Pressure: 350 PSI @ 120F Butane Only *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. ***Note: This item will ship via Freight ONLY. Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$16,250.00
5LB Mercurius Jacketed Active Bidirectional Extractor with Recovery Pump
***Note: Butane(Solvent) not included with systems unless ordered with drop-down menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors This System REQUIRES a temperature control system and comes standard with a Polyscience LX Immersion Circulator and Water Pump If you already have a chiller or heated circulator you can select the 'None' option or You can find a different chiller/circulator here. Mercurius Active Bidirectional Extractor with CMEP-OL Recovery Pump (System comes with 1 yr. limited warranty) The Mercurius system is a rack-mounted MK-V that is specifically built to be run actively. Bi-directional solvent input prevents channeling and ensures a full yield is achieved. The Mercurius system also features a recovery kit standard. The recovery pump has a coil bypass built onto the output to re-loop hot vapors back to the top of the material column. This is used to pressurize the material column after extraction to clear/assist in recovering the column. The Mercurius system features a recovery manifold that is also used as the overflow path when bottom filling. This allows the column to be recovered independently from the collection base. With this plumbing, the user is able to utilize the evaporative cooling properties of the extraction solvents. By injecting a small amount of solvent into a closed material column, slightly wetting the material, then recovering this solvent, the material is frozen once all solvent flips phase. This method, paired with an injection coil, ensures efficient dewaxing happens without excessive dry ice or expensive chilling units. This system is entirely rack mounted, giving this highly efficient system a small footprint. The rack also features a small shelf on the rear for tools and condensing coil. Features: Rack Mounting Bi-Directional Solvent flow Recovery Manifold for column and collection base recovery Active Recovery for both collection and material column Hot Vapor Loop Jacketed collection base Condensing Coil for efficient recovery 3/8” Lines High-Pressure Clamps Injection coil and ability to utilize solvent evaporative cooling for efficient dewaxing Stainless steel recovery tank Includes: 80-20 Rack Jacketed Collection Base 4” x 48” Vacuum Insulated Material Column Bi-Directional Solvent Input Manifold Recovery Manifold #50 Stainless Steel LP Tank High-Pressure Clamps TRS21 Recovery Pump Rack Mounted Molecular Sieve Sleeved Injection Coil Condensing Coil for recovery Extractor Configurations: Professional: Our standard Mercurius model. The Mercurius is designed for the professional, and comes standard with 3/8” lines, stainless steel LP, injection coil, active recovery and fully jacketed base. *NOTE* This model requires a heater circulator or chiller The professional model is 9ft tall. Please ensure you have proper vertical clearance. Elite: The Elite series has all the same functionality as the Professional, however the material column and collection base are separated. This shortens the height of the unit significantly, as well as making operation easier. The rack mounted collection base comes standard with a drain port and extract dispensing nozzle for easy extract removal. The collection base has a manifold to control flow and recovery path. Recovery is increased ½” valves and lines, increasing recovery speeds. The recovery system on the Elite comes with the Master Vapor 6CFM diaphragm recovery pump, which is C1D1 explosion proof. *NOTE* This model requires a heater circulator or chiller Professional Elite Standard Configuration Separated Collection Base Recovery Manifold 1/2" Recovery MVP Jacketed SS Tank with internal coil *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$8,450.00 - $25,500.00
8.5LB Athena Bidirectional Flow Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors. All extractors are built to order. The Athena comes with up to a 1-2 day lead time. MK-VI Bi-Directional Flow Closed Loop Reclamation Extraction System (System comes with 1 yr. limited warranty) Please Read Optional Upgrades Section for Clarification on System Upgrades The 8.5lb Bi-Directional rack has the same function as the stand alone biflow, but with the convenience of a rack mounting system. By using a bottom flood on the first wash to ensure all material has seen solvent, preventing channeling through the material. Finish the run with a top flood input to ensure all residuals have been washed from the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent. This unit can be upgraded into an Active recovery unit by purchasing the upgrade kit. TRS21 Active Closed Loop Recovery Kit Extractor Configurations: Explorer: Our standard Athena extractor model. Comes with a welded bottom base and standard LP tank. This model provides all the benefits of the bi-directional design without any bells and whistles. The Explorer model is perfect for those looking to process crude extract. Professional: This model features upgrades to help produce a higher quality extract. Solvent is entered into the system through an injection coil. This coil is chilled with dry ice and alcohol, dropping solvent temperatures to dewax inline. Fats and waxes are not soluble when solvent temperature is subzero, so chilling solvent on input is the simplest way to achieve high clarity extract. It features a larger bore on valves and hoses and a stainless steel LP tank. The Professional also comes with a removable bottom on the collection base. This makes removal of extract after the run as easy as possible. Elite: The Elite series is our fully upgraded Orthrus model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts. It features a larger bore on valves and hoses, all American instrumentation valves by SSP, jacketed collection base, and stainless steel LP tank. Dewaxing occurs by chilling solvent on injection. The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base. This method keeps temperature both accurate and consistent. The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. *NOTE* This model requires a heater circulator or chiller Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Base BVV 316SS Full Bore Valves Splatter Platter Base Injection Coil w/ hose SSLP 3/8 Lines SSP Valves Injection Coil Jacketed Base/Platter SSLP 3/8 Lines Unit Included: Collection Base 12"x24" Base Assembled 12" biflow lid 80-20 rack 6"x36" bracketed material column with reducer & top cap (2)6" filter plate kit 2" Solvent input manifold #100 LP tank 1/4" 48" High Pressure PTFE Braided SS Hose 1/4" 60" High Pressure PTFE Braided SS Hose (2)3/8" 48" High Pressure PTFE Braided SS Hose (2)12" clamps, (4)6" clamps, (3)2" clamps, and (2)1.5" clamps with gaskets 2" filter gasket Instruction Manual Specifications: 6"x 36" 304 Stainless Steel Material Tube 8.5lb (3900g) 316 Stainless Steel Fully Encapsulated Miniature Ball Valves System Rated to 150PSI Multiple port connections for _" 316 Stainless JIC 37 Degree 304 Stainless Steel Base Container 12" diameter by 24" tall Tri-Clamps at all interfaces make for a high pressure, easy clean unit. Viton Gaskets are designed for Oil Processing Temp range -40-200F Dimensions (Inches): Weight: Operating Temperature Range: -40F to 160F Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 2819 Cubic inches, (46.2 Liters) Construction: All components made of 304 Stainless Steel. Max Vacuum -29.9inHg High Polish Interior *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$3,250.00 - $8,000.00
The Icarus 8.5LB True Dewax Bidirectional Closed Loop Extractor
***Note: Butane(Solvent) not included with systems unless ordered with drop-down menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. ***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors. ***NOTE: This unit requires a chiller or circulation system. The Icarus 8.5LB True Dewax Bidirectional Closed Loop Extractor Butane Extraction System (System comes with 1 yr. limited warranty) The Icarus unit shares the same functionality as the standard Bi-directional with the convenience of rack-mounted columns. The Bi-directional solvent input provides a complete material saturation. The oil-bearing solvent advances into a sleeved spool chilled with dry ice for further filtration. Freezing the solution will coagulate the waxes and lipids, causing them to crash out, leaving you with purified oil in the collection base. Extractor Configurations: Explorer: The standard true dewax extractor model has a welded collection base and a carbon steel LP tank. Professional: The Professional series features a stainless steel LP tank with larger bore valves and 3/8-inch hoses, increasing recovery rates. The collection base has a removable bottom for an easier extract pour. Elite: The Elite series comes equipped with the same features as the Professional model with American-made instrumentation valves by SSP. The collection base has an outer liquid jacket that permits precision heating during recovery. Paired with a heated circulator* eliminates the need for a hot water bath. Active recovery: BVV's 4-cylinder recovery pump kit with 1/2-inch JIC hoses. An active recovery kit reduces the amount of dry ice needed. *NOTE* This model requires a heater circulator or chiller *NOTE* Explorer Professional Elite BVV 316SS Full Bore Valves Welded Bottom Recovery Base BVV 316SS Full Bore Valves Splatter Platter Recovery Stainless Steel Butane Storage Tank 3/8" Recovery lines SSP Valves Water Jacketed Recovery Jacketed Stainless Steel Butane Storage Tank BVV 4 Cylinder Butane Pump 1/2" Max Bore Recovery lines Key Features: 304 Stainless Steel construction 37° JIC Stainless Steel PTFE hosing BUNA-N tri-clamp gaskets 6”x 36” rack-mounted material column 8"x36" Dewax column Multistage filter stack system Double jacketed collection base with locking wheels Collection vessel pour off valve BVV 316SS low temp ball valves (Elite: SSP Valves) Manifold for vacuum and nitrogen assist Polycarbonate sight glass on collection base High-pressure clamps 80-20 racking unit #100 LP Recovery tank (Elite: SS #100) Specifications: Operating Temperature Range: -40C (-40F) to 72C (160F) Ultimate Vacuum: as low as 10 Microns Base unit Maximum Capacity: 1301 cubic inches, (21.323 Liters) Construction: All components made of 304& 316 Stainless Steel. Intake Fittings: JIC 37 Degree Vacuum Fittings Max Vacuum -29.9inHg High Polish Interior base *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Triclamp Spool (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) 1" 2" 3" 4" 6" 8" 10" 12" 18" 24" 36" 48" Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material
$7,500.00 - $14,000.00
10LB Mercurius Jacketed Active Bidirectional Extractor with Recovery Pump
***Note: Butane(Solvent) not included with systems unless ordered with drop-down menu or separately. Any order with butane WILL NOT SHIP EXPEDITED. DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors This system REQUIRES a temperature control system Mercurius Active Bidirectional Extractor with Recovery Pump (System comes with 1 yr. limited warranty) The Mercurius system is a rack-mounted MK-V that is specifically built to be run actively. Bi-directional solvent input prevents channeling and ensures a full yield is achieved. The Mercurius system also features a recovery pump kit standard. T This is used to pressurize the material column after extraction to clear/assist in recovering the column. The Mercurius system features a recovery manifold that is also used as the overflow path when bottom filling. This allows the column to be recovered independently from the collection base. With this plumbing, the user is able to utilize the evaporative cooling properties of the extraction solvents. By injecting a small amount of solvent into a closed material column, slightly wetting the material, then recovering this solvent, the material is frozen once all solvent flips phase. This method, paired with an injection coil, ensures efficient dewaxing happens without excessive dry ice or expensive chilling units. This system is entirely rack mounted, giving this highly efficient system a small footprint. The rack also features a small shelf on the rear for tools and condensing coil. Features: Rack Mounting Bi-Directional Solvent flow Recovery Manifold for column and collection base recovery Active Recovery for both collection and material column Hot Vapor Loop #100 Jacketed Stainless Steel LP Condensing Coil for efficient recovery 3/8” Lines with 1/2" Recovery Lines High-Pressure Clamps Injection coil and ability to utilize solvent evaporative cooling for efficient dewaxing Stainless steel recovery tank Includes: 80-20 Rack Jacketed Collection Base Bi-Directional Solvent Input Manifold Recovery Manifold High-Pressure Clamps Recovery Pump Rack Mounted Molecular Sieve Sleeved Injection Coil Condensing Coil for recovery Extractor Configurations: Professional: Our standard Mercurius model. The Mercurius is designed for the professional, and comes standard with 3/8” lines, stainless steel LP, injection coil, active recovery and fully jacketed base. *NOTE* This model requires a heater circulator or chiller Elite: The Elite series has all the same functionality as the Professional, but it is built with fully 1/2" all American instrumentation valves by SSP. The recovery pump is upgraded to the Master Vapor 150 diaphragm recovery pump, which is C1D1 explosion proof. *NOTE* This model requires a heater circulator or chiller Professional Elite Standard Configuration MVP 6CFM SSP Valves MVP150 *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$16,250.00 - $22,100.00
10LB Active PSI Certified Closed Loop Extraction System
PSI Certified 10 Lb. Active Closed Loop Extraction System This system includes a lifetime warranty from BVV™ (warranty excludes consumable items and moving parts) This Item will ship via Freight only and will carry a 1-2 week lead time Note: Requires a C1D1 or Pneumatic Drive Pump. The 10lb Active by BVV™ comes fully assembled, tested, and certified in AZ/CA/CO/FL/HI/MA/MD/ME/MI/NV/PA/OH/OR/WA. The 10lb Active hydrocarbon extraction system for use with butane and propane. The 10lb Active unit provides efficient extraction on a small footprint. Bi-directional flow helps maximize yield by preventing channeling. The 10lb system is capable of full dewaxing by utilizing both the evaporative cooling and an injection coil to keep material and solvent cold during the extraction process. Using the manifold on the collection base, all sections of the extractor can be recovered. The 10lb Active is equipped with a sucker pot, allowing easy removal of extract from the unit. This unit comes standard with an MVP-6 cfm diaphragm recovery The 10lb Active Closed Loop Extractor requires a Field Verification from PSI in order to be used in a certified lab. This is an additional cost after purchase. Verification can be set up with PSI. Contact information will be provided with purchase. The 10lb Active has been reviewed using the following codes: International Fire Code 2015 Edition NFPA 58 Liquefied Petroleum Gas Code 2014 Edition ASME Boiler and Pressure Vessel Code, Section VIII 2013 Edition Details: 4”x24” or 6”x48” Material Column 6”x36” Jacketed Sucker Pot 6”x44” ASME Jacketed Collection Base Third Party Engineer Peer Review 304 Stainless Steel 100# LPG Rated DOT Storage Tank Fully Encapsulated Ball Valves High-Pressure Clamps High-Pressure Sight Glass Buna-N Gaskets PTFE Lined High-Pressure Hoses UL Listed Pressure Relief Valves Additional Equipment Included: MVP 6cfm Diaphragm Recovery Pump Polyscience 45L Refrigerated Circulator UL Listed Pro Series 21.1 Cfm Vacuum Pump Operating Conditions: 200 PSI @ -40F to 110F Max Allowed Working Pressure: 350 PSI @ 110F For use Butane and Propane Note: This item will ship via Freight ONLY. 10LB Active PSI Certified Closed Loop Extraction System MVP-6CFM Explosion Proof Recovery Pump Polyscience 45 Liter Advanced Digital Refrigerated Circulator (-25°C/135°C) UL Listed Pro Series 21.2CFM Corrosion Resistant Two Stage Vacuum Pump *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$36,000.00
30lb Closed Loop Extraction System
30lb Closed Loop Extraction System Note: This system has a 3-4 week lead time. The 30lb Rack system by BVV™ is a full turnkey hydrocarbon extraction system. Featuring (4) 6” x 36” material columns, the unit is capable of processing up to 30lbs per run; or can be run as a continual feed. The solvent is input into the material columns from a rack-mounted solvent input manifold. Solvent is dispersed into the material from a showerhead endcap, making sure material is evenly saturated. Each column independently dumps into the collection base.The 30lb collection base features an internal heated coil and jacketed exterior. Solvent temperature can be monitored during recovery using the installed thermowell. The unit is heated by a HUBER T305 heater. The 30lb unit comes standard with ½” recovery lines and an MVP 150 recovery pump. Recovered vapors are re-condensed in a jacketed 40ft coil, chilled by a HUBER CS50, then stored in 150L reclaim tank. The solvent is chilled by an internal coil within the reclaim tank, keeping pressure low for quick and efficient recovery. The 30lb Rack Unit includes: (4) Rack Mounted 6” x 36” Material Columns w/ Showerhead and Filter Plate 150L Jacketed Collection Base w/ jacket, coil, and thermowell 3” x 36” Molecular Sieve MVP 150 C1D1 Recovery Pump 40ft Jacketed Condensing Coil 150L Reclaim Tank w/ Coil HUBER T305 HUBER CS50 ArlynGuard P5-30 C1D1 Scale BVV™ Pro-Series 21.2 CFM Vacuum Pump Power Requirements: MVP 150: HUBER CS-50: 208V 3~ 20A HUBER T305: 208V 3~ 15A *Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material. Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$95,000.00
