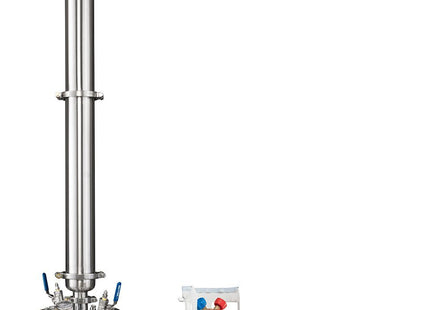

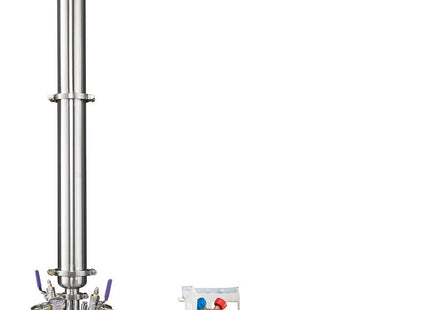

5LB Apollo Top Fill Closed Loop Extractor

Description

5LB Closed Loop Reclamation Extraction System

Please read Optional Upgrades section for clarification on system upgrades

 The 5lb closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent.

This unit can be upgraded into an Active recovery unit by purchasing the upgrade kit. TRS21 Active Closed Loop Recovery Kit

Extractor Configurations:

  • Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget.  Comes with a welded bottom base and standard LP tank.  This model has minimal features to keep cost low, while providing the necessary equipment to get the job done.
  • Professional: This model features upgrades to help produce a higher quality extract.  The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery.  Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base.
Explorer Professional
BVV 316SS Full Bore Valves BVV 316SS Full Bore Valves
Welded Bottom Base Dewaxer
Ball Valve
Splatter Platter Base
Splatter Platter Base



Unit Includes:

  • Collection Based
  • 12"x12" Welded Bottom Base

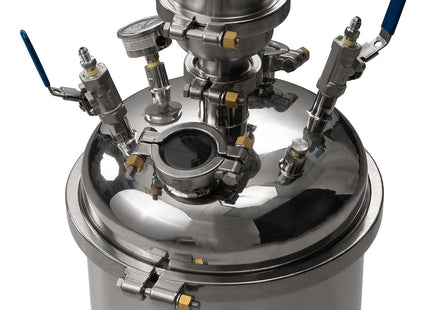

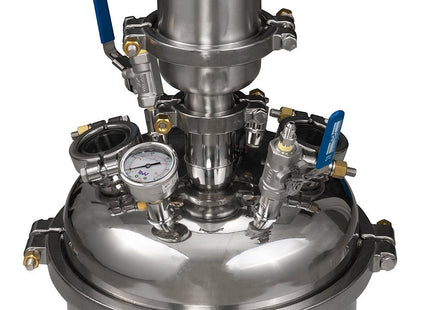

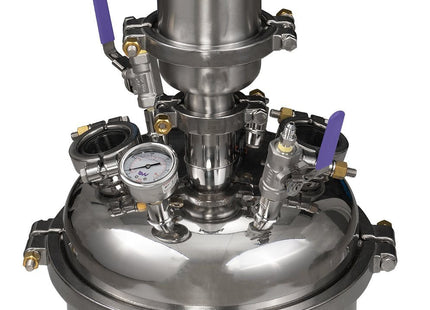

  • Assembled 12" extractor lid
  • (2)4"x24" Material column with reducer & top cap
  • #50 LP tank
  • 96" High Pressure PTFE Braided SS Hose
  • 12" clamps, (3)4" clamps and a 2" clamp with gaskets
  • Instruction Manual

Specifications:

  • (2) 4"x 24" 304 Stainless Steel Material Tubes
  • 316 Stainless Steel Fully Encapsulated Miniature Ball Valves
  •  System Rated to 150PSI
  • Multiple port connections for _" 316 Stainless JIC 37 Degree
  • 304 Stainless Steel Base Container 12" diameter by 12" tall
  • Tri-Clamps at all interfaces make for a high pressure, easy clean unit.
  • Viton Gaskets are designed for Oil Processing Temp range -40-200F
  • Dimensions (Inches):25" x 7.5' Diameter overall size
  • Weight: 75 lbs.
  • Operating Temperature Range: -40F to 160F
  • Ultimate Vacuum: as low as 10 Microns
  • Base unit Maximum Capacity: 1275 cubic inches, (2.553 Liters)
  • Construction: All components made of 304 Stainless Steel.
  • Max Vacuum -29.9inHg
  • High Polish Interior

***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.

DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors

*Note:  Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.

Cylinder Volume


Select Material

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =

Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g) 2.5 3 3.5 4.3
Grams of Material
Lbs. of Material

5LB Apollo Top Fill Closed Loop Extractor

Product form

SKU: CLS5LB-V1

$1,890.00

    • Unlock Bulk & Wholesale Pricing. Call 331-281-0154 for special discounts.

    Description

    5LB Closed Loop Reclamation Extraction System

    Please read Optional Upgrades section for clarification on system upgrades

     The 5lb closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent.

    This unit can be upgraded into an Active recovery unit by purchasing the upgrade kit. TRS21 Active Closed Loop Recovery Kit

    Extractor Configurations:

    • Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget.  Comes with a welded bottom base and standard LP tank.  This model has minimal features to keep cost low, while providing the necessary equipment to get the job done.
    • Professional: This model features upgrades to help produce a higher quality extract.  The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery.  Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base.
    Explorer Professional
    BVV 316SS Full Bore Valves BVV 316SS Full Bore Valves
    Welded Bottom Base Dewaxer
    Ball Valve
    Splatter Platter Base
    Splatter Platter Base



    Unit Includes:

    • Collection Based
    • 12"x12" Welded Bottom Base
    • Assembled 12" extractor lid
    • (2)4"x24" Material column with reducer & top cap
    • #50 LP tank
    • 96" High Pressure PTFE Braided SS Hose
    • 12" clamps, (3)4" clamps and a 2" clamp with gaskets
    • Instruction Manual

    Specifications:

    • (2) 4"x 24" 304 Stainless Steel Material Tubes
    • 316 Stainless Steel Fully Encapsulated Miniature Ball Valves
    •  System Rated to 150PSI
    • Multiple port connections for _" 316 Stainless JIC 37 Degree
    • 304 Stainless Steel Base Container 12" diameter by 12" tall
    • Tri-Clamps at all interfaces make for a high pressure, easy clean unit.
    • Viton Gaskets are designed for Oil Processing Temp range -40-200F
    • Dimensions (Inches):25" x 7.5' Diameter overall size
    • Weight: 75 lbs.
    • Operating Temperature Range: -40F to 160F
    • Ultimate Vacuum: as low as 10 Microns
    • Base unit Maximum Capacity: 1275 cubic inches, (2.553 Liters)
    • Construction: All components made of 304 Stainless Steel.
    • Max Vacuum -29.9inHg
    • High Polish Interior

    ***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.

    DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors

    *Note:  Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
    For best results, we recommend to tightly pack coarse ground material.

    Cylinder Volume


    Select Material

    How Much Will Fit in Cylinder

    Formula
    Volume x Weight of Water x Specific Gravity

    Constants
    Weight of Water = 0.0360 (lbs / in3)
    Specific Gravity of =

    Account for an 80% fill to avoid a hydraulic lock

    How Much Material Will Fit in the Cylinder

    Packing Density (g) 2.5 3 3.5 4.3
    Grams of Material
    Lbs. of Material
