***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.
DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors
Closed Loop Reclamation Extraction System
(System comes with 1 yr. limited warranty)
Please Read Optional Upgrades Section for Clarification on System Upgrades
The scalable closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes through the material column, collecting oils as it passes over the material. The oil-bearing solvent is collected in the collection base under the material column. Once collected, the solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent.
Extractor Configurations:
Explorer: Our standard, most economical setup, perfect for the entry-level extractor on a budget. It comes with a welded bottom base and a standard LP tank. This model has minimal features to keep costs low while providing the necessary equipment to get the job done.
Professional: This model features upgrades to help produce a higher quality extract. Coming with a sleeved spool, this model allows users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow the solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base.
Elite: The Elite series is the premium version of the Professional. It features all American-made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, and all high-pressure clamps. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts.
Explorer
Professional
Elite
BVV 316SS Full Bore Valves
Welded Bottom Base
BVV 316SS Full Bore Valves
Dewaxer
Ball Valve
Splatter Platter Base
SSP Valves
Dewaxer
AVCO Ball Valve
HP Clamps
Splatter Platter Base

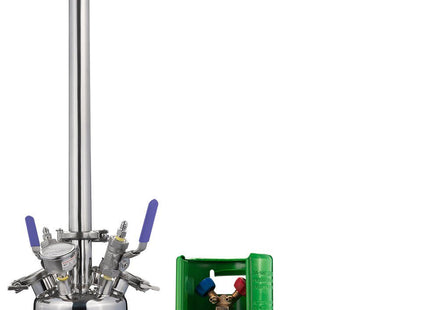

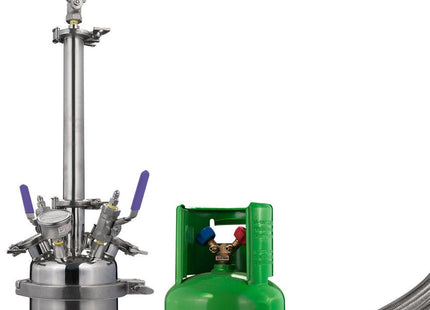

Kit Includes:

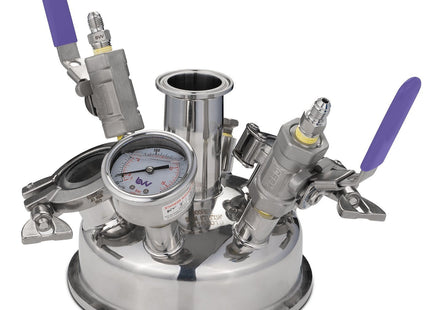

6" x 6" Collection Base

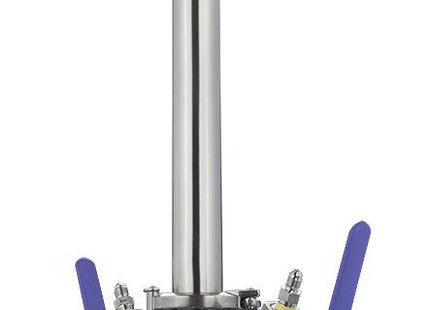

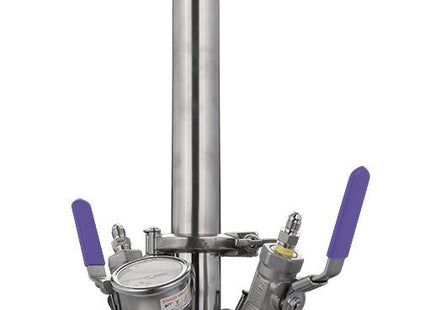

1.5" Material Column (12",18",24", or 36")

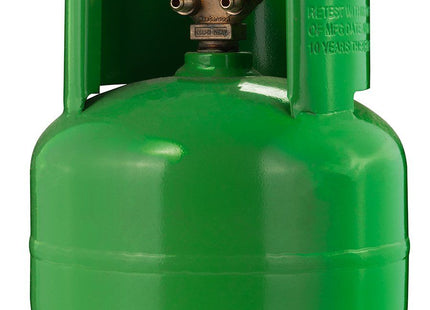

6lb Recovery Cylinder
1/4" Stainless Steel Braided PTFE hoses
Buna-N Gaskets
Standard Valves
*Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.
Cylinder Volume
Select Material
How Much Will Fit in Cylinder
Formula Volume x Weight of Water x Specific Gravity
Constants Weight of Water = 0.0360 (lbs / in3) Specific Gravity of =
