90G XL Mini Top Fill Closed Loop Extractor Shop All Categories BVV

Manufacturer: BVV

90G XL Mini Top Fill Closed Loop Extractor

Name: XL Mini Extractor
Brand: BVV
SKU: MINIXL-V1
Price: 410.0 USD
Availability: InStock

SKU: MINIXL-V1

$410.00

✔ 1 Year Limited Warranty

✔ 24 Hour Nitrogen Test

✔ Free Ground Shipping over $420

✔ Flat Rate Shipping On Orders Under $420!

You will earn 0 points for this purchase.

QTY

Price Match

***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.

DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors Closed Loop Reclamation Extraction System (Comes with 1 yr. Limited warranty)

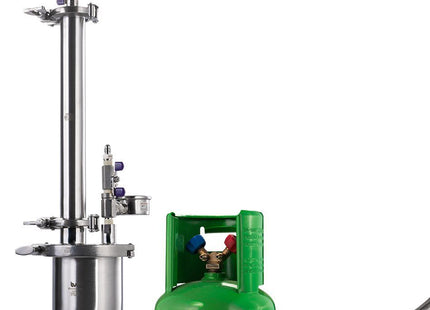

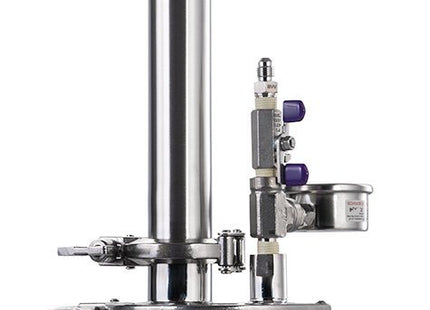

90G XL Mini Top Fill Closed Loop Extractor

(System comes with 1 yr. limited warranty)

The MiniXL Extractor is an excellent choice for small personal runs or test runs of material and comes in a small tabletop design that is easy to use.

Mini CLS / Mini XL Upgrades:

Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget. Comes with a welded bottom base and stainless reclaim container. This model has minimal features to keep cost low while providing the necessary equipment to get the job done.

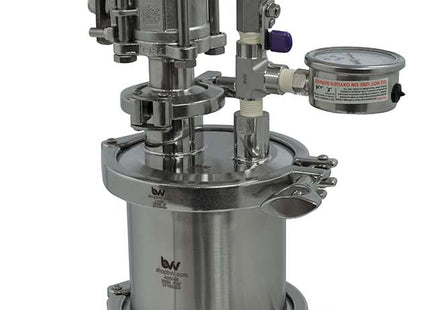

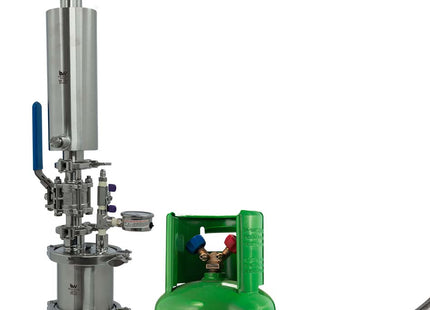

Professional: This model features upgrades to help produce a higher quality extract. Coming with a sleeved spool, this model allows users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery. Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base.

Explorer	Professional
Standard Valves Welded Bottom Base	Standard Valves Dewaxer Ball Valve Splatter Platter Base

Specifications:

1.5"x 12" 304 Stainless Steel Material Tube 90g
304 Stainless Steel Heavy Duty Miniature Ball Valves
System Rated to 100PSI
Multiple port connections for 1/4" 316 Stainless SAE 37 Degree
304 Stainless Steel Base Container 4" diameter by 8" tall

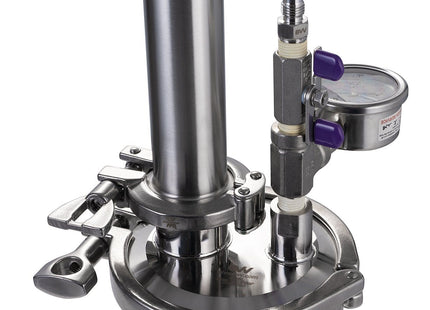

Tri-Clamps at all interfaces make for a high pressure, easy clean unit.
Buna-N Gaskets are designed for Oil Processing Temp range -40-200F
Dimensions (Inches): 16" Overall Height x 4" Diameter
Weight: 18 lbs.
Operating Temperature Range: -40F to 160F
Ultimate Vacuum: as low as 10 Microns
Designed to run a single can of solvent and reclaim it (350ml) Max FILL!!
Construction: All components made of 304 Stainless Steel.
Max Vacuum -29.9inHg
High Polish Interior

Automatically Includes:

High-Pressure PTFE Braided Stainless Steel Hose
Can Tap Tool

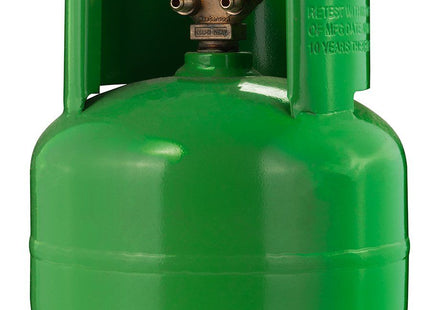

6LB Mastercool Solvent Recovery Tank

*Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.

Cylinder Volume

Triclamp Spool (in)

Length (in)

Volume (in³)

Select Material

Butane

ISO-Butane

Propane

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in³)
Specific Gravity of =

Lbs. of :

Recommended: Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g)	2.5	3	3.5	4.3
Grams of Material
Lbs. of Material
