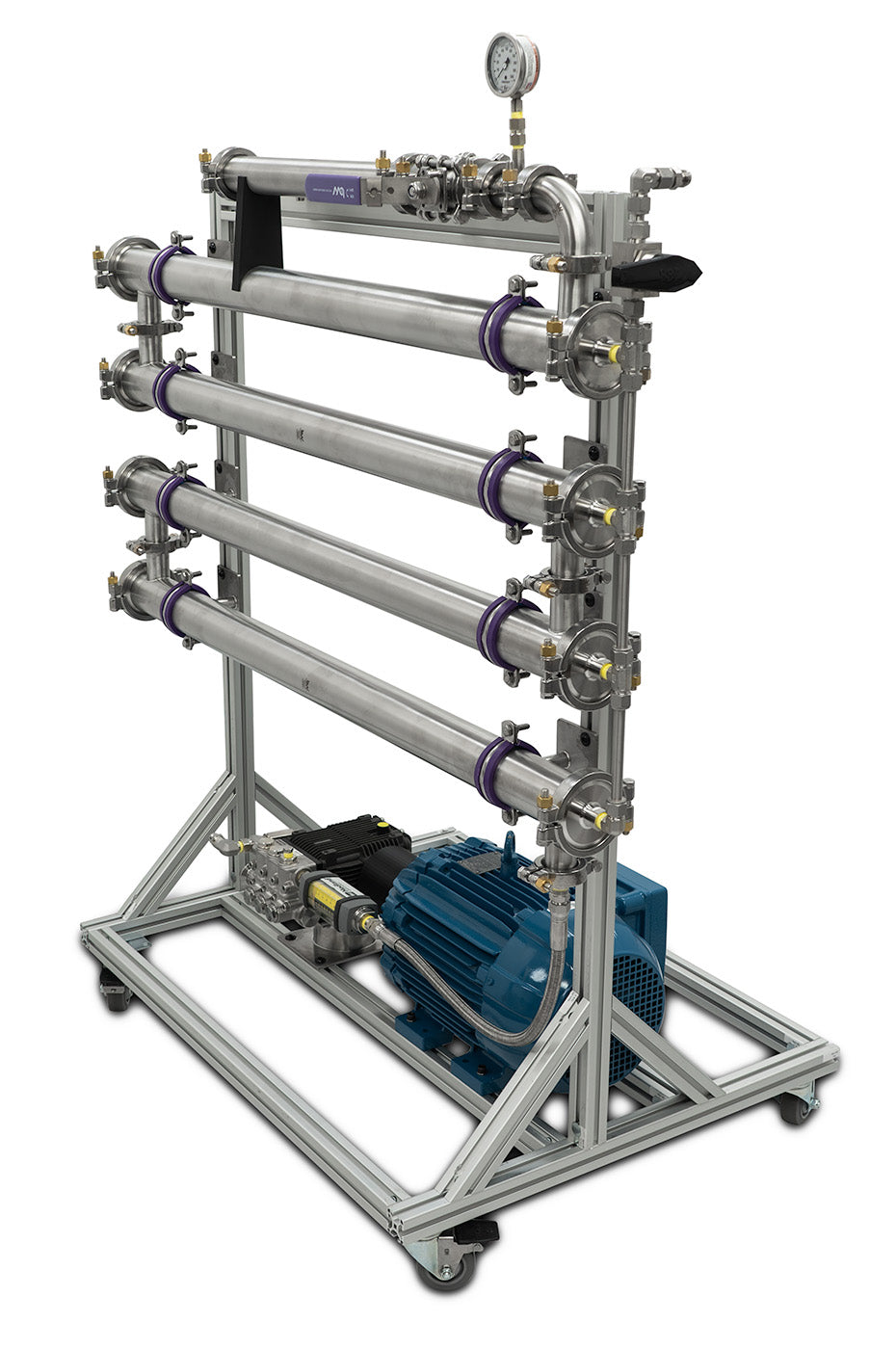

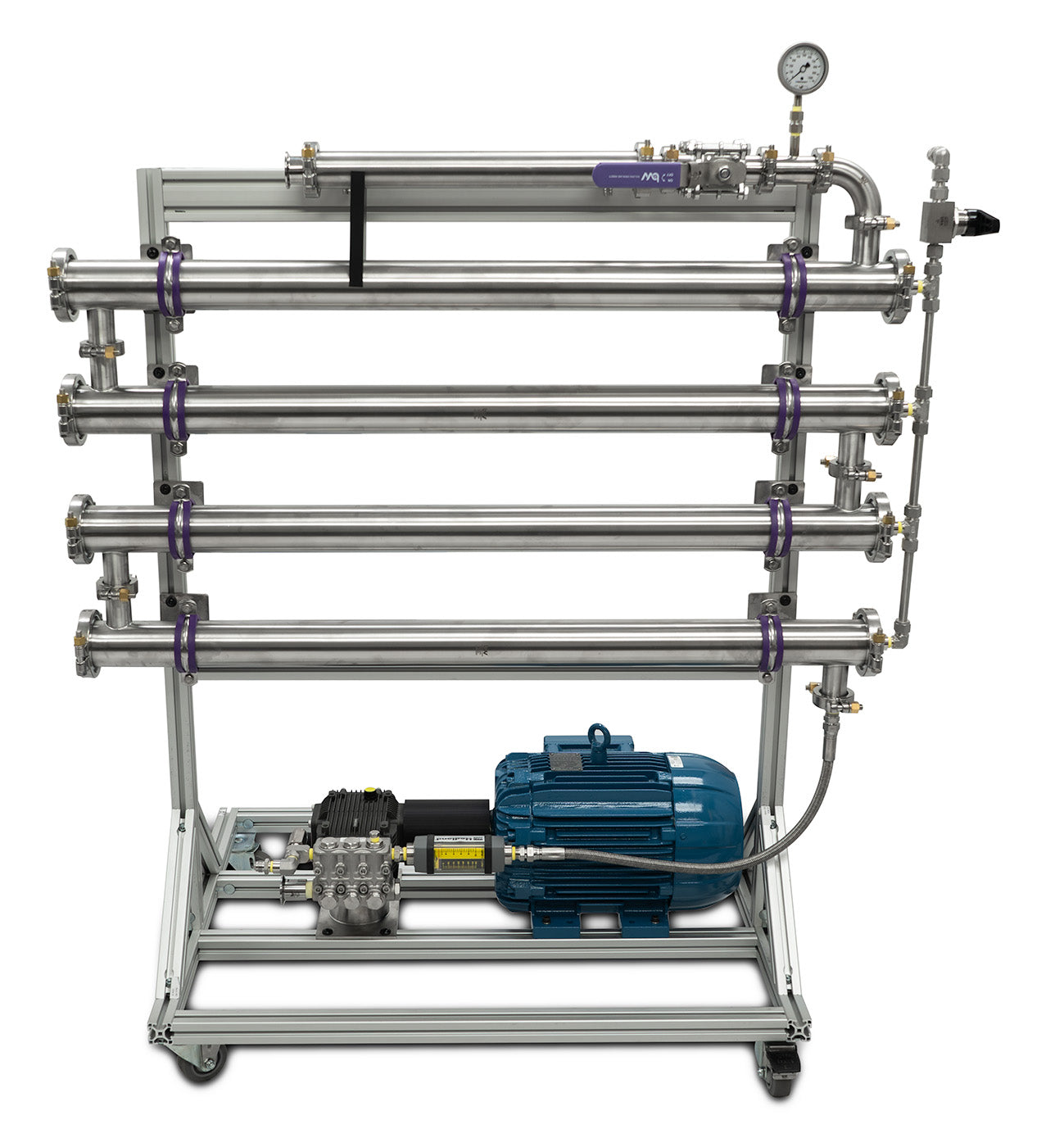

Perform organic solvent recovery or botanical extract purification with ease with our 2540 nanofiltration skid. Replace up to 7X 50L Rotary evaporators with a single Skid. BVV's 2540 Nanofiltration Skid is designed to meet Class 1 Division 1 standards. With the ability to recover 30 gallons of ethanol per hour without the application of heat, preserving target compounds and utilizing a fraction of the energy consumption of a traditional falling film qualifying our 2540 Nanofiltration Skid for energy saving rebates.
Processing Power
Capacity: 15 GPH or 30 GPH of solvent recovery.
Solvents: Ethanol, Methanol
Specifications
4X 2540 nanofiltration housings

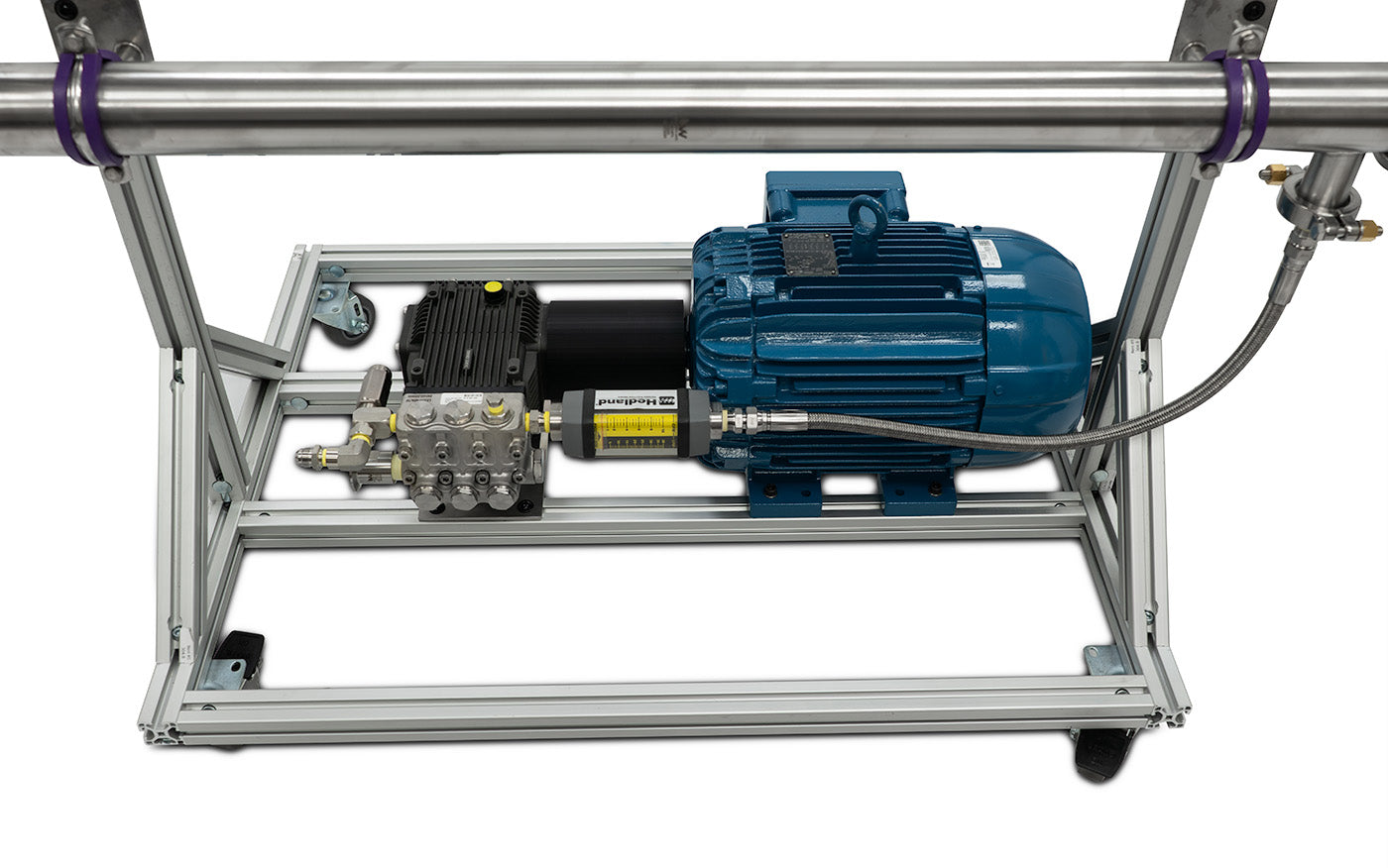

Stainless steel 6GPM pump with PTFE seals
7.5HP C1D1 1750 RPM Motor
7.5HP VFD 1/60/230 NEMA 4X enclosure (13A)
Insulated 2"x18" Heat Exchanger
Polyscience 1.5HP Chiller 230/60/1/23.1
700PSI Pressure Relief Valve
C1D1 Flowmeter
2X 0-1000 PSI Pressure Gauges
1.5" Intake & Retentate Lines
1/2" Permeate & Pressure Relief Lines
Footprint (DxWxH) 30"x39"x79"
Weight: 400 lb
Maximum Pressure Rating: 700PSI
Performance
Variable Frequency Drive-based flow control
Complete pressure control with manual pressure controls
Retentate cooling with inline Heat exchanger & chiller
700PSI pressure relief valve with diversion line
*Components shown are subject to change* *This unit is meant for bulk solvent recovery, 90% of the total volume of solvent an additional solvent recovery apparatus is recommended to evaporate to dryness*
