Meta Triclamp
2" Tri-Clamp Spools
2" Tri-Clamp/ Tri Clover Spools Sizes Available: 2" x 2" Tri-Clamp Spool 2" x 12" Tri-Clamp Spool 2" x 18" Tri-Clamp Spool 2" x 24" Tri-Clamp Spool Specifications: Tri-Clamp Size 2" Material 304 Stainless Steel Standard 3A High Polish Spool OD 2" Spool ID 1.87" Flange OD 2.516" Bead Center 2.218" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 2" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cae by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$25.00 - $55.00
FKM Viton Tri-Clamp Gaskets
FKM Viton Tri-Clamp Gaskets Fluoroelastomer (FKM) gaskets are a great option for using higher temperatures in a closed-loop system or other steps of the extraction process including filtration and decarbing. FKM offers an excellent chemical compatibility with numerous solvents. FKM Gaskets offer a higher temperature rating and better chemical compatibility than Buna rubber. Key Features: High-temperature range Better compressibility and springiness Excellent resistance to butane and propane Better tear resistance Better chemical resistance USP Certified FDA CFR 177.2600 – Rubber and Rubber-Like Material for Repeated Use/Contact with Food. FDA CFR 177.1550 – Fluorocarbon Resins for Repeated Use/Contact With Food, Dairy & Pharmaceutical Products. Sizes Available: 1.5" 2" 3" 4" 6" 8" - easy on flanged 10" - easy on flanged 12" - easy on flanged Technical Specifications: Material: Viton (FKM) Color: Black Connection Type: Tri-Clamps Conformance: FDA Compliant / Meets 3A Standards Thermal Properties: -Low Temperature Range -49°F -Minimum For Continuous Use (Static) -15°F -Brittle Point -49°F -High Temperature Range +400°F -Maximum for Continuous Use (Static) +400°F Gas Permeability: Excellent Chemical Compatibility: Butane A - Excellent Propane (liquified) A - Excellent Alcohols: -Amyl A - Excellent -Benzyl A - Excellent -Butyl A - Excellent -Diacetone D - Severe Effect -Ethyl A - Excellent -Hexyl C - Fair -Isobutyl B - Good -Isopropyl A - Excellent -Isopropyl A - Excellent -Methyl C - Fair -Octyl B - Good -Propyl A - Excellent BVV is not responsible if incompatible chemicals, solvents, or operating temperatures are used in the user's system.
$3.00 - $80.00
6" Tri-Clamp Hemispherical Extractor Lid
6" Tri-Clamp Tri Clover x (3) 1.5" TriClamp x (4) FNPT Hemispherical Lid This End Cap comes with Four FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 3" Tube Extension Below the middle port on the lid. These allow the user to adapt and connect a threaded connection to the NPT ports and three 1.5" Tri-Clamp Connections on a 6" Hemispherical Tri-Clamp lid. With this versatile Tri-Clamp Extractor Lid, users can quickly create a leak-proof connection allowing easy assembly or disassembly for routine maintenance and inspection. Specification SKU: 600HEL 600HEL-V2 Material: 304 Stainless Steel 304 Stainless Steel Connection Types: 6" Tri Clamp 3x 1.5" Tri Clamp (Tube Extension Below Center Port) 4x 1/4" FNPT 2x 1/4" FNPT - 2x 1/2" FNPT Standard: 3A BVV™ 6" Tri-Clamp x (3) 1.5" TriClamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 6" Tri-Clamp x (3) 1.5" TriClamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$160.00 - $175.00
4" Tri-Clamp Dewaxer Columns
4" Tri-Clamp/ Tri Clover Dewaxing Columns This is a 4" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column. **Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD Sizes Available: 4" x 8" Tri-clamp Dewaxer Column 4" x 24" Tri-clamp Dewaxer Column 4" x 36" Tri-clamp Dewaxer Column Specifications: Tri-Clamp Size 4" Material 304 Stainless Steel Standard 3A High Polish Sleeve OD 6.000" Spool ID 3.834" Spool OD 4.000" Flange OD 4.682" Bead Center 4.344" Drain Port 1/4"-18 FNPT (Drain Plug Included) OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 4" Tri-Clamp Dewaxer Columns - Drawing
$105.00 - $260.00
Replacement Gasket for Dutch Weave Sintered Filter Disks - Buna-N
Replacement Gasket for Dutch Weave Sintered Filter Disks This is a replacement buna-n gasket for dutch weave sintered filter disks.
$8.00 - $22.00
90° Degree Elbow Tri-Clamp Bend
90° Degree Elbow Tri-Clamp Bend Specifications: 304 Grade Stainless Steel w/ High Polish interior Fits 1.5", 2",4" or 6" Tri-clamp / Tri Clover Unique 90 Degree Bend Disclaimer:All Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractor DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.User assumes all responsibility and risks of the system
$25.00 - $205.00
Jacketed Hemispherical Reducers with 1/2" FNPT Drain Port
Jacketed Hemispherical Reducers Jacketed Hemispherical Reducers allow the user to circulate water around the bowl and keep extracted material liquefied for easier flow through the bottom port. These jacketed reducers have 1/2" FNPT ports on either side and a 1/2" FNPT port through the bottom of the dish. These reducers are made out of 304 stainless steel with a high polish interior. Specifications Material 304 Stainless Steel Connection Type(s): Tri-Clamp 1/2" FNPT Sizes Available: 6" 10" 12"
$240.00 - $300.00
Stainless Steel Condensing Coils
BVV SS304 Condensing Coils are used in solvent injection kits such as the one show in the video below. They are used to condense ethanol or other hydrocarbons to decrease run times and allow for a pre-chilling of the solvent to be used in the extraction processes. ** For dry ice applications please make sure condensing coil is free of any water/moisture as it will freeze and restrict/block flow when submerged in dry ice. To clear the condensing coil blow pressurized air through one of the ports and drain it into a bucket ** Specifications Small Large X-Large Material 304 Stainless Steel Coil Diameter 6" 9.5" 9.5" Coil Height 5.9" 9.75" 9.75" Coil Length 11' 30' 30' ID 1/4" 1/4" 1/2" Bare Ports 1/4" NPT 1/2" NPT Available Connections: Valves BVV 316SS Full Bore Valves Flares 1/4" - 1/2" 37 Degree JIC Hose Barbs 1/4" - 1/2" Hose Barbs
$125.00 - $465.00
4" x 1.5" x1/4" FNPT Tri-Clamp Endcap
4" x 1.5" x1/4" FNPT Tri-Clamp Tri Clover Endcap This End Caps come with a 1/4"-18 FNPT Threaded connection and 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 2 connections are welded on a 4" Tri-Clamp End Cap. Specification Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 4" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 4" x 1.5" x1/4" FNPT Tri-Clamp Endcap - Drawing BVV™ 4" x 1.5" x1/4" FNPT Tri-Clamp Endcap - End Cap Chart
$100.00
Hemispherical Filter Plate Reducer with 1/4" FNPT Side Port
Hemispherical Filter Plate Reducer with 1/4" FNPT Side Port This hemispherical reducer has a built-in filter plate with a 1/4" FNPT Side Port. This unique design allows the user to save even more space by combining a filter plate, hemispherical reducer, and a side port. Made out of 304 stainless steel the filter plate is welded into the hemispherical reducer and has Tri-Clamp connections on both ends of the reducer along with the 1/4" FNPT side port. Specifications Material 304 Stainless Steel Sizes Available: 3" x 1.5" x 1/4" FNPT 4" x 1.5" x 1/4" FNPT 4" x 2" x 1/4" FNPT 6" x 2" x 1/4" FNPT
$35.00 - $90.00
6" Tri-Clamp Dewaxer Columns
6" Tri-Clamp/ Tri Clover Dewaxing Columns This is a 6" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column. **Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD Sizes Available: 6" x 8" Tri-clamp Dewaxer Column 6" x 24" Tri-clamp Dewaxer Column 6" x 36" Tri-clamp Dewaxer Column 6" x 48" Tri-clamp Dewaxer Column Specifications: Tri-Clamp Size 6" Material 304 Stainless Steel Standard 3A High Polish Sleeve OD 8.000" Spool ID 5.782" Spool OD 6.000" Flange OD 6.570" Bead Center 6.176" Drain Port 1/4"-18 FNPT (Drain Plug Included) OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 6" Tri-Clamp Dewaxer Columns - Drawing
$135.00 - $224.00
Tef-Steel 316LStainless Steel / PTFE Sanitary Tri-Clamp Gasket
Tef-Steel 316L Stainless Steel / PTFE Sanitary Tri-Clamp Gasket Tef-Steel: a 50/50 blend of modified PTFE and 316L atomized and passivated stainless steel, Tef-Steel delivers leak-proof, perfect surface performance with outstanding durability in SIP (steam in place), CIP (clean in place), WFI (water for injection) and hot oil applications. Tef-Steel is ideal for sanitary steam pipe connections in extreme temperatures ranging from -300°F to 500°F. The superior strength of Tef-Steel provides extended uptime because it eliminates cold flow and creep preventing maintenance problems and downtime. Key Features: Excellent resistance to almost all chemicals Excellent Temperature Range (-300°F to 500°F) Excellent Cleanability due to PTFE (Teflon) and Stainless Steel Sizes Available: 1" 1.5" 2" 2.5" 3" 4" 6" 8" 10" 12" Chemical Compatibility: Butane A - Excellent Propane (liquified) A - Excellent Alcohols: Amyl A - Excellent Benzyl A - Excellent Butyl A - Excellent Diacetone A - Excellent Ethyl A - Excellent Hexyl A - Excellent Isobutyl A - Excellent Isopropyl A - Excellent Methyl A - Excellent Octyl A - Excellent Propyl A - Excellent
$7.00 - $245.00
Filter Plate with Built-In Sintered Disk
Filter Plate with Built-In Sintered Disk / Tri Clover Filter Plate These filter plates offer the user a great solid platform to help with filtration during the extraction process with a welded in sintered filter disk with hexagon backing. These filter plates can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface and filtration level to remove fats, lipids, waxes and any other unwanted material during the extraction process. **Note: Does not include Clamp or Gasket Sizes Available: 1.5" 2" 3" 4" 6" 8" 10" 12" Specifications: Material 304 Stainless Steel Standard 3A High Polish Connection Type(s) Tri-Clamp Hole Diameter 5.8mm Height 2"
$64.00 - $675.00
4" Tri-Clamp x (2) 1/4" FNPT
4" Tri-Clamp x (2) 1/4" FNPT These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specification Material: 304 Stainless Steel Connection Types: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 4" BVV™ 4" Tri-Clamp x (2) 1/4" FNPT - Drawing BVV™ 4" Tri-Clamp x (2) 1/4" FNPT - End Cap Chart
$42.00
Jacketed Splatter Platters
Jacketed Splatter Platters Fully Jacketed splatter platters are a huge step up from normal splatter platters by providing the user a more efficient recovery of their solvent without having to move or lift the extractor into a hot water bath. These jacketed splatter platters allow the circulation of water through the outer jacket through 2x 1/2" FNPT offset ports on each side of the splatter platter. ***Note: Edges of Jacket may be rounded instead of flat. Sizes Available: 6" 8" 10" 12" Specifications: Material 304 Stainless Steel Standard 3A High Polish Connection Type(s): Tri-Clamp 1/2"-14 FNPT BVV™ Jacketed Splatter Platters - Drawing
$140.00 - $220.00
Borosilicate Tri-Clamp Sight Glass Kit
Borosilicate Tri-Clamp Sight Glass Kit ***Note:(Only comes with 1 sight glass.) FOR 2" Version please see our upgraded sight glass NESG200 3 piece borosilicate sight glasses offer a greater chemical resistance, viewing area, and cleanability compared to a traditional sight glass such as polycarbonate or Metaglas sight glasses. These Tri-Clamp sight glasses consist of 3 pieces: the borosilicate glass disc, Viton or Silicone gasket, and custom tri-clamp ferrule. When used in combination with high-pressure clamps the working PSI is rated at 800 (pending 3rd party peer review). These glasses are also resistant to thermal shock, enduring extreme heating and cooling temperatures. ***Disclaimer: Please handle with care when installing on to a system and do not overtighten or the glass disc may chip. This Kit Includes the Following: 1x - BVV Borosilicate Tri-Clamp Sight Glass 1x - Standard Pressure Clamp or High Pressure Clamp 1x - BUNA-N Gasket or Silicone Gasket Sight Glass Specifications: Ferrule Material 304 Stainless Steel Glass Material BOROFLOAT Gasket Material Viton(FKM) or Silicone Connection Type(s) Tri-Clamp PSI Rating 800 (pending peer review)
$63.00 - $72.00
Hemispherical Reducer with Filter Plate
Hemispherical Filter Plate Reducer This hemispherical reducer has a built-in filter plate. This unique design allows the user to save even more space by combining a filter plate ANDhemispherical reducer. Made out of 304 stainless steel the filter plate is welded into the hemispherical reducer and has Tri-Clamp connections on both ends.
$33.00 - $89.00
3mm Open Blast End Caps
3mm Open Blast End Caps These Tri-Clamp/ Tri Clover End Caps have a 3mm hole drilled in the center so most butane can tips to easily fit in the hole allowing the user to input solvent into a material column and open blast the material. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp 3mm Hole Standard: 3A Sizes Available: 1.5" 2" 3" 4"
$6.00 - $12.00
12" Tri-Clamp Spools
12" Tri-Clamp/ Tri Clamp Spools Sizes Available: 12" x 12" Tri-Clamp Spool Specifications: Tri-Clamp Size 12" Material 304 Stainless Steel Standard 3A High Polish Spool OD 12" Spool ID 11.732" Flange OD 12.57" Bead Center 12.17" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 12" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$285.00
Baffled Condenser
Baffled Tri-Clamp Condenser This 304 Stainless Steel Tri-Clamp condenser allows the user to condense hot vapors and solvent while running an extraction system or use it as a heat exchanger if needed. It features internal baffles in the system allowing for better overall heat exchange, Tri-Clamp connections on each end and (2) 1/2" FNPT Ports on the side to allow various connections the user may need. The inside diameter of the tubing measures 7.5mm. BVV™ Baffled Tri-Clamp - Data Sheet
$210.00 - $2,400.00
Fully Jacketed Containers
Fully Jacketed Containers Fully jacketed containers are designed to be used as collection pots or collection traps in an extraction system and they allow the circulation of temperature control fluid through the outer welded jacket that has 1/2" FNPT ports to adapt several types of connections too. These Containers are made out of 304 Stainless steel and have Sanitary welds on them.
$225.00 - $425.00
Hemispherical Tri-Clamp Reducer with Welded Ring Stand
Hemispherical Tri-Clamp Reducer with Welded Ring Stand Hemispherical Tri-Clamp Reducer with Welded Ring Stand allows the user to create a larger drain/filtering system allowing more weight to be supported with the ring stand. These reducers have 2 connection points with Tri-Clamp on the top and FNPT drain port on the bottom. Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Types: 4" Tri-Clamp x 1/4" FNPT 6" Tri-Clamp x 1/2" FNPT 8" Tri-Clamp x 1/2" FNPT 10" Tri-Clamp x 1/2" FNPT 12" Tri-Clamp x 1/2" FNPT
$225.00 - $430.00
Hemispherical Tri-Clamp Reducer with 1/4" FNPT Side Port
Hemispherical Tri-Clamp/ Tri Clover Reducer with 1/4" FNPT Side Port This unique version of the hemispherical reducer has a 1/4" FNPT port welded straight on to the hemispherical reducer with Tri-Clamp ends on both sides. It allows the user to adapt to a port on their extraction system without having to adapt multiple pieces together and reduce the number of leak points. A hemispherical reducer also shortens the height of a system because it is shorter than a conical reducer. Tri Clamp reducers are the perfect alternative to concentric reducers when space is at a premium in confined areas. In addition, this device is also leak proof and adequate for easy application. Specifications Material 304 Stainless Steel Sizes Available: 3" x 1.5" Tri-Clamp x 1/4" FNPT 4" x 1.5" Tri-Clamp x 1/4" FNPT 4" x 2" Tri-Clamp x 1/4" FNPT 6" x 1.5" Tri-Clamp x 1/4" FNPT 6" x 2" Tri-Clamp x 1/4" FNPT 8" x 2" Tri-Clamp x 1/4" FNPT 10" x 2" Tri-Clamp x 1/4" FNPT 12" x 2" Tri-Clamp x 1/4" FNPT
$42.00 - $300.00
Tri-Clamp Sight Glass - Long
Tri-Clamp Sight Glass - Long These tall sight glasses are a great additions closed-loop extraction system to view the liquefied solvent flowing through your system and see the color before the purging process is completed. The short sight glass also allows the user to add a viewing port to their system without adding a lot of additional height compared to a normal Tri-Clamp sight glass. Unlike many competitors, this sight glass is also nitrogen tested for leaks at 100 PSI before it is sent to the customer to ensure safe operation of their extraction system. ***Note: Does not include clamp or gasket. Specifications: Sight Glass Material: 304 Stainless Steel Glass Material: Borosilicate Gasket Material: Buna Connection Type: Tri-Clamp x Tri-Clamp Specifications for Caged Sight Glasses ONLY Product Temperature Spec (Min – Max) Max Pressure Rating Gasket Material Glass Material & Thickness SG150-C -20 - 100°C 230 PSI Butyronitrile Pyrex GlassØ45X7X100MM SG200-C -20 - 100°C 200 PSI Butyronitrile Pyrex GlassØ60X7X100MM SG300-C -20 - 100°C 180 PSI Butyronitrile Pyrex GlassØ85X8X80MM SG400-C -20 - 100°C 165 PSI Butyronitrile Pyrex GlassØ119X8X80 SG600-C -20 - 100°C 150 PSI Butyronitrile Pyrex GlassØ164X8X87
$79.00 - $350.00
L.J. Star SSH Series High Pressure Clamps
L.J. Star SSH Series High Pressure Clamps These high pressure clamps are part of a complete line of stainless sanitary clamps made specifically for the pharmaceutical and biotech industries, the Series SSH hygienic clamp incorporates a unique profile and two bolts for greater clamping force. Suitable for high pressure applications. The SSH high-pressure clamp is part of a complete line of hygienic clamps made specifically for the pharmaceutical and biotech industries where joint cleanliness and efficiency are of paramount importance. These stainless steel clamps are made from investment castings to produce a high quality, precision fit assembly. They are designed to provide quick access to the joint for cleaning and inspection without sacrificing safety. Replacement Bolts for L.J. Star SSH Series High Pressure Clamps. These clamps come in five sizes: 1.5, 2, 3, 4, and 6 inches. Nut Sizes for these clamps: 1.5, ,2, 3, & 4 (5/8" Nut) *6" Clamp uses 3/4" Nut. Datasheet - Series SSH (High Pressure) Sanitary Clamp
$55.00 - $150.00
8" Tri-Clamp Spools
8" Tri-Clamp/ Tri Clover Spools Sizes Available: 8" x 12" Tri-Clamp Spool 8" x 24" Tri-Clamp Spool Tri-Clamp Size 8" Material 304 Stainless Steel Standard 3A High Polish Spool OD 8" Spool ID 7.782" Flange OD 8.57" Bead Center 8.15" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 8" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$129.00 - $318.00
12" x (3) 2" x (2) 1/4 FNPT Endcap
12" x (3) 2" x (2) 1/4 FNPT Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 2" Tri-Clamp/ Tri Clover ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension on center ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 2" Tri-Clamp Connection. These 5 connections are welded on a 12" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 2" Tri-Clamp - 0.5" Tube Extension on center ferrule Below Lid 12" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 12" x (3) 2" x (2) 1/4 FNPT Endcap - Drawing BVV™ 12" x (3) 2" x (2) 1/4 FNPT Endcap - End Cap Chart
$275.00
Silicone 2500 Mesh (5 Micron)
Silicone 2500 Mesh (5 Micron) These white silicone mesh gaskets are meant for filtration with alcohol systems because of their great resistance to many of the common forms of alcohol. They are NOT recommended for use with Butane or Propane. Mesh / Micron Filter Chart For Further Chemical Resistance specifications please refer to this chart: Chemical Compatibility Database Specifications Maximum Pressure Not Rated Temperature Range -40 to 450F Color White - Clear Material Silicone Screen Material 316 Stainless Steel Standards Met 3A and FDA Chemical Resistance Alcohols: Amyl D - Poor Benzyl N / A Butyl B - Good Diacetone D- Poor Ethyl B - Good Hexyl B - Good Isobutyl A - Excellent Isopropyl A - Excellent Methyl A - Excellent Octyl B - Good Propyl A - Excellent Butane D - Poor Propane D - Poor
$30.00 - $130.00
12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid
12" Tri-Clamp/ Tri Clover x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid This End Cap comes with Four 1/4"-18 FNPT Threaded connection and Three 2" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 2" Tri-Clamp Connection. These 7 connections are welded on a 12" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 2" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 12" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$295.00
Stainless Steel LP Tank - Includes Gas and Liquid Fill/Drain Ports
Stainless Steel LP Tank - Includes Gas and Liquid Fill/Drain Ports Stainless Steel LP tanks offer a superior way to decrease contamination of solvent and feature a tri-clamp lid with a high-pressure clamp. This allows easy access to the inside of the tank, making cleanout simple, unlike a normal carbon steel LP tanks. Tanks feature a safety collar to prevent damage to the valves, as well as a welded ring on the bottom to prevent damage to the tank body and allow better circulation of fluid around the entire tank. Lids come configured with 2 valves and compound gauge and polycarbonate sight glass on the larger #50 and #100 tanks. These tanks come with BVV 1/4" FNPT valves and 1/4" 37 Degree JIC Flares with one port being connected to a dip tube. ***Note: Tank comes empty and does not include solvent. Butane Capacity Calculation: All solvent tanks sold by Best Value Vacs have their capacity determined by this calculation and are based on industry-standard nomenclature of the water weight tank # system because the specific gravity of water is 1.000 and the DOT 80% fill guideline. Example: 100# Tank = ~100lbs of water weight, Halfton Tank = 1000lbs of water weight. Specifications Tank # Water Weight in Lbs Specific Gravity of Butane 0.601 80% Fill Guideline 0.800 (Tank #) * (Specific Gravity of Butane) * ( 80% Fill Guildine) Sizes Available: 30# 50# - 1.5" Tri-Clamp ferrule with sight glass 100# - 1.5" Tri-Clamp ferrule with sight glass Specifications Tank/Component Material 304 Stainless Steel Gasket Material BUNA-N Sight Glass Material (50# and 100# Only) Polycarbonate Standard 3A High Polish Connection Type(s) 1/4" (7/16-20) x 37° JIC Lid Connection Type(s): Tri-Clamp 1/4"-20 FNPT Butane Capacity: 30# 14.424 50# 24.040 100# 48.080 ***Disclaimer: These are not DOT rated tanks and are not recommended for transportation when filled.
$475.00 - $830.00
3" Tri-Clamp x (2) 1/4" FNPT
3" Tri-Clamp/ Tri Clover x (2) 1/4" FNPT These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specifications Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 3" BVV™ 3" Tri-Clamp x (2) 1/4" FNPT - Drawing BVV™ 3" Tri-Clamp x (2) 1/4" FNPT - End Cap Chart
$36.00
EPDM Tri-Clamp Gaskets
EPDM Tri-Clamp Gaskets EPDM Tri-Clamp gaskets are the preferred choice of material for brewing and similar alcohol based applications. EPDM Gaskets offer a low temperature rating and have better physical properties than Viton gaskets; the best part is that they cost less than Viton and provide the same chemical resistance to many alcohols Note: EPDM is not recommended for use with hydrocarbons Key Features: Low temperature range Low costs Better compressibility and springiness Excellent resistance to alcohols Good tear resistance Good abrasion resistance FDA CFR 177.2600 – Rubber and Rubber-Like Material for Repeated Use/Contact with Food. FDA CFR 177.1550 – Fluorocarbon Resins for Repeated Use/Contact With Food, Dairy & Pharmaceutical Products. Sizes Available: 1.5" 2" 3" 4" 6" 8" - easy on flanged 10" - easy on flanged 12" - easy on flanged Technical Specifications: Material EPDM Color Black Connection Type Tri-Clamp Conformance FDA Compliant / Meets 3A Standards Thermal Properties: -Low Temperature Range -55°F -Minimum for Continuous Use (Static) -40°F -Brittle Point -55°F -High Temperature Range +275°F -Maximum for Continuous Use (Static) +275°F Gas Permeability Excellent Durometer or Hardness Range 65 Shore A Tensile Strength Range 200-3500PSI Elongation Range (%) 350-650% Abrasion Resistance Excellent Tear Resistance Excellent Resilience / Rebound Good Thread Style Female Chemical Compatibility: Butane D - Severe Effect Propane (liquified) D - Severe Effect Alcohols: -Amyl A - Excellent -Benzyl B - Good -Butyl B - Good -Diacetone A - Excellent -Ethyl A - Excellent -Hexyl C - Fair -Isobutyl A - Excellent -Isopropyl A - Excellent -Isopropyl A - Excellent -Methyl A - Excellent -Octyl C - Fair -Propyl A - Excellent No more than a -40 F operating temperature should be used with EPDM. BVV is not responsible if incompatible chemicals, solvents, or operating temperatures are used in the user's system.
$1.00 - $51.00
Tri-Clamp Ferrule
Tri-Clamp/ Tri Clover Ferrule Tri-clamp ferrules are the bottom of our open blast systems. These ferrules allow the user to use a screened gasket at the end of an open blast spool while providing an open end. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp Standard: 3A Sizes Available: 1.5" 2" 3"
$5.00 - $7.00
Stainless Steel Tri-Clamp Hopper
The Triclamp / Tri Clover hopper can be attached to a material column to assist in packing the column with material. The Hopper has no tri clamp ferrule on the larger end and is made out of sanitary 304 stainless steel.
$145.00 - $165.00
6" Tri-Clamp Endcap X (2) 1/4" FNPT Ports
6" Tri-Clamp Tri Clamp Endcap X (2) 1/4" FNPT Ports This 6" Triclamp endcap has 2x 1/4" FNPT ports welded to the top of the endcap allowing for several variations of connections that can customize an extraction system to the user's needs. Specifications: Material - 304 Stainless Steel Connection Type(s) - 6" Tri-clamp and 1/4"-18 FNPT BVV™ 6" Tri-Clamp Endcap X (2) 1/4" FNPT Ports - Drawing BVV™ 6" Tri-Clamp Endcap X (2) 1/4" FNPT Ports - End Cap Chart
$85.00
Tri-Clamp Sight Glass 250 PSI - Peer Reviewed Certified
Neocision Sight Glass Tempered Strengthened Soda Lime Glass The 3 piece Neocision certified sight glasses offer a greater chemical resistance, viewing area, and cleanability compared to a traditional sight glass such as polycarbonate or Metaglas sight glasses. These Tri-Clamp sight glasses consist of 3 pieces: the tempered glass disc, Viton x-profile gasket, and custom tri-clamp ferrule. When used in combination with high-pressure clamps the working PSI is rated at 250 PSI (3rd party tested). These glasses are also resistant to thermal shock, enduring extreme heating and cooling temperatures. A Viton Tri-Clamp gasket must be used to conform with the certification ratings, and and is included. ***Disclaimer: Please handle with care when installing on to a system and do not overtighten or the glass disc may chip if the clamp torque ratings are exceeded. Clamp Torque Specification Sheet Sizes Available: 1.5" Tri-Clamp 2" Tri-Clamp Ferrule Material 304 Stainless Steel Glass Material Tempered Soda Lime Gasket Material Viton(FKM) Connection Type(s) Tri-Clamp PSI Rating 250 PSI Negative Temperature Rating -40C BVV™ Neocision Sight Glass - Certified Data Sheet
$64.00 - $74.00
10" Tri-Clamp Spools
10" Tri-Clamp/ Tri Clover Spools Sizes Available: 10" x 10" Tri-Clamp/ Tri Clover Spool Specifications: Tri-Clamp Size 10" Material 304 Stainless Steel Standard 3A High Polish Spool OD 10" Spool ID 9.732" Flange OD 10.57" Bead Center 10.12" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 10" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$220.00
6" Tri-Clamp x (2) 1/4" FNPT ports w/ Shower Head
6" Tri-Clamp Tri Clover x (2) 1/4" FNPT Ports w/ Shower Head These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Shower Head End Caps help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications Material: 304 Stainless Steel Connection Types: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 6"
$80.00
Replacement Sight Glass Gasket 2 Pack - Buna-N
Replacement Sight Glass Gasket 2 Pack - Buna-N These are replacement BUNA-N gaskets for BVV™ Brand Sight Glasses. Comes with 2 per pack.
$18.00 - $58.00
3 Piece Heavy Duty 8" Tri-Clamp 304SS
3 Piece Heavy Duty Tri-Clamp/Tri Clover 304SS This 3 Piece Heavy Duty Tri-Clamp is made out of 304 stainless steel and has a 3 segment locking function allowing even pressure around the connection point gasket so it does not bulge out in a certain direction creating a better overall seal on the system. This clamp will fit a standard 8" tri-clamp connection
$80.00$50.00
Fully Jacketed Base with 1.5" Tri-Clamp Drain Port
Fully Jacketed Base with 1.5" Tri-Clamp/ Tri-Clover Drain Port This Fully Jacketed Base features a full outer jacket to allow the circulation of heat transfer fluid. The base also has a sanitary Tri-Clamp port welded through the jacket and base for easier drainage of processed material and extract from the stainless steel base. This base is made out of 304 High Polish Stainless steel and has 2 1/2" FNPT Ports on the outer jacket to allow the circulation of fluid to heat or chill the base and also has a 1.5" Tri-Clamp port that allows the drainage of material from inside the base without having to lift it up and tip it over. Specifications Material 304 Stainless Steel Sizes Available: 10" Tri-Clamp X 12" 12" Tri-Clamp x 12" Drain Port Size 1.5" Tri-Clamp Jacket Port Size 1/2" FNPT
$450.00 - $550.00
Hemispherical Endcap with 1.5" Side Port
Hemispherical Endcap with 1.5" Side Port This Hemispherical Endcap has a unique drain port welded on to the side of it to easily clear out any material without having to have multiple extra clamps, gaskets, and bends. This end cap is made out of 304 stainless steel and has a 1.5" Tri-Clamp/ Tri Clover side port with a high polish interior. Specifications Material 304 Stainless Steel Sizes Available 6" 8" 10" 12"
$100.00 - $195.00
Silicone 100 Mesh (150 Micron)
Silicone 100 Mesh (150 Micron) These white silicone mesh gaskets are meant for filtration with alcohol systems because of their great resistance to many of the common forms of alcohol. They are NOT recommended for use with Butane or Propane. Mesh / Micron Filter Chart For Further Chemical Resistance specifications please refer to this chart: Chemical Compatibility Database Specifications Maximum Pressure Not Rated Temperature Range -40 to 450F Color White - CLEAR Material Silicone Screen Material 316 Stainless Steel Standards Met 3A and FDA Chemical Resistance Alcohols: Amyl D - Poor Benzyl N / A Butyl B - Good Diacetone D- Poor Ethyl B - Good Hexyl B - Good Isobutyl A - Excellent Isopropyl A - Excellent Methyl A - Excellent Octyl B - Good Propyl A - Excellent Butane D - Poor Propane D - Poor
$20.00 - $125.00

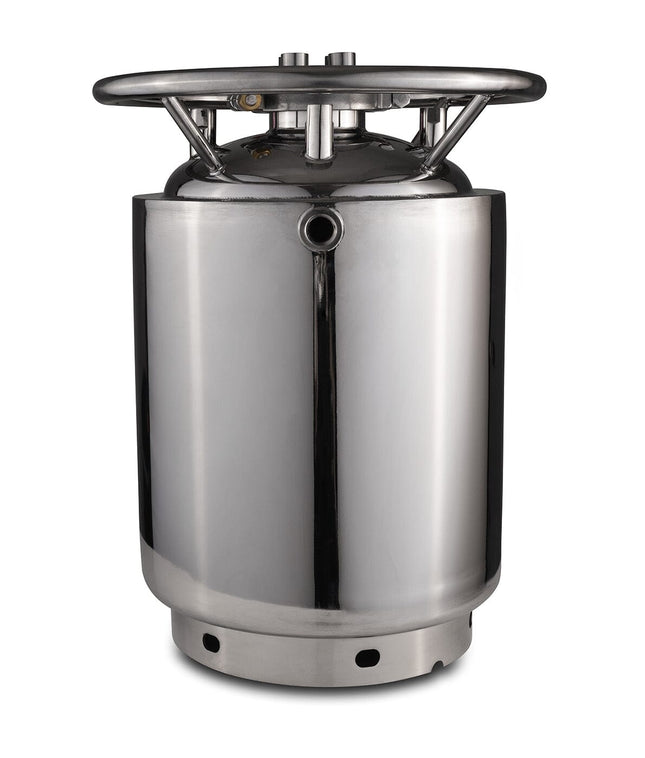

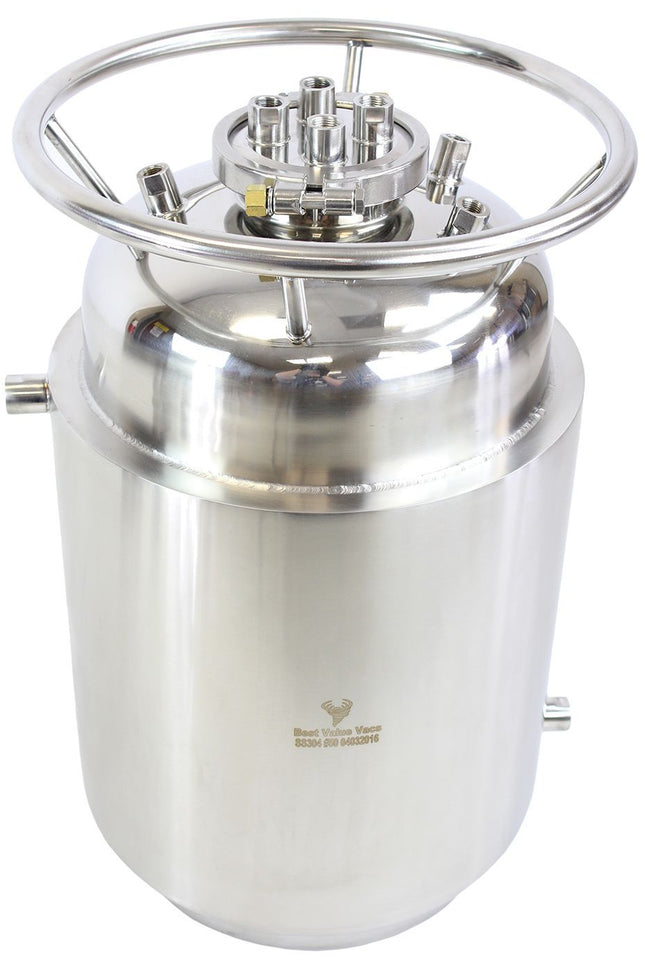

Jacketed Stainless Steel LP Tank with Internal Condensing Coil and Dip Tube
Jacketed Stainless Steel LP Tank with Internal Condensing Coil and Dip Tube (This item will ship via Freight ONLY) Jacketed Stainless Steel LP tanks offer a superior way to decrease contamination of solvent and feature a tri-clamp lid with a high-pressure clamp. This allows easy access to the inside of the tank, making clean out simple, unlike a normal carbon steel LP tanks. These tanks feature an exterior jacket to allow the user to circulate fluid around the outside of the tank while having an internal condensing coil on the inside of the tank to help condense hot vapors. Lids come configured with 3 valves, compound gauge and hose barbs for the internal condensing coils to help condense hot solvent vapor when the recovery stage of the extraction process is started. These tanks come with 1/4" FNPT valves and 1/4" 37 Degree JIC Flares with one port being connected to a dip tube. To avoid contamination of your solvent, the Jacketed Stainless Steel LP Tank is a simple and professional option to reduce cleaning time. Our tri-clamp lid with a high-pressure clamp makes it easy to open up the system and fully clean it out in between uses. The exterior jacket circulates fluid around the outside of the tank which the internal condensing coil condenses hot vapors. These tanks come with 1/4" FNPT valves and 1/4" (or 3/8") 37 Degree JIC Flares with one port being connected to a dip tube. If you are not using the jacket to circulate a chilling fluid, the jacket should be evacuated of all air and closed off. This is also known as a vacuum jacket, it will help to keep the fluid inside the tank at the set temperature and not transfer any temperature with the atmosphere around it. *Tank does not come with solvent Butane Capacity Calculation: All solvent tanks sold by Best Value Vacs have their capacity determined by this calculation and are based on industry standard nomenclature of the water weight tank # system because the specific gravity of water is 1.000 and the DOT 80% fill guideline. Example: 100# Tank = ~100lbs of water weight, Halfton Tank = 1000lbs of water weight. Tank # Water Weight in Lbs Specific Gravity of Butane 0.601 80% Fill Guideline 0.800 (Tank #) * (Specific Gravity of Butane) * ( 80% Fill Guideline) Sizes Available: 25# 50# 100# Specifications Tank/Component Material 304 Stainless Steel Gasket Material BUNA-N Standard 3A High Polish Connection Type(s) 1/4" (7/16-20) x 37° JIC Hose Barb Lid Connection Type(s): Tri-Clamp 1/4"-20 FNPT Hose Barb Butane Capacity: 25# 12.424 50# 24.040 100# 48.080 ***Disclaimer: These are not DOT rated tanks and are not recommended for transportation when filled.
$850.00 - $1,450.00
Rubber Fab Tuf-Steel 316L Tri-Clamp Style Gaskets Type I
Rubber Fab Tuf-Steel 316L Tri-Clamp Style Gaskets Type Tuf-Steel is composed of a unique 50/50 blend of nonpigmented PTFE and 316L passivated and atomized stainless Steel° Testing and seven years of documented application usage has demonstrated that Tuf-Steel is the choice for perfect surface performance, outstanding durability and extended service life in both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel® is ideal for sanitary steam pipe connections in extreme temperatures ranging from -320°F to 550°F. The superior strength of Tuf-Steel® eliminates creep and cold flow providing a leak-free seal and preventing maintenance problems and system downtime. 500 CIP/SIP Cycles guaranteed -325°F to 550°F Superior creep resistance Excellent expansion/contraction stability with minimal thermal expansion Excellent chemical resistance Stops leaks when correctly torqued (50 in./lbs with Torque-Rite® TR-50) No gasket extrusion into the sanitary tube I.D. No obstruction of flow Maintains sealing stability in T processes Non-stick surface Non pigmented Passivated to eliminate rouging Rubber Fab's Type I gaskets are: FDA CFR 177.2600 FDA CFR 177.1550 U.S. Pharmacopeia Class VI Certification ADI Free (Animal Derived Ingredient Free) certified Manufactured according to cGMP Guidelines Sizes Available: 1/2 in. 3/4 in. 1 in. 1 1/2 in. 2 in. 2 1/2 in 3 in. 3 1/2 4 in
$9.50 - $297.00
Silicone 300 Mesh (50 Micron)
Silicone 300 Mesh (50 Micron) These white silicone mesh gaskets are meant for filtration with alcohol systems because of their great resistance to many of the common forms of alcohol. They are NOT recommended for use with Butane or Propane. Mesh / Micron Filter Chart For Further Chemical Resistance specifications please refer to this chart: Chemical Compatibility Database Specifications Maximum Pressure Not Rated Temperature Range -40 to 450F Color White Material Silicone Screen Material 316 Stainless Steel Standards Met 3A and FDA Chemical Resistance Alcohols: Amyl D - Poor Benzyl N / A Butyl B - Good Diacetone D- Poor Ethyl B - Good Hexyl B - Good Isobutyl A - Excellent Isopropyl A - Excellent Methyl A - Excellent Octyl B - Good Propyl A - Excellent Butane D - Poor Propane D - Poor
$19.00 - $130.00
10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap
10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp/ Tri Clover Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension center ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 5 connections are welded on a 10" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Type: 1.5" Tri-Clamp - 0.5" Tube Extension on center ferrule Below Lid 10" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap - Drawing BVV™ 10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap - End Cap Chart
$175.00
Tri-Clamp Neoprene Insulation Sleeve by BVV
BVV Neoprene Insulation Sleeve's Our Insulation sleeves are made from 3mm durable Neoprene Scuba Fabric and has a rated insulation value of R 1.5 These sleeves are 90% polyester and 10% spandex which makes all of these a snug fit around the spools. The material weighs in at 350 grams per square meter and has a smooth finish and a double stitched side seam. The sleeves can be easily cut with scissors and modified to add custom cutouts. The sleeves are also reversible and the inside color is black. Note: *Customers who order De-Wax or Fully Jacketed spool sleeves will not have pre-cut holes for the side ports. But fear not this material cuts very easily with sharp cutting tools, and you can easily add the small holes for these ports. BVV's Tested Temperatures: -80°C to 105°C (-112°F to 220°F) we have not tested beyond these temperature, it doesn't mean it not capable its just untested by BVV.
$5.83 - $57.81
You have seen 96 out of 190 products
