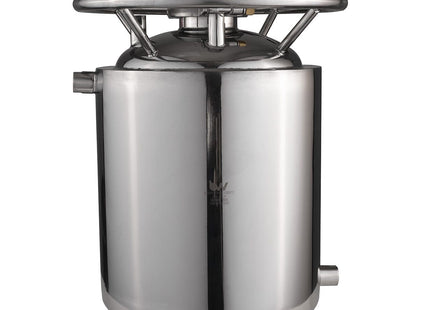

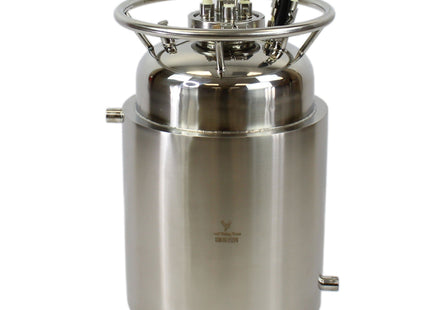

Jacketed Stainless Steel LP Tank with Internal Condensing Coil and Dip Tube

Description

Jacketed Stainless Steel LP Tank with Internal Condensing Coil and Dip Tube


(This item will ship via Freight ONLY)

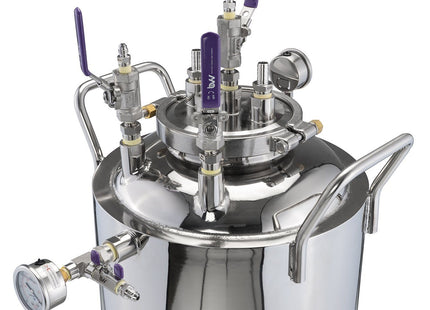

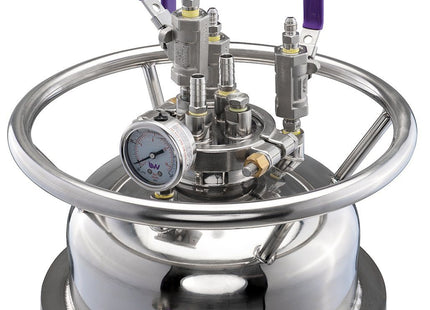

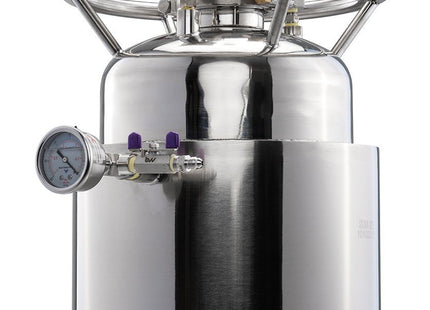

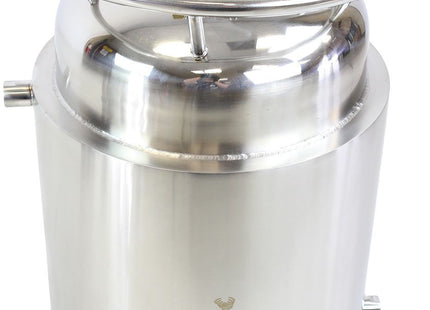

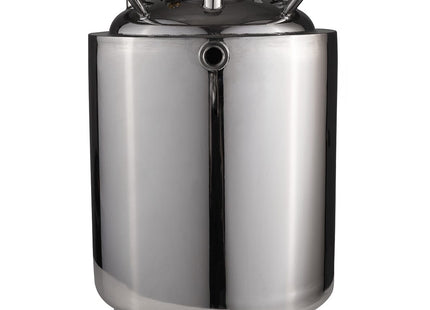

Jacketed Stainless Steel LP tanks offer a superior way to decrease contamination of solvent and feature a tri-clamp lid with a high-pressure clamp. This allows easy access to the inside of the tank, making clean out simple, unlike a normal carbon steel LP tanks. These tanks feature an exterior jacket to allow the user to circulate fluid around the outside of the tank while having an internal condensing coil on the inside of the tank to help condense hot vapors. Lids come configured with 3 valves, compound gauge and hose barbs for the internal condensing coils to help condense hot solvent vapor when the recovery stage of the extraction process is started. These tanks come with Milwaukee 1/4" FNPT valves and 1/4" 37 Degree JIC Flares with one port being connected to a dip tube.



To avoid contamination of your solvent, the Jacketed Stainless Steel LP Tank is a simple and professional option to reduce cleaning time. Our tri-clamp lid with a high-pressure clamp makes it easy to open up the system and fully clean it out in between uses.

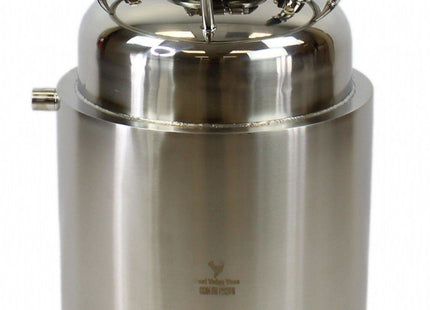

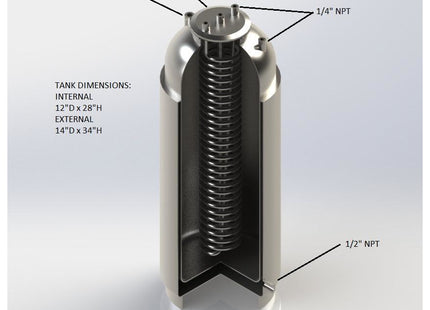

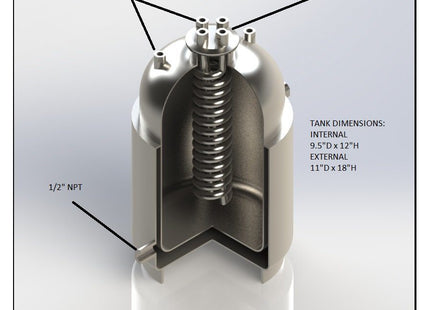

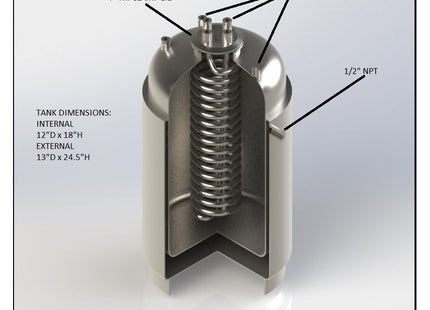

The exterior jacket circulates fluid around the outside of the tank which the internal condensing coil condenses hot vapors. These tanks come with 1/4" FNPT valves and 1/4" (or 3/8") 37 Degree JIC Flares with one port being connected to a dip tube.



If you are not using the jacket to circulate a chilling fluid, the jacket should be evacuated of all air and closed off. This is also known as a vacuum jacket, it will help to keep the fluid inside the tank at the set temperature and not transfer any temperature with the atmosphere around it.


*Tank does not come with solvent




Butane Capacity Calculation:



  • All solvent tanks sold by Best Value Vacs have their capacity determined by this calculation and are based on industry standard nomenclature of the water weight tank # system because the specific gravity of water is 1.000 and the DOT 80% fill guideline.



  • Example: 100# Tank = ~100lbs of water weight, Halfton Tank = 1000lbs of water weight.



    Tank # Water Weight in Lbs
    Specific Gravity of Butane 0.601
    80% Fill Guideline 0.800
    (Tank #) * (Specific Gravity of Butane) * ( 80% Fill Guideline)






    Sizes Available:

    • 25#
    • 50#
    • 100#





    Specifications
    Tank/Component Material 304 Stainless Steel
    Gasket Material BUNA-N
    Standard 3A High Polish
    Connection Type(s) 1/4" (7/16-20) x 37° JIC
    Hose Barb

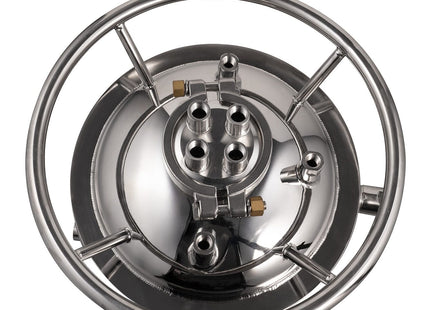

    Lid Connection Type(s): Tri-Clamp
    1/4"-20 FNPT
    Hose Barb
    Butane Capacity:
    25# 12.424
    50# 24.040
    100# 48.080





    ***Disclaimer:
    These are not DOT rated tanks and are not recommended for transportation when filled.




    Jacketed Stainless Steel LP Tank with Internal Condensing Coil and Dip Tube

    Product form

    SKU: 25JLP

    $850.00

    You will earn 850 points for this purchase.

    1 Year Limited Warranty

    24 Hour Nitrogen Test
