Molecular Sieve Filter Drier W/ Heating Jacket

Name: Filter Drier with heating jacket
Brand: BVV
SKU: MSV-FDJ-04
Price: 380.0 USD
Availability: InStock

SKU: MSV-FDJ-04

$370.00

✔ Nitrogen Tested

✔ Free Ground Shipping over $420

✔ Flat Rate Shipping On Orders Under $420!

You will earn 0 points for this purchase.

QTY

Price Match

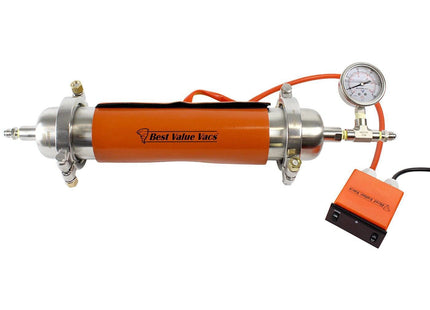

Molecular Sieve Filter Drier with Heating Jacket

A Molecular Sieve Filter Drier is intended to capture moisture and contaminants in the solvent by filter it out while the solvent passes through the Filter Drier. This Filter Drier is made out of 304 Stainless Steel parts and includes High Pressure Clamps, 2x 3" 2500 Mesh (5 Micron) Gaskets to prevent any Sieve dust contaminating the solvent, a digital heating jacket, and 13X Molecular Sieve. The end connections are 37° Flared Connection with a compound gauge that reads (-30)-0-(150Psi).

Specifications
Material:	304 Stainless Steel
Spool Size:	3" Triclamp x 12" Length
End Connections:	1/4", 3/8", or 1/2" 37° JIC Flares
Molecular Sieve:	13X
Clamps:	High Pressure
Gaskets:	2x 3" 2500 Mesh (5 Micron)
Compound Gauge:	(-30-0-(150 Psi)
Includes:	Digital Heating Jacket

Size Recommendations:

2LB - Will fit our Molecular Sieve Filter Drier
4LB - Will fit our XL Molecular Sieve Filter Drier
6LB - Will fit our 30LB Extractor
