Milwaukee Valve 316SS FNPT Ball Valve

(10SSOD-02-LL)

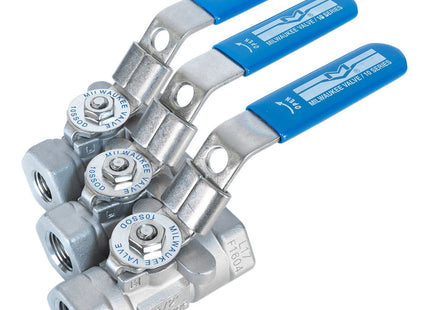

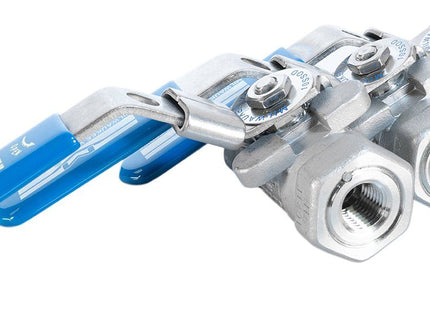

This top of the line 316 Stainless Steel Milwaukee ball valve is a fire safe ball valve and is 1 piece ball valve construction. It also features a straight body style with Female NPT x Female NPT threaded connections with one side being pinned into place for zero movement during installation. The fire safe ball valve features a maximum pressure rating of 2000 PSI CWP and has a blowout proof stem made of 316SS and the temperature range of this ball valve is -20F° to 450F°.

Milwaukee 10 Series Ball Valve Spec Sheet

Valve Specifications
Sizes Available:	1/4" FNPT
	3/8" FNPT
	1/2" FNPT
Pressure Rating	2000 WOG
Temperature Range	-20°F to 450°F
Valve Materials:
Body	A351-CF8M
Ball Retainer	A351-CF8M
Ball	316 Stainless Steel
Stem	316 Stainless Steel
Seat	304 Stainless Steel
Thrust Washer	316 Stainless Steel
Seat	RTFE
Thrust Washer	RTFE
Stem Packing	GRAPHOIL
Gland	316 Stainless Steel
Handle	304 Stainless Steel
Handle Nut	304 Stainless Steel
Handle Nut	304 Stainless Steel
Belleville Washer	304 Stainless Steel
PIN	304 Stainless Steel
