Manufacturer: Huber

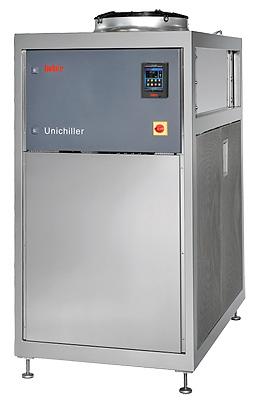

Huber Unichiller 500Tw

SKU: 3030.0012.01
$124,640.00

Free Ground Shipping over $420


Flat Rate Shipping On Orders Under $420!


Some exclusions may apply.
The following are excluded from this offer:
  • Item(s) that are marked "Ships Separately" on the listing.
  • Hazardous Materials (Alcohols, Lab Chemicals, Butane/Propane, and Cleaning Solvents)
  • Item(s) that BVV™️️️️ recommends ship via Freight (LTL or FTL) due to size/fragility.
  • Large orders and/or combined order weight over 100lbs ship via Freight (LTL or FTL)
  • Free ground shipping only applies to the lower 48 states

Ships Separately

You will earn 0 points for this purchase.


Price Match

Huber Unichiller 500Tw

(Please Note: There is a 2 -3 weeks lead time)

Description:

Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling. Chillers also reduce water consumption and help conserve the environment whilst lowering operating costs. Unichillers are suitable for the removal of heat from chemical processes, cooling technical plants or as a central cooling water supply for laboratories. All Unichillers are designed for continual operation at ambient temperatures up to +40°C. Installation in an outside areas is possible with optional weather protection and winter operation packages. Pumps are available with an extended pressure and flow rate for applications with a high pressure drops.

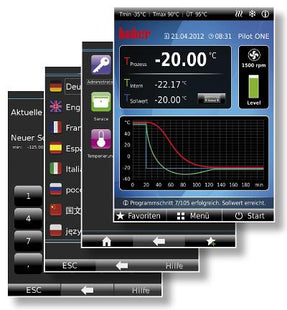

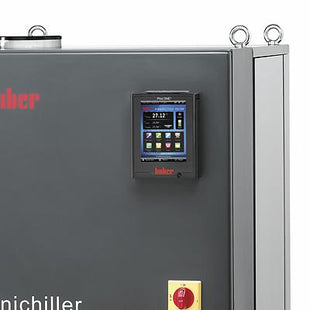

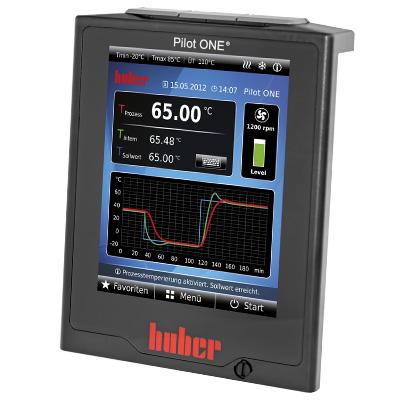

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

  • Environmentally-friendly, economic cooling solution
  • High efficiency
  • Precise temperature control
  • Powerful circulation pump
  • Intelligent energy management
  • Reliable continuously operation with warning functions
  • Pilot ONE controller with 5.7" touchscreen
  • Digital filling level indicator
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Heater options available







General information & temperature controller
Temperature range -20...40 °C
Temperature stability ±0.5 °C
Controller Pilot ONE (E-grade "Basic")
Safety class I / NFL
Protection class IP20
Dimensions (W x D x H) 1000 x 1100 x 1635 mm | 39.37 x 43.31 x 64.37 inches
Weight -- kg | pounds
Heating / cooling capacity
Cooling capacity

15   0  -10 -20 °C
_______________


50   30   24  14  kW

Cooling machine water-cooled
Refrigerant (ASHRAE, GHS) R449A (A1, H280)
Circulation pump
Pressure pump max. 234 lpm ; 4.9 bar | 61.82 gpm ; 71.05 psi
Pump connection G1 1/4 AG male
Connections
Pt100 connection Pt100
Digital interface RS232, Ethernet, USB Device, USB Host
Operating data
Old Sku 3030.0003.01
Permissible ambient temp. 5...40 °C
Filling volume min. 12.7 Liters | 3.36 gal
Volume of expansion 7 Liters | 1.85 gal
Cooling water connection G1 1/4 AG
Cooling water differential pressure min. 1,5 bar | 217.5 psi
Cooling water pressure max. 6 bar | 87 psi
Power supply 460V 3~ 60Hz
