Hubbell Process Water Heater 240V 3P


Hubbell Process Water Heater 240V 3P

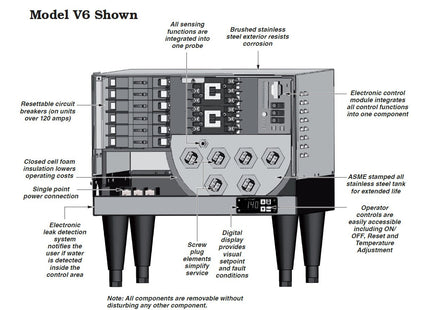

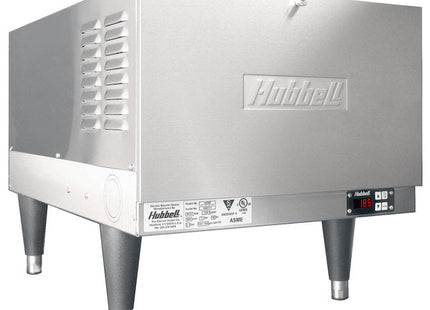

Process Water Heater -6 Gallon Stainless Steel ASME Vessel -36 kW, 240 volt, 3 phase - Option N - Stainless Steel Flanged Mounting Legs Packaged Hubbell electric heater with a 304 stainless steel vessel ASME Section VIII stamped.

Complete with electrical operating controls including the following: magnetic contactor, immersion elements, digital temperature controller with safety hi-temperature cut out, low water cut out, and an ASME rated combination temperature and pressure relief valve. Unit is factory assembled, insulated, jacketed, wired, and tested. Unit is ready for electrical and plumbing service connections.

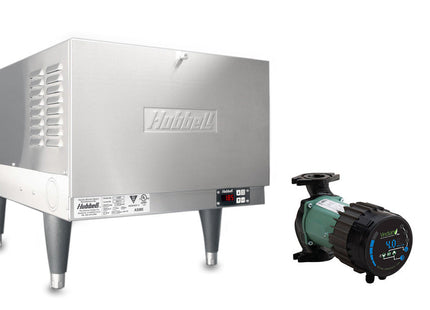

This kit includes a Taco pump to continuously circulate water through a closed loop system, an expansion chamber may be needed. Professional installation of water lines by a certified plumber is recommended.

Water Heater Features

Industrial Grade Construction

  • Stainless steel pressure vessel provides maximum service life
  • ASME Section VIII stamped vessel ensures high quality construction
  • Heavy duty construction withstands demanding industrial use
  • Packaged with all electrical operating controls for efficient installation
  • Small reserve capacity lowers peak power demand and reduces operating costs in systems with ON / OFF cyclical demand

Pump Operating Modes:

  • Auto mode (default)
  • Proportional pressure control
  • Constant pressure control
  • Constant speed
  • Night setback turndown

Pump Features

  • High-efficiency ECM motor uses up to 85% less electricity
  • LED displays watts, flow & RPM
  • Compact size for easy handling and installation
  • Plug & play simplicity
  • Robust construction for long life
  • Industry standard flange configuration and lay length
  • Low noise operation
  • 1" FNPT adapters are included



Hubbell V636T Heater Specs
Model V636T
Voltage 240V
Current Draw (A) 87
Heating Wattage (kW) 36
Storage Capacity (Gal) 6
Inlet / Outlet Connections 3/4" MNPT




Taco VR3452 Pump Specs
RPM 1100 - 4400
Material Cast Iron
Horsepower 1/100 - 1/4
Max Pressure (PSI) 145
Max Head (Ft.) 34
Max Flow (GPM) 52
Flow Range (GPM) 0-52
Current Draw (A) 2.5
Voltage 115

Hubbell Process Water Heater 240V 3P

Product form


$6,600.00 You will earn 6,600 points for this purchase.
