Gold High Pressure Clamps

MFR: BVV

SKU: HPCG200 30 Day Limited Warranty
Fire Sale!
$8.00

Free Ground Shipping at $420


Flat Rate Shipping On Orders Under $420!


*some exclusions may apply


You will earn 0 points for this purchase.


1
Price Match

Description - Click to Expand

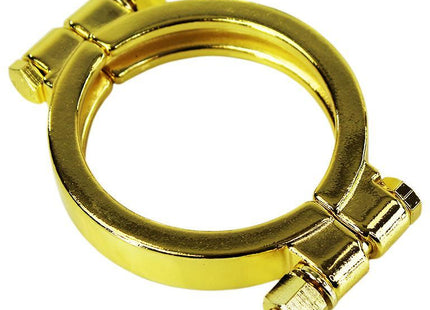

Gold High-Pressure Clamps


These are the Best Value Vacs faux Gold Plated high-pressure clamps that provide the user with visual wear indicators for the bolts and clamps allowing the user to notice when the clamp is needed to be replaced. It also adds an awesome amount of bling to your system. Fits Tri-clamp Flange fittings.


Best Value Vacs recommends tightening all High Pressure to their specified LBS of torque. We do not recommend tightening high-pressure bolts with an impact gun because this may cause threads to jump or be marred which can cause failure of the bolt or seal.

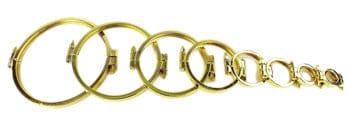

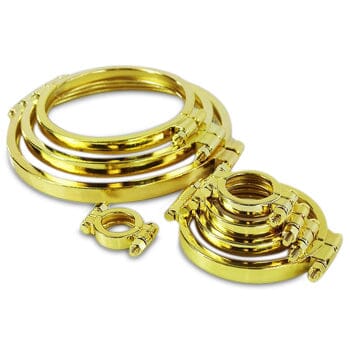

Sizes Available:



    • 1.5" High Pressure Clamp

    • 2" High Pressure Clamp

    • 3" High Pressure Clamp

    • 4" High Pressure Clamp

    • 6" High Pressure Clamp

    • 8" High Pressure Clamp

    • 10" High Pressure Clamp

    • 12" High Pressure Clamp


Specifications:



    • Hinge Type: Bolted

    • Material: 304 Stainless Steel with faux gold coating

    • Connection Type: Tri-Clamp



























































Sizes Max Torque (Nm / Ft Lbf / In Lbf)
Maximum Pressure @70F Maximum Pressure @250F
1.5" 12-14 / 8.85-10 / 106-124 1500 1200
2" 12-14 / 8.85-10 / 106-124 1000 800
3" 12-14 / 8.85-10 / 106-124 1000 800
4" 12-14 / 8.85-10 / 106-124 600 800
6" 12-14 / 8.85-10 / 106-124 300 200
8" 12-14 / 8.85-10 / 106-124 250 150
10" 12-14 / 8.85-10 / 106-124 200 125
12" 12-14 / 8.85-10 / 106-124 150 100
