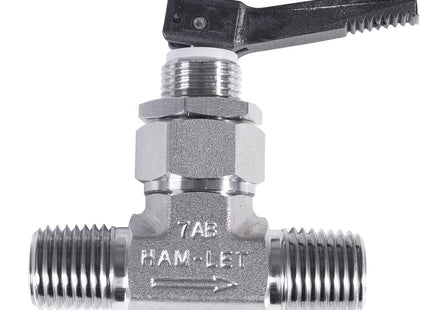

Fast-Acting Panel-Mount On/Off Valve

Description

Fast-Acting Panel-Mount On/Off Valve

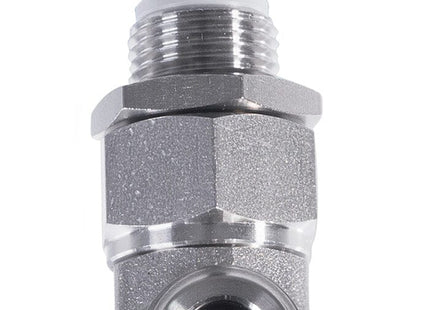

Open and close these valves with the flip of the toggle switch. Commonly used for equipment testing and gas sampling, they have threads and a hex nut below the handle for installation in instrument panels.

316 stainless steel valves are more corrosion-resistant than brass valves.

Manual-return valves remain open or closed when the toggle is moved into position.

Spring-return valves automatically close when the toggle is released.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.



Pipe Size Flow
Coefficient (Cv)
Max. Pressure Temperature Range
Degrees F
Toggle
Switch Type
End-to-End
Lg
Panel
Cutout Dia
1/4 .2 300 psi @ 200 degrees F -20 degrees to 200 degrees Manual Return 2 1/4" 17/32"

Fast-Acting Panel-Mount On/Off Valve

Product form

SKU: BDNGO-TV

$95.00 You will earn 95 points for this purchase.

  • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
  • Join Loyalty+ and save 10-15% *Select items
