ASME Certified 50L Jacketed Solvent Tank 304L with Diptube
Description

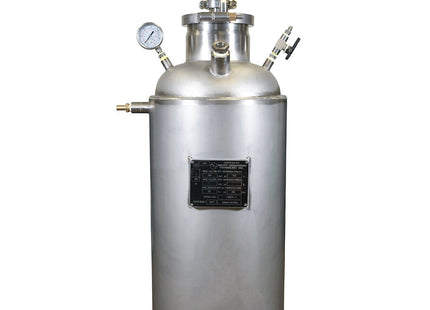

ASME Certified 50L Jacketed Solvent Tank 304L with Diptube
This is a custom manufactured USA made ASME Certified 50LB Jacketed Collection base with UM Stamp and made out of 304L Stainless Steel. This base is designed to be configured to any application and can even be used as a solvent tank. This tank comes preconfigured as a collection base with dip tube and SSP Valves, sight glasses, 1/2" Hose Barbs and will hold around 50LBS of liquid butane and is able to have fluid circulated around the outer jacket to increase recovery speeds in the extraction system.
**This Item will ship Via FREIGHT ONLY.
| Specifications | |
| Material | 304L Stainless Steel |
| Certification: | ABILITY ENGINEERING TECHNOLOGY INC. |
| ASME / UM / NB | |
| MAWIWP | 350 PSI at 150°F |
| MAWEWP | N/A |
| MIN TEMP | -20°F at 350PSI |
| Butane Capacity | ~50LBS |
| Connection Sizes: | 6" Tri-Clamp |
| (2) 1" NPT | |
| (2) 1/2" NPT - Outer Jacket Ports | |
| (2) 3/8" NPT | |
| Weight | 146LBS |
| Outer Dimensions: | 32-7/8" Tall |
| 14" Diameter | |
| Inner Dimensions: | 24" Tall |
| 12" Diameter | |
ASME Certified 50L Jacketed Solvent Tank 304L with Diptube
SKU: ASME1224J-DT
$4,250.00
You will earn 4,250 points for this purchase.✔ 24 Hour Nitrogen Test
