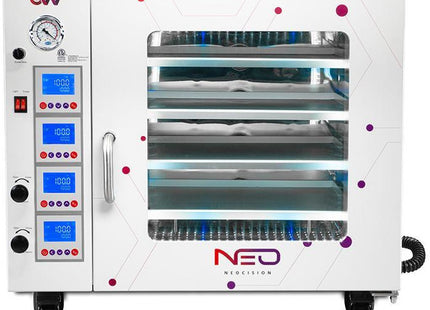

3.2CF BVV™ Neocision ETL Lab Certified Vacuum Oven

Description

3.2CF BVV™ Neocision Certified Lab Vacuum Oven, 4 Individually Heated Shelves, LED's - 3 Year Warranty


Disclaimer: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in well-ventilated areas!


Introduction


Our vacuum ovens are purpose-built to perform degassing / purging of light hydrocarbon solvents. Using the technique of cold boiling, the oven applies a gentle heat under reduced pressure conditions to expedite solvent degassing while simultaneously preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-throughput, and reliable operation.


Performance Capabilities


At Best Value Vacs, we make every effort to provide oven performance capabilities in a standardized format. We're not interested in juking our stats to make a sale. Instead, our goal is to provide quality, transparent production capabilities that meet the demands of our professional customers.



    • Temperature Stability: ±1.0°

    • Temperature Uniformity: within 4% of the temperature setpoint.

    • Heat-Up Time: 20 minutes.

    • Ultimate Vacuum: <500 µmHg / mTorr / micron


    • Vacuum Hold: guaranteed to lose less than 1"Hg (25.4 torr) in 24 hours.


Specifications























































































































































Electrical Voltage 120V
Frequency 60Hz
Power 1050W
Current 16A
Plug IEC C13 (unit ships with detachable NEMA 5-15p cable)
Internal Chamber Heating Individual Direct-Heat shelves
Chamber Material Stainless Steel
Dimensions (LxWxH) 17.7" x 17.7" x 17.7" (450mm x 450mm x 450mm)
Vacuum Gauge Style Glycerin-filled for accuracy and longevity
Range (units) -30 to 0 (inHg) / -1 to 0 (bar)
Shelving Ships With 4 Heated Shelves
Shelf Dimensions (LxW) 17" x 17.25"
Shelf Capacity 293 in2
Total Shelf Capacity 1173 in2 / 8.2 ft2
Door Seal Silicone on Tempered Glass
Window Dimensions (LxH) 15.5" x 16.25"
Lights 4 strips of LEDs provide clear, bright view of interior
Handle Aluminum
Exterior Dimensions (LxWxH) 30" x 27" x 27"
Weight 260 lbs
Support Locking Casters
Safety Electrical Built-in, resettable, overcurrent circuit breaker
Thermal Automatic overtemperature shutoff
Compliance CE CE Listing Recognized
ISO ISO 9001:2015
ETL Certified Conforms to ANSI/UL STD.61010-1, 61010-2-010 -- Certified to CAN/CSA STD. C22.2 NO.61010-1, 61010-2-010
Connections Vacuum Inlet KF25 / NW25, quarter-turn valve
Purge Inlet 5/16" Barbed, 10-turn valve
Atmospheric Release Quick-release dial
Contains Ships With KF25 x 1/4" JIC Flare with 1/4" vacuum hose
User Manual Included
Vacuum Pump Sold Separately.
Recommended Pump VE Series 9cfm Dual Stage Vacuum Pump
Warranty 3 Years




Capacity and Throughput Planning


Oven capacity requirements vary widely by the producer. We wanted to create a method to assist in determining the best oven match for your operation, based on a few of the parameters of your extraction and of your desired purge. We based this formula on an expected extraction yield of 25%, with an extract-density of 1 g/in2. Using the following variables, this formula is designed to provide an estimate of your required shelving capacity:



    • Size = Extraction Batch Size (lbs)

    • Number = Runs per 24h Period

    • Purge = Your desired purging duration (hours)


Area Required (ft2) = [(Size) * (Number) * (Purge+1)] / 122
Area Required (in2) = (Size) * (Number) * (Purge+1) * 1.18
