Name: Ai DigiM 5L 300C 1200 RPM PID Controlled Digital Heating Mantle
Brand: Across International
SKU: DigiM5
Price: 990.0 USD
Availability: InStock

Ai DigiM 5L 300C 1200 RPM PID Controlled Digital Heating Mantle

Across International
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

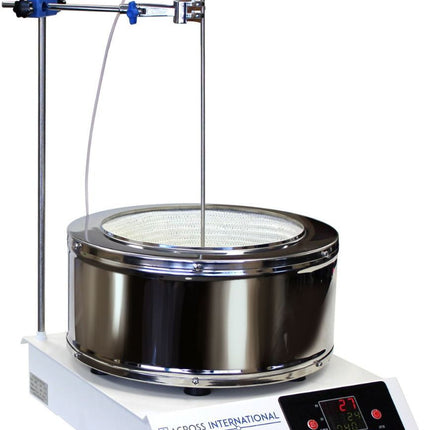

Ai DigiM 5L 300C 1200 RPM PID Controlled Digital Heating Mantle

Across International heating and stirring mantles come standard with a digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle has two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

Specifications

Model	DigiM5
Electrical requirements	110V 60Hz 1-Phase, 1100 watts, 12A or 220V 50/60Hz 1-Phase, 1100 watts, 6A
Heating	Ambient to 300°C
Stirring	Min. speed: 110 rpm, max. speed: 1200 rpm Motor power: 40 watts Motor type: brushless DC motor

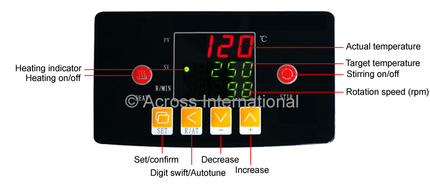

Controller	PID control with digital temperature and rotation speed display
External thermocouple	Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm
Flask holder	Maximum flask capacity: 5 liters Top opening diameter: 9 inches Depth: 5.5 inches
Dimensions (WxDxH)	Unit: 13.5 x 17 x 10 inches, shipping: 20 x 16 x 15 inches
Weight	Unit: 22 lbs, shipping: 32 lbs
Safety	Thermocouple failure protection

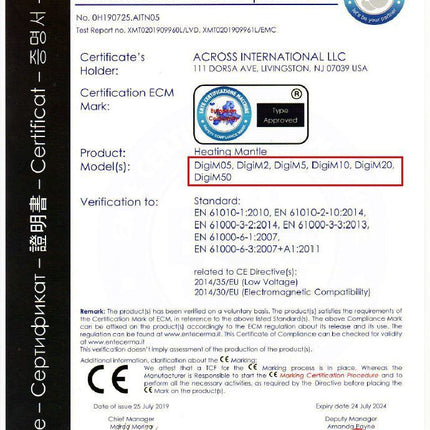

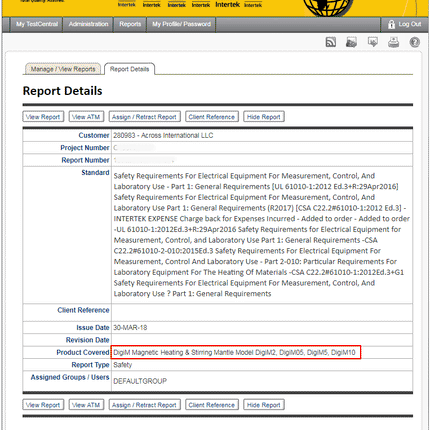

Certification	ETL tested to UL and CSA standards (optional), CE (standard)
Warranty	One year

Standard package

Part description	Quantity	Part image
Ai DigiM 5L digital heating & stirring mantle	1 set
External temperature probe DigiM05, DigiM2, DigiM5: Cable Length: 40”, Probe Length: 9” DigiM10, DigiM20: Cable Length: 43”, Probe Length: 15”	1 pc
Internal temperature plug	1 pc
Boss head DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs	1 or 2 pcs
Stainless steel support rod DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs	1 or 2 pcs
PTFE coated stir bar	2 pcs
PTFE coated magnetic stir bar remover	1 pc
4 prong stainless steel clamp opens to 3 1/2" DigiM2, DigiM5:- 1 pc DigiM10, and DigiM20: 2 pcs	1 or 2 pcs
User's manual	1 pc
