Description

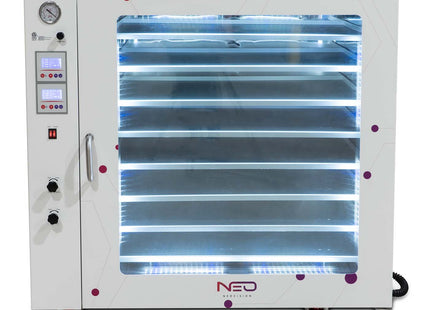

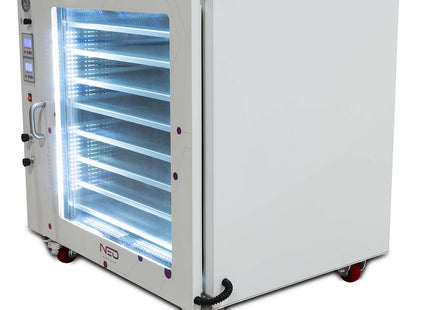

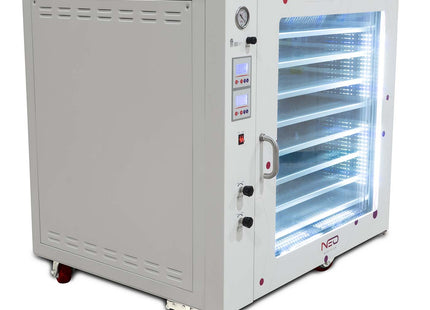

16CF Neocision Certified Lab Vacuum Oven, 5 Individually Heated Shelves, LED's - 3 Year Warranty
Disclaimer: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in well-ventilated areas!
Introduction
Our vacuum ovens are purpose-built to perform degassing / purging of light hydrocarbon solvents. Using the technique of cold boiling, the oven applies a gentle heat under reduced pressure conditions to expedite solvent degassing while simultaneously preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-throughput, and reliable operation.
Performance Capabilities
At Best Value Vacs, we make every effort to provide oven performance capabilities in a standardized format. We're not interested in juking our stats to make a sale. Instead, our goal is to provide quality, transparent production capabilities that meet the demands of our professional customers.
-
Temperature Stability: ±1.0°
-
Temperature Uniformity: within 4% of the temperature setpoint.
-
Heat-Up Time: 30 minutes.
-
Ultimate Vacuum: <500 µmHg / mTorr / micron.
-
Time to Vacuum: 10 minutes to 29"Hg using our 12CFM Spark Free Vacuum Pump
-
Vacuum Hold: guaranteed to lose less than 1"Hg (25.4 torr) in 24 hours.
| Technical Data |
| Electrical |
Voltage |
120V |
| Frequency |
60Hz |
| Power |
2000W |
| Current |
20A |
| Plug |
NEMA 5-15 |
| Internal Chamber |
Heating |
Individual direct-heat shelves |
| Chamber Material |
Stainless Steel |
| Dimensions (LxWxH) |
25.5" x 32" x 34"
|

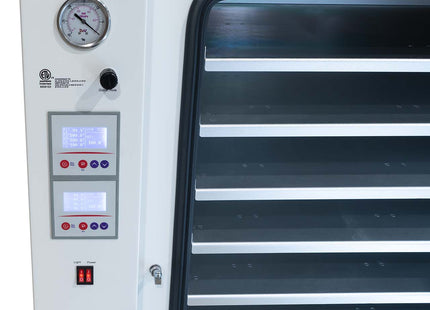

| Vacuum Gauge |
Style |
Glycerin-filled for accuracy and longevity |
| Range (units) |
-30 to 0 (inHg) / -1 to 0 (bar) |

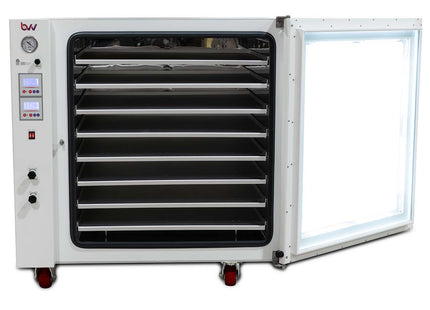

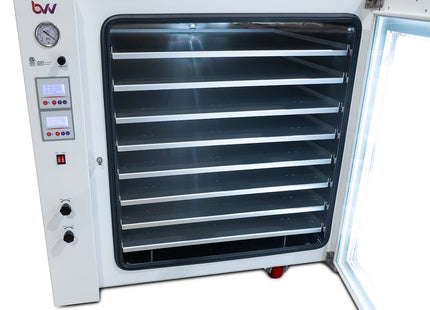

| Shelving |
Ships With |
8 Shelves |
| Shelf Dimensions (LxW) |
24.75" x 31.5" |
| Shelf Capacity |
780 in^2 |
| Total Shelf Capacity |
6240 in^2 |
| Safety |
Seal |
Silicone on Tempered Glass |
| Window Dimensions (LxH) |
29.25" x 32" |

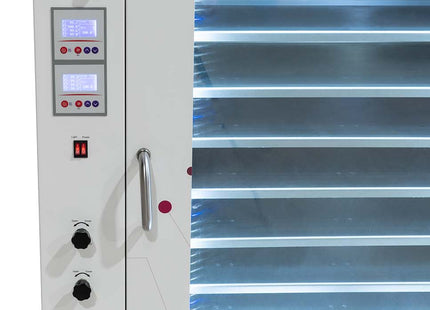

| Lights |
4 strips of LEDs provide a clear, bright view of the interior |
| Handle |
No plastic, all metal parts for lifetime durability |
| Exterior |
Dimensions (LxWxH) |
37.25" x 45" x 46" |
| Weight |
500lbs |
| Support |
Locking Casters |
| Safety |
Electrical |
Built-in, resettable, overcurrent circuit breaker |
| Thermal |
Automatic overtemperature shutoff |
| Compliance |
CE |
CE Listing Recognized |
| ISO |
ISO 9001:2015 |
| ETL Certified |
Conforms to ANSI/UL STD.61010-1, 61010-2-010 -- Certified to CAN/CSA STD. C22.2 NO.61010-1, 61010-2-010 |
| Connections |
Vacuum Inlet |
KF25 / NW25, quarter-turn valve |
| Purge Inlet |
5/16" Barbed, 10-turn valve |
| Atmospheric Release |
Quick-release dial |
| Contains |
Ships With |
KF25 x 1/4" JIC Flare with 1/4" vacuum hose |
| User Manual |
Included |
| Vacuum Pump |
Sold Separately. |
|
|
| Warranty |
3 Years |
Capacity and Throughput Planning
Oven capacity requirements vary widely by the producer. We wanted to create a method to assist in determining the best oven match for your operation, based on a few of the parameters of your extraction and of your desired purge. We based this formula on an expected extraction yield of 25%, with an extract-density of 1 g/in2. Using the following variables, this formula is designed to provide an estimate of your required shelving capacity:
-
Size = Extraction Batch Size (lbs)
-
Number = Runs per 24h Period
-
Purge = Your desired purging duration (hours)
-
Area Required (ft2) = [(Size) * (Number) * (Purge+1)] / 122
-
Area Required (in2) = (Size) * (Number) * (Purge+1) * 1.18
