Description

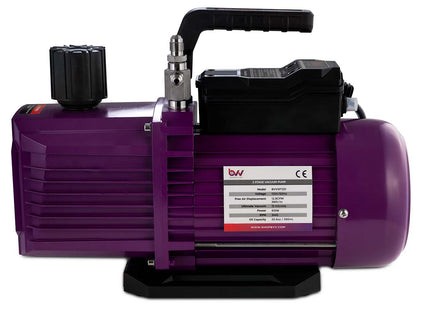

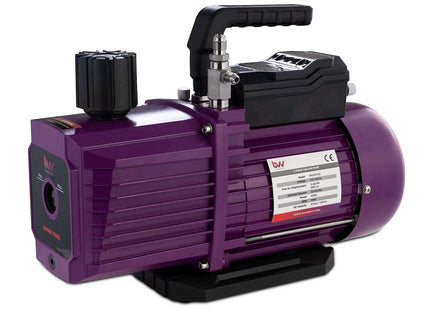

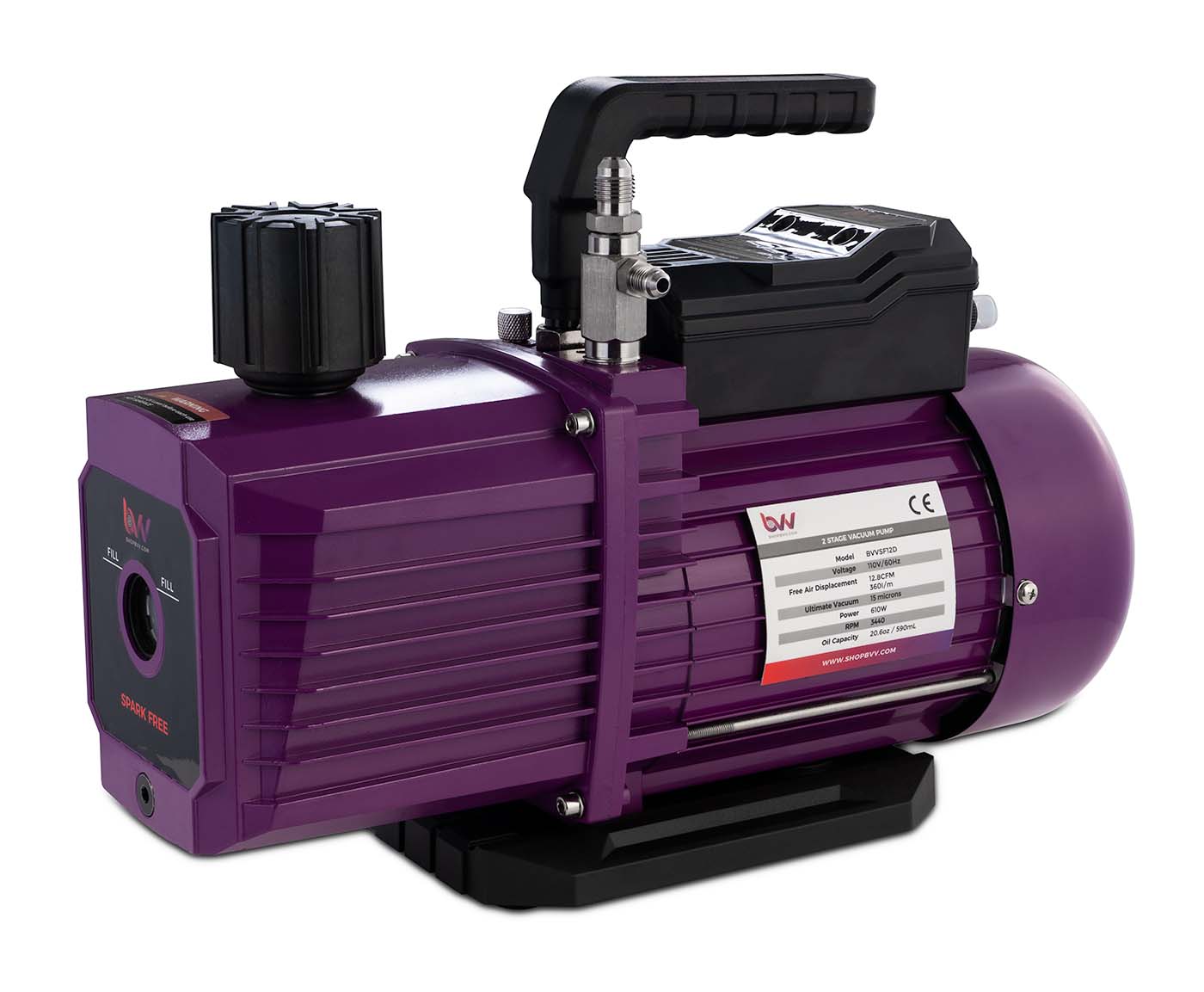

BVV™ SF12D 12CFM Two Stage Spark Free Vacuum Pump
This is the BVV™ SF12D 12CFM Two Stage Spark Free Vacuum Pump.
Please Refer to these charts for vacuum specifications at altitude and conversions:
Key Features:
- Internal Check Valve
- Spark Free Construction
- Larger Oil Reservoir for longer Oil life
- Rubber Feet for noise dampening
- Reliable, Economical and Efficient.
| Models |
BVVSF6S |
BVVSF6D |
BVVSF12D |
| Stage |
1 |
2 |
2 |
| Ultimate Vacuum (Microns) |
75 |
15 |
15 |
| Refrigerant Classes |
A1 Non-Toxic, Non Flammable |
A2 Non-Toxic, Low Flammability |
A3 Non-Toxic, High Flammability |
| Dimensions (in) |
12.4 x 4.8 x 10.16 |
13 x 5.5 x 10.7 |
15 x 6.3 x 11.22 |
| Weight (lbs) |
16.5 |
24.3 |
33.6 |
| Free Air Displacement |
6.4 CFM |
6.4 CFM |
12.8 CFM |
| Motor Size (HP) RPM |
1 HP 3440 RPM |
| Oil Capacity |
14.5oz / 410ml |
19oz / 410ml |
20.6oz / 680ml |
| Voltage |
110V 60 Hz |
| Power Cord |
Hard Wired 3m / 9.8' Power Cord |

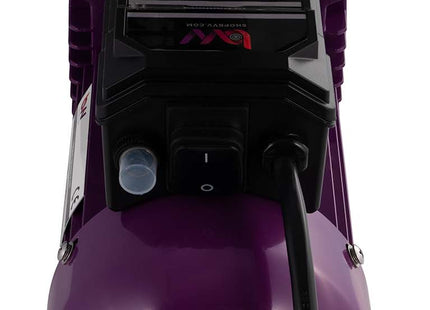

| Power Switch |
Ignition Proof On / Off Switch |
| Operating Temperature Range |
32F to 125 F (0C to 52C) |
| Gas Ballast Valve |
No |
Yes |
Yes |

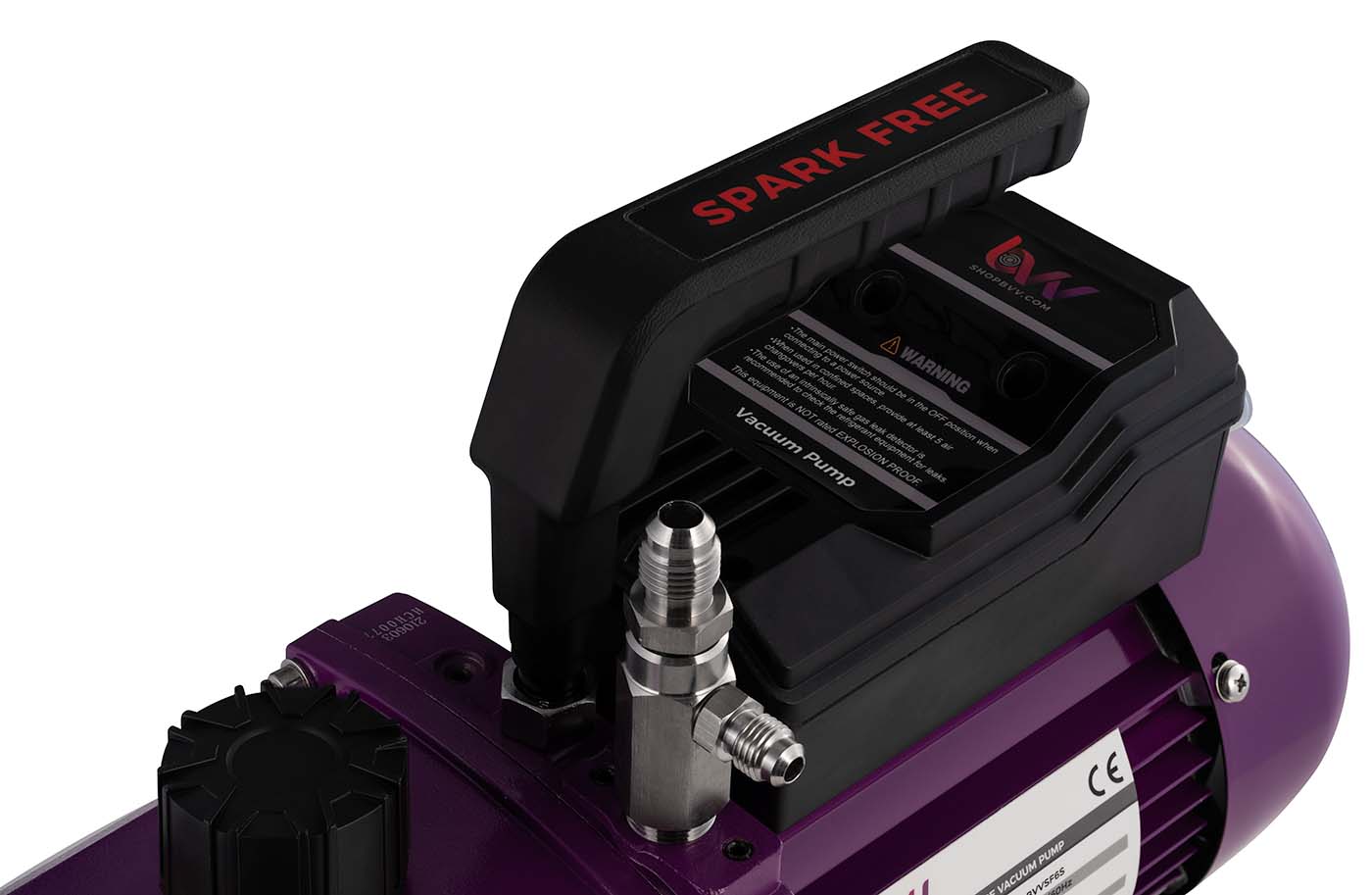

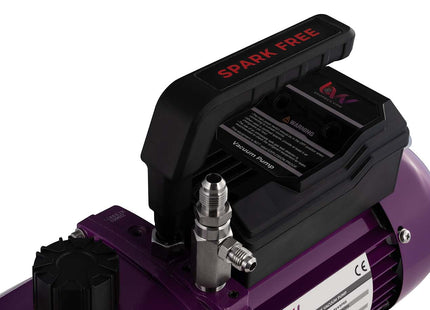

| Intake Fittings |
Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports |
Pump Warranty Information
• Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)
• If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
• These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
• When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
• To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
