Description

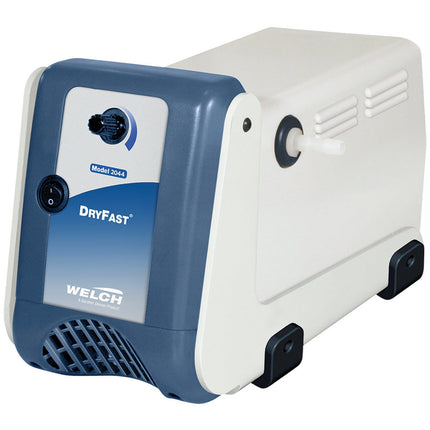

DryFast Diaphragm Pump 2044
Welch DryFast™ PTFE Diaphragm Vacuum Pumps enable precise vacuum control for organic evaporations with exclusive Advanced Vapor Management (AVM). Oil-Free, portable, chemical resistant, dual head diaphragm design simplifies maintenance. Choose from seven dry PTFE vacuum pump models with flows up to 70 L / min and adjustable vacuum down to 2 Torr. Economical DryFastTM vacuum pumps are perfect for tough lab applications.
Product Details:
- Chemical Resistant
- Oil-Free
- Tuneable Vacuum
Suggested Applications:
- Concentrator - Gel Dryer Combination
- Rotary Evaporator
- Vacuum Concentrator
| Test Equipment General Attributes |
| Free Air Displacement @ 60 Hz, cfm (L/min) |
1.2 (35) |
| Ultimate Pressure, torr |
9 |
| Motor Power, HP (kW) at 60 Hz |
1/5 (150) |
| Inlet (Exhaust) Connection Thread NPT |
M14 (1/8) |
| Tubing Needed, I.D. in. (mm) |
1/4 (7) |
| Weight, lbs (kg) |
21.25 (9.6) |
| Shipping Height |
13.8x6.8x8.8 (350x170x220) |
| 115V Order Number |
2044B-01 |
