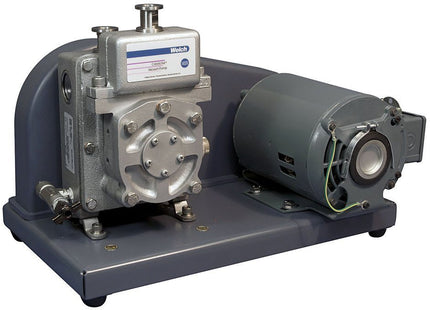

Welch ChemStar 1400N 0.9 cfm 0.1 Micron Belt Drive 2-Stage Pump

Description

Welch ChemStar 1400N 0.9 cfm 0.1 Micron Belt Drive 2-Stage Pump

Note: This item has a possible 1-2 week lead time depending on stock availability.

Product Details

Low rotation speed for longer service life
Vital parts corrosion resistant
Large oil reservoir dilutes contaminants

ChemStar belt-driven Vacuum Pump is designed to tolerate harsh chemical contamination. Vital pump parts are corrosion resistant. The large oil reservoir with PTFE surfaces dilutes contamination and the low pump rotational speed lessens friction to reduce operating temperature and chemical effects. PTFE surfaces, fluorcarbon gaskets and seals, Nitrogen purge to cool and degas oil. ChemStar system comes with Gold Oil, a synthetic lubricant designed to minimize effects of chemical contaminants.

Specifications
Model Number	1400N
Application	Vacuum Manifolds, (Schlenk Lines), High boiling point evaporations (to 195 deg. C), General laboratory. HCl, O3, H2SO4HBr, HOAC, SOxBr2, F3CCO2H, H2SCl2, CH2O, HNO3SF6, CF4 Fragments and other gases;
Type	Belt-Drive Vacuum Pump, chemical resistant
Free Air Displacement cfm (l/min.) @60Hz	0.9(25)
Ultimate Pressure	1 x10-4(0.00013)
Pump RPM	580
Oil Capacity	0.62(0.59)
Motor Horsepower (watts)	1/3(250)
Adjustable Vac. / Gas Ballast	Yes
Tubing Needed	7/16(11)
ISO Exhaust / Intake Flange	NW 16
Overall Dimensions LxWxH in. (cm)	17.8x9x12.6 (45.2x22.9x32)
Ship Weight	71(32.3)
Shipping Carton Dimensions LxWxH in. (cm)	20.5x13.8x14.5 (52.1x35.1x36.8)

Welch ChemStar 1400N 0.9 cfm 0.1 Micron Belt Drive 2-Stage Pump

Product form

Wired For

115V 60Hz 1 Ph with N Amer 115V Plug
230V 50Hz 1HP w/ Schuko cord
Explosion Proof Motor - 115V 60Hz

SKU: 1400N-01

$3,425.00

Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154

Financing Available

Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

Description

Welch ChemStar 1400N 0.9 cfm 0.1 Micron Belt Drive 2-Stage Pump

Note: This item has a possible 1-2 week lead time depending on stock availability.

Product Details

Low rotation speed for longer service life
Vital parts corrosion resistant
Large oil reservoir dilutes contaminants

ChemStar belt-driven Vacuum Pump is designed to tolerate harsh chemical contamination. Vital pump parts are corrosion resistant. The large oil reservoir with PTFE surfaces dilutes contamination and the low pump rotational speed lessens friction to reduce operating temperature and chemical effects. PTFE surfaces, fluorcarbon gaskets and seals, Nitrogen purge to cool and degas oil. ChemStar system comes with Gold Oil, a synthetic lubricant designed to minimize effects of chemical contaminants.

Specifications
Model Number	1400N
Application	Vacuum Manifolds, (Schlenk Lines), High boiling point evaporations (to 195 deg. C), General laboratory. HCl, O3, H2SO4HBr, HOAC, SOxBr2, F3CCO2H, H2SCl2, CH2O, HNO3SF6, CF4 Fragments and other gases;
Type	Belt-Drive Vacuum Pump, chemical resistant
Free Air Displacement cfm (l/min.) @60Hz	0.9(25)
Ultimate Pressure	1 x10-4(0.00013)
Pump RPM	580
Oil Capacity	0.62(0.59)
Motor Horsepower (watts)	1/3(250)
Adjustable Vac. / Gas Ballast	Yes
Tubing Needed	7/16(11)
ISO Exhaust / Intake Flange	NW 16
Overall Dimensions LxWxH in. (cm)	17.8x9x12.6 (45.2x22.9x32)
Ship Weight	71(32.3)
Shipping Carton Dimensions LxWxH in. (cm)	20.5x13.8x14.5 (52.1x35.1x36.8)
