Description

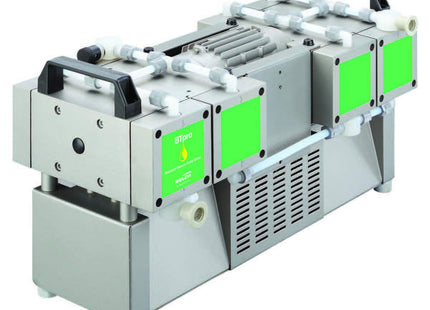

Welch BTpro170
***Note: This item has a possible lead time of 2-3 weeks depending on stock availability.***
Welch’s BTpro vacuum pump series has a flow and vacuum level to provide fast performance for your size of rotary evaporator, glass reactor, purge oven, or winterization filtration apparatus.
These chemical duty PTFE diaphragm pumps are oil-free. The pumping action and deep vacuum comes from the movement of PTFE diaphragms within PTFE heads. All wetted services in the flow path are made of fluoroplastic making the BTpro pump highly chemically resistant. As a result, the BTpro vacuum pump series is near-zero maintenance. A cold trap placed in-line with BTpro pump is needed if terpenes are part of the flow path.
| Model |
BTpro170 |
2163 |
Free Air Displacement@60Hz,
lpm(CFM) |
170 (6.0) |
170 (6.0)
|
| Ultimate Vacuum Pressure, Torr |
6 |
6 |
| Maximum Vacuum, in. Hg |
29.7 |
29.7 |
| Horsepower, HP (watts) |
0.6(440) |
0.6(440) |
| Built-in adjustable vacuum |
- |
- |
| Gas Ballast |
Yes |
Yes |
| Head Material |
PTFE |
Coated Al |
| Diaphragm |
PTFE |
PTFE |
| Inlet/outlet Connection |
NW16 flange |
NW16 flange |
| Agency (National Recognized Lab) |
cUL |
cUL |
| Weight, lbs (kg) |
72.3 (32.8)
|
72.3 (32.8) |
Overall Dimensions
LxWxH in.(cm) |
21x11x12
(53x28x31) |
21x11x12
(53x28x31) |
| Shipping Weight, lbs(kg) |
88.2 (40.1) |
88.2 (40.1) |
|
Shipping Carton Dimensions
LxWxH in.(cm)
|
23.6x15.8x16.1
60x40x41
|
23.6x15.8x16.1
60x40x41
|
