Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors.

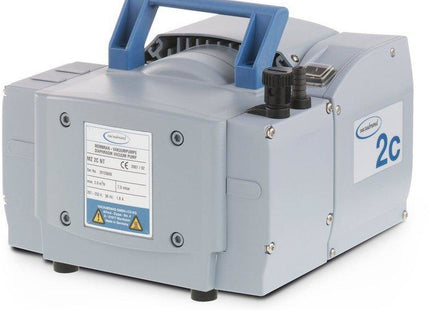

The two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum. All parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The pump MZ 2C NT is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensable vapors. This pump is our most popular chemistry diaphragm pump, and is the heart of a family of VACUUBRAND pumping systems. The NT-series features further improved performance data and superior vapor tolerance.
|Technical data||Unit||MZ 2C NT|
|Number of heads / stages||2 / 2|
|Max. pumping speed at 50/60 Hz||m3/h||2.0 / 2.3|
|Max. pumping speed at 50/60 Hz||cfm||1.2 / 1.4|
|Ultimate vacuum (abs.)||mbar/torr||7 / 5|
|Ultim. vac. (abs.) with gas ballast||mbar/torr||12 / 9|
|Ambient temperature range (operation)||°C||10 - 40|
|Ambient temperature range (storage)||°C||-10 - 60|
|Max. back pressure (abs.)||bar||1.1|
|Inlet connection||Hose nozzle DN 8-10 mm|
|Outlet connection||Hose nozzle DN 8-10 mm|
|Rated motor power||kW||0.18|
|Rated motor speed at 50/60 Hz||min-1||1500/1800|
|Degree of protection||IP 40|

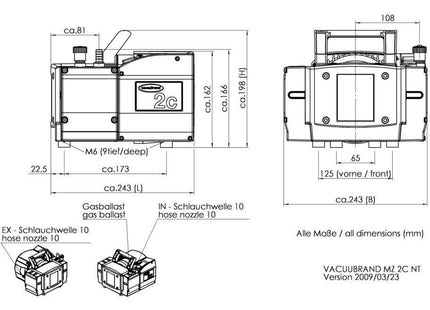

|Dimensions (L x W x H)||mm||243 x 243 x 198|
|Noise level at 50 Hz, typ.||dBA||45|
|NRTL certification||Canada and the USA|
|ATEX conformity (only 230V)||II 3/- G IIC T3 X Internal Atm. only|
|Items supplied||Pump completely mounted, ready for use, with manual.|
|Accessories||Rubber vacuum tubing DN 8 mm (20686001)|
