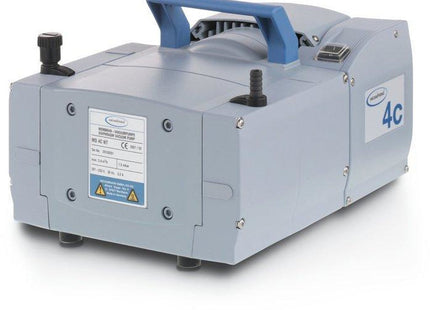

Vacuubrand MD 4C NT 2.2 CFM Chemistry Diaphragm Pump 110V
- VendorVacuubrand
Description
Vacuubrand MD 4C NT 2.2 CFM Chemistry Diaphragm Pump 110V
MD 4C NT Technical Data Sheet.pdf
These three-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of non-corrosive gases. They reach an excellent ultimate vacuum of 1 mbar. All parts in contact with pumped gases and vapors are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of applications with non-corrosive gases. The new NT-series provides whisper quiet and ultra-low vibration operation, high leak tightness and improved performance. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. These three-stage diaphragm pumps are an excellent choice for continuous, contamination-free evacuation and pumping of non-aggressive gases at demanding vacuum conditions. They are especially suitable for applications in physics and analytics. The low ultimate vacuum makes these an attractive alternative to rotary vane pumps in many applications. Typical uses are as backing pump for turbomolecular drag pumps, and for degassing of viscous media.
Performance features:
- Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Whisper quiet and very low vibration
- Long diaphragm life, maintenance-free drive system
| Technical Data | |
|---|---|

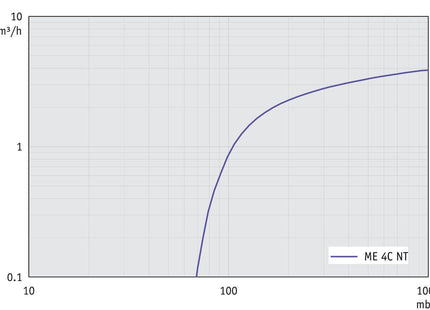

| Max. pumping speed 50 Hz | 3.8 m3/h |

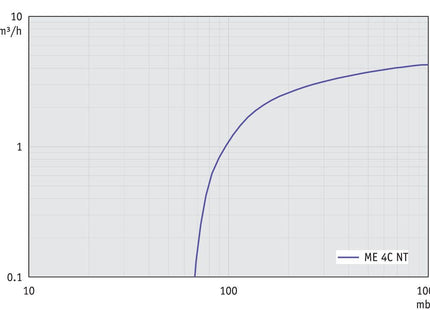

| Max. pumping speed 60 Hz | 2.5 cfm |
| Ultimate vacuum | 1 mbar / 0.75 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Anschluss saugseitig | small flange KF DN 16 |
| Outlet connection | Silencer / G1/4" |
| Rated motor power | 0.25 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class | IP 40 |

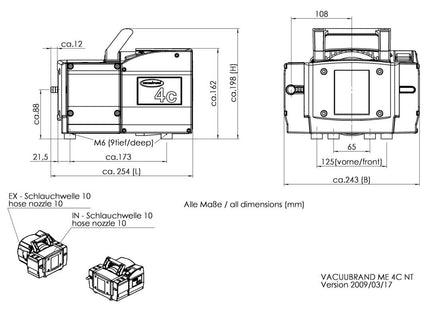

| Dimension L in mm | 328 mm |
| Dimension W in mm | 239 mm |
| Dimension H in mm | 198 mm |
| Weight | 16.4 kg |
| Noise level at 50 Hz, typ. | 45 dBA |
| Rated mains voltage range 1 | 230 V |
| Mains frequency 1 | 50-60 Hz |
- NRTL certification
