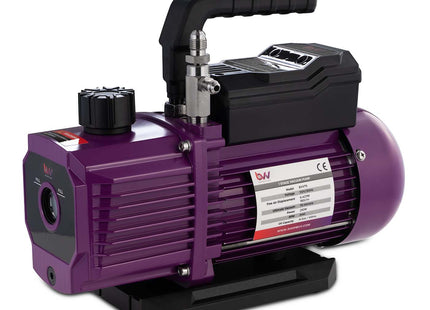

V7S 7CFM Single Stage Vacuum Pump

Description

V7S 7CFM Single Stage Vacuum Pump

This is the BVV™ V7S 7CFM Single Stage Vacuum Pump.
Please Refer to these charts for vacuum specifications at altitude and conversions:
Key Features:
  • Internal Check Valve
  • Oil Mist Filter Cap
  • Larger Oil Reservoir for longer Oil life
  • Lightweight
  • Rubber Feet for noise dampening
  • Reliable, Economical and Efficient.
Models BVV4D BVV7S BVV9D
Stage 2 1 2
Ultimate Vacuum (Microns) 15 75 15
Refrigerant Classes A1 Non-Toxic, Non Flammable
Dimensions (in) 12.4 x 4.8 x 10.16 12.4 x 4.8 x 10.16 15 x 6.3 x 11.22
Weight (lbs) 19.4 16.5 32
Free Air Displacement 4.3 CFM 6.4 CFM 8.5 CFM
Motor Size (HP) RPM 1 HP 3440 RPM
Oil Capacity 10oz / 300ml 14.5oz / 410ml 24oz / 680ml
Voltage 110V 60 Hz
Power Cord Hard Wired 3m / 9.8' Power Cord
Power Switch Standard On / Off
Operating Temperature Range 32F to 125 F (0C to 52C)
Gas Ballast Valve Yes No Yes
Intake Fittings Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports




Pump Warranty Information

  • Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)
  • If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
  • These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
  • When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
  • To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.

V7S 7CFM Single Stage Vacuum Pump

Product form

SKU: BVV7S

$265.00

    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.
