Description

Tri-Clamp Direct Drive Mixers

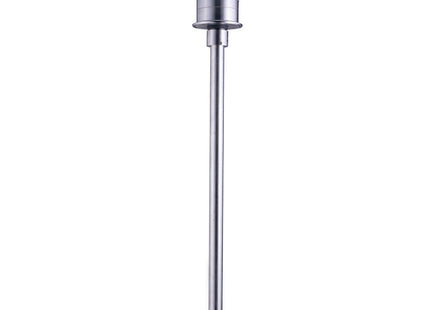

3/4 HP Air Direct Drive Tri-Clamp Mixer, (1) 4" PRL, 1" x 28" Exposed, Comp Mech Seal

• 3/4HP
• Shaft Length: 28" (From bottom of Tri-clamp)
• Air inlet port: 1/4" NPT
• Air adjustment valve to control speed
• Requires 30CFM @ 100 PSI air supply

3/4 HP Variable Speed Electric Direct Drive Tri-Clamp Mount Mixer

• 3/4 HP
• 115V Power supply

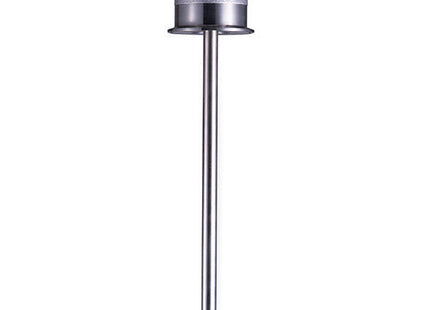

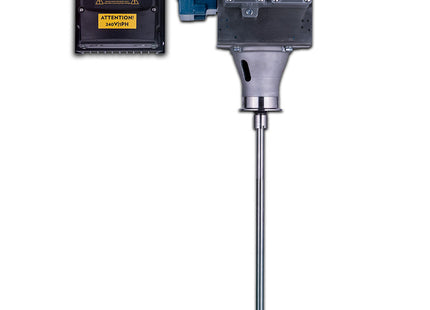

1 HP XP Direct Drive Tri-Clamp Mixer, Mech. Seal, (1) 5.5" HEI, 0.625" x 28" Exposed Shaft, VFD

• Motor: 1 HP, XPFC Inverter Duty, Class 1, Div 1, Group C&D; Class 2,Div 1, Group F&G, Temp Code T4, 10:1 Turndown, 208-230/460V,3Ph, 1760 RPM
• VFD Controler: 1HP Speed Controller with Digital RPM Readout in Outdoor Rated NEMA 4X Enclosure, 240V/1Ph (Mounted Outside of XP Area)w/ Local XP Control Package, 352 to 1760 RPM, Mounted to Motor ,Bare Wire Leads
• Mount: 3'' Sanitary Mount, 316SS Wetted faces
• Seal: 316 SS 60 Series 2-Piece Mechanical Inside Seal w/Viton ORings; Carbon-Graphite Rotary, Sintered Silicon Carbide Stationary, Hastelloy C-276 Springs, Dry Running, Sealed for Pressure/Vacuum

• Wetted Surface Finish: Mill
• Shaft: 0.625'' x 28'' Exposed Length, 316SS
• Bottom Impeller: 5.5'' High Efficiency Impeller, 3 Blades, Low Shear,316SS
• **On Site Wiring Required**
