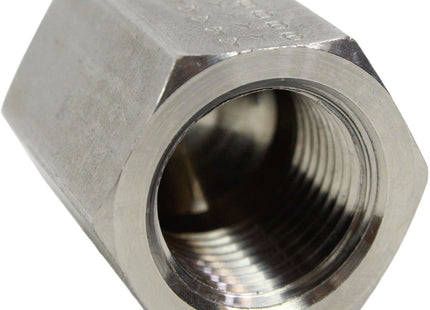

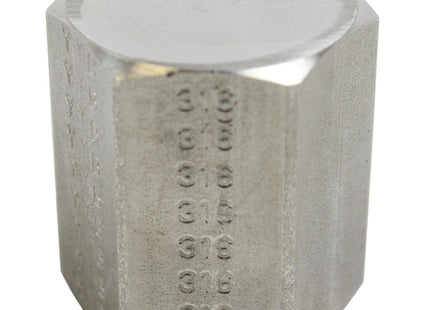

Pipe Cap
- VendorSSP Corporation
Description
SSP - Pipe Cap
SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.
***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends GAS PTFE Tape
| Specifications | |
|---|---|
| Connection Type 1 | Female NPT |
| Connection Size 1 | Specified by User |
| Material | 316 Stainless Steel |
| ASTM A-276 and A-479 bar stock, A-182 forgings. | |
| Working Pressure (PSIG) | 1/4" - 7750 |
| 3/8" - 6800 | |
| NPT Pressure Rating | >10,000PSI |
| ASME B31.3 | |
SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
Pipe Cap
- VendorSSP Corporation
SKU: ISST4PCP
$5.00
You will earn 5 points for this purchase.✔ 30 Day Limited Warranty
✔ Made in the USA
