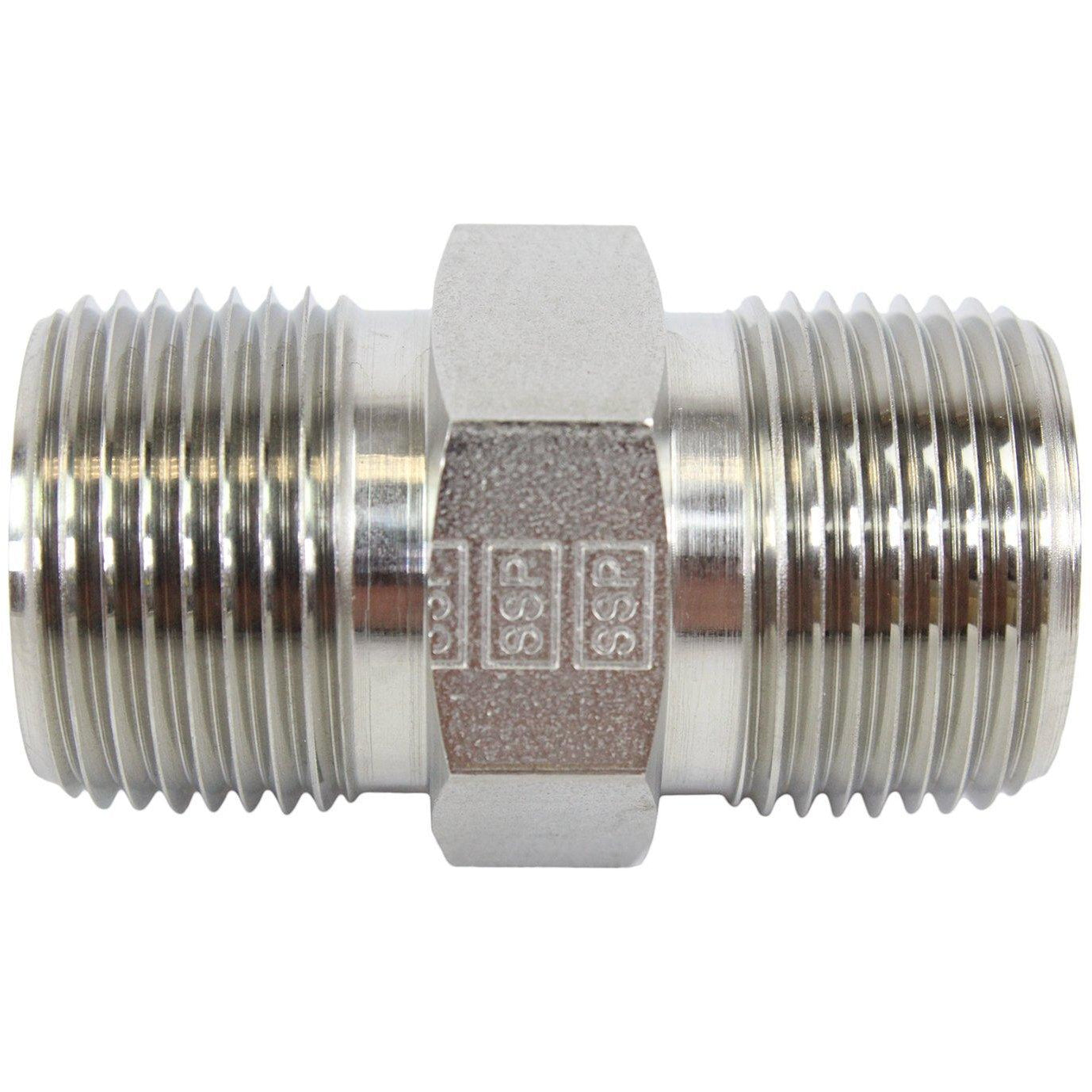

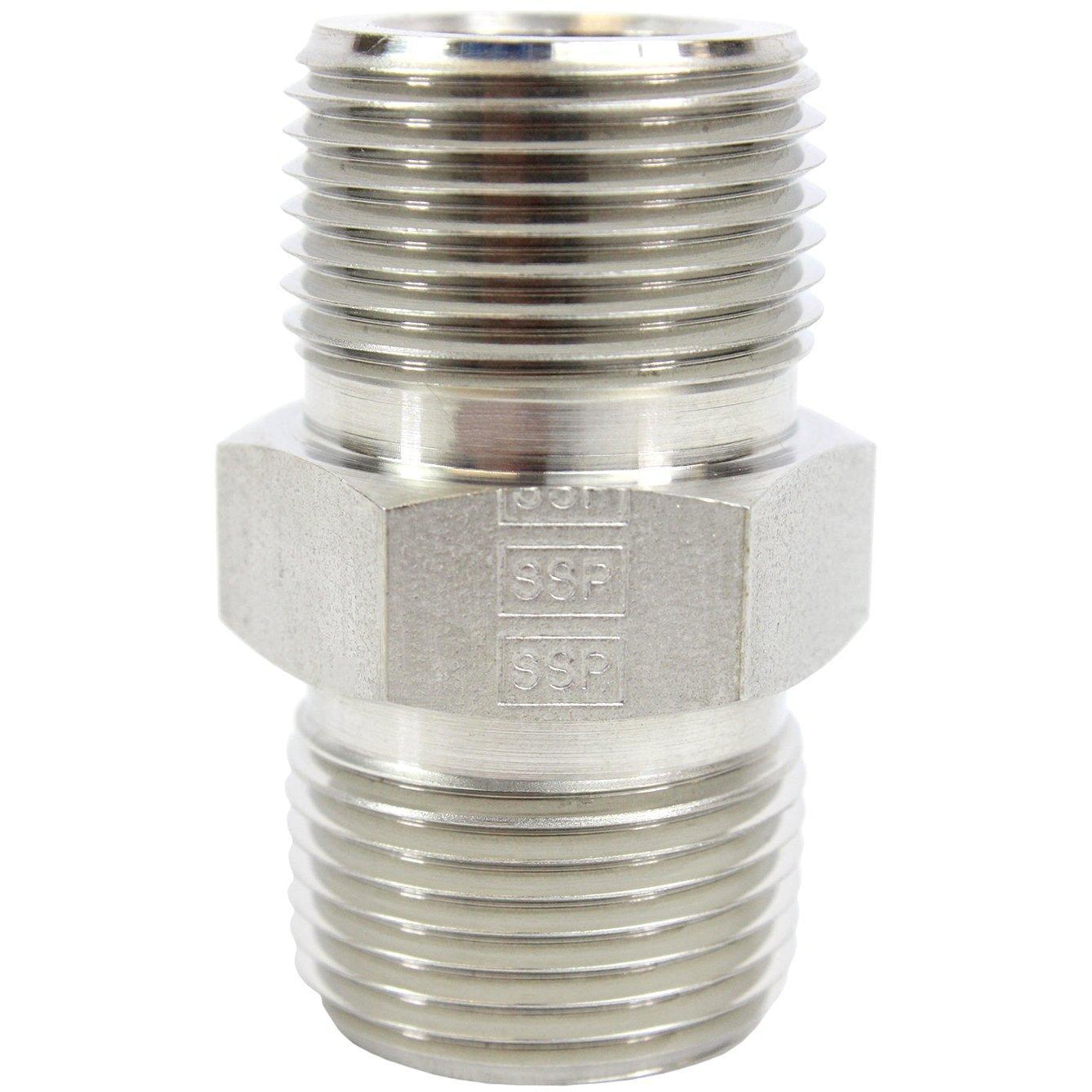

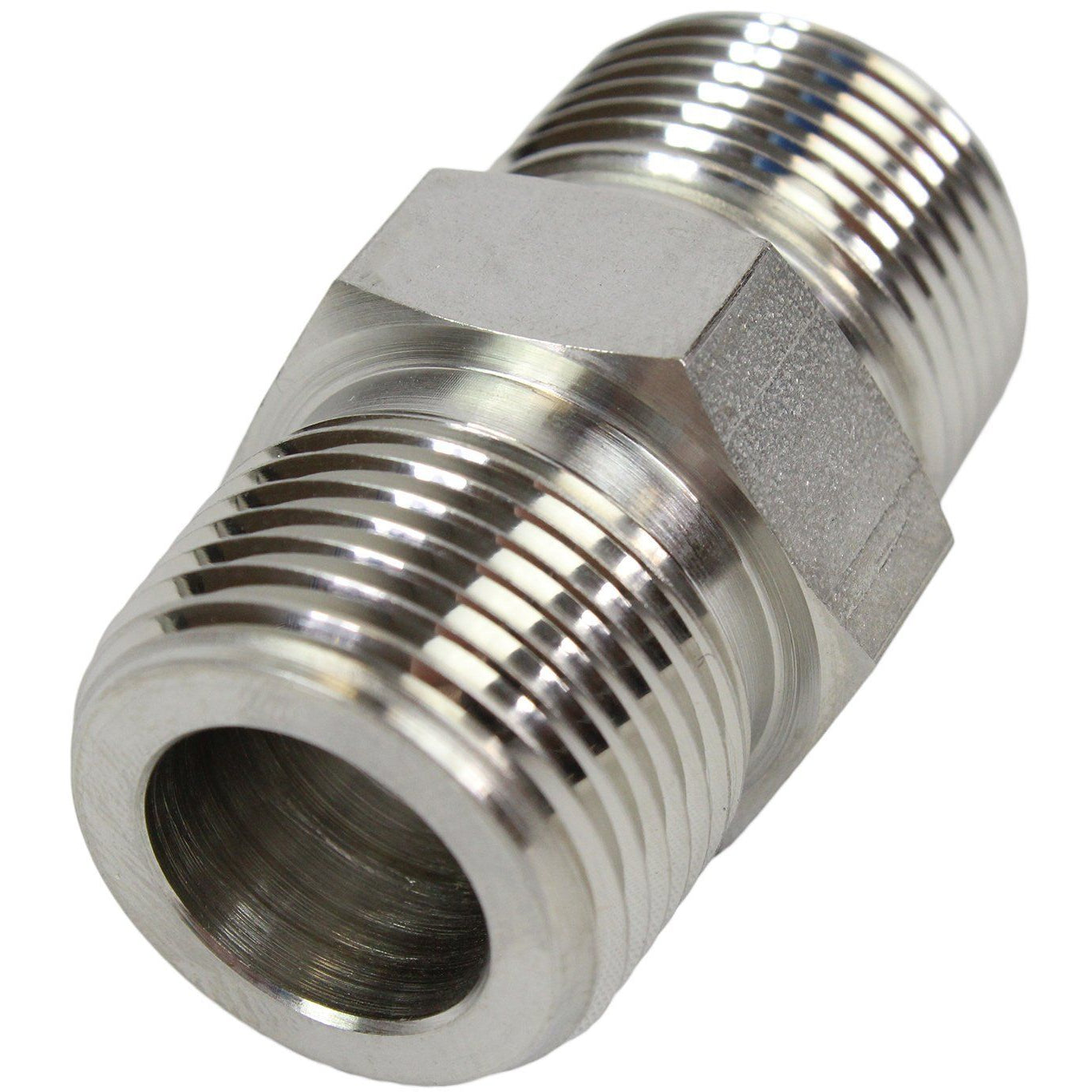

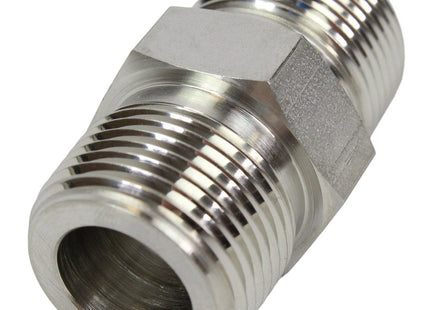

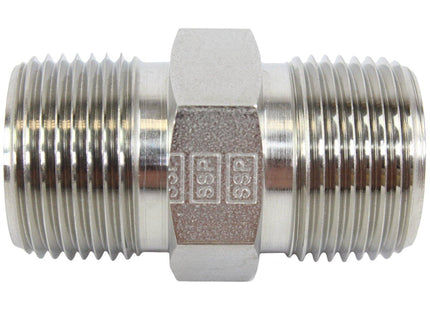

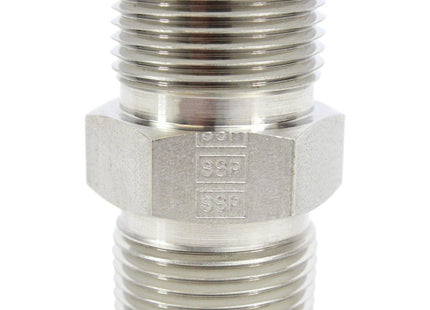

SSP - Hex Nipple
SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.
***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends GAS PTFE Tape
Specifications: |
Connection Type 1 |
Male NPT |
Connection Size 1 |
Specified by User |
|
|
Material |
316 Stainless Steel
ASTM A-276 and A-479 bar stock, A-182 forgings.
|
|
|
Working Pressure (PSIG) |
1/4" - 8300 |
|
3/8" - 7850 |
|
|
NPT Pressure Rating |
>10,000PSI
ASME B31.3
|
SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
