Manufacturer: BVV

Short Sight Glass

Name: Short Sight Glass
Brand: BVV
SKU: SSG150
Price: 75.0 USD
Availability: InStock

SKU: SSG150

$75.00

✔ Nitrogen Tested

✔ Free Ground Shipping over $420

✔ Flat Rate Shipping On Orders Under $420!

You will earn 0 points for this purchase.

QTY

Price Match

Short Sight Glass

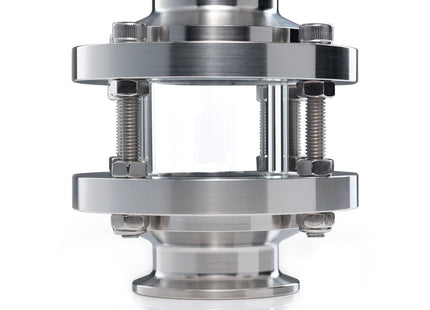

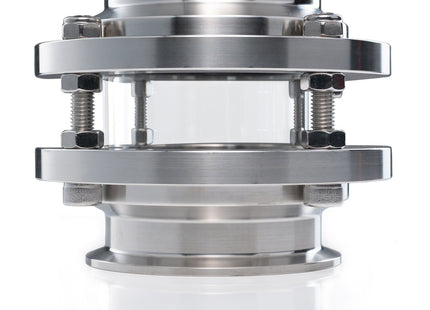

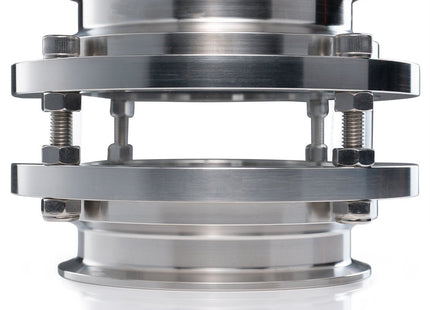

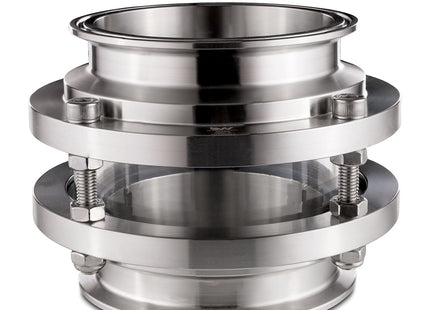

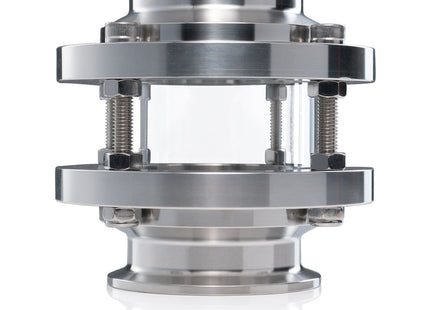

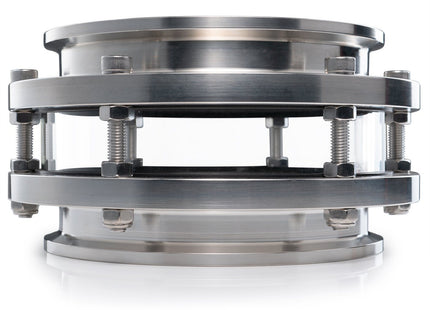

These short sight glasses are a great additions closed-loop extraction system to view the liquefied solvent flowing through your system and see the color before the purging process is completed. The short sight glass also allows the user to add a viewing port to their system without adding a lot of additional height compared to a normal Tri-Clamp sight glass. Unlike many competitors, this sight glass is also nitrogen tested for leaks at 100 PSI before it is sent to the customer to ensure safe operation of their extraction system.

***Note: Does not include clamp or gasket.

Sizes Available:

1.5"

Specifications:

Sight Glass Material: 304 Stainless Steel

Glass Material: Borosilicate

Gasket Material: Viton

Connection Type: Tri-Clamp x Tri-Clamp

Specifications	Diameter (Inches)	Height (Inches)	Weight (Lbs)
1.5"	3.25	3-3/4	1.81
2"	4	3-3.4	2.7
3"	5	4-3/8	4.13
4"	6-1/2	4-1/2	6.8
6"	8	4-1/8	8.09
8"	10.5	5-5/8	15.12
10"
12"	15.5	8-1/8	64
