SCILOGEX SCI40-Pro Overhead LCD Digital Stirrer, with stand and s/steel cross srirrer, 40L Capacity, 100-220V 50/60Hz, US Plug

Description

SCILOGEX SCI40-Pro (40L) LCD Digital Overhead Stirrer 50-2200rpm

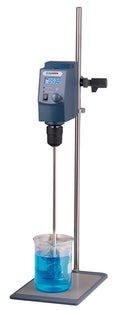

SCILOGEX SCI40-Pro Overhead LCD Digital Stirrer, 40L Capacity, 100-220V 50/60Hz, US Plug (including stand Part# 18900131 and steel cross-stirrer Part# 18900071)

Product Features

  • Accurate microprocessor stirring speed control guarantees speed precision
  • RS232 provides PC control and data transmission with free software
  • Provides constant speed even with changes in viscosities of the samples
  • Anti-spill microprocessor control slow start up prevents spillage and splashing
  • Safety circuits allow for safe stop function in anti-stall or overload conditions
  • A through-shaft design allows for easy adjustment of the impeller position
  • Brushless DC motor for long life and maintenance free
  • Torque trend display for real-time information on viscosity changes

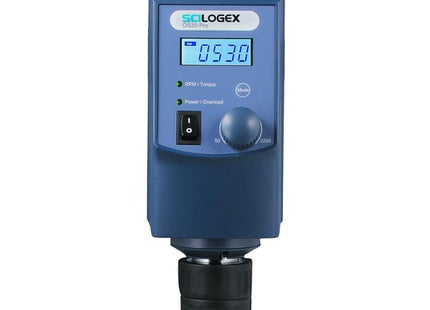

  • LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm.
  • Set value and actual value can be displayed for real-time monitoring of torque and speed
  • Pass through stirrer rods accepted
  • PC software control via RS232 interface, for control and documenting all measured values via PC. Download software here
  • cTUVus approved for UL and CSA
  • 2 YEAR WARRANTY

Product Specifications



Maximum stirring capacity 40L
Maximum torque 60Ncm
Viscosity maximum 50000mPas
Speed range 50-2200rpm
Speed display accuracy ± 3rpm
Speed display resolution ± 1rpm
Chuck diameter range 0.5-10mm
Dimensions 3.3W x 8.7H x 7.3Dinches
Motor rating input 120W
Motor rating output 100W
Weight 5.5lbs
Motor type brushless DC motor
Voltage/Power 100-220V, 50/60 Hz/ 70W
Speed/Torque display LCD
Overload protection display LED lights
Protection class IP21
Data connector RS232
Permissible ambient temperature and humidity 5-40°C, 80%RH



Additional Resources and Information

Downloadable PDFs

SCI40-Pro Manual

SCILOGEX Overhead
Stirrers Brochure

SCILOGEX Overhead
Stirrers Software



SCILOGEX SCI20/40-Pro LCD Digital Overhead Stirrer.mp4 from SCILOGEX on Vimeo.
