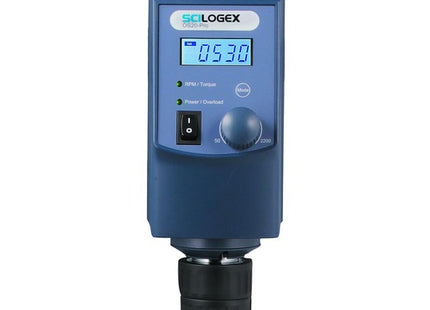

SCILOGEX SCI20-Pro Overhead LCD Digital Stirrer, with stand and s/steel cross srirrer, 20L Capacity, 100-220V 50/60Hz, US Plug
- VendorScilogex
Description
SCILOGEX SCI20-Pro Overhead LCD Digital Stirrer, with stand and s/steel cross srirrer, 20L Capacity, 100-220V 50/60Hz, US Plug

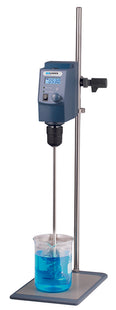

SCILOGEX SCI20-Pro Overhead LCD Digital Stirrer, 20L Capacity, 100-220V 50/60Hz, US Plug. Includes Stand (Part# 18900131) and Steel Cross-stirrer (Part# 18900071)
Product Features
- Accurate microprocessor stirring speed control guarantees speed precision
- Anti-spill microprocessor control slow start up prevents accidental spillage and splashing
- RS232 provides PC control and data transmission with free software
- A through-shaft design allows for easy adjustment of the impeller positions
- Brushless DC motor for long life and maintenance free
- Provides constant speed even with changes in viscosities of the samples
- LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm. Set value and actual value can be displayed for real-time monitoring of torque and speed
- Over torque protection automatically stops the motor
- Torque trend display for real-time information on viscosity changes
- Pass through stirrer rods accepted
- Keyless chuck
- PC software control via RS232 interface, for control and documenting all measured values via PC. Download software here
- cTUVus approved for UL and CSA
- 2 YEAR WARRANTY
SCILOGEX Overhead Stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis, petrochemical industries, etc.
Product Specification
| Maximum stirring capacity | 20 Liters |
|---|---|
| Maximum torque | 40Ncm |
| Viscosity maximum | 10000mPas |
| Speed range | 50-2200rpm |
| Speed display accuracy | ± 3rpm |
| Speed display resolution | ± 1rpm |
| Chuck diameter range | 0.5-10mm |
| Dimensions | 3.3W x 8.7H x 7.3D inches (83W x 220H x 186D mm) |
| Motor rating input | 60W |
| Motor rating output | 50W |
| Weight | 5.5lbs |
| Motor type | brushless DC motor |
| Voltage/Power | 100-220V, 50/60 Hz/ 70W |
| Speed/Torque display | LCD |
| Overload protection display | LED lights |
| Protection class | IP21 |
| Data connector | RS232 |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
Additional Resources and Information
Downloadable PDFs
Scilogex Overhead
Stirrers Brochure
Scilogex Overhead
Stirrers Software
SCILOGEX SCI20/40-Pro LCD Digital Overhead Stirrer.mp4 from SCILOGEX on Vimeo.
