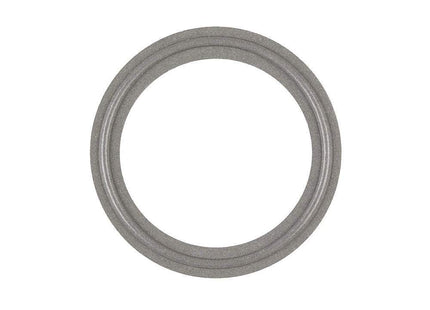

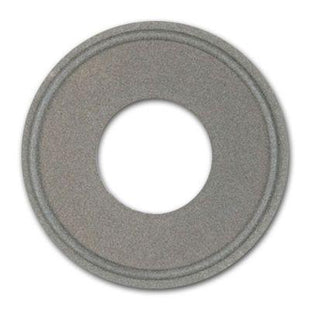

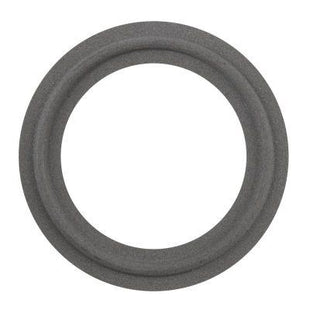

Rubber Fab Tuf-Steel 316L Tri-Clamp Style Gaskets Type I

Product Description

Tuf-Steel is composed of a unique 50/50 blend of nonpigmented PTFE and 316L passivated and atomized stainless Steel° Testing and seven years of documented application usage has demonstrated that Tuf-Steel is the choice for perfect surface performance, outstanding durability and extended service life in both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel® is ideal for sanitary steam pipe connections in extreme temperatures ranging from -320°F to 550°F. The superior strength of Tuf-Steel® eliminates creep and cold flow providing a leak-free seal and preventing maintenance problems and system downtime.

• 500 CIP/SIP Cycles guaranteed
• -325°F to 550°F
• Superior creep resistance
• Excellent expansion/contraction stability with minimal thermal expansion
• Excellent chemical resistance
• Stops leaks when correctly torqued (50 in./lbs with Torque-Rite® TR-50)
• No gasket extrusion into the sanitary tube I.D.
• No obstruction of flow
• Maintains sealing stability in T processes
• Non-stick surface
• Non pigmented
• Passivated to eliminate rouging

Rubber Fab's Type I gaskets are:

• FDA CFR 177.2600
• FDA CFR 177.1550
• U.S. Pharmacopeia Class VI Certification
• ADI Free (Animal Derived Ingredient Free) certified
• Manufactured according to cGMP Guidelines

Sizes Available:

• 1/2 in.
• 3/4 in.
• 1 in.
• 1 1/2 in.
• 2 in.
• 2 1/2 in
• 3 in.
• 3 1/2
• 4 in
