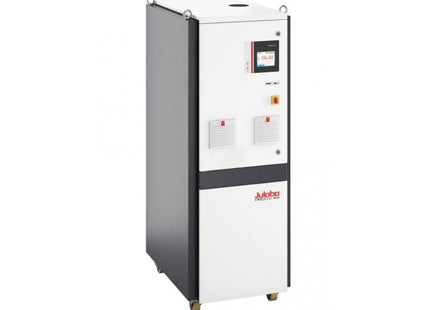

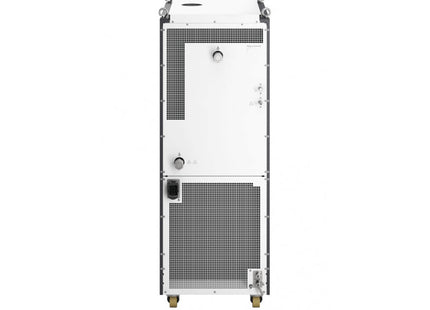

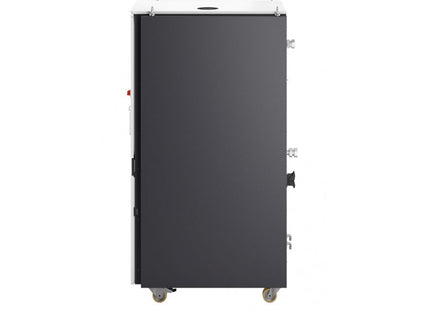

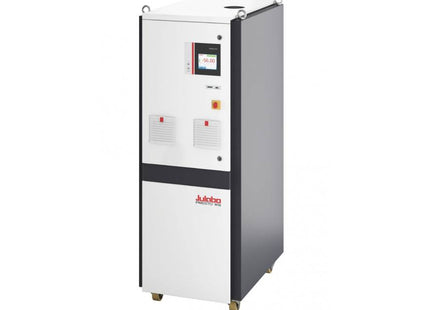

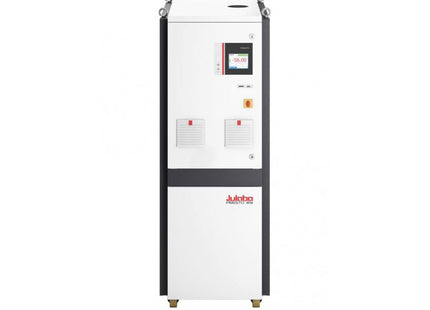

PRESTO W56

Description

PRESTO W56 water-cooled highly dynamic temperature control unit. Range -56…+250 °C with 27 kW heating power and 25.8 kW cooling power at 20 °C.

Powerful circulating pumps, electronically adjustable in stages or by setting the pressure valueChoose between a magnetically coupled centrifugal pump or a magnetically coupled gear pump for pressures up to 3.2 bar and virtually constant flow rate at any pressure
Integrated 5.7” industrial color touchscreen displays all essential information and enables simple fingertip control
Extensive warning, protection, and monitoring functions with detailed self-explanatory messages
ICC cascade control for extraordinary precision, temperature stability ±0.05 °C ... ±0.2 °C
Ambient temperature range +5 °C to +40 °C
Integrated programmer with real-time clock
Filling level indicator and pump capacity displayed electronically
Interface for SD memory card
Connections for USB, Ethernet, RS232, and Alarm output
Integrated Modbus
Optional analog connections, RS485, Profibus DP
1-stage water-cooled refrigeration system
Sealed design enables operation to 150 °C with glycol/water and accessories

Specifications
Colling Capacity	°C	200	20	0	-10	-20	-30	-40	-50
Colling Capacity	kW	19	25.8	23.1	16.9	11.5	7.1	3.5	1.4
Heating or Cooling Capability	Both
Dimensions W x L x H (in)	23.6 x 37 x 64.6
External Devices	External Temp Probe, Remote Control
Fluid Type	Silicone, Water/Glycol, Fluorinert/Galden
Heating Capacity (kW)	27
Power Options	480 V / 3 PPE / 60 Hz, 400 V / PPE / 50 Hz
Pump Capacity Flow Pressure (psi)	7…46.4
Pump Capacity Flow Rate (l/min)	35…80
Weight (lbs)	849
Working Temp Range (°C)	-56 … +250
