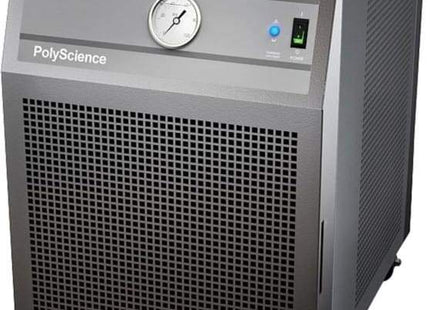

Polyscience Model 3370 Liquid-to-Air Cooler, 1/3 HP Turbine Pump
- VendorPolyscience
Description
Polyscience Model 3370 Liquid-to-Air Cooler, 1/3 HP Turbine Pump
***Note: This item may have a lead time of 2-3 weeks depending on stock availability.***
Key Features
- An economical solution for applications where cooling fluid temperature is higher than ambient and temperature control is not required
- Quiet liquid-to-air cooling
- Positive displacement or turbine pump
- Built-in low liquid level indicator
| Specifications | |
|---|---|
| Description | Liquid-to-Air Cooler, Turbine Pump |
| Working Temperature Range °C | Ambient +5° to 70°C |
| Pump Type | Turbine |
| Working Temperature Range °F | Ambient +10° to 158° |
| Working Temperature Range °C | Ambient +5° to 70°C |
| Reservoir Capacity (gallons) | 1.11 |
| Reservoir Capacity (liters) | 4.2 |
| Reservoir Cover | Screw-on Cap |
| Cleanable Air Filter | Yes |
| Cleanable Fluid Filter | Yes |
| Pump Type | Turbine |
| Pump Speed | Constant, Single Speed |
| Process Connections | 1/2" (F) NPT |
| Reservoir Liquid Level Indicator | Yes |
| Reservoir Drain | Yes |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x H) (inches) | 20.5 x 15 x 22.3 in |
| Overall Dimensions (L x W x H) (cm) | 52 x 38.1 x 54.6 cm |
| Shipping Weight (pounds) | 132.0 |
| Shipping Weight (kilograms) | 59.9 |
| Catalog Page Number | 107 |
| 60 Hz Only | |
| Part Number | 3370TBA11B |
| Maximum Pressure (psi) | 62.0 |
| Maximum Pressure (bar) | 4.30 |
| Maximum Pressure Flow Rate (gpm) | 5.40 |
| Maximum Pressure Flow Rate (l/min) | 20.5 |
| Cooling Capacity @ 20°C (W) |
|
| Included Hardware | Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT |
| Electrical Requirements (VAC/Hz/Ph/A) | 120/60/1/5.5 |
| Regulatory Approvals | TUV |
Operator's Manual
PDF Version
Polyscience Model 3370 Liquid-to-Air Cooler, 1/3 HP Turbine Pump
- VendorPolyscience
SKU: 3370TBA11B
$3,089.00
