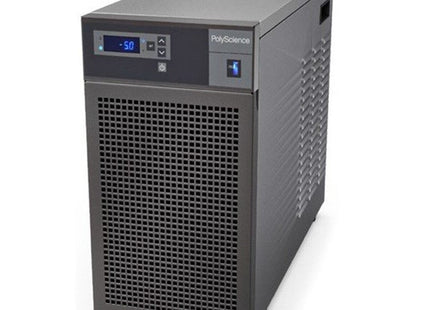

PolyScience LS5 Benchtop Chiller with Turbine Pump, 120V, 60Hz
- VendorPolyscience
Description
PolyScience LS5 Benchtop Chiller with Turbine Pump, 120V, 60Hz
Key Specifications:
- Description: LS Series 1/2 HP Benchtop Chiller, Turbine Pump; 43.4 psi; 9.8 l/min
- Display: LED
- Connectivity: Optional: RS232
- Working Temperature Range °C: -20° to 40°
- Temperature Stability °C: ±0.1°
- Temperature Calibration Capability: 1-point
- Pump Type: Turbine
| Specifications | |
|---|---|
| Working Temperature Range °F | -4° to 104° |
| Working Temperature Range °C | -20° to 40° |
| Reservoir Capacity (gallons) | 0.7 |
| Reservoir Capacity (liters) | 2.65 |
| Reservoir Cover | Screw-on Cap |
| Cleanable Air Filter | Yes |
| Temperature Stability °F | ±0.2° |
| Temperature Stability °C | ±0.1° |
| Display | LED |
| Pump Type | Turbine |
| Pump Speed | Constant, Single Speed |
| Process Connections | 1/2" (F) NPT |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Reservoir Liquid Level Indicator | Yes |
| WhisperCool Environmental Control Technology | Yes |
| Cool Command Refrigeration Technology | Yes |
| Reservoir Drain | Yes |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x H) (inches) | 23.9 x 10 x 19 in |
| Overall Dimensions (L x W x H) (cm) | 60.7 x 25.4 x 48.3 cm |
| Compressor Size (HP) | 1/2 |
| Refrigerant | R452A |
| Shipping Weight (pounds) | 102.0 |
| Shipping Weight (kilograms) | 46.3 |
| Catalog Page Number | 98-99 |
| Part Number | LS51TX1A110C |
| Maximum Pressure (psi) | 43.4 |
| Maximum Pressure (bar) | 3.00 |
| Maximum Pressure Flow Rate (gpm) | 2.60 |
| Maximum Pressure Flow Rate (l/min) | 9.8 |
| Cooling Capacity @ -20°C (W) | 150 |
| Cooling Capacity @ -10°C (W) | 345 |
| Cooling Capacity @ -5°C (W) | 395 |
| Cooling Capacity @ 0°C (W) | 540 |
| Cooling Capacity @ +10°C (W) | 790 |
| Cooling Capacity @ +20°C (W) | 900 |
| Cooling Capacity @ +30°C (W) | 1020 |
| Cooling Capacity @ +40°C (W) | 1140 |
| Included Hardware | Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT |
| Electrical Requirements (VAC/Hz/Ph/A) | 120/60/1/12 |
| Regulatory Approvals | TUV |
PolyScience LS5 Benchtop Chiller with Turbine Pump, 120V, 60Hz
- VendorPolyscience
SKU: LS51TX1A110C
$5,161.00
