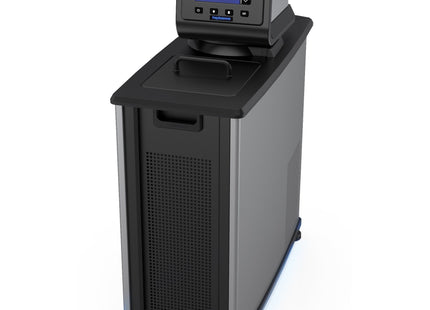

Polyscience 7 Liter Standard Digital Refrigerated Circulator (-20°C/170°C)

MFR: Polyscience

SKU: SD07R-20-A11B
$3,250.00

Free Ground Shipping at $420


Flat Rate Shipping On Orders Under $420!


*some exclusions may apply


Ships Separately

You will earn 0 points for this purchase.


1
Price Match

Description - Click to Expand

Polyscience 7 Liter Standard Digital Refrigerated Circulator (-20°C/170°C)


***Note: This item has a possible 2-3 week lead time depending on stock availiability.***

Key Specifications:



    • Controller Type: Standard Digital

    • Display: 3.75" Touch-Pad LCD

    • Working Temperature Range C: -20C to 170C

    • Temperature Stability: +/-0.04

    • Connectivity: RS232

    • Temperature Calibration Capability: 1-point

    • Working Access (LxWxD cm): 15.7x14.2x12.7 cm

    • Pump Type: Pressure

    • Flammability Class (DIN 12876-1): I (NFL)

    • Fluid Optimization/Specific Heat Tuning: Automatic


Key Featuers:



    • Large, universal icon and English Display

    • On-screen prompts

    • Single-point calibration capability

    • Automatic performance optimization

    • Swivel 180 Rotating Controller

    • On-board connectivity: RS-232 serial output


Common Specifications:



    • Working Temperature Range F: -4F to 338F

    • Working Temperature Range C: -20C to 170C

    • Nominal Cooling Capacity @ +20C (W): 200

    • Reservoir Capacity (gallons): 1.85

    • Reservoir Capacity (liters): 7

    • Reservoir/Tank Material: Stainless Steel

    • Reservoir Cover: Included

    • Duratop: Yes

    • LidDock: Yes

    • Cleanable Air Filter: Yes

    • Working Access (LxWxD in): 6.18x5.59x5 in

    • Working Access (LxWxD cm): 15.7x14.2x12.7 cm

    • Temperature Stability F: +/-0.08F

    • Temperature Stability C: +/-0.04C

    • Display: 3.75" Touch-Pad LCD

    • Display Resolution (set): 0.1

    • Display Resolution (read): 0.1

    • Pump Type: Pressure

    • Pump Speed: Two

    • Process Connections: 1/4" FNPT (includes multiple connections)

    • Flammability Class (DIN 12876-1) I (NFL)

    • Over-Temperature Protection / Failsafe Heater Control: Yes

    • Low Liquid Level Proctection: Yes

    • Reservoir Drain: Yes

    • Maximum Ambient Temperature F: 95

    • Maximum Ambient Temperature C: 35

    • Overall Dimensions: (LxWxH in): 21.3x8.7x25.4 in

    • Overall Dimensions: (LxWxH cm): 54.1x22.1x64.5 cm

    • Refrigerant: R134a

    • Environmental Compliance: RoHS, WEEE

    • Shipping Weight (lbs): 90

    • Shipping Weight (kilograms): 38.1


60Hz Only:



    • Part Number: SD07R-20-A11B

    • Maximum Pressure (psi): 3.5

    • Maximum Pressure (bar): 0.24

    • Maximum Flow Rate (gpm): 2.90

    • Maximum Flow Rate (l/min): 11.0

    • Cooling Capacity @ -20C (W): 30

    • Cooling Capacity @ 0C (W): 120

    • Cooling Capacity @ +20C (W): 200

    • Cooling Capacity @ +100C (W): 200

    • Included Hardware: Nylon hose adapters for 3/8", 1/4" and 3/16"

    • Heater Wattage: 1100

    • Electrical Requirements (VAC/Hz/Ph/A): 120/60/1/12

    • Regulatory Approvals: ETL


Operator's Manual: https://www.polyscience.com/system/files/product-pdfs/110-512%2520PSC%2520EN_Standard%2520Digital%2520Operator%2520Manual_English.pdf
