| Description |

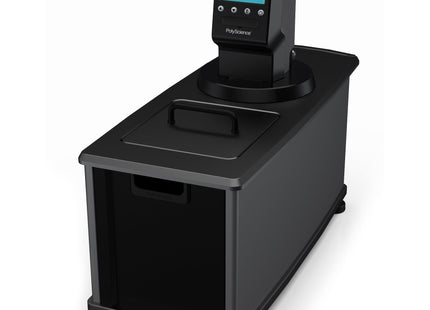

135, 7 L Htg. Circulator |
| Controller Type |
MX |
| Display |
3.25" LCD |
| Languages Supported |
English |
| Temperature Stability °C |
Ambient +10° to 135° |
| Temperature Stability °C |
±0.07° |
| Temperature Calibration Capability |
1-point |
| Working Access (L x W x D) (cm) |
15.7 x 14.2 x 12.7 cm |
| Pump Type |
Pressure |
| Flammability Class (DIN 12876-1) |
I (NFL) |
| Working Temperature Range °F |
Ambient + 20° to 275° |
| Working Temperature Range °C |
Ambient +10° to 135° |
| Reservoir Capacity (gallons) |
1.85 |
| Reservoir Capacity (liters) |
7 |
| Reservoir/Tank Material |
Stainless Steel |
| Reservoir Cover |
Included |
| DuraTop |
Yes |
| LidDock |
Yes |
| Working Access (L x W x D) (inches) |
6.18 x 5.59 x 5 in |
| Working Access (L x W x D) (cm) |
15.7 x 14.2 x 12.7 cm |
| Temperature Stability °F |
±0.13° |
| Temperature Stability °C |
±0.07° |
| Display |
3.25" LCD |
| Display Resolution (Set) |
0.1 |
| Display Resolution (Read) |
0.1 |
| Pump Type |
Pressure |
| Pump Speed |
One |
| Process Connections |
1/2" O.D. Barbed Tubes |
| Flammability Class (DIN 12876-1) |
I (NFL) |
| Over-Temperature Protection / Failsafe Heater Control |
Yes |
| Low Liquid Level Protection |
Yes |
| Reservoir Drain |
Yes |
| Cooling Coil |
Yes |
| Maximum Ambient Temperature °F |
95° |
| Maximum Ambient Temperature °C |
35° |
| Overall Dimensions (L x W x H) (inches) |
19.6 x 8.7 x 17.2 in |
| Overall Dimensions (L x W x H) (cm) |
49.9 x 22.1 x 43.7 cm |
| Environmental Compliance |
RoHS, WEEE |
| Shipping Weight (pounds) |
36.0 |
| Shipping Weight (kilograms) |
16.3 |
| Catalog Page Number |
60-61 |
| 60 Hz Only |
| Part Number |
MX07H135-A11B |
| Maximum Pressure (psi) |
2.3 |
| Maximum Pressure (bar) |
0.16 |
| Maximum Pressure Flow Rate (gpm) |
3.60 |
| Maximum Pressure Flow Rate (l/min) |
13.5 |
| Included Hardware |
Fitting Kit for External Applications |
| Heater Wattage |
1100 |
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10 |
| Regulatory Approvals |
ETL |
