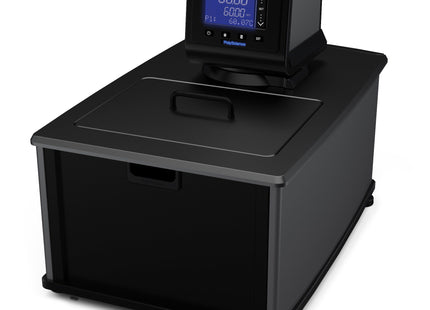

Description |
200, 15 L Htg. Circulator |
Controller Type |
Advanced Digital |
Display |
3.75" Touch-Pad LCD |
Connectivity |
Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe |
Languages Supported |
4: French, German, Spanish, English |
Swivel 180 Rotating Controller |
Yes |
Working Temperature Range °C |
Ambient +10° to 200° |
Temperature Stability °C |
±0.01° |
Fluid Optimization/Specific Heat Tuning |
Automatic and/or user-adjustable |
Temperature Calibration Capability |
1-point |
Working Access (L x W x D) (cm) |
21.2 x 27.6 x 14 cm |
Pump Type |
Pressure/Suction |
External Temperature Control Capability |
Yes |
Flammability Class (DIN 12876-1) |
III (FL) |
Working Temperature Range °F |
Ambient + 20° to 392° |
Working Temperature Range °C |
Ambient +10° to 200° |
Reservoir Capacity (gallons) |
3.96 |
Reservoir Capacity (liters) |
15 |
Reservoir/Tank Material |
Stainless Steel |
Reservoir Cover |
Included |
DuraTop |
Yes |
LidDock |
Yes |
Working Access (L x W x D) (inches) |
8.35 x 10.88 x 5.5 in |
Working Access (L x W x D) (cm) |
21.2 x 27.6 x 14 cm |
Temperature Stability °F |
±0.02° |
Temperature Stability °C |
±0.01° |
Display |
0.01 |
Display Resolution (Read) |
0.01 |
Pump Type |
Pressure/Suction |
Pump Speed |
Variable |
Process Connections |
1/4" (F) NPT |
External Temperature Control Capability |
Yes |
Flammability Class (DIN 12876-1) |
III (FL) |
Over-Temperature Protection / Failsafe Heater Control |
Yes |
Low Liquid Level Protection |
Yes |
Reservoir Drain |
Yes |
Cooling Coil |
Yes |
Included Software |
PolyTemp Viewer, USB driver |
Maximum Ambient Temperature °F |
95 |
Maximum Ambient Temperature °C |
35 |
Overall Dimensions (L x W x H) (inches) |
22.4 x 14.5 x 16.6 in |
Overall Dimensions (L x W x H) (cm) |
56.9 x 36.8 x 42.2 cm |
Environmental Compliance |
RoHS, WEEE |
Shipping Weight (pounds) |
62.0 |
Shipping Weight (kilograms) |
28.1 |
Catalog Page Number |
56-57 |
60 Hz Only |
Part Number |
AD15H200-A11B |
Maximum Pressure (psi) |
4.3 |
Maximum Pressure (bar) |
0.30 |
Maximum Pressure Flow Rate (gpm) |
5.30 |
Maximum Pressure Flow Rate (l/min) |
20.1 |
Maximum Suction Flow Rate (gpm) |
3.9 |
Maximum Suction Flow Rate (l/min) |
14.7 |
Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16" |
Heater Wattage |
1100 |
Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10 |
Regulatory Approvals |
ETL |
50 Hz Only |
Part Number |
AD15H200-A12E |
Maximum Pressure (psi) |
3.6 |
Maximum Pressure (bar) |
0.25 |
Maximum Pressure Flow Rate (gpm) |
4.40 |
Maximum Pressure Flow Rate (l/min) |
16.7 |
Maximum Suction Flow Rate (gpm) |
3.2 |
Maximum Suction Flow Rate (l/min) |
12.2 |
Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter |
Heater Wattage |
2200 |
Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/10 |
Regulatory Approvals |
CE |
