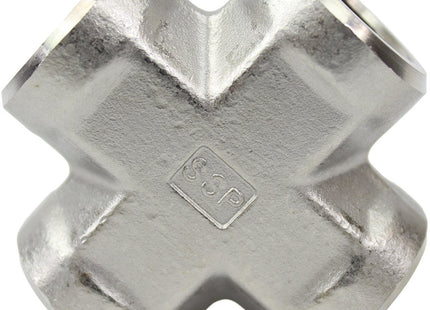

Pipe Cross
- VendorSSP Corporation
Description
SSP - Pipe Cross
SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.
***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends GAS PTFE Tape
| Specifications: | |
| Connection Type 1 | Female NPT |
| Connection Size 1 | Specified by User |
| Material |
316 Stainless Steel ASTM A-276 and A-479 bar stock, A-182 forgings. |
| Working Pressure (PSIG) | 1/4" - 7750 |
| 3/8" - 6800 | |
| NPT Pressure Rating |
>10,000PSI ASME B31.3 |
SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
Pipe Cross
- VendorSSP Corporation
SKU: ISST6PCS
$35.00
You will earn 35 points for this purchase.✔ 30 Day Limited Warranty
✔ Made in the USA
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
