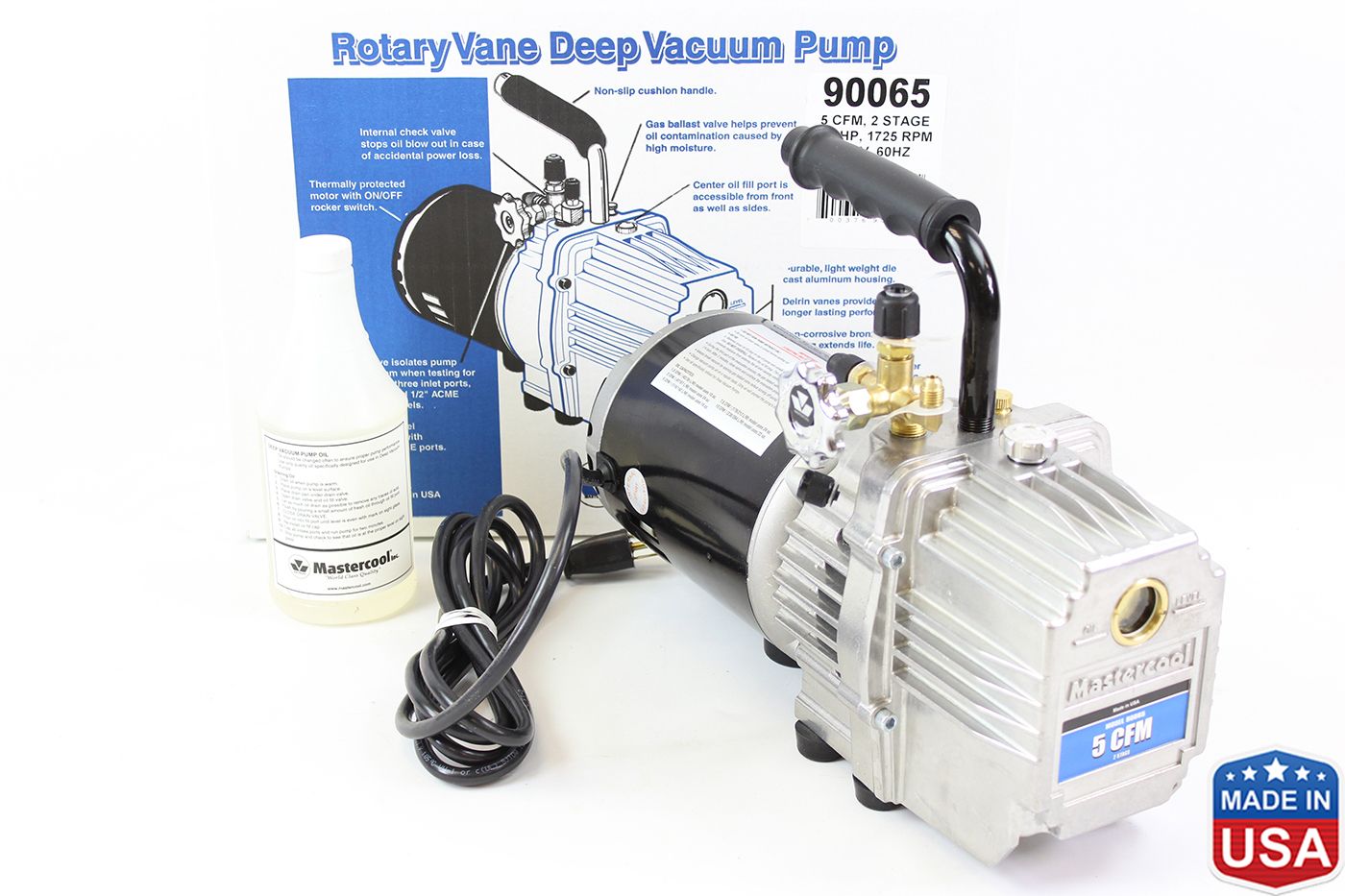

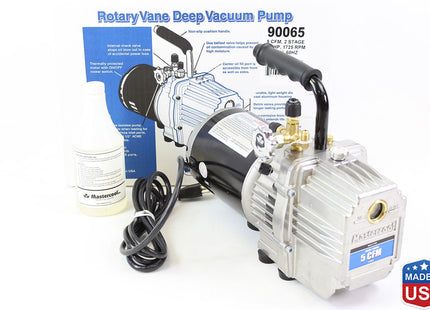

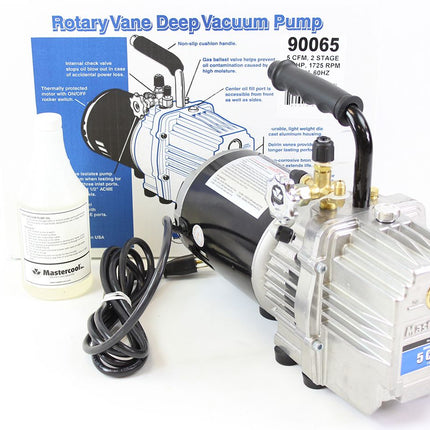

Mastercool 90065 - 5 CFM Vacuum Pump (TWO STAGE)

MFR: Mastercool Inc.

SKU: 90065
$289.01

Free Shipping On Orders Over $200!


Flat Rate Shipping On Orders Under $200!


*some exclusions may apply

You will earn 0 points for this purchase.


0
Price Match

Description


90065
5 CFM VACUUM PUMP (TWO STAGE)





Product Description


A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.


This model is an excellent choice for small to medium sized systems (2.5 lb to 10 lb charge capacity). This two stage pump features a manifold valve to isolate it from the system and three inlet ports: 1/4” FL, 3/8” FL and 1/2” ACME (for automotive R134a systems).


SPECIFICATIONS:



    • No. of Stages: 2

    • Free Air Displacement: 5 CFM

    • Ultimate Vacuum: 25 Microns

    • Pump Motor: 1/3 HP

    • Pump Speed: 1725 RPM

    • Electrical Specs: 110 V/60 Hz

    • Shipping Weight: 29 lbs (13.2 kg)

    • Dimensions in cm: 37 x 15.5 x 27.5 x 24


* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.


Also Available:
90065-220



    • No. of Stages: 2

    • Free Air Displacement: 119 lit/min, 142 lit/min

    • Ultimate Vacuum: 25 Microns

    • Pump Motor: 1/3 HP

    • Pump Speed: 1425/1725 RPM

    • Electrical Specs: 220 V/50 Hz, 220 V/60 Hz

    • Shipping Weight: 29 lbs (13.2 kg)

    • Dimensions in cm: 37 x 15.5 x 27.5 x 24


90065-J (Japanese standard)



    • No. of Stages: 2

    • Free Air Displacement: 119 lit/min, 142 lit/min

    • Ultimate Vacuum: 25 Microns

    • Pump Motor: 1/3 HP

    • Pump Speed: 1425/1725 RPM

    • Electrical Specs: 100 V/ 50/60 Hz

    • Shipping Weight: 29 lbs (13.2 kg)

    • Dimensions in cm: 37 x 15.5 x 27.5 x 24


SERVICE INFORMATION:
Oil Capacity: 18 oz / 531 ml
Replacement Cartridge: 90165-R
Seal Service Kit: 90062-11-SEAL
