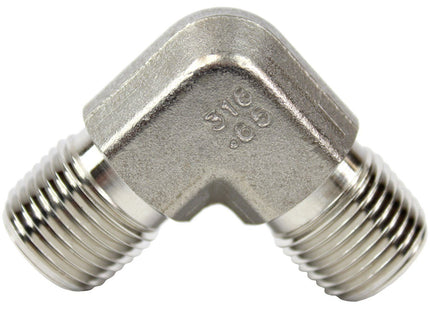

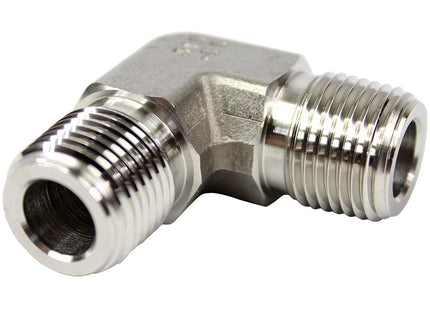

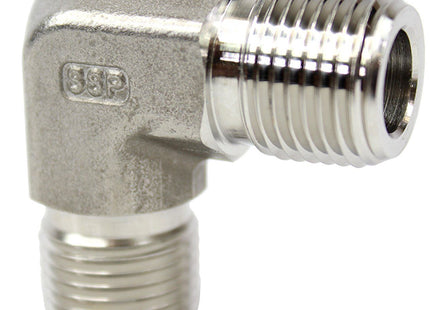

Male Elbow

Description

SSP - Male Elbow


SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.





***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends GAS PTFE Tape


Specifications
Connection Type 1 Male NPT
Connection Size 1 Specified by User
Material 316 Stainless Steel
ASTM A-276 and A-479 bar stock, A-182 forgings.
Working Pressure (PSIG) 1/4" - 7750
3/8" - 6800
NPT Pressure Rating >10,000PSI
ASME B31.3







SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!

Male Elbow

Product form

SKU: ISST4ME

$23.00 You will earn 23 points for this purchase.

  • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
  • Join Loyalty+ and save 10-15% *Select items
