Specifications |
Shipping Weight |
251 lbs |
Shipping Dimensions |
40 x 24 x 40 in |
Order No. |
9420452 |
Model Series |
PRESTO |
Working Temperature Range (°C) |
-45°...+250° |
Temperature Stability (°C) |
±0.05 … ±0.1 |
Temperature Control |
ICC intelligent cascade control, TCF temperature controlfeatures, Absolute temperature calibration 1-point |
Display Resolution |
0.01 °C |
Integrated Programmer |
8 x 60 steps |

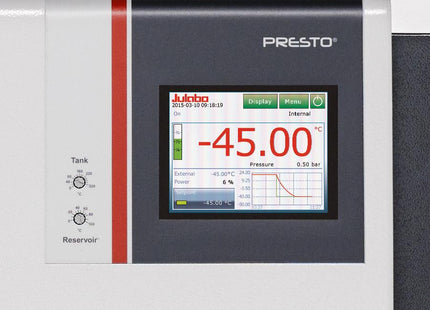

Temperature Display |
TFT Touchscreen |
Heating Capacity (kW) |
2.3 |
Cooling Capacity |
|
Pump capacity Flow Rate (l/min) |
35...76 |
Pump Capacity Flow Pressure (psi) |
6.74 … 43.5 @ 208V, 6.74 |
Pump Connections |
M30x1.5 |
Filling Volume Liters |
7.5 (7.5 internal expansion) |
Refrigerant |
R507 |
External Pt100 |
integrated |
Digital Interface |
RS232, Optional Profibus, SD memory card, USB, Ethernet, Modbus, Optional RS485 |
Ambient Temperature |
5…40 °C |
Noise Level (dBA) |
69 |
Classification |
Classification III (FL)according to DIN 12876-1 |
Analog Connection Input / Output |
Optional |
Cooling of Compressor |
1-stage Air |
Filling Volume Expansion Vessel Liters |
7.5 |
Power requirement V / Hz / A |
3x 208/60/23 |
Alarm Signal |
acoustically & optical |
Temperature Selection / Display |
°C / °F |
Outer dimensions W x L x H inch |
20.9 x 26.2 x 49.6 |
