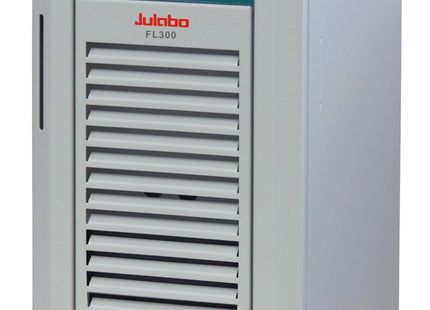

Julabo FL300

Description

Julabo FL300

The FL series of chillers for routine cooling applications for the laboratory and industry. The PID control provides a temperature stability of ±0.5°C. All units can be cleaned easily and have a water-proof keypad with LED temperature indication. All instruments include an RS232 interface and alarm shutdown on the front of the units. The filling port is easily accessible from the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows for easy cleaning of the condenser with the drain tap accessible behind the grid. All models include a visible level indication. Air-cooled units have venting slots are on the front and rear enabling installation next to a wall or another apparatus (space saving).





Specifications
Order No. 9660003
Model Series FL Series
Category
Recirculating Coolers
Working Temperature Range (°C) -20 ... +40
Temperature Stability (°C) ±0.05
Display Resolution 0.01 °C
Temperature Display LED
Cooling capacity (Medium Ethanol) °C 20 0 -10 -20
kW 0.3 0.2 0.15 0.1
Pump capacity Flow Rate (l/min) 15
Pump Capacity Flow Pressure (psi) 5.08
Pump Connections M16x1
Barbed fittings diameter (inner dia. / mm) 8 / 12
Filling Volume Liters 3 ... 4.5
Refrigerant stage 1 R134a
Filling volume refrigerant stage 1 (g) 133
Global Warming Potential for 1430
Carbon dioxide equivalent stage 1 (t) 0.19
Digital Interface RS232, Optional Profibus
Ambient Temperature 5...40 °C
Dimensions W x L x H (inch) 9.8 x 19.7 x 23.6
Weight (LBS) 86
Noise Level (dBA) 55
Description Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids
Included with 2 barbed fittings for tubing 3/4" inner dia. (pump connections G3/4" male)
Cooling of Compressor Air
Available Voltage Versions -115V/60HZ

-230V/50HZ

-230V/60HZ





Julabo FL300

Product form

SKU: 9660003.2

$6,604.44 You will earn 6,604.44 points for this purchase.
