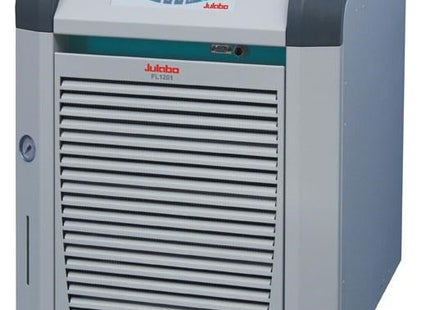

Julabo FL1201

MFR: Julabo

SKU: 9661012 1 Year Limited Warranty
$8,218.00

Free Ground Shipping at $420


Flat Rate Shipping On Orders Under $420!


*some exclusions may apply


Ships Separately

You will earn 0 points for this purchase.


0
Price Match

Description - Click to Expand

Julabo FL1201

The FL series of chillers for routine cooling applications for the laboratory and industry. The PID control provides a temperature stability of ±0.5°C. All units can be cleaned easily and have a water-proof keypad with LED temperature indication. All instruments include an RS232 interface and alarm shutdown on the front of the units. The filling port is easily accessible from the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows for easy cleaning of the condenser with the drain tap accessible behind the grid. All models include a visible level indication. Air-cooled units have venting slots are on the front and rear enabling installation next to a wall or another apparatus (space saving).





Specifications
Order No. 9661012
Model Series FL Series
Working Temperature Range (°C) -20° to +40°
Temperature Stability (°C) ±0.05
Display Resolution 0.01 °C
Temperature Display LED
Cooling Capacity °C 20 0 -10 -20
kW 1.2 0.9 0.6 0.3
Pump capacity Flow Rate (l/min) 23
Pump Capacity Flow Pressure (psi) 14.5
Pump Connections M16x1
Filling Volume Liters 12 ...17
Refrigerant stage 1 R452A
Filling volume refrigerant stage 1 (g) 570
Global Warming Potential for 2140
Carbon dioxide equivalent stage 1 (t) 1.22
Digital Interface RS232, Optional Profibus
Ambient Temperature 5…40 °C
Dimensions W x L x H (inch) 19.7 x 29.9 x 25.2
Weight (LBS) 168
Noise Level (dBA) 61
Classification Classification III (FL)according to DIN 12876-1
Included with 2 barbed fittings for tubing 8 and 12 mm inner dia. (pumpconnections M16x1 male)
Cooling of Compressor Air
Power requirement V / Hz / A 115/60/14
Alarm Signal acoustically & optical
Temperature Selection / Display °C
Volumetric Capacity Liters 12 ... 17
Available Voltage Versions 115V / 60 Hz, 230 V / 50 Hz, 230 V / 60 Hz
Other Characteristics Removable venting grid for convenient cleaning to maintain cooling performance.
Characteristics / Display Easy to read: Large LED temperature display for actual value and setpoint(resolution 0.1 °C)
Characteristics / Operation Simple and fast : Convenient 3-key setpoint adjustment (FLmodels)
Characteristics / Temperature Control Precise: PID Temperature control with set control parameters, temperature stability ±0.02…±0.2 °C
Characteristics / Refrigeration Technology Consistent cooling capacity: Easily removable venting gridfor quick and easy cleaning
Characteristics / Technical Features Serial connection: RS232 interface for PC connection, e.g. data communication and recording of measured values

Product Data Sheet

Manual
