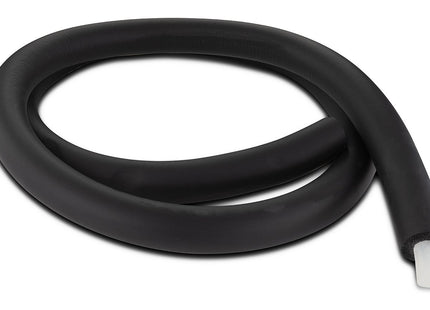

Insulated Heavy Duty 1/8" Wall Silicone Tubing For Flow - 6 Feet
Description
Insulated Heavy Duty 1/8" Wall Silicone Tubing For Flow - 6 Feet
(**Note: This tubing is only for flow and is NOT vacuum rated)
- The most outstanding properties of SILCON tubing are its flexibility and resistance to temperature extremes. These, plus its good electrical properties and ability to self-extinguish, make SILCON tubing an excellent choice for appliances and computers
- Peroxide-cured SILCON contains no sulfur or other acid-producing chemicals, thereby eliminating the possibility of staining, corroding, or deteriorating materials it contacts. It is extremely resistant to ozone and U.V. over long time periods.
- Care is recommended in the selection of fittings and clamps for SILCON as sharply barbed fittings or unlined metal clamps could tear into the tubing wall and possibly cause a failure.
- SILCON may be low-pressure steam sterilized in-line or autoclaved at up to 250°F in a normal autoclaving cycle. However, if exposed to repeated steam sterilization or long-term high temperature or pressure, silicone will eventually relax and become gummy. It should then be replaced.
- Insulation Compliance:
- ASTM C 534, Type I – Grade 1
- ASTM D 1056, 2C1
- ASTM E 84, UL723
- ASTM G21/C1338
- CAN/ULC S102 ➀
- City of New York Approval MEA 107-89M
- MIL-P-15280J, FORM T ➁
- NFPA 90A, 90B
- UL 181
- UL 94 5V-A, V-0, File E55798
- Insulation Approvals, Certifications, Compliances:
- 3rd party certified by FM Approvals through 1-1/2" wall thickness per FM 4924
- GREENGUARD® Children & Schools Indoor Air Quality certified.
- Manufactured without CFCs, HFCs, HCFCs, PBDEs, or Formaldehyde.
- Made with EPA registered Microban® antimicrobial product protection.
- All Armacell facilities in North America are ISO 9001:2008 certified.
- Plenum Rated
- Conforms to ASHRAE 90.1 Energy Standards
- Conforms to building codes: International Mechanical Code, IMC, International
- Energy Conservation Code, IECC, International Residential Code, IRC, Title 24
California Building Energy Efficiency Standards.
- Please call or email Best Value Vacs to request different sizes and thickness (1/16" to 3/4"ID) - Colors for industrial applications are available through minimum order.
Key Features:
- Made from FDA-sanctioned ingredients
- Insulation R-Value of 3.3
- Able to resist extreme temperature variation: -100°F to 500°F

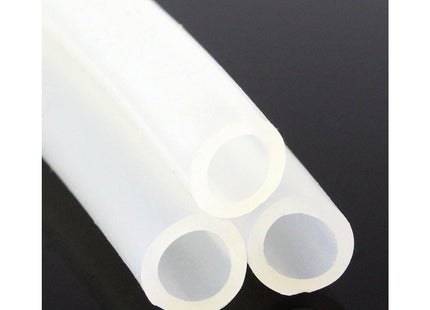

- Translucent natural color for visual contact with the flow
- resilient, stretchable, and resistance to compression set
- Odorless, tasteless and inert
- Good electrical and weatherability properties - resists U.V., ozone, gases, and moisture
- Certified by the National Sanitation Foundation (NSF-51) for food equipment materials
- MADE IN THE U.S.A.
| Specifications/Physical Properties | |
| Hardness, Shor A +/-5 | 50 |
| Tensile Strength, PSI | 1100 |
| Elongation at Break % | 375 |
| Brittle Temperature °F | -100 |
| Max Operating Temperature °F | 500 |
| Max Operating Temperature for NSF °F | 350 |
| Comp. Set 22 Hrs. at 177°F, % | 35 |
| Tear Resistance (PPI minimum) | 100 |
| Tubing Specifications Chart | |||||
| ID (IN.) | OD (IN.) | STANDARD LENGTH | WORKING PSI @ 70°F | BURST PSI @ 70°F | LBS PER 100FT |
| 1/16 | 1/8 | 100 | 10 | 30 | 0.50 |
| 1/16 | 3/16 | 100 | 20 | 60 | 1.34 |
| 3/32 | 5/32 | 100 | 10 | 30 | 0.66 |
| 3/32 | 7/32 | 100 | 15 | 45 | 1.58 |
| 1/8 | 3/16 | 100 | 10 | 30 | 0.88 |
| 1/8 | 1/4 | 100 | 20 | 60 | 2.00 |
| 1/8 | 5/16 | 100 | 25 | 75 | 3.32 |
| 1/8 | 3/8 | 100 | 28 | 84 | 4.92 |
| 5/32 | 9/32 | 100 | 20 | 60 | 2.14 |
| 5/32 | 11/32 | 100 | 20 | 60 | 3.64 |
| 3/16 | 1/4 | 100 | 5 | 15 | 1.22 |
| 3/16 | 5/16 | 100 | 20 | 60 | 2.64 |
| 3/16 | 3/8 | 100 | 20 | 60 | 4.12 |
| 3/16 | 7/16 | 100 | 15 | 45 | 6.14 |
| 1/4 | 5/16 | 100 | 10 | 30 | 1.50 |
| 1/4 | 3/8 | 100 | 5 | 15 | 3.34 |
| 1/4 | 7/16 | 100 | 20 | 60 | 5.12 |
| 1/4 | 1/2 | 100 | 15 | 45 | 7.50 |
| 5/16 | 7/16 | 100 | 10 | 30 | 3.66 |
| 5/16 | 1/2 | 100 | 10 | 30 | 6.30 |
| 3/8 | 1/2 | 100 | 10 | 30 | 4.32 |
| 3/8 | 9/16 | 100 | 10 | 30 | 7.15 |
| 3/8 | 5/8 | 100 | 10 | 30 | 10.16 |
| 3/8 | 3/4 | 100 | 15 | 45 | 16.72 |
| 7/16 | 5/8 | 100 | 10 | 30 | 7.70 |
| 1/2 | 5/8 | 100 | 5 | 15 | 5.84 |
| 1/2 | 11/16 | 100 | 5 | 15 | 9.50 |
| 1/2 | 3/4 | 100 | 10 | 30 | 13.12 |
| 1/2 | 7/8 | 100 | 10 | 30 | 15.00 |
| 5/8 | 3/4 | 100 | 5 | 15 | 6.86 |
| 5/8 | 13/16 | 100 | 5 | 15 | 11.34 |
| 5/8 | 7/8 | 100 | 5 | 15 | 13.38 |
| 5/8 | 1 | 100 | 10 | 30 | 22.86 |
| 3/4 | 1 | 50 | 5 | 15 | 17.64 |
| 3/4 | 1-1/8 | 50 | 10 | 30 | 26.56 |
Insulated Heavy Duty 1/8" Wall Silicone Tubing For Flow - 6 Feet
SKU: BVVINSTB04
$70.00
You will earn 70 points for this purchase.✔ Made in the USA
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
