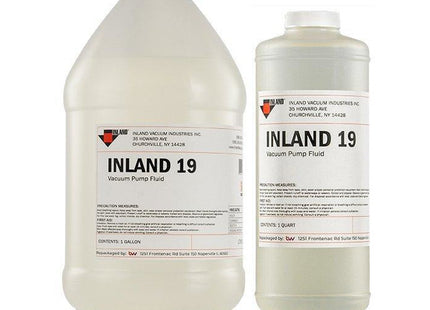

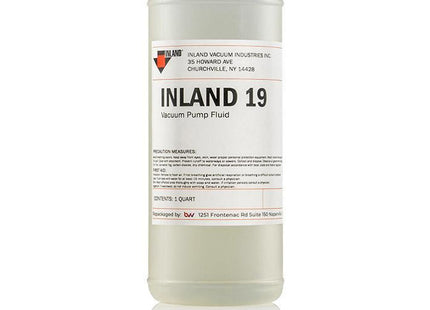

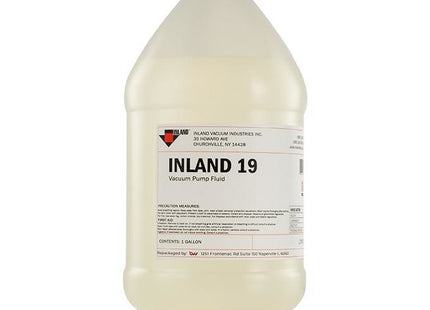

Inland 19 Vacuum Pump Oil
Inland 19 is Inland Vacuum’s recommended general-purpose hydrocarbon fluid for mechanical vacuum pumps used in non-corrosive applications. The manufacturing process of Inland 19 includes molecular distillation, which removes light end fractions present in the fluid and gives it the desired properties: lower vapor pressures, reduced backstreaming, and longer fluid life. As a result, it can be used within the same applications as more expensive diffusion pump oils which would otherwise be contaminated by a vacuum oil of lower grade.
A durable, long-lasting mechanical pump fluid, Inland 19 is cost-effective in vacuum applications such as mass spectrometers, electron microscopes, thin-film sputtering, UHV systems, and freeze dry systems. Proper use of this oil effects reduced maintenance costs, improved pumping cycles, and a cleaner vacuum system.
Inland 19 MSDS
Properties:
Areas of Application:
- Other non-corrosive general applications
Specifications |
Inland 19 |
Vapor Pressure at 25ºC (torr) |
1x10-5
|
Boiling Point at .01 torr (ºC) |
112 |
Viscosity at 40ºC (cSt) |
55 |
Pour Point (ºC) |
-15 |
Flash Point (ºC) |
213 |
Fire Point (ºC) |
244 |
Density at 25ºC (g/ml) |
0.87 |
