Ice Water Extraction Kit

Description

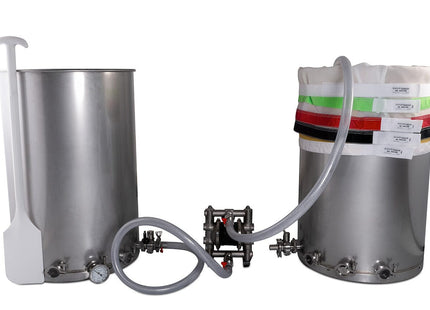

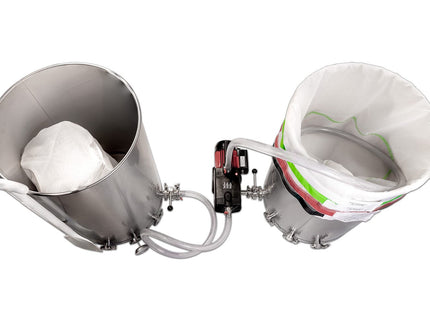

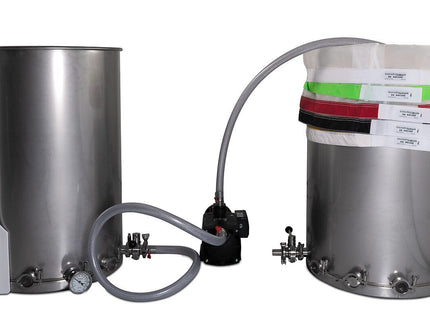

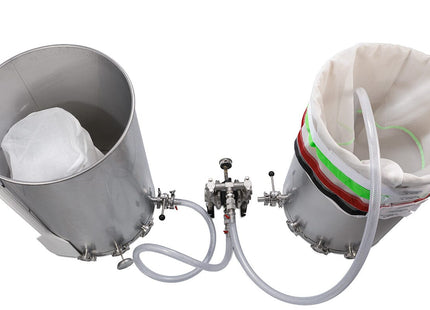

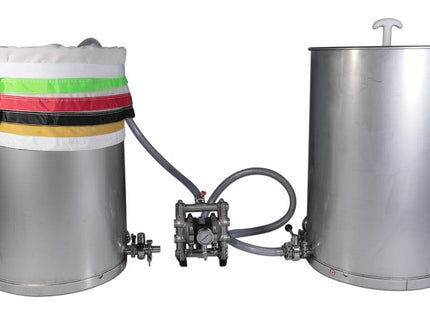

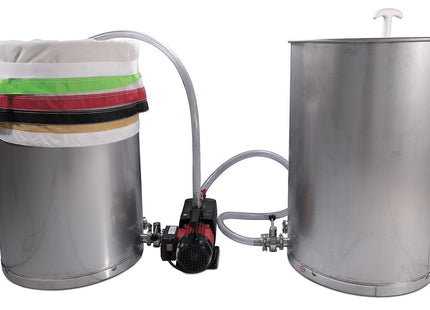

BVV's Ice Water Extraction Kit

Designed with our solventless extractors in mind BVV's Ice Water Extraction Kit was engineered for durability and ease of use. Comprised of our sanitary grade seamless 55-gallon 304 stainless steel washing vessels. Our easy drain barrels come complete with  4X 1.5" Triclamp drains mounted as low as possible for effortless draining of its 55-gallon volume capacity. Perfect for medium to large-scale ice water extraction labs this kit comes complete with industry-leading Boldtbags Lock-top Full mesh stacker grading bags and a 20lb capacity Large BoldtBags Open Top Washing Bag for unbridled durability and ease of use. The ice Water Extraction Kit comes with your choice of either a low shear Multi-stage pump ideal for gravity draining or a hash-safe pneumatically driven diaphragm pump.

Processing Power

  • Material Capacity Per Batch: 20-30LB
  • Water Capacity: 55 Gallons
  • Cycle Time: 60-90 Minutes
  • Daily Extraction Capacity: Up to 60 lb, per 8-hour shift

Specifications

  • 2X 23"x36" 55-gallon Stainless Steel Washing Vessel
  • 4X 1.5" Tri-clamp ports
  • 4X BoldtBags Lock-top Full mesh stacker grading bags (190um(Green),160um(Red),90um(Black),45um(White))
  • 1X Large Boltd Open Top Wash Bag (20lb Capacity)
  • 1X Food grade PTFE mixing paddle

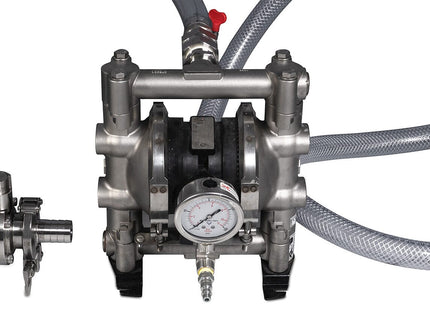

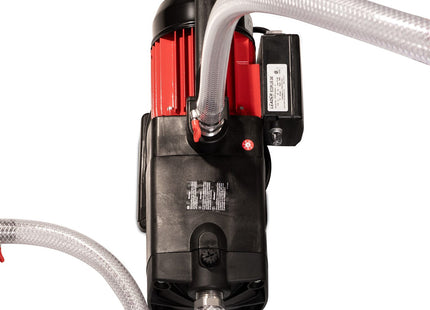

  • 1X 27 GPM Low shear Multistage pump or 16 GPM hash-safe pneumatically driven diaphragm pump.
  • 1X 25Ft 1" Clear Braided PVC Hose
  • 1X 1.5" Tri-clamp Thermometer (0-220F/0-100C)
  • 4X Polycarbonate Sight glasses
  • 2X 1.5" Tri-Clamp Butterfly valves with 1" barbed fittings
Performance
  • Seamless sanitary construction
  • Low-mounted drain ports for complete draining
  • Tri-Clamp Thermometer for water temperature measurement
  • Polycarbonate sight glasses for visual monitoring of the process
  • Open Top Wash Bag for easy loading & unloading
  • Low-shear force Multistage pump for gentle water transfer or a hash safe pneumatically driven diaphragm pump

Ice Water Extraction Kit

Product form

SKU: IWEK

$5,100.00 You will earn 5,100 points for this purchase.

  • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
  • Join Loyalty+ and save 10-15% *Select items

Price Match

    This is a Sample Product Title
    Was $200.00 Now $100.00
